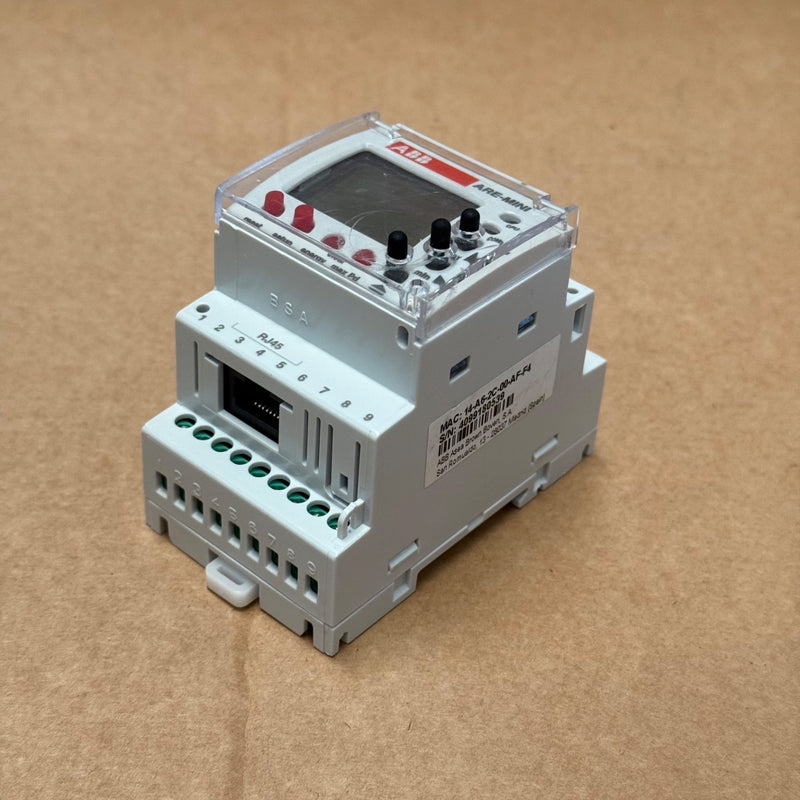

ABB – ARE‑MINI‑ITF‑ETHERNET‑C2 – Compact DIN‑Rail 3‑Phase Power Analyzer

The ARE‑MINI‑ITF‑ETHERNET‑C2 by ABB is a compact, DIN-rail mounted power analyzer offering precise energy management in industrial control panels. Equipped with ABB’s ITF galactic-isolated inputs, it ensures safety and accuracy in high-voltage systems. Featuring an integrated RJ45 Ethernet interface for Modbus/TCP communication, programmable outputs, and current measurement flexibility (/5 A, /1 A or 250 mA), this module brings high-end power monitoring to confined spaces.

 Key Specifications

• Model: ARE‑MINI‑ITF‑ETHERNET‑C2 – Ethernet Modbus/TCP version of ABB’s ARE series with ITF isolation ()

• Input Isolation: ITF galvanic isolation ensures measurement safety in high-voltage environments

• Current Input: Flexible /5 A, /1 A, or 250 mA CT support

• Voltage Input Range: Up to 300 V phase-to-neutral; supports standard industrial networks

• Ethernet Communication: RJ45 connector; supports Modbus/TCP for seamless integration

• Outputs: Two NPN pulse outputs for energy counter or alarm control

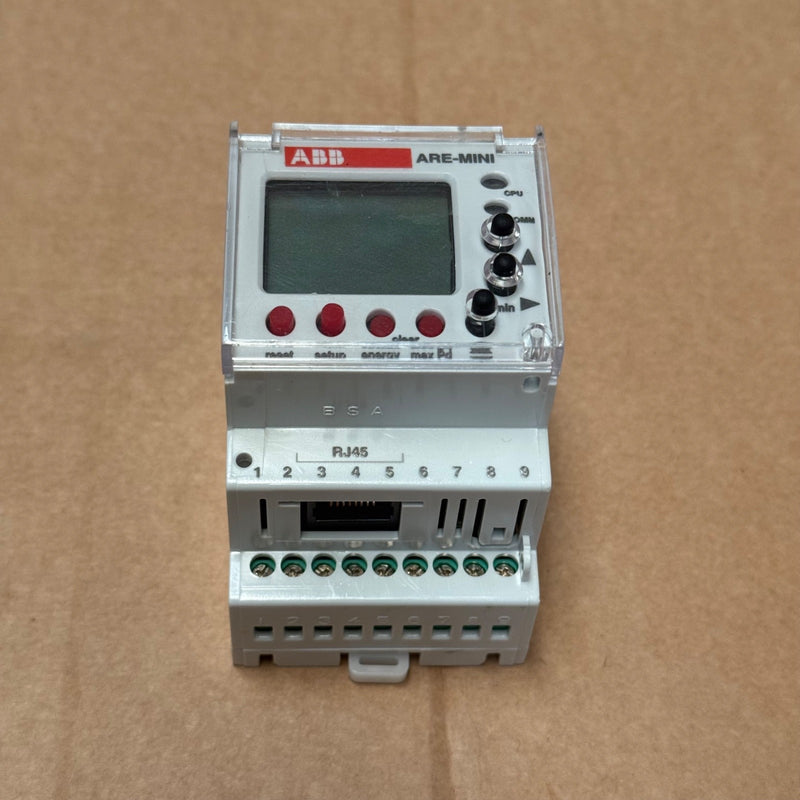

• Display & Controls: Compact display with scroll buttons; fits within just 3 DIN modules ()

• Power Supply: 230 V AC at ~3 VA consumption

• Dimensions: Approx. 52 × 85 × 75 mm; ~0.18 kg ()
