ABB ATS021 – Automatic Transfer Switch Controller
The ABB ATS021 is an Automatic Transfer Switch (ATS) controller designed to manage the seamless transfer between two power sources, such as a primary utility line and an emergency generator or backup line. It ensures continuous power supply by monitoring voltage and frequency parameters and automatically switching to the alternate source when anomalies are detected.
🔧 Key Features
Dual Power Source Monitoring: Continuously monitors both primary (LN1) and secondary (LN2) power lines for voltage and frequency irregularities.
Automatic and Manual Modes: Offers both automatic switching based on predefined parameters and manual control via front panel buttons.
Configurable Parameters: Adjustable voltage thresholds (±10%, ±15%, ±20%, ±30%) and time delays (TS, TBS, TGOFF) to suit specific application needs.
LED Indicators: Front panel LEDs provide real-time status of power lines, circuit breakers, operational mode, and alarms.
Test Functions: Built-in test modes allow simulation of transfer scenarios to verify system functionality without actual power source interruption.

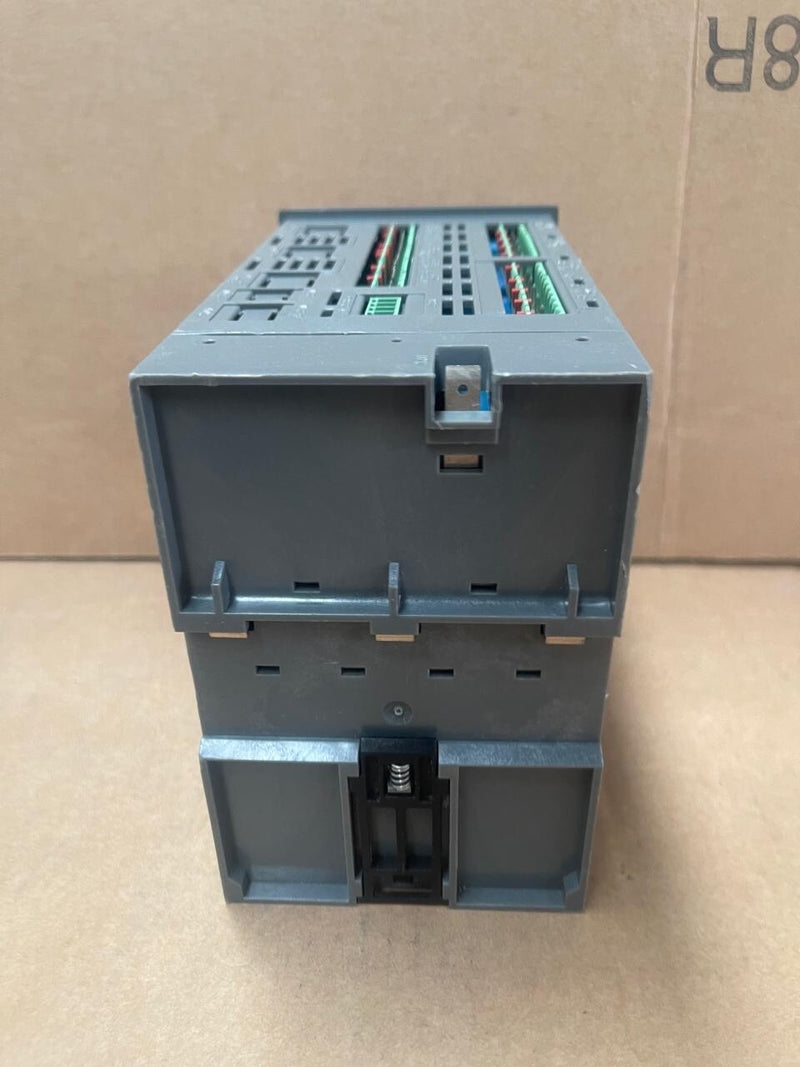

Compact Design: DIN rail or door-mounted installation options facilitate integration into various control panels.
⚙️ Technical Specifications

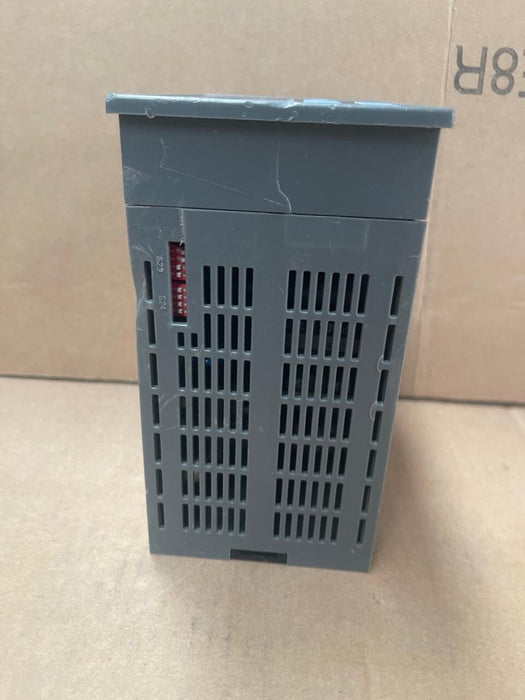

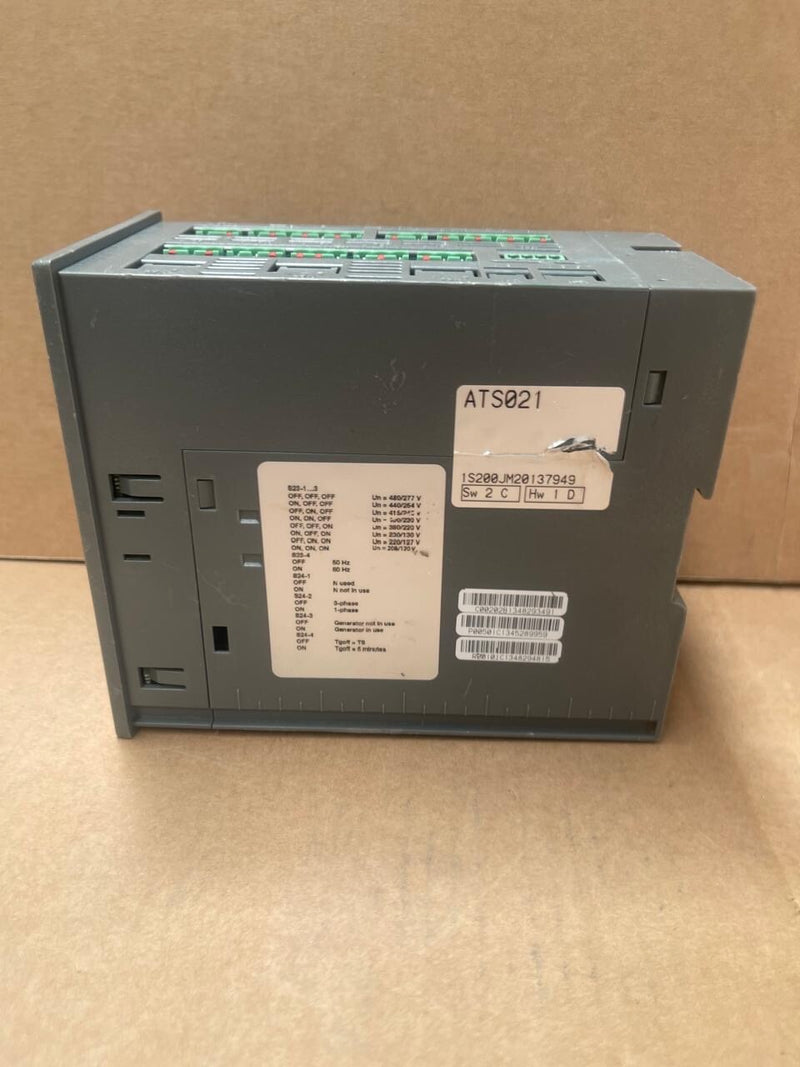

Rated Voltage (Un): Configurable via DIP switches for 208/120V, 220/127V, 230/130V, 380/220V, 400/230V, 415/240V, 440/254V, 480/277V.
Frequency: 50 Hz or 60 Hz, selectable via DIP switch.
System Compatibility: Supports single-phase, three-phase with neutral, and three-phase without neutral systems.
Operating Temperature: -5°C to +55°C.
Power Supply: Powered directly from monitored lines; no auxiliary power required.
Dimensions: Approximately 144 mm (height) x 96 mm (width) x 124 mm (depth).
Weight: Approximately 1.2 kg.

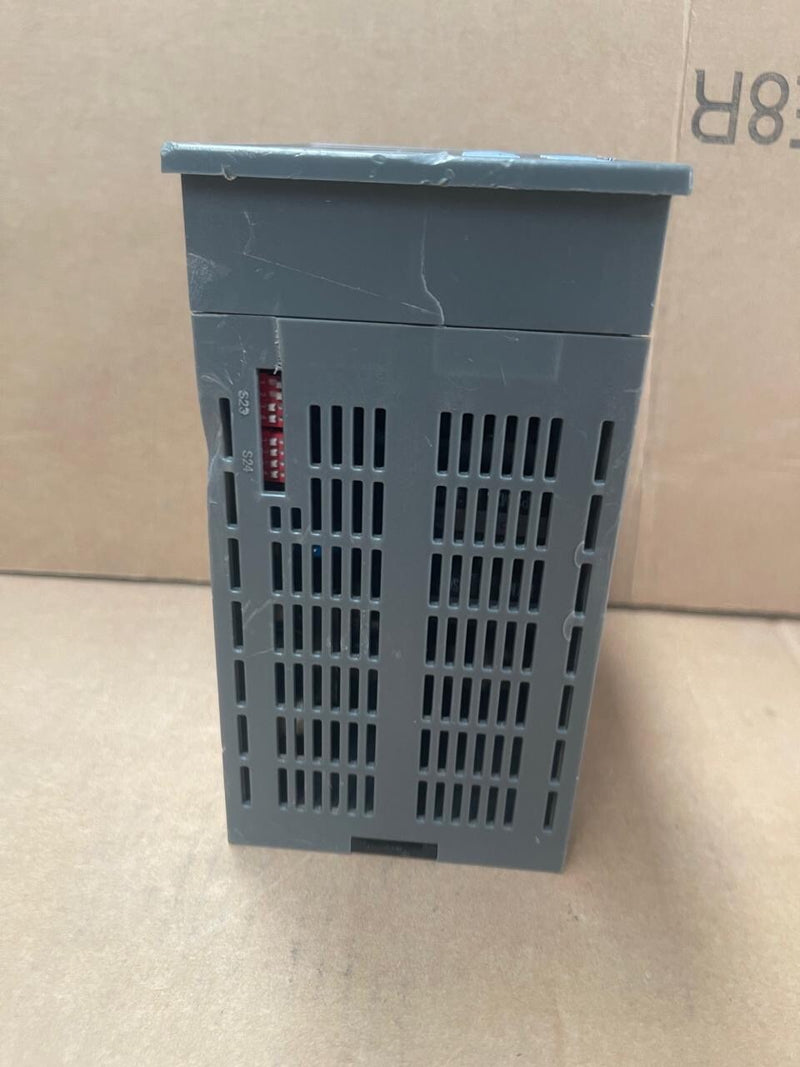

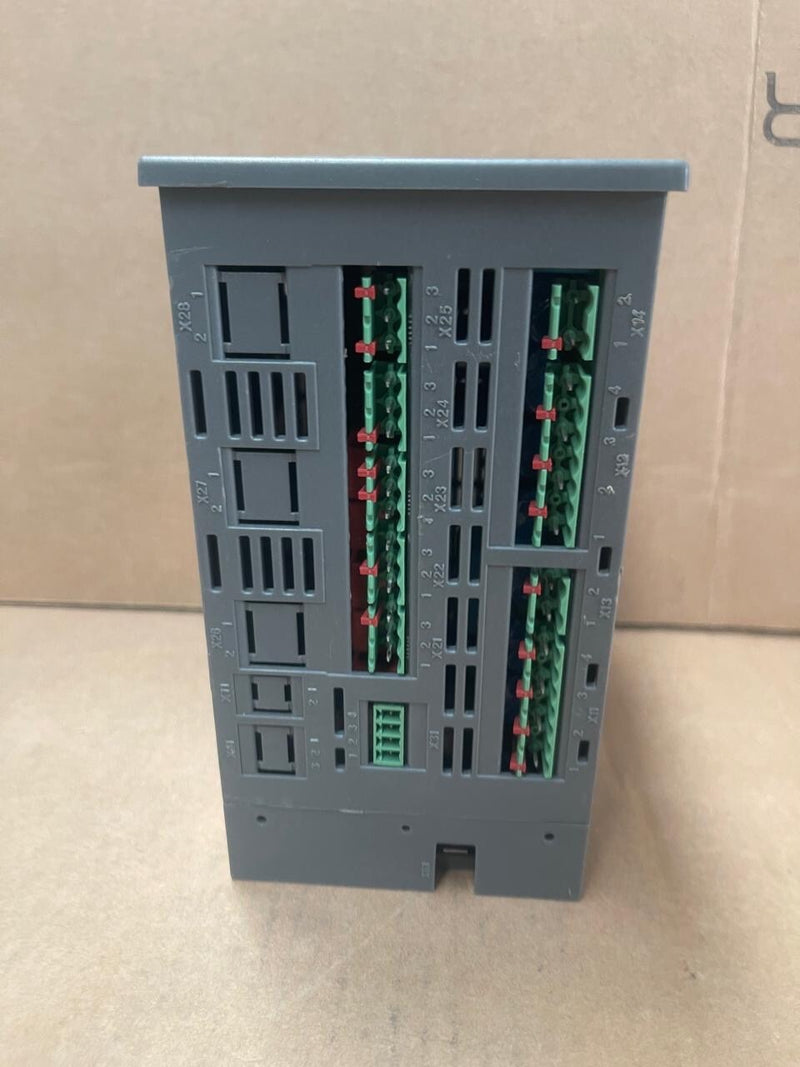

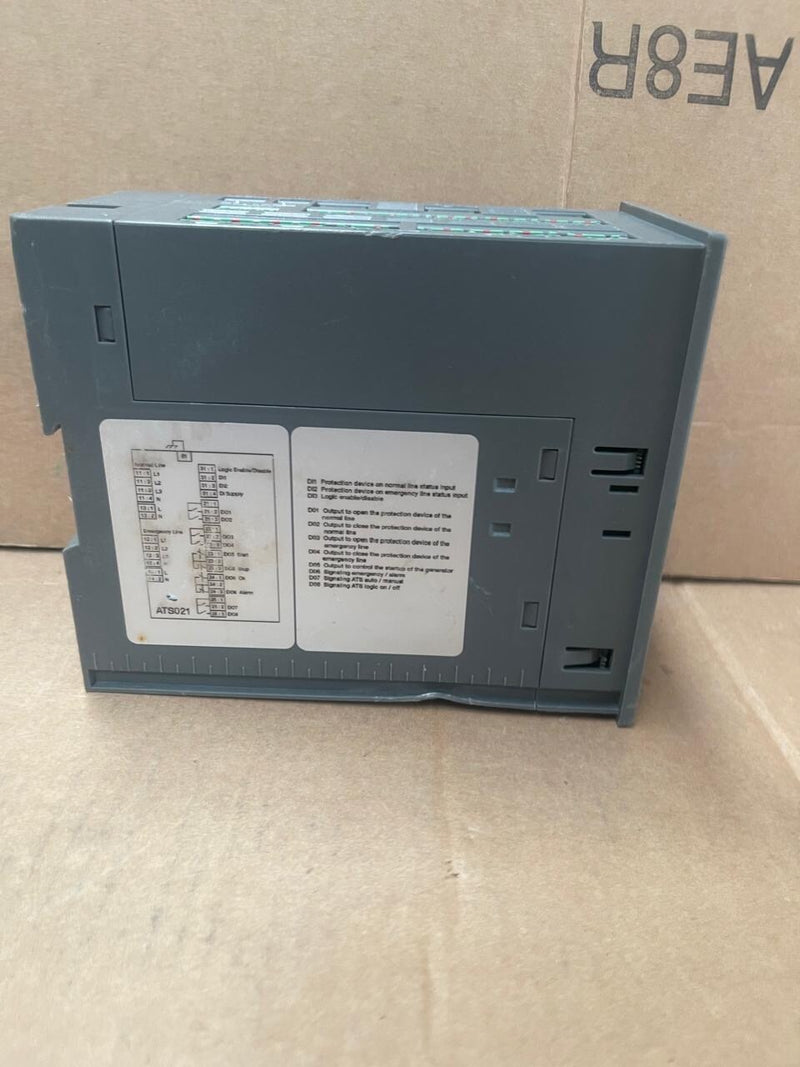

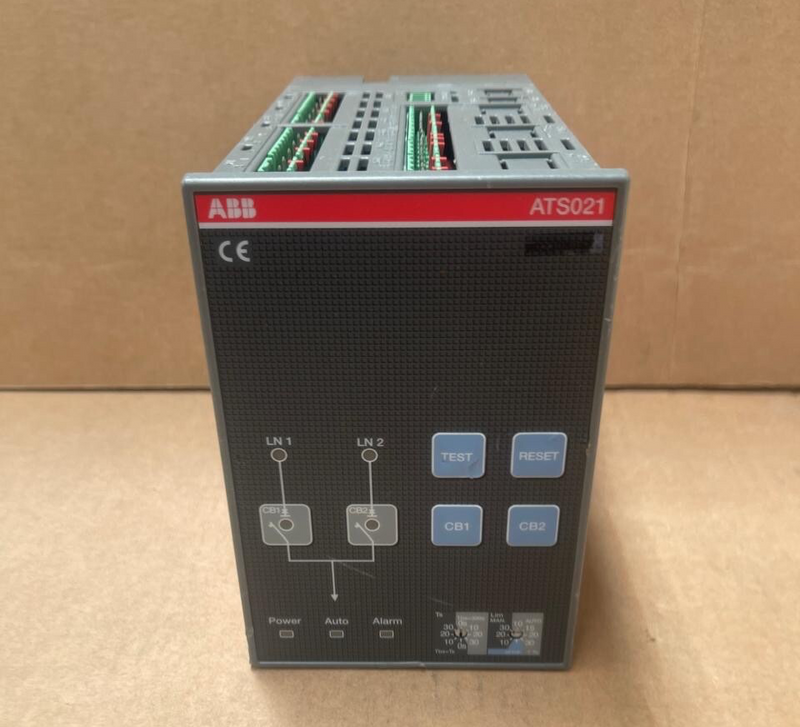

🖥️ Front Panel Overview
The ATS021 features a user-friendly front panel with:
Pushbuttons: For manual control of circuit breakers CB1 and CB2, test initiation, and alarm reset.
Rotary Switches: For setting operational mode, voltage thresholds, and time delays.
LED Indicators: Display status of power lines, circuit breakers, operational mode, and any active alarms.
📘 Applications
Ideal for installations requiring reliable power source switching, including:
Commercial Buildings: Ensuring uninterrupted power for critical systems.
Industrial Facilities: Maintaining continuous operations during power outages.
Data Centers: Protecting sensitive equipment from power disruptions.
Healthcare Facilities: Providing consistent power to essential medical equipment.
