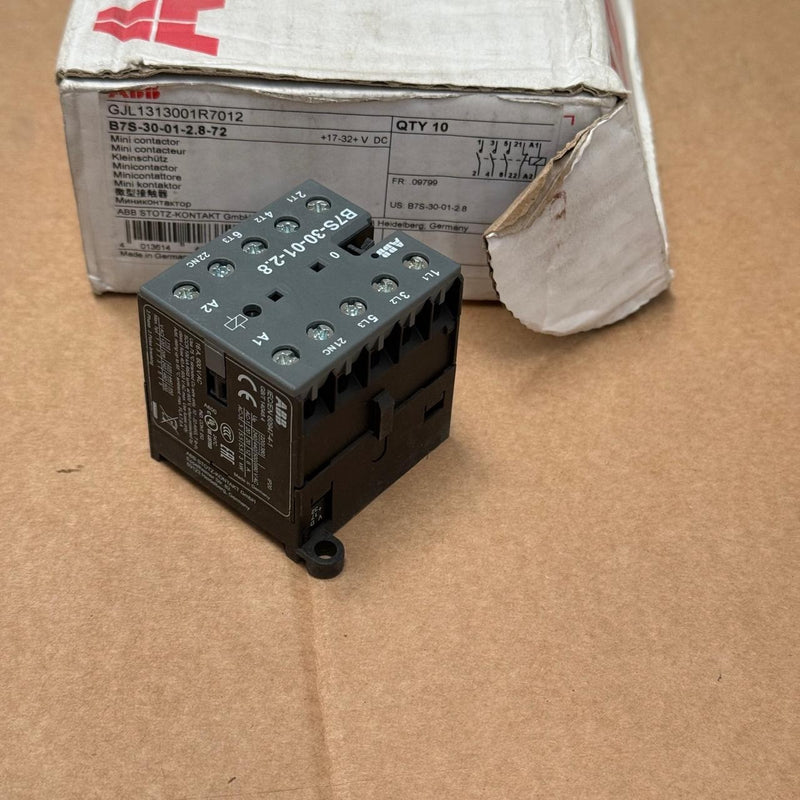

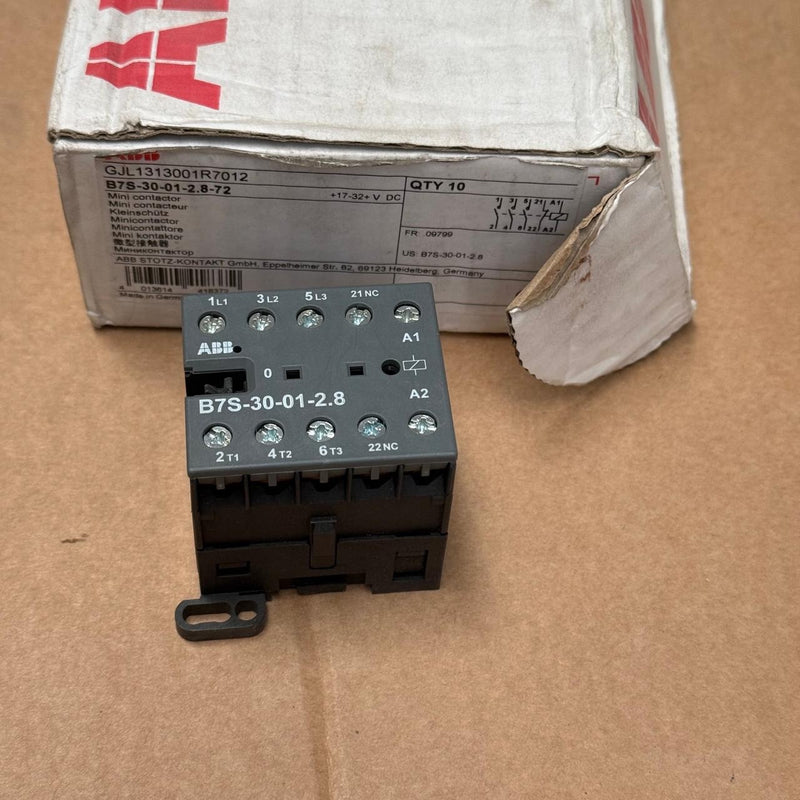

ABB – B7S‑30‑01‑2.8‑72 (GJL1313001R7012) – Mini Contactor, 3‑Pole + 1 NC, 17–32V

The B7S‑30‑01‑2.8‑72 (GJL1313001R7012) is an ABB SPS miniature contactor with a compact 3-pole configuration plus one normally closed auxiliary contact. Ideal for space-sensitive industrial applications, it handles loads up to 5.5 kW and features a low-consumption 17–32 V DC coil—perfect for PLC integration.

Key Features:

• Model / P/N: B7S‑30‑01‑2.8‑72 (GJL1313001R7012)

• Poles & Contacts: 3 main NO poles + 1 NC auxiliary contact ()

• Coil Voltage: 17–32 V DC, 2.8 W coil consumption; noiseless operation, built-in diode and surge suppression

• Contact Ratings (AC‑3): 5.5 kW at 400 V; (AC‑1) 20 A @ 220–240 V; 6 A @ 690 V

• Short‑Circuit Capacity: 96 A for 10 s (40 °C)

• Coil Control Compatibility: Low-current PLC outputs, auto reset capability

• Mounting & Terminals: Screw-type terminals; panel or TH‑35 DIN‑rail mount

• Dimensions: 52.5 × 57.5 × 46.5 mm; weight ~175 g ()

• Durability: 10 million mechanical cycles; IP20 rated terminals; shock & vibration rated

• Certifications: IEC/EN 60947‑1/4, UL, cUL, CB, CCC, BV, DNV, LR, RMRS, EAC; RoHS compliant
