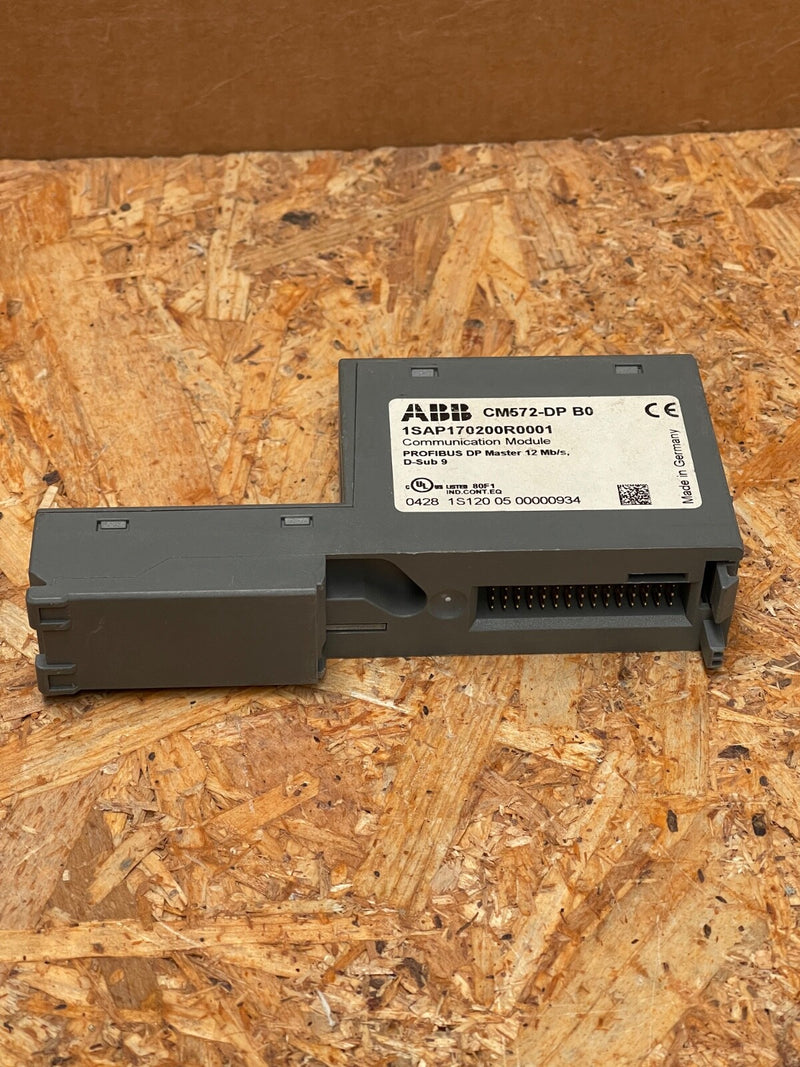

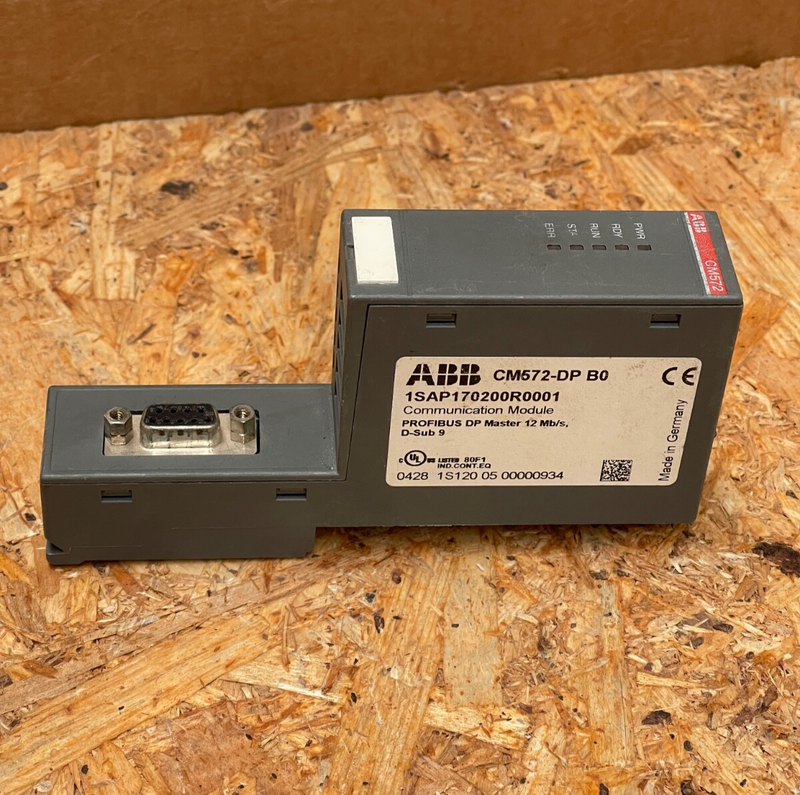

ABB – CM572‑DP B0 – PROFIBUS‑DP Communication Module AC500 PLC (1SAP170200R0001)

The ABB CM572‑DP B0 (P/N 1SAP170200R0001) is a PROFIBUS‑DP master communication module designed for ABB’s AC500 automation platform. Connecting via a 9‑pin D‑Sub interface, it supports DPV0/V1 protocols at speeds up to 12 Mbit/s. With built‑in flash memory and robust IP20 housing, it seamlessly integrates fieldbus communication into distributed control systems.

Key Features:

• Model / Part No.: CM572‑DP B0 (1SAP170200R0001)

• Communication Protocol: PROFIBUS‑DP Master, DPV0/V1 compliant; 9.6 kbit/s to 12 Mbit/s

• Interface: 9‑pin D‑Sub connector; RS‑485 transceiver, potential‑free per IEC 61158/61784

• Module Type: AC500 communication option board; supports “Classic” and XC variants

• Memory: User data stored in Flash EPROM

• Protection Rating: IP20 enclosure, rated for +0–60 °C operation and –40–+70 °C storage

• Dimensions: 62 × 28 × 135 mm; net weight ≈ 0.12 kg, gross ~0.2 kg

• Certifications: CE compliant; complies with PROFIBUS‑DP specifications
