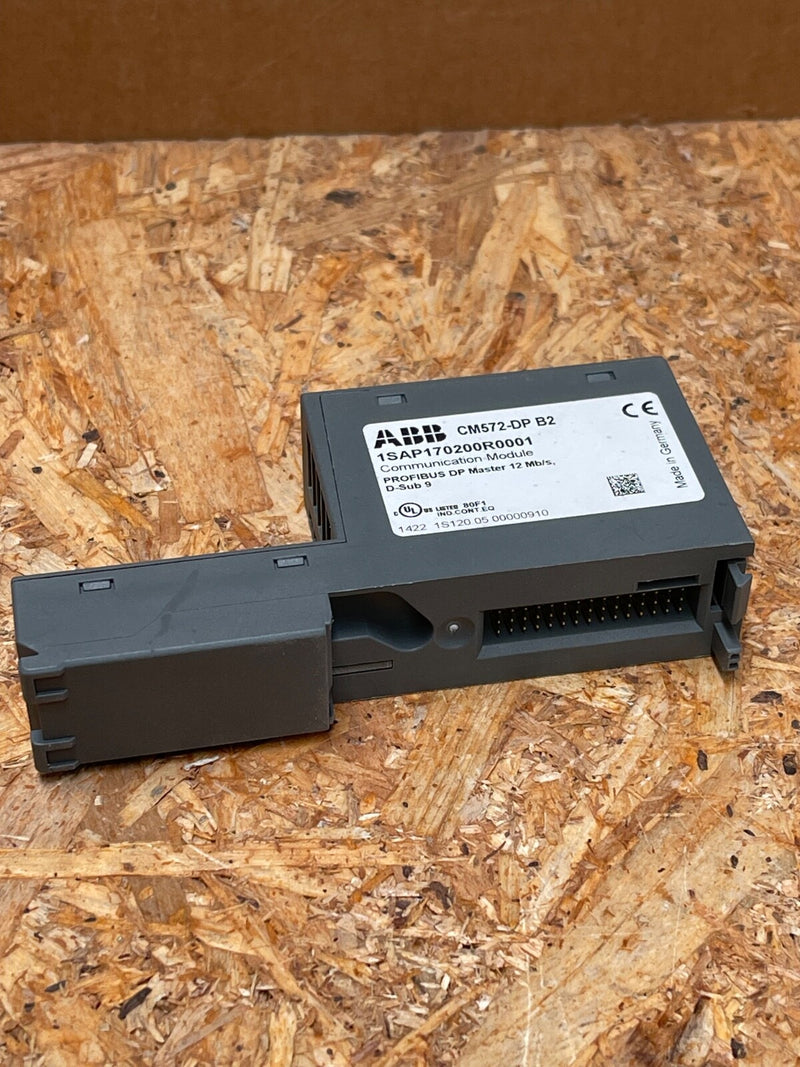

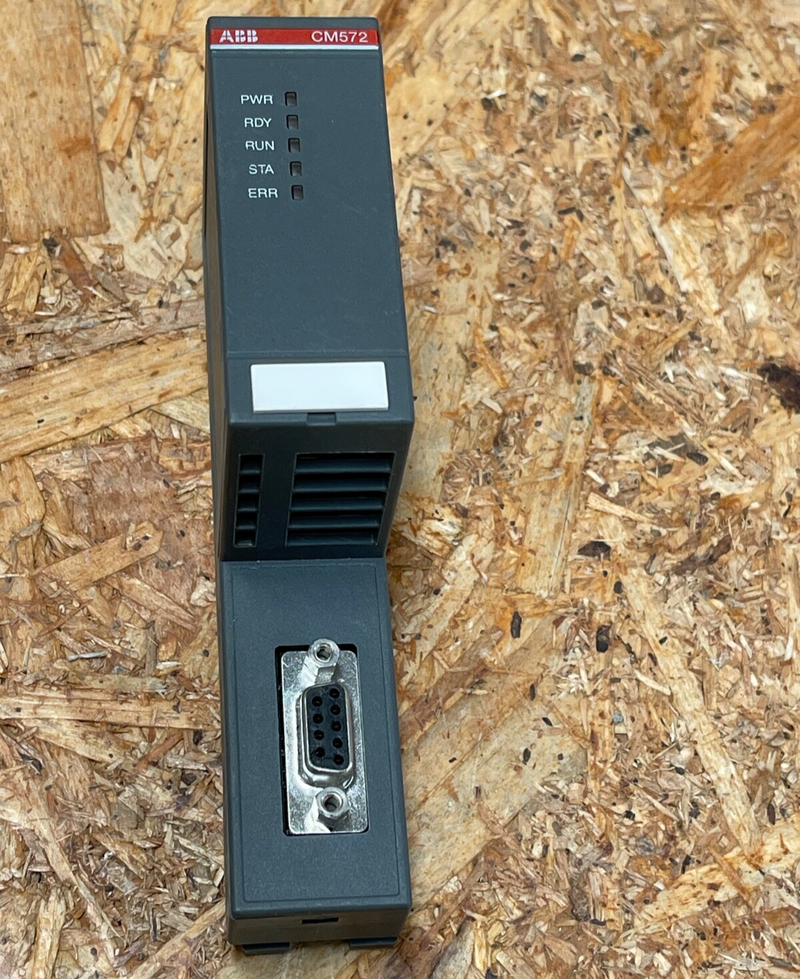

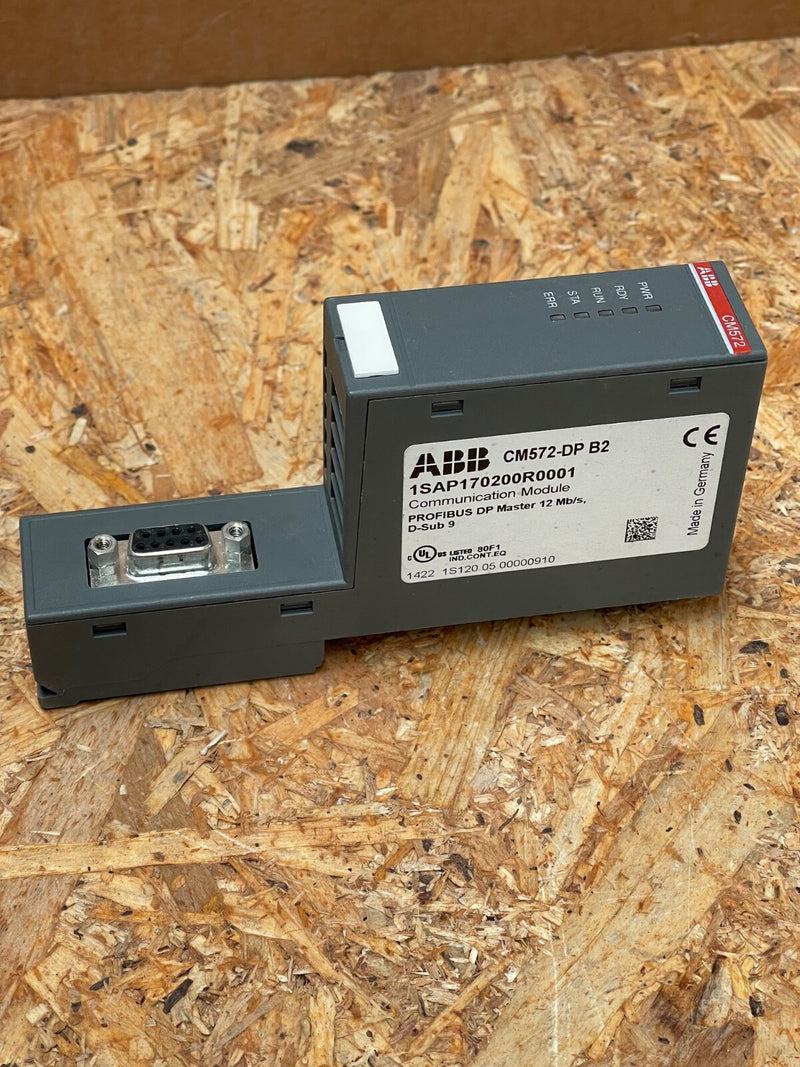

ABB – CM572‑DP B2 – PROFIBUS‑DP Master Module, 1SAP170200R0001

The ABB CM572‑DP B2 (P/N 1SAP170200R0001) is a PROFIBUS‑DP master communication module for ABB’s AC500 PLC range. It supports PROFIBUS DP‑V0/V1 up to 12 Mbit/s via a 9‑pin D‑Sub connector. The “B2” suffix represents a firmware or QC variant; hardware and capabilities remain identical to other CM572 modules. With standard 24 V DC supply and IP20 housing, it’s ideal for distributed control via PROFIBUS in industrial automation applications.

Key Features:

• Model / Part No.: CM572‑DP B2 – 1SAP170200R0001 (Classic)

• Protocol: PROFIBUS‑DP Master (DP‑V0/V1), 9.6 kbit/s–12 Mbit/s

• Interface: RS‑485 via 9‑pin D‑Sub, potential‑free per IEC 61158/61784

• Power: 24 V DC (–15 %/+20 %), ripple < 5 %, reverse-polarity protected

• Dimensions & Weight: 62 × 28 × 135 mm, approx. 0.12–0.2 kg

• Environment: 0–60 °C operation, –40–70 °C storage; IP20 rated
