ABB – CM572‑DP B5 – PROFIBUS‑DP Master Module for AC500 PLC (1SAP170200R0001)

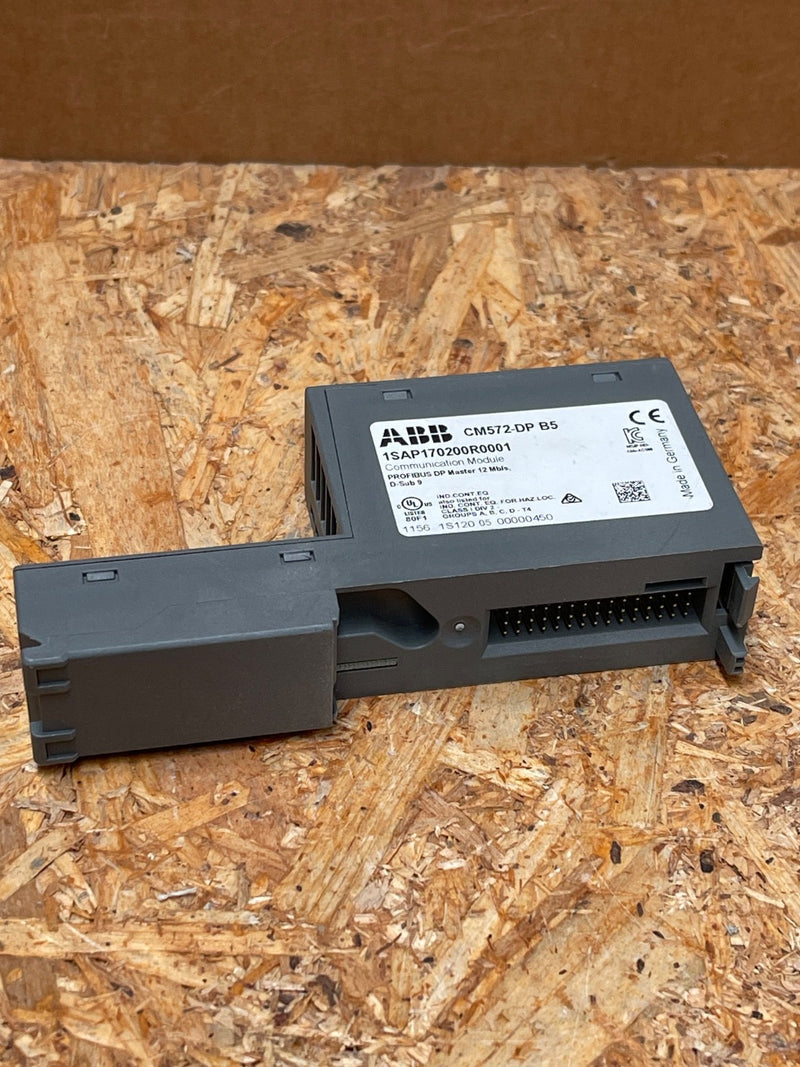

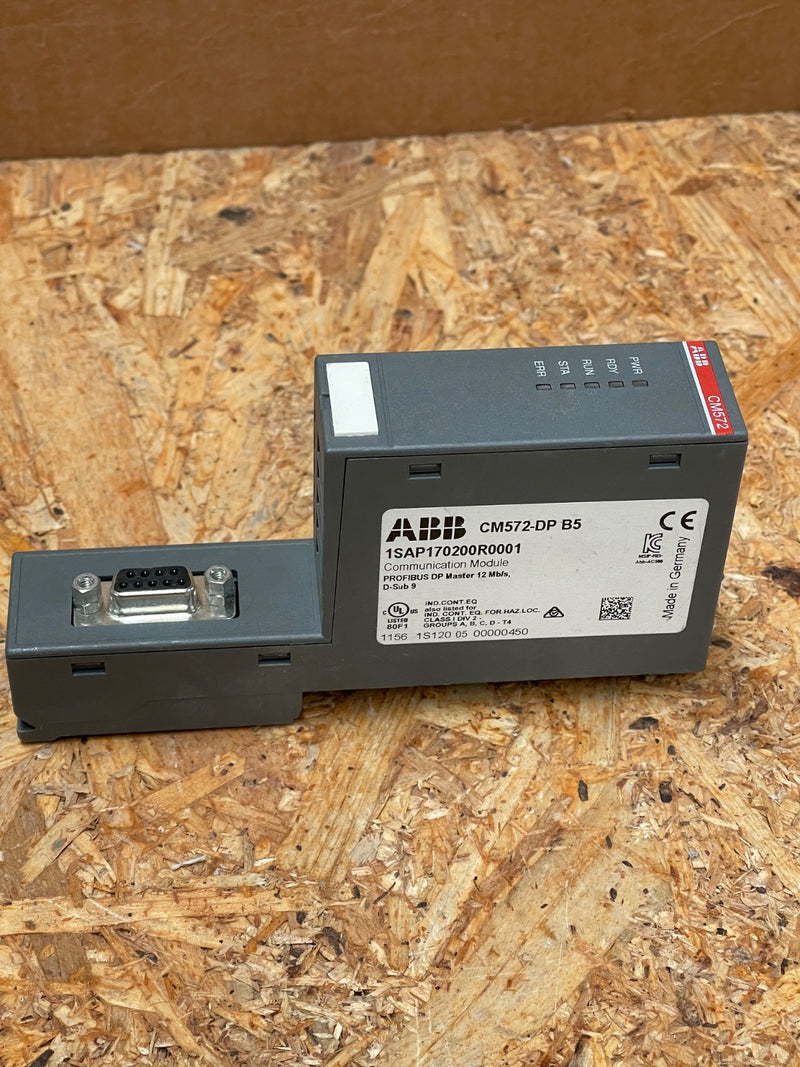

The ABB CM572‑DP B5 is a variant of the CM572‑DP PROFIBUS‑DP communication module (internal part no. 1SAP170200R0001), compatible with ABB’s AC500 PLC line. This module supports PROFIBUS‑DP Master communication (DP‑V0 and V1) at data rates up to 12 Mbit/s. The “B5” suffix typically denotes a specific firmware or QC revision, while retaining identical functionalities and form factor to the standard unit. It integrates via a 9-pin D-sub connector, providing reliable fieldbus connectivity in compact PLC architectures.

Key Features:

• Model / Part No.: CM572‑DP B5 (1SAP 170 200 R0001)

• Communication Protocol: PROFIBUS‑DP Master, supporting DP‑V0 and V1 at 9.6 kbit/s to 12 Mbit/s

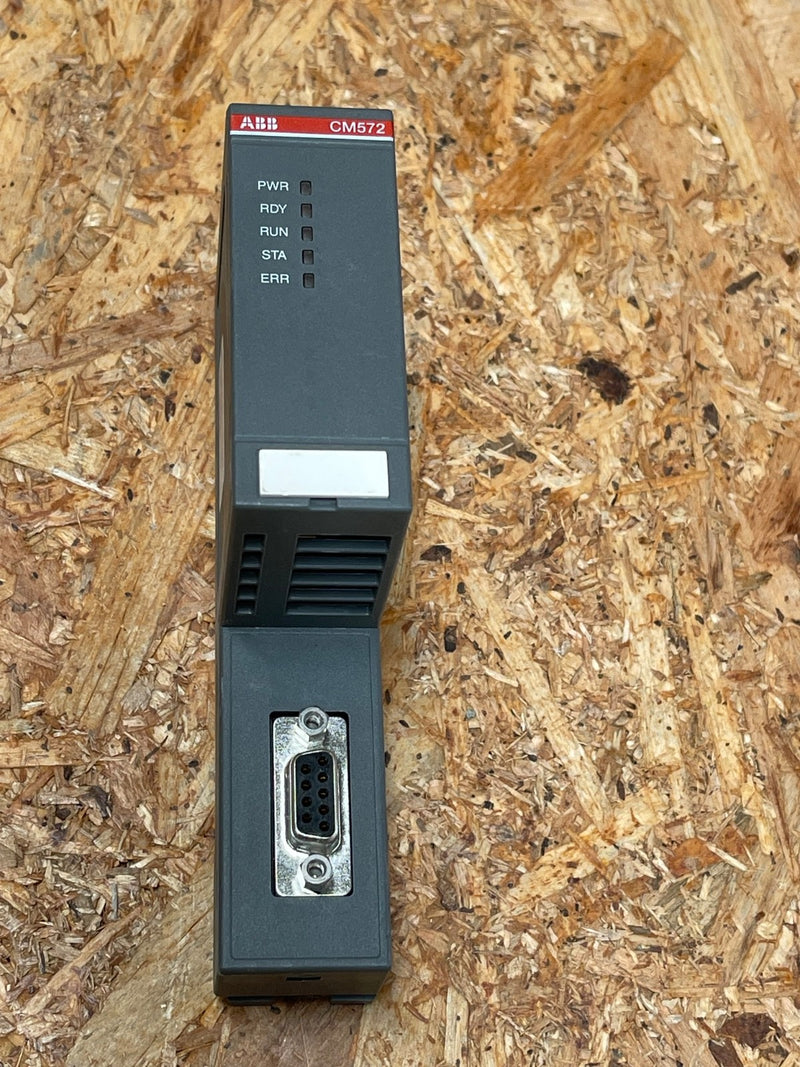

• Interface: RS‑485 over 9‑pin D‑Sub, galvanically isolated per IEC 61158/61784

• Mounting & Compatibility: Plug-in option for “Classic” AC500 PLCs; B5 is a firmware variation with same specifications as B0

• Operating Conditions: 24 V DC supply (–15 /+20 %), typical current draw ~25 mA; IP20 housing rated for 0–60 °C (horizontal mounting) and 0–40 °C (vertical)

• Certifications & Compliance: CE marked; IP20; conforms to PROFIBUS communication standards
