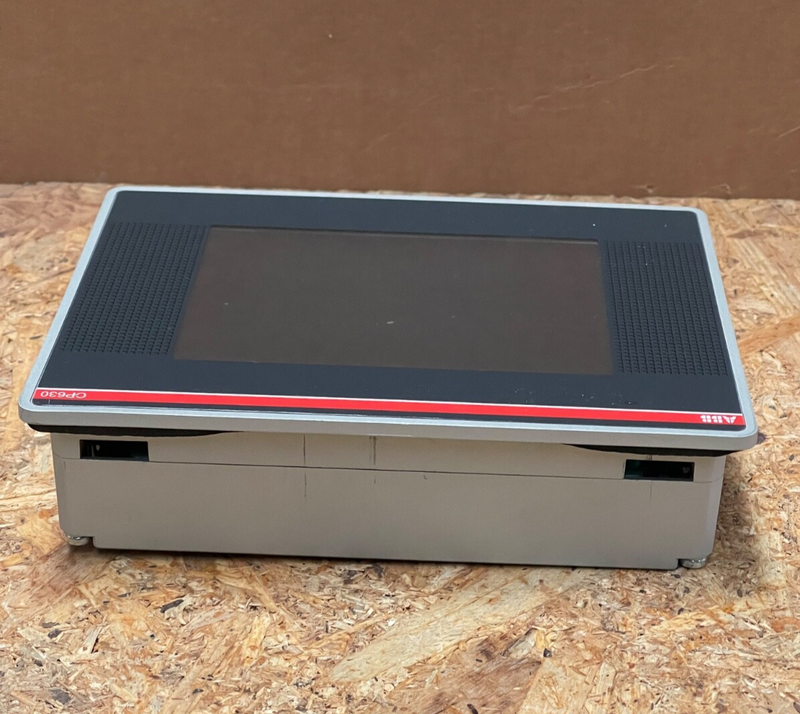

ABB – CP630 A1 – 1SAP530100R0001 – CP600 Series 5.7″ TFT Touchscreen HMI

The ABB CP630 A1 (part number 1SAP530100R0001) is a high-performance 5.7″ IP66-rated touchscreen HMI from the CP600 family, featuring the A1 hardware revision. Designed for industrial panel applications, it delivers robust visuals, flexible connectivity, and Operator interface capabilities powered by PB610 runtime. With its rugged design and onboard expansion, this HMI is ideal for real-world automation needs.

Key Features:

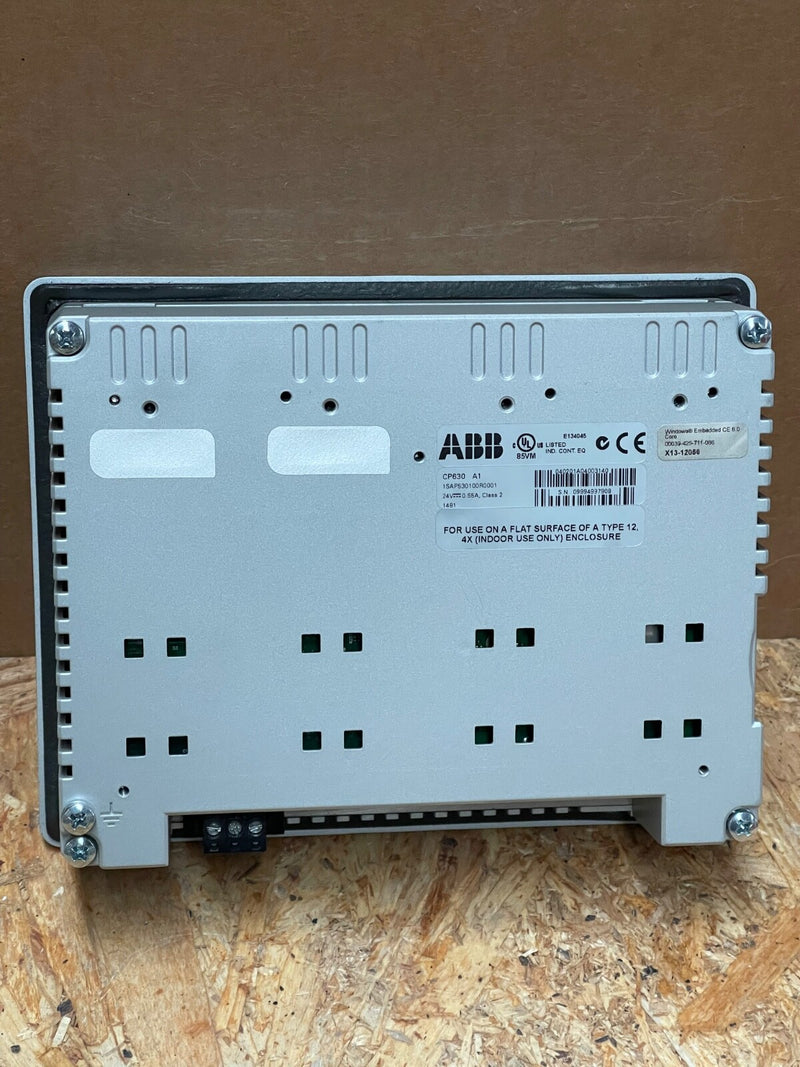

• Model & Variant: CP630 A1 – 1SAP530100R0001

• Display: 5.7″ TFT touchscreen, 320 × 240 resolution, 64 K colors

• Protection: Front bezel IP66, rear housing IP20

• Power: 24 V DC (18–30 V), ~16.8 W typical consumption

• Memory: 128 MB Flash for user data, 256 MB RAM for program + PB610 license

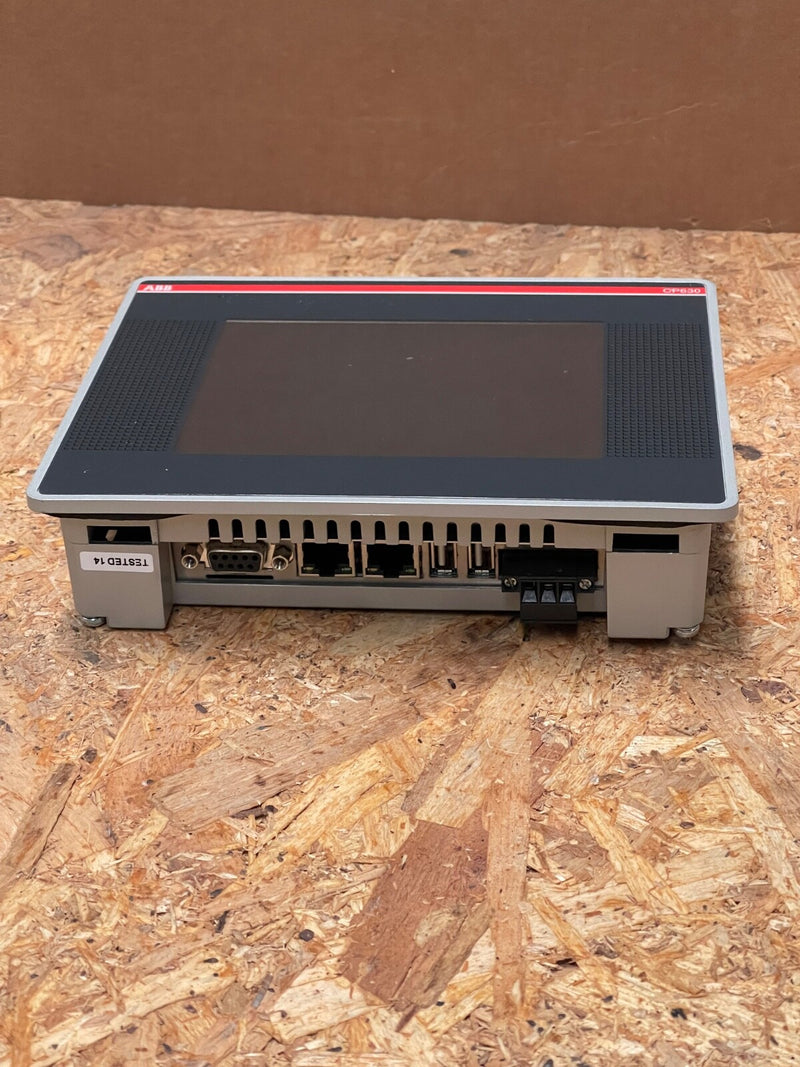

• Communication Ports:

  • 2× 100 Mb Ethernet

  • 1× RS‑232/422/485

  • 2× USB 2.0 Host

  • SD card slot

  • 2× expansion slots

• Operating Conditions: 0–50 °C, with storage down to –20 °C

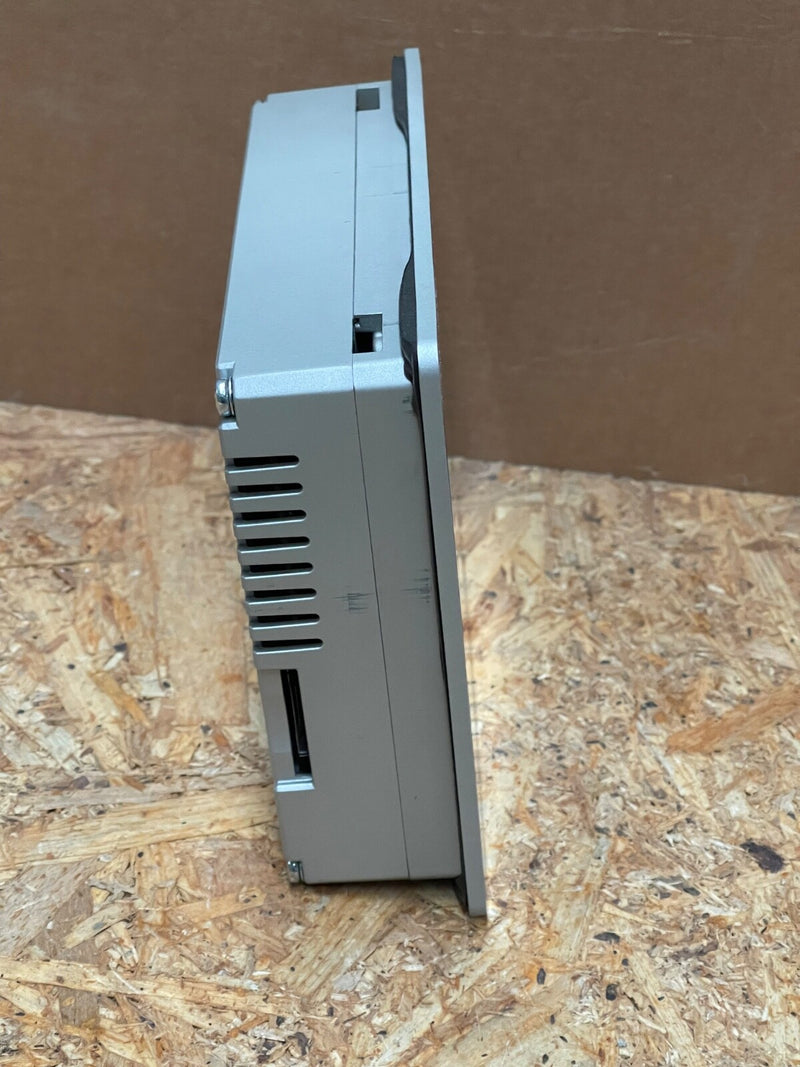

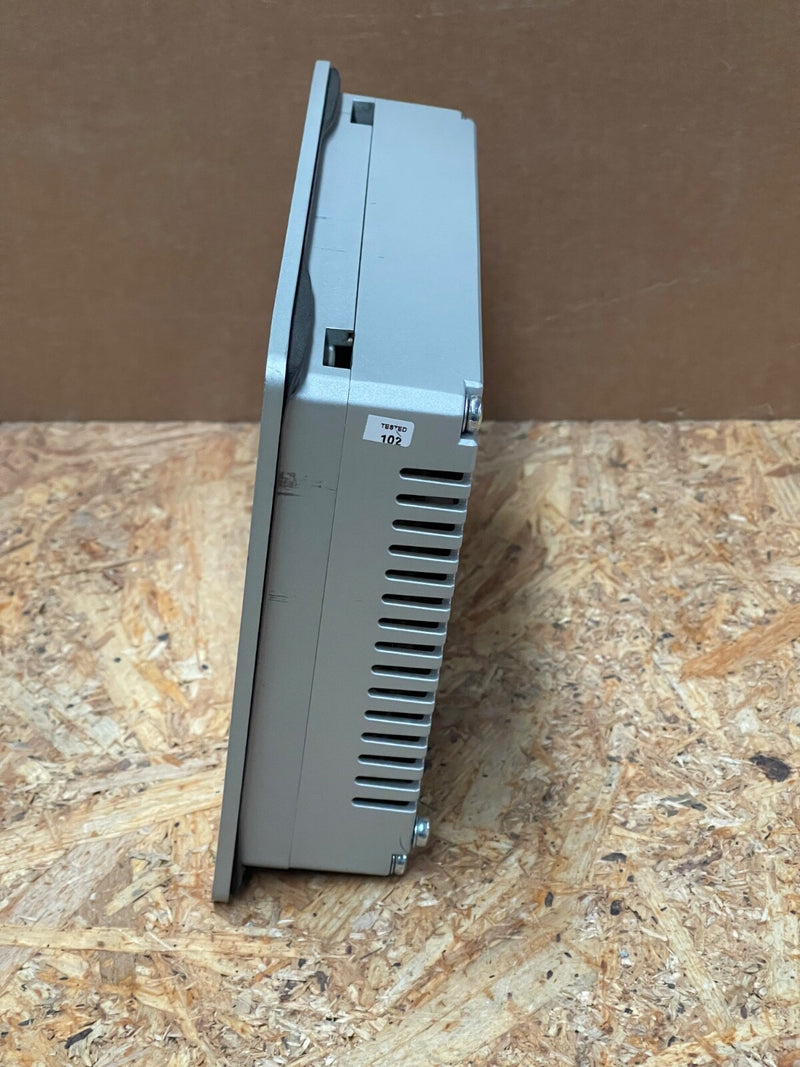

• Housing: Die-cast zinc front bezel, aluminium back; weight approx. 1.15 kg

• Software Support: PB610 Panel Builder runtime included; compatible with Automation Builder suite
