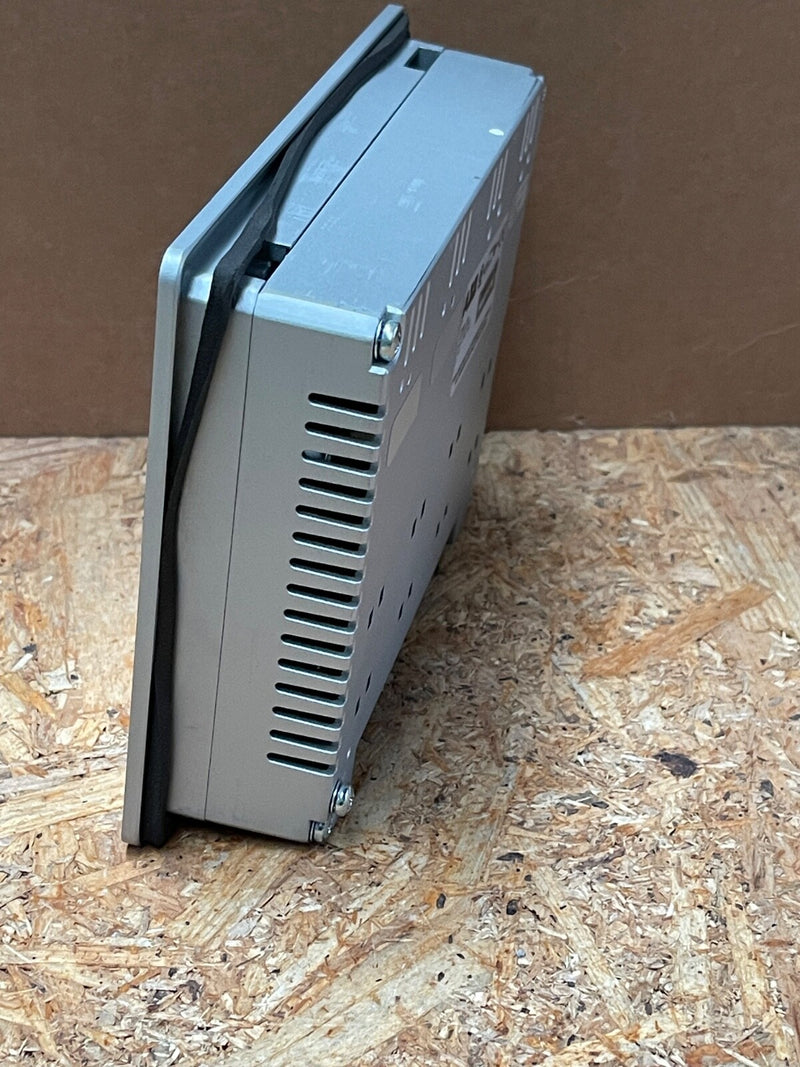

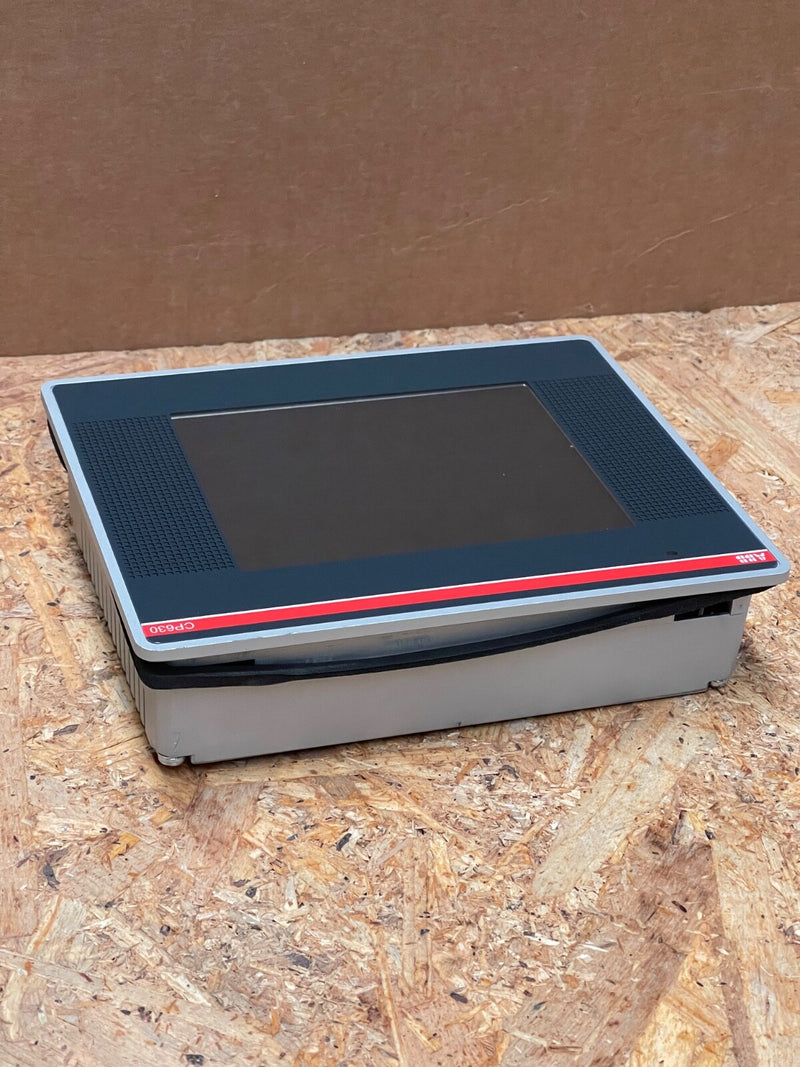

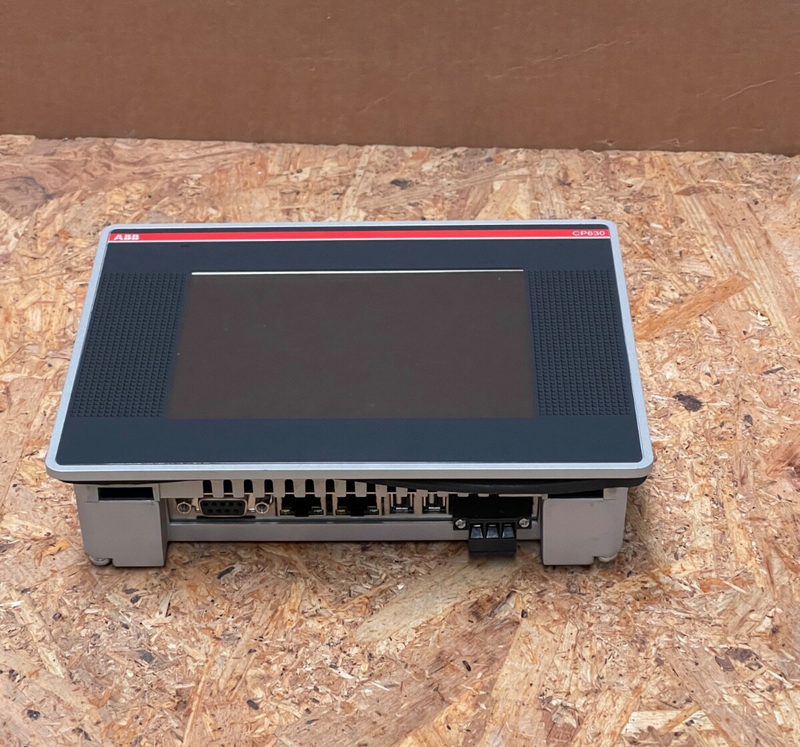

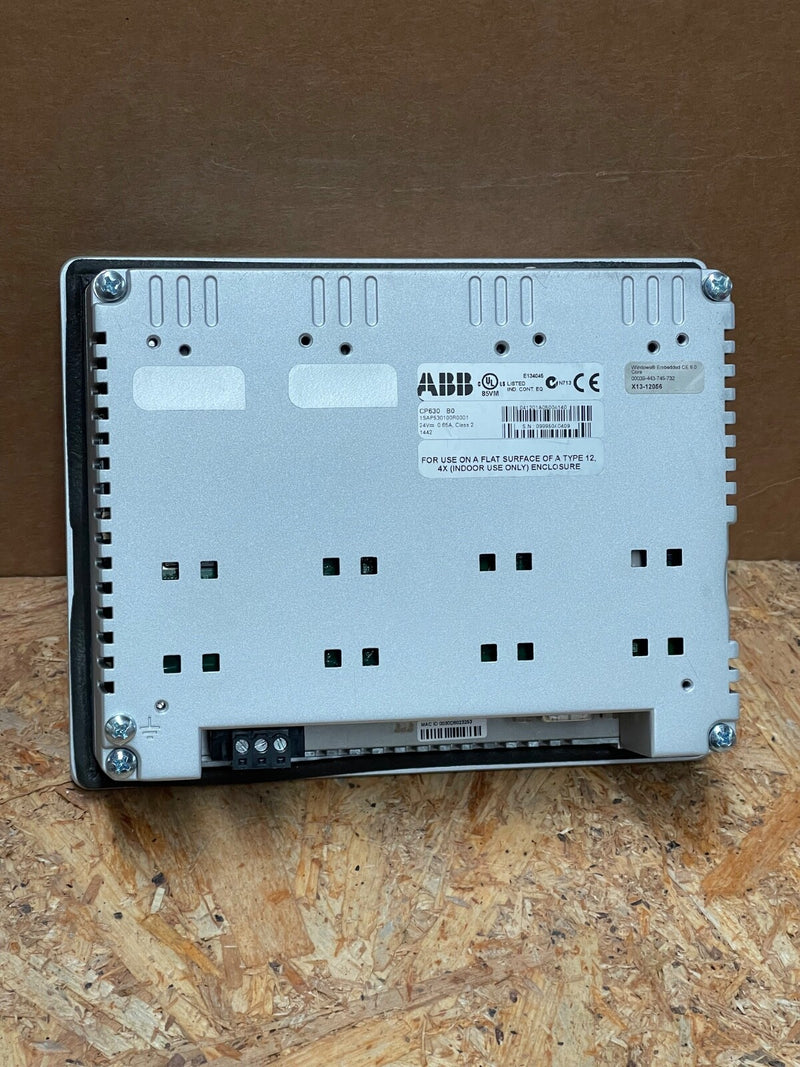

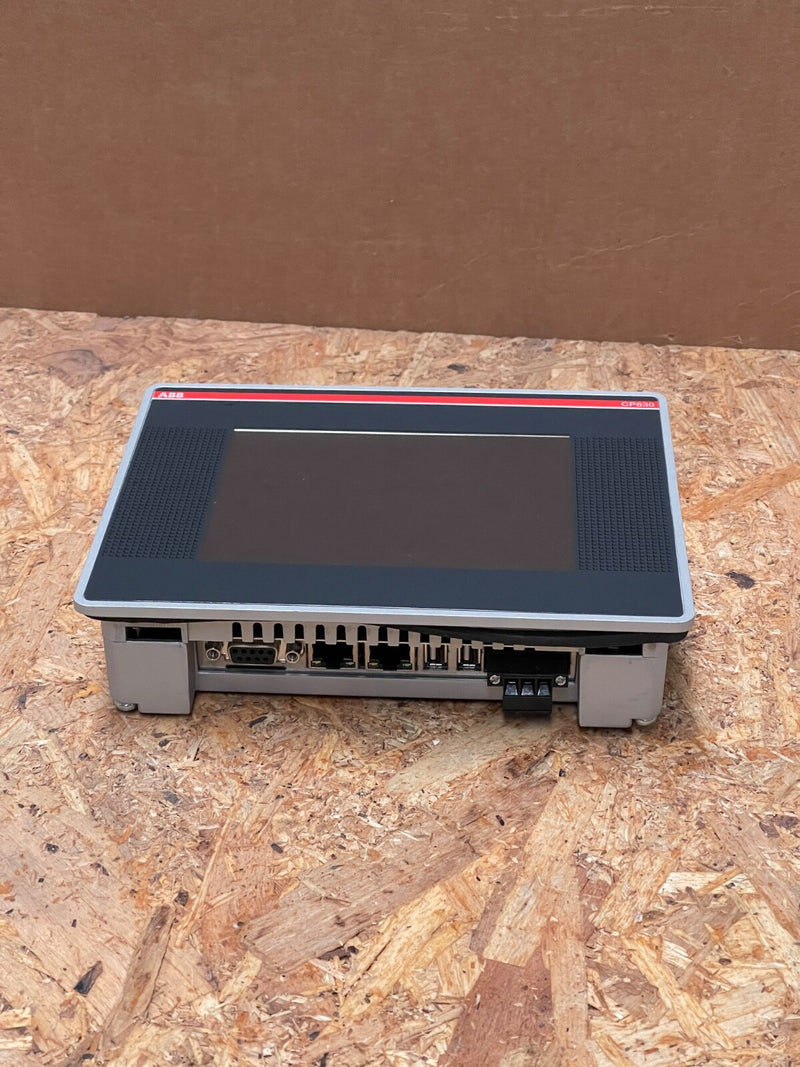

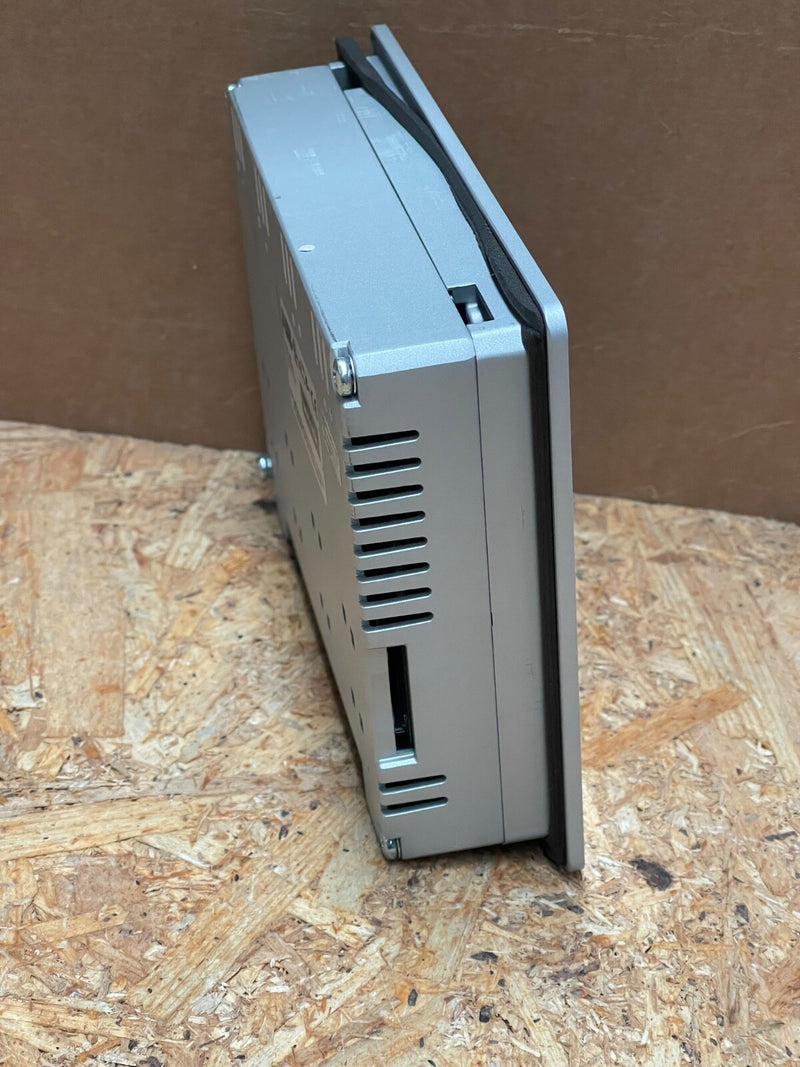

ABB – CP630 B0 – 1SAP530100R0001 – CP600 Series 5.7″ TFT Touchscreen HMI Panel

The ABB CP630 (Part Number 1SAP530100R0001, variant B0) is a rugged IP66-rated human-machine interface (HMI) from the CP600 series. Featuring a durable metal front bezel and touchscreen display, it’s built for operator interaction and automation control in harsh industrial conditions.

Key Features:

• Model / P/N: CP630 B0 – 1SAP530100R0001

• Display: 5.7″ TFT color touchscreen, 320 × 240 resolution, 64 K colors

• Front Protection: IP66, rugged die-cast front housing; rear body rated IP20

• Power Supply: 24 V DC (range 18–30 V DC), ~16.8 W typical consumption

• Memory: 128 MB flash (user data), 256 MB RAM (program)

• Real-Time Clock: Integrated with battery backup

• Communication Ports:

  • 2× Ethernet 100 Mbit

  • 1× RS‑232/422/485

  • 2× USB 2.0 Host

  • 1× SD card slot

  • 2× expansion slots

• Operating Conditions: 0–50 °C ambient; storage –20 to +70 °C

• Certifications: CE, UL/c-UL, cULus, DNV, KCC, CSA, RoHS; rated Class I Div 2, Groups A–D per MSIP

• Software Compatibility: PB610 Panel Builder 600 runtime license included; supports SVG graphics, multilingual interfaces, trends, alarms, recipes
