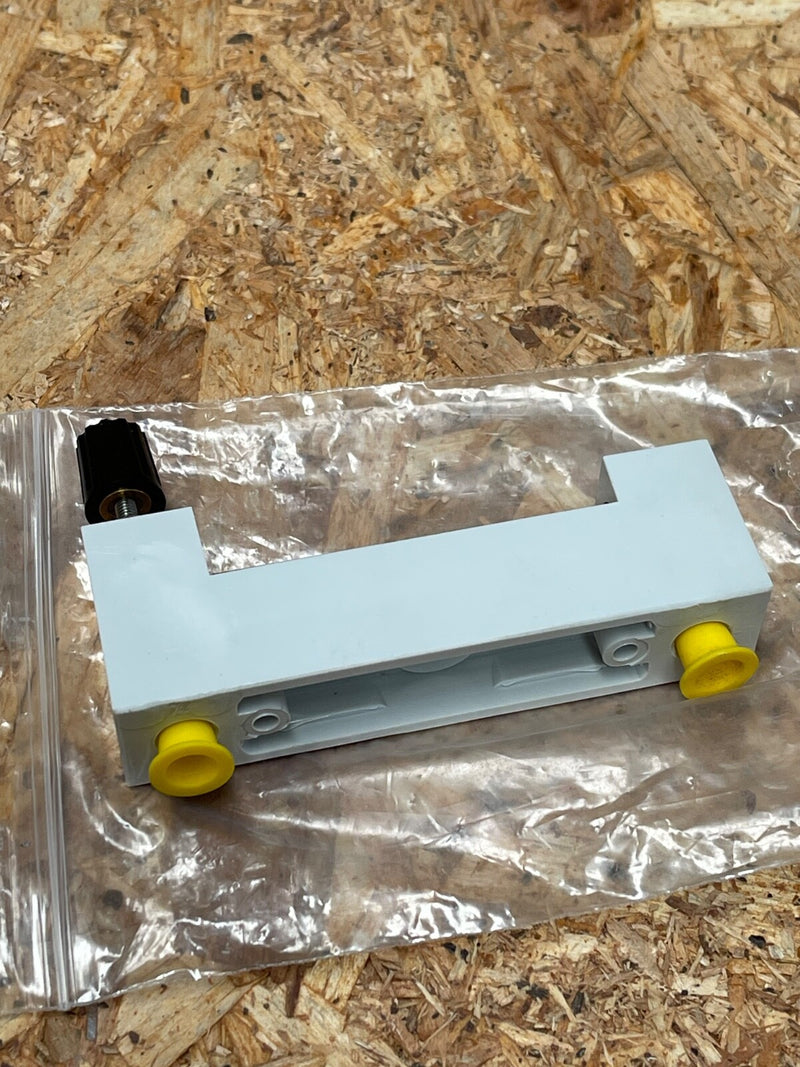

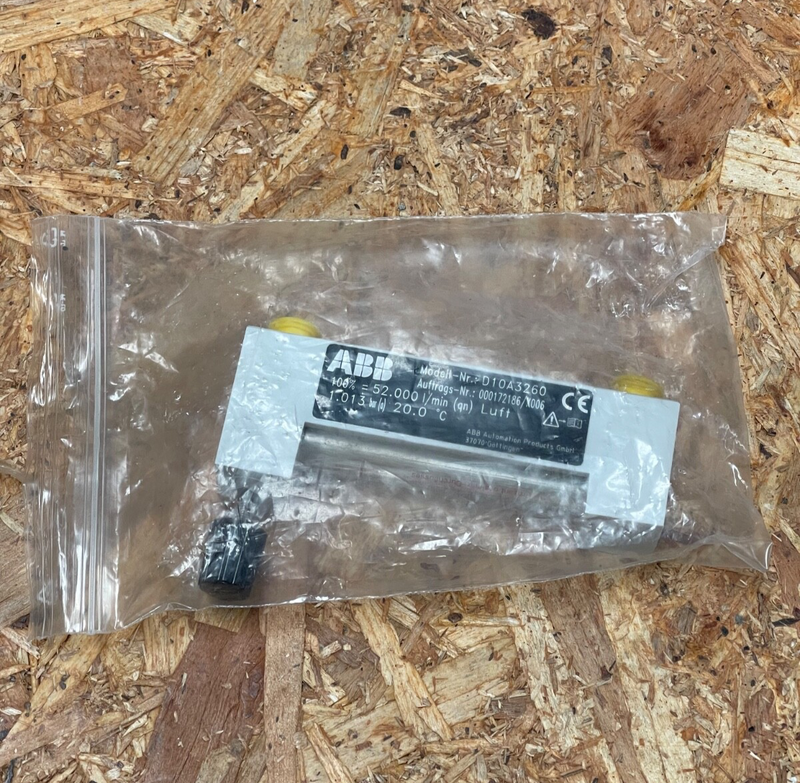

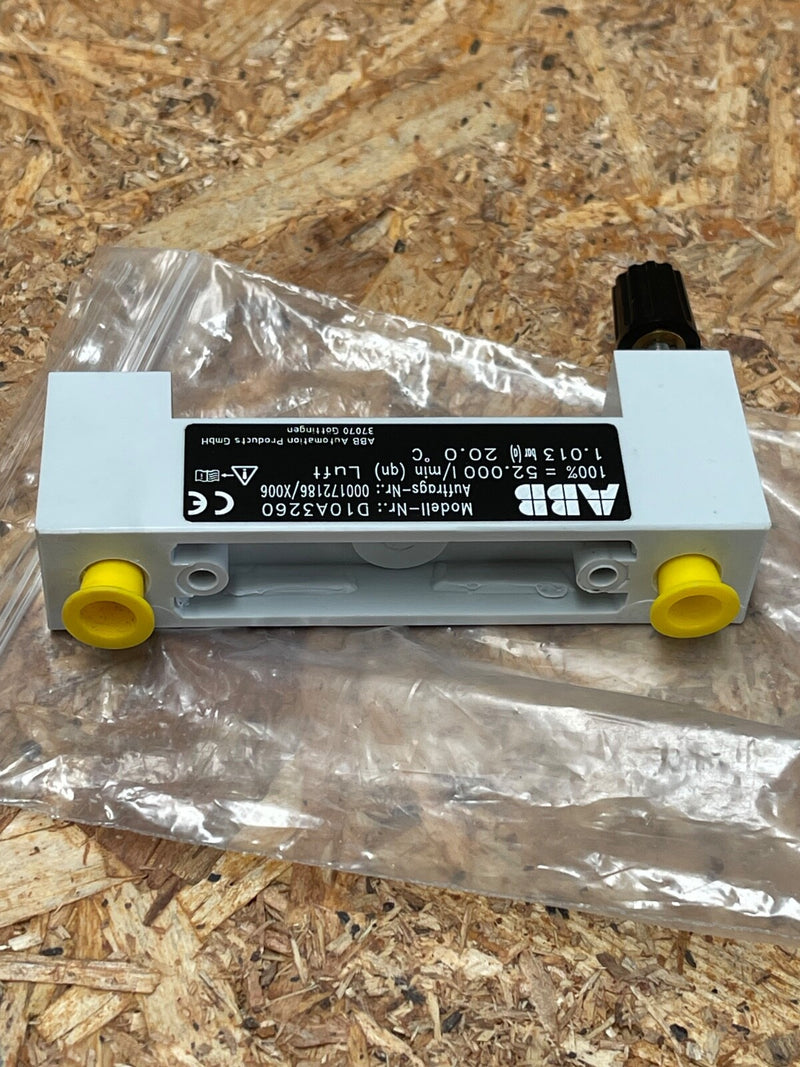

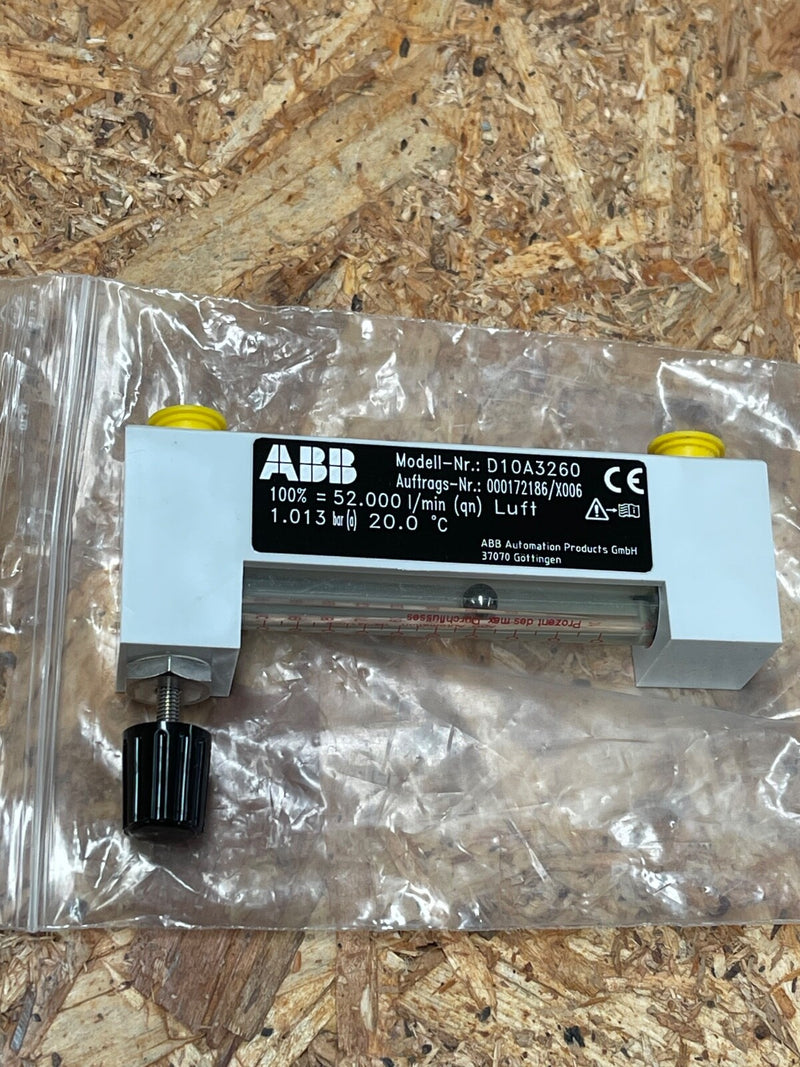

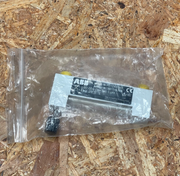

ABB – D10A3260 – All‑Plastic Purge (Variable‑Area) Flow Meter, 1/8″ NPT

The ABB D10A3260 is a compact, low-capacity variable-area (float-type) flow meter constructed entirely from corrosion-resistant plastic materials. Engineered for monitoring liquid or gas purge flows, it features a vertical mount, clear scale, and optional needle valve for precise adjustment. Ideal for purge lines, instrumentation bleed-off, or level/gas flow control in chemical and process systems.

Key Features:

• Model: D10A3260

• Brand: ABB Automation Products

• Flow Tube Material: Extruded Trogamid T; all-wetted components are corrosion-resistant

• Body Material: Novodur plastic

• Connection: 1/8″ NPT female threads; also includes mounting holes for panel/wall fitting

• Scale Length: 68 mm (standard models)

• Needle Valve Options: Versions available with inlet or outlet needle valves—or without—denoted by suffix (e.g., D10A3260N, M, A)

• Float Type: Internal plastic float that moves freely in a vertical tube; scales correspond to float diameter

• Pressure Rating: Suitable for typical purge and bleed line pressures (exact rating per datasheet)

• Mounting Orientation: Must be installed vertical with highest scale marking upward
