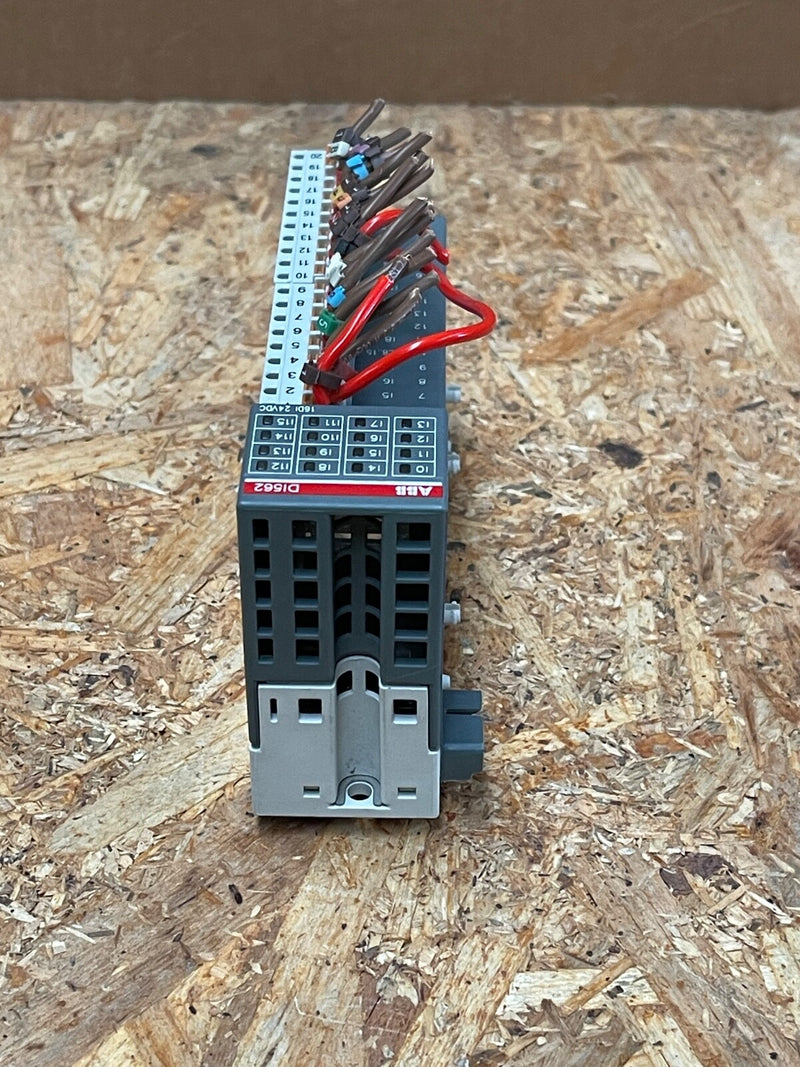

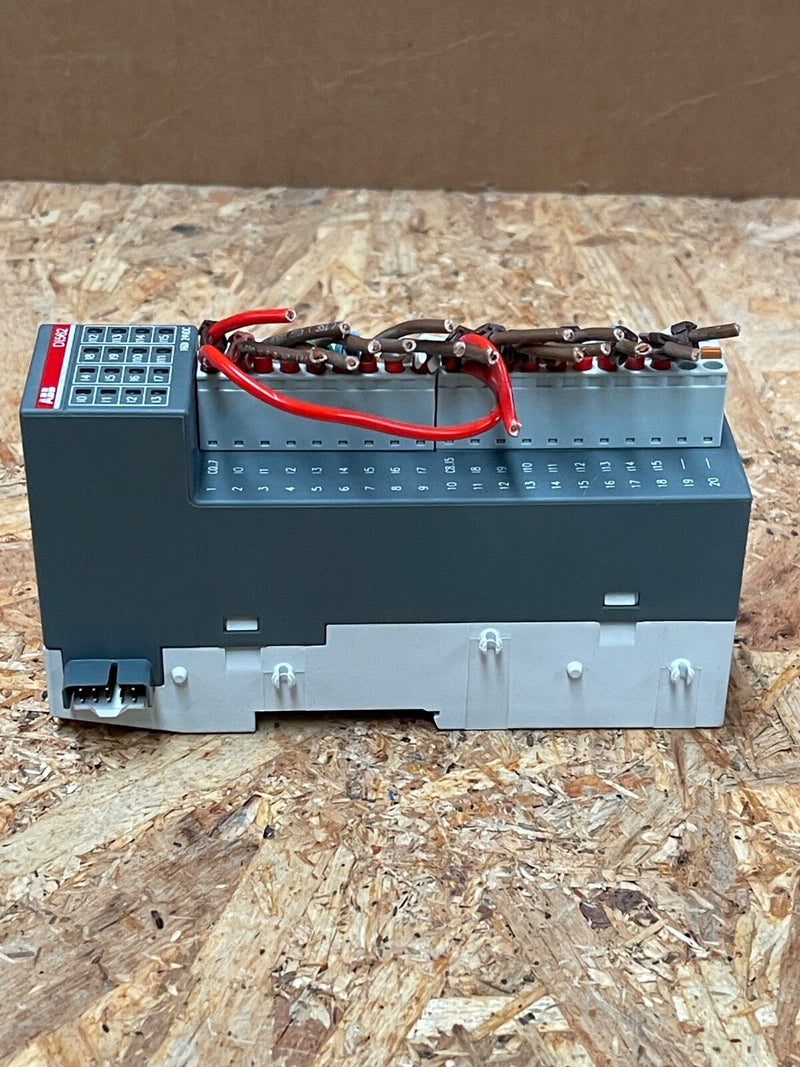

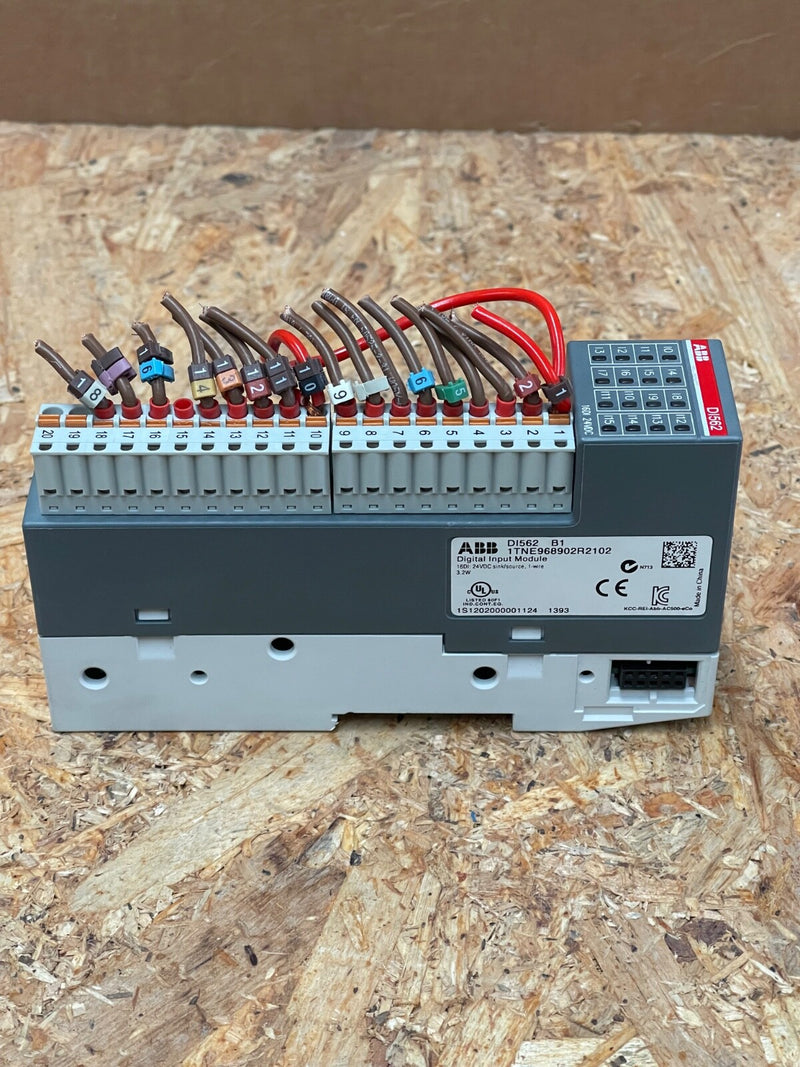

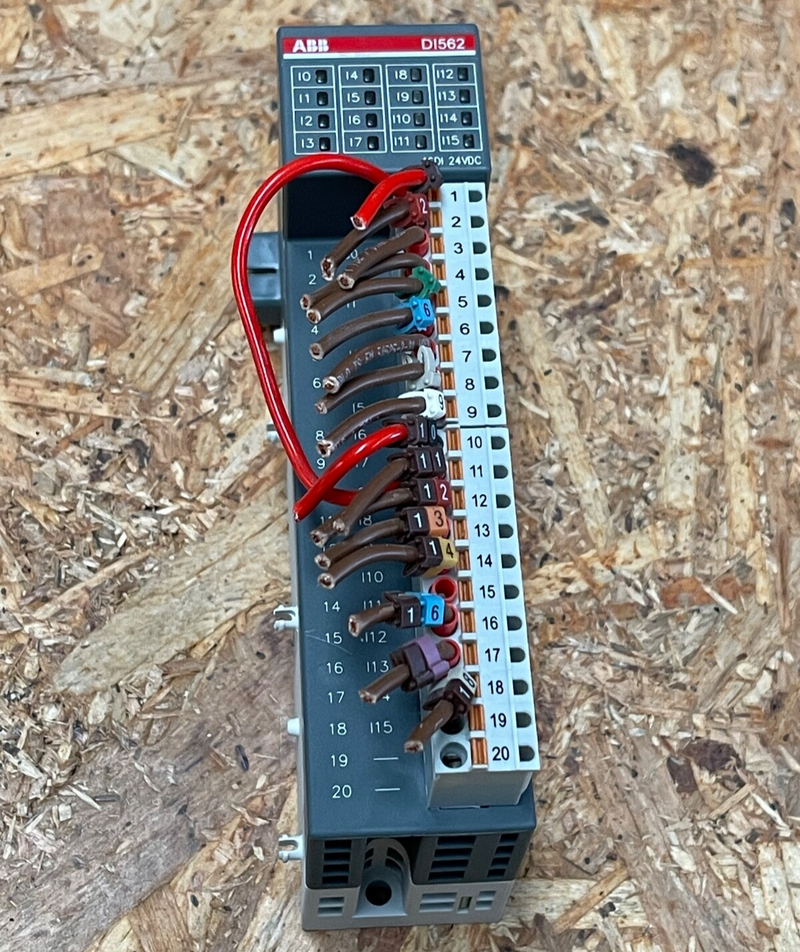

ABB – DI562 B1 (1TNE968902R2102) – AC500‑eCo Digital Input Module, 16 × 24 V DC

The ABB DI562 B1 (P/N 1TNE968902R2102) is a modular digital input module for the AC500‑eCo PLC platform that integrates 16 sink/source 24 V DC inputs. Designed for efficient and reliable signal acquisition, it supports one-wire diagnostics and features robust electrical isolation and fieldbus-grade performance.

Key Features:

• Model: DI562 B1 (1TNE968902R2102)

• I/O Configuration: 16 discrete inputs, compatible sink or source wiring

• Voltage Range: 24 V DC nominal (up to 30 V)

• Input Current: Approx. 5 mA per channel

• Diagnostics & Response Time: Integrated diagnostics and ~8 ms response for ON/OFF transitions

• Isolation & Protection: Electrically isolated, IP20 rated; typical 0 °C to +60 °C operation; 1,000 m cable support

• Form Factor: 34 mm wide, DIN‑rail mountable, pluggable module

• Platform Compatibility: Fits AC500‑eCo and AC500‑S base units

• Certifications: CE, ROHS, ABB i/o standards; active product, worldwide stock availability
