ABB – OREL‑01‑KIT – 3AUA0000002040 Relay Output Extension Module

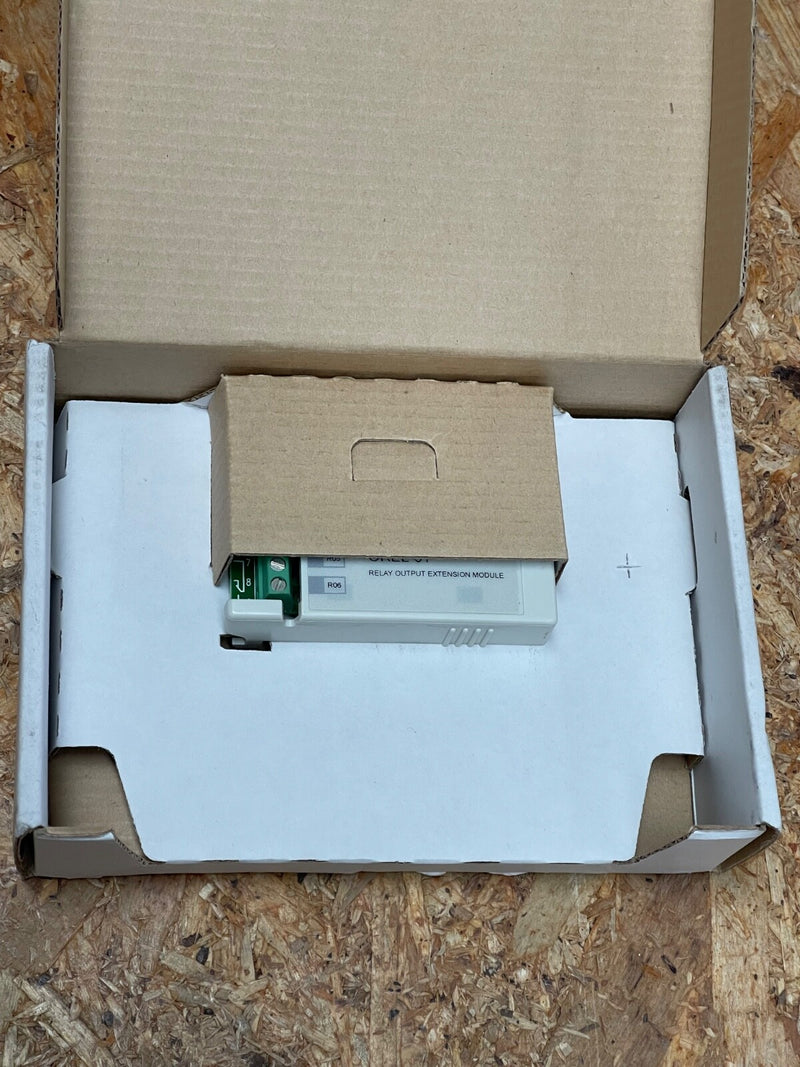

The ABB OREL‑01‑KIT (part number 3AUA0000002040) is a dedicated relay output expansion module designed for ACS550 and ACH550 variable frequency drives. It adds three Form‑C relay outputs (RO4, RO5, RO6)—each capable of handling both 2 A RMS continuous or 6 A DC/AC resistive loads—offering enhanced output functionality without needing the drive’s internal relay.

Key Features:

• Model: 3AUA0000002040 (OREL‑01‑KIT)

• Brand: ABB

• Function: 3-channel Form‑C relay expansion (RO4–RO6)

• Output Ratings:

  • Continuous: 2 A RMS (cos φ = 1); 1 A (cos φ = 0.4)

  • Maximum switch: 6 A at 24 VDC resistive or 1,500 VA at 250 VAC

  • Isolation between outputs: 2.5 kV AC for 1 min

• Installation: Snap-in module for Slot 1 of ACS550/ACH550 drives via built-in connector

• Dimensions & Weight: Approx. 46 × 36 × 9 mm; 0.12 kg

• Diagnostics: Green LED indicates proper power and communication

• Compliance: EMC tested to EN 50081‑2/82‑2; UL/CSA‑approved materials; >200,000 relay cycles

• Compatibility: Designed exclusively for ACS550 and ACH550 series drives
