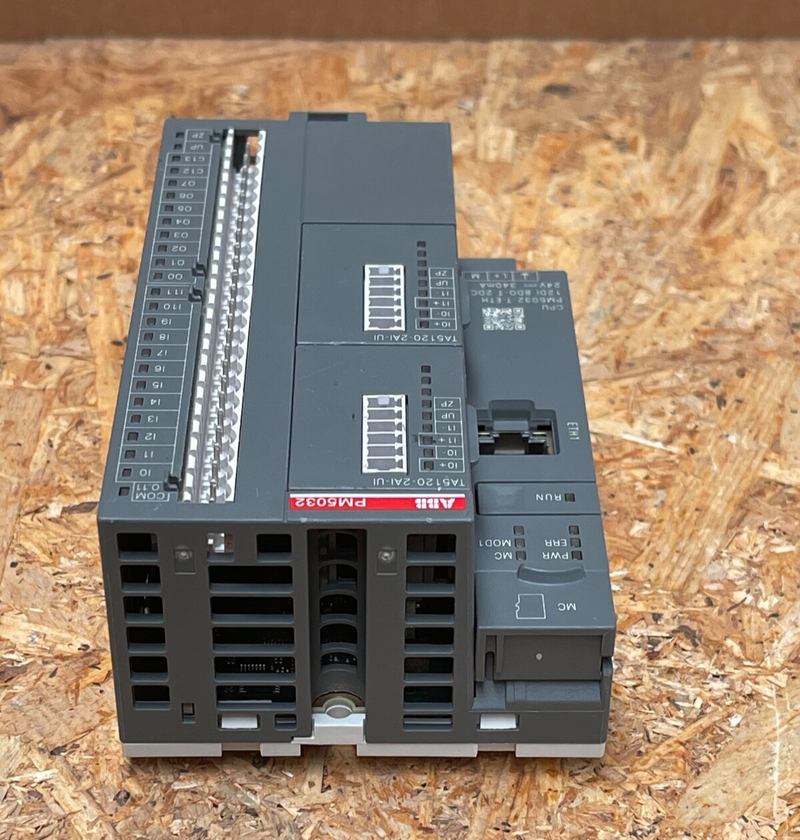

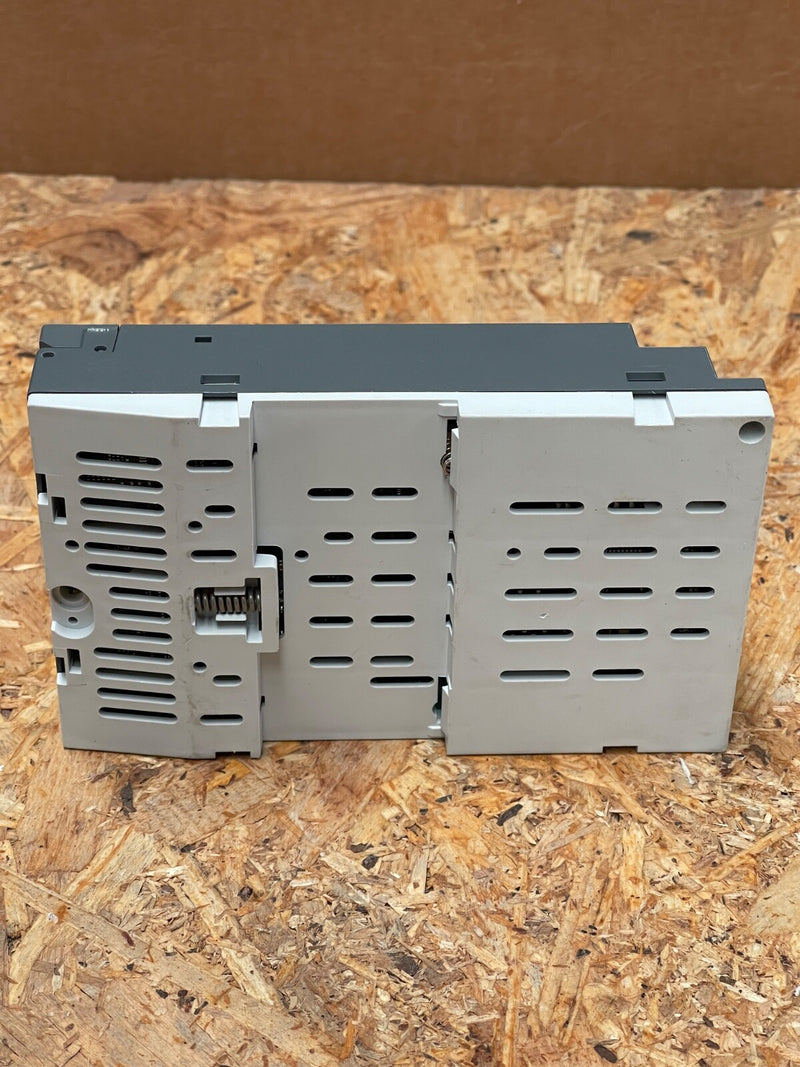

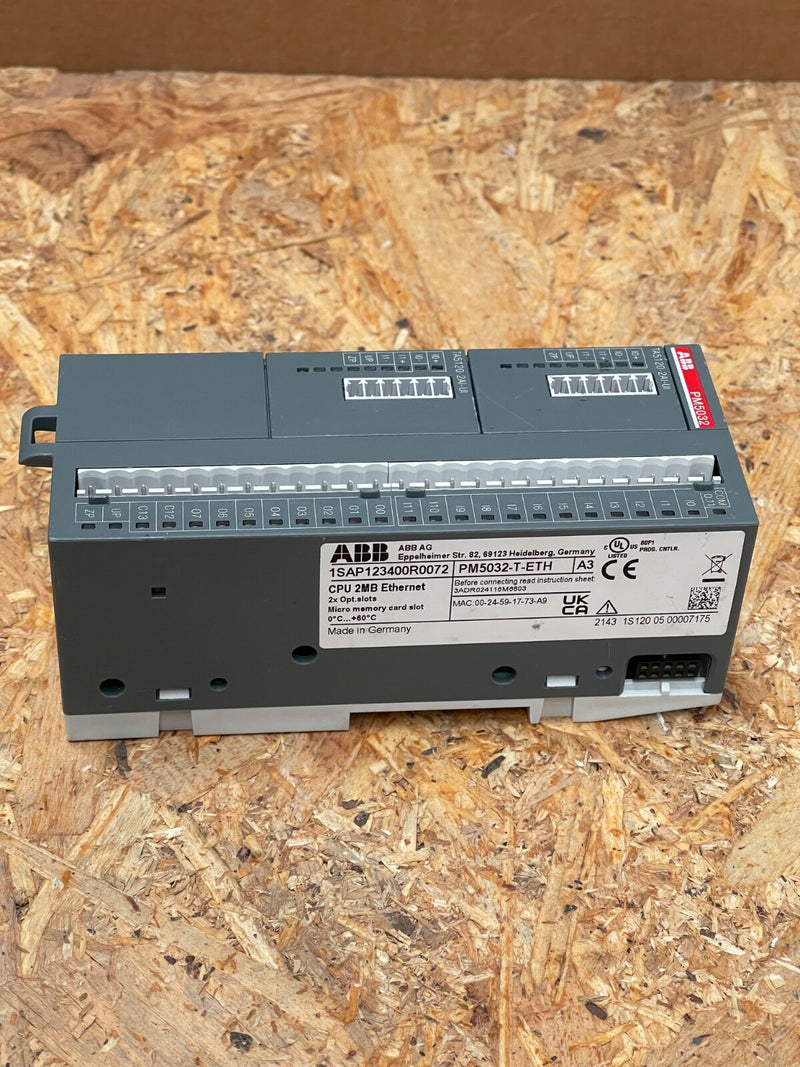

ABB – PM5032‑T‑ETH – AC500‑eCo PLC Processor Module, 12DI/8DO (1SAP123400R0072)

The ABB PM5032‑T‑ETH (P/N 1SAP123400R0072) is a compact and robust processor module for the AC500‑eCo PLC family. Featuring integrated Ethernet, 12 digital inputs, 8 transistor-switched digital outputs, and two configurable I/O channels, it delivers reliable control in modular automation systems. With a built-in 2 MB program memory, two option-board slots, and IEC61131 programming support, it’s ideal for small to mid-sized applications.

Key Features:

• Part Number: 1SAP123400R0072 (Classic revision)

• Controller Memory: 2 MB; supports IEC‑61131 applications

• Digital I/O: 12 × 24 V DC inputs; 8 × 0.5 A 24 V DC transistor outputs; +2 configurable DI/DO channels

• Communication: 1× Industrial Ethernet port (PM-to-host and I/O networks)

• Expansion: Two front-slot option boards (e.g., analog, serial, safety I/O) supported

• Power Supply: 20.4–28.8 V DC; typical current draw ~340 mA (transistor type)

• Dimensions & Weight: 74 mm × 82 mm × 135 mm; net weight 0.253 kg; IP20 housing
