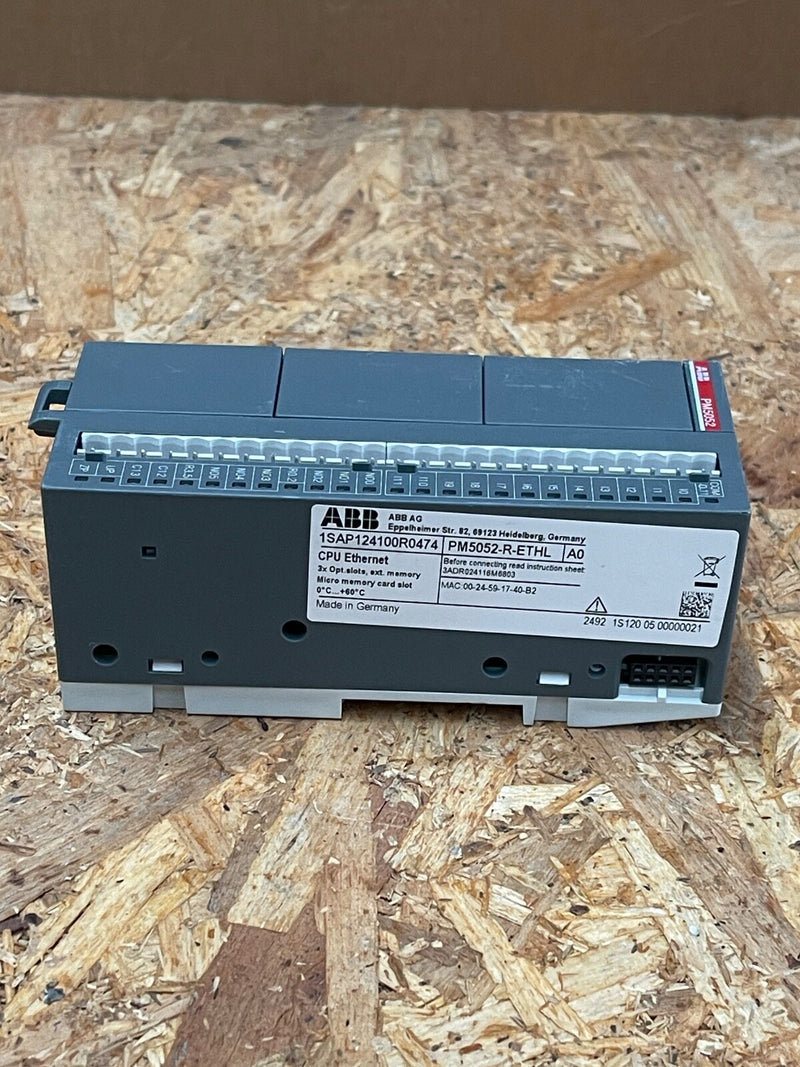

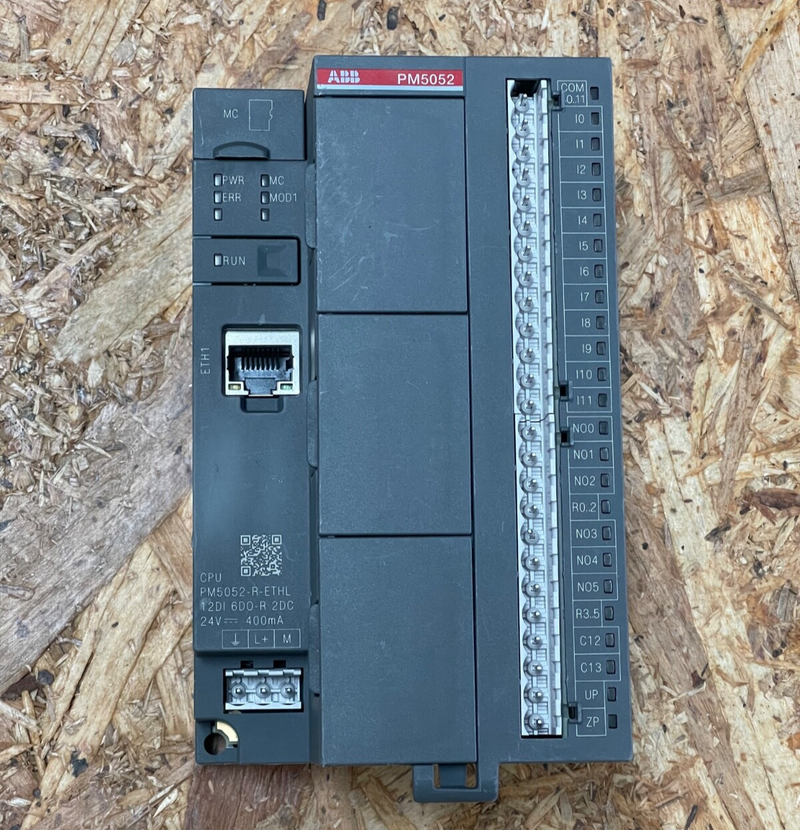

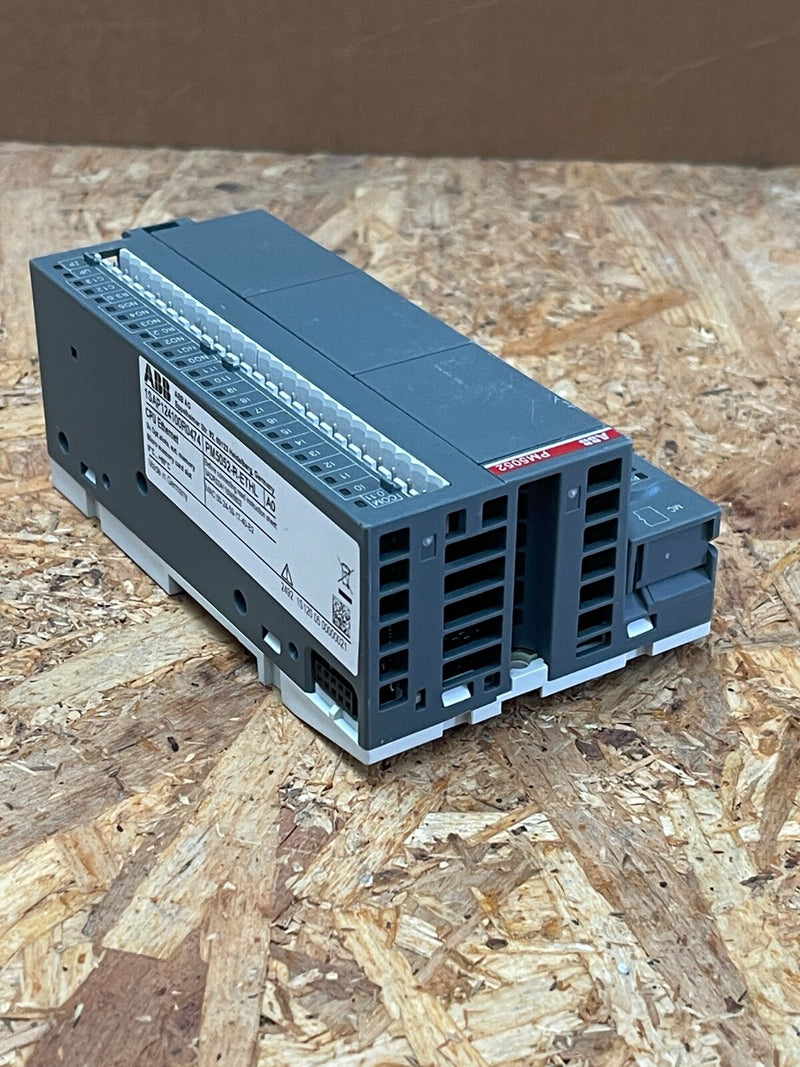

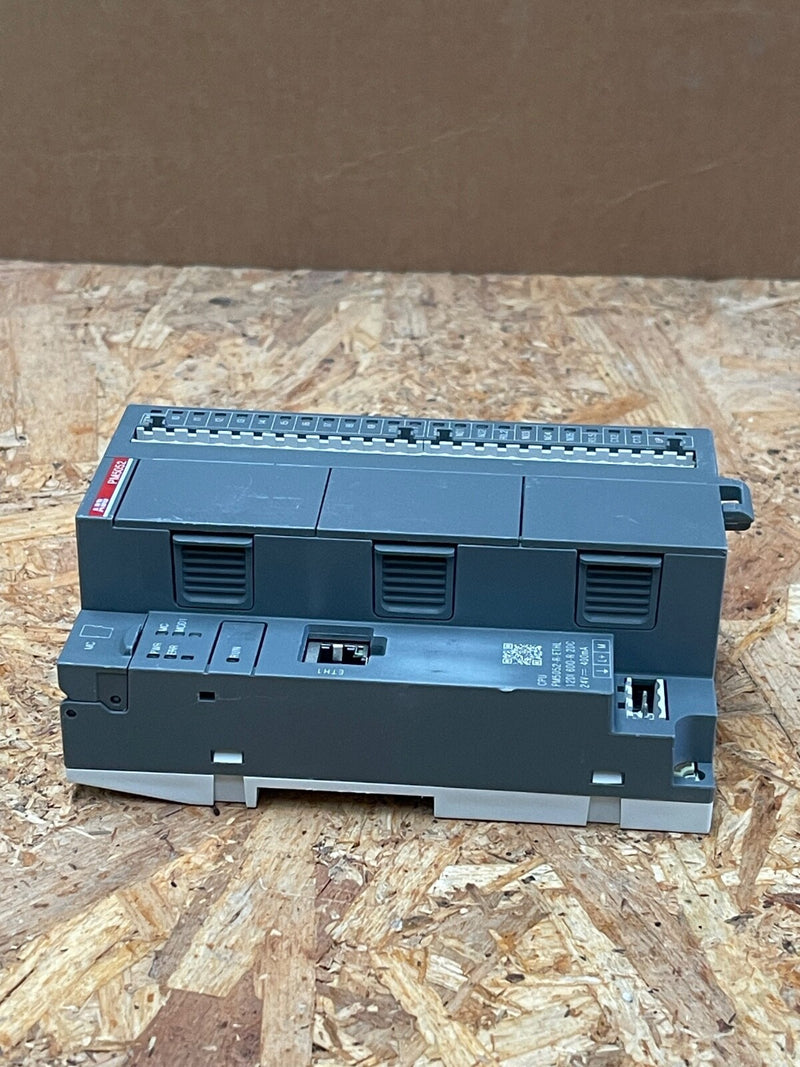

ABB – PM5052‑R‑ETH (1SAP124100R0474) – AC500‑eCo CPU, 4 MB, Ethernet

Main Features

• Series & Designation: ABB AC500-eCo PLC, module PM5052-R-ETH (part number 1SAP124100R0474)

• Memory: 4 MB user memory (≈ 7032 kB RAM)

• Digital I/O Configuration:



  • 12 × 24 V DC digital inputs

  • 6 × relay digital outputs (volt-free)

  • 2 × configurable 24 V DC transistor outputs



• Ethernet Connectivity: Built-in Industrial Ethernet port for programming and communications

• Expansion Slots: 3 upper-option slots to connect additional I/O or communication modules

• CPU Performance: Fast execution with cycle times around 0.02 ms; supports distributed automation systems

• Power Supply: 20.4–28.8 V DC (nominally 24 V), typical IP20 DIN-rail mounting

• Physical Dimensions: Approx. 82 mm (W) × 135 mm (H) × 74 mm (D); weight ≈ 0.27 kg
