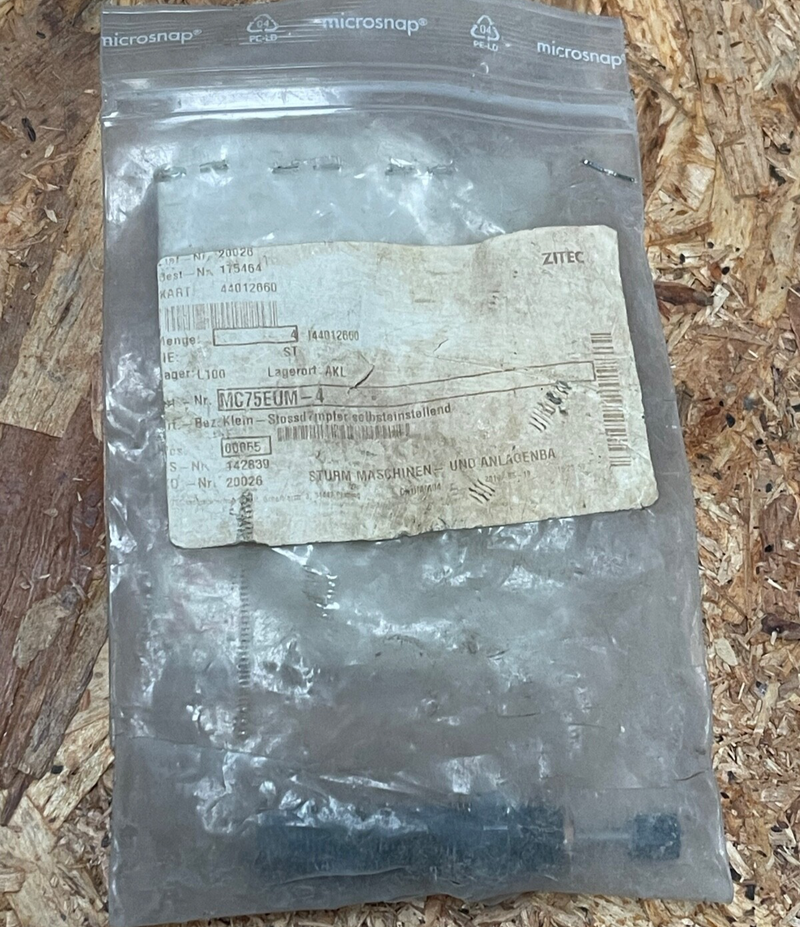

ACE – MC75EUM‑4 – Miniature Self‑Compensating Hydraulic Shock Absorber, 10 mm

Main Features

• Manufacturer: ACE Stoßdämpfer GmbH (Norgren)

• Model/MPN: MC75EUM‑4

• Device Type: Compact, self-compensating hydraulic shock absorber for motion damping in automation systems

• Stroke & Energy: 10 mm stroke with energy capacity of 9 Nm per impact cycle

• Operating Range: Impact velocity from 0.15 to 4 m/s; ambient temperature –10 °C to +66 °C

• Construction: One-piece steel body with corrosion-resistant coating; hardened stainless-steel piston rod with integrated positive stop and locknut

• Mounting: M12×1 thread, suitable for installation in any orientation; includes locknut for secure positioning

• Self-Compensation: Maintains consistent damping performance without manual adjustment, adapting to varying kinetic energies

• Maintenance-Free: Oil-filled and sealed unit designed for long-term operation without service
