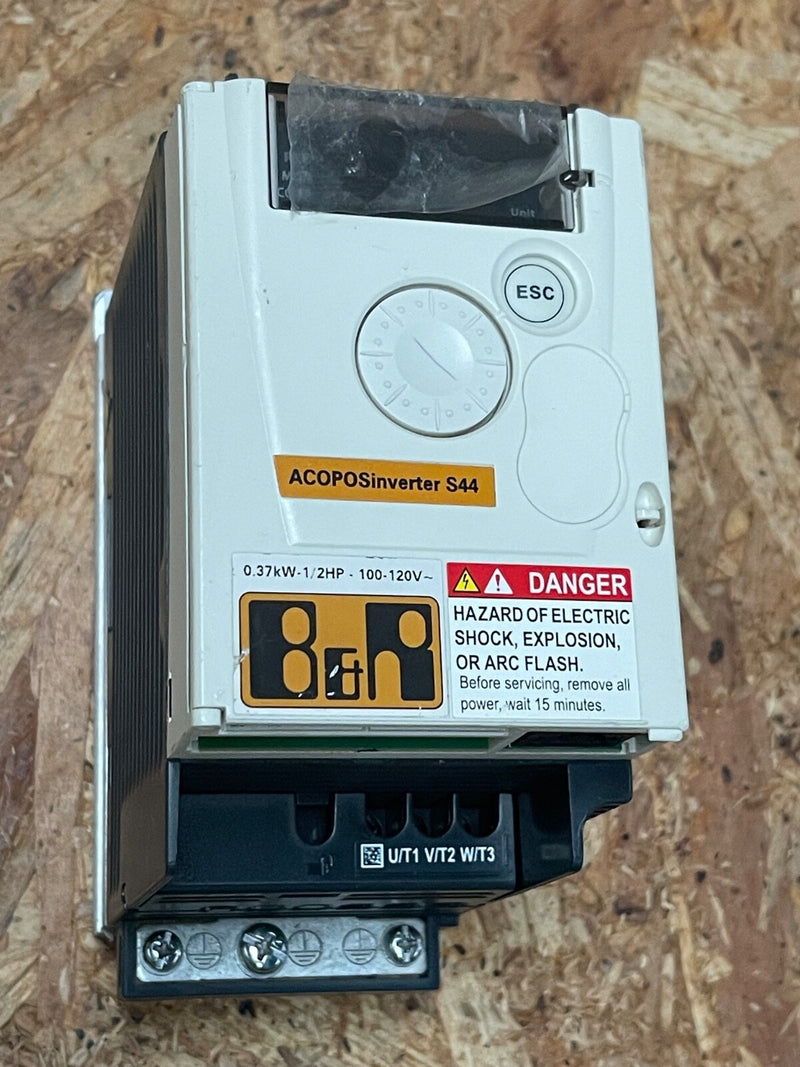

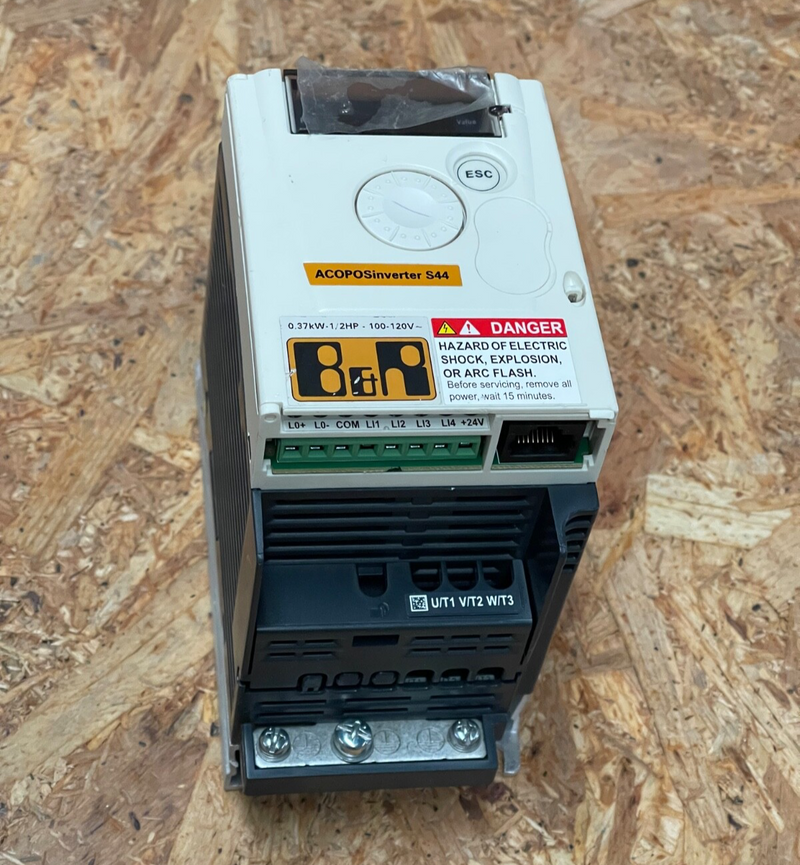

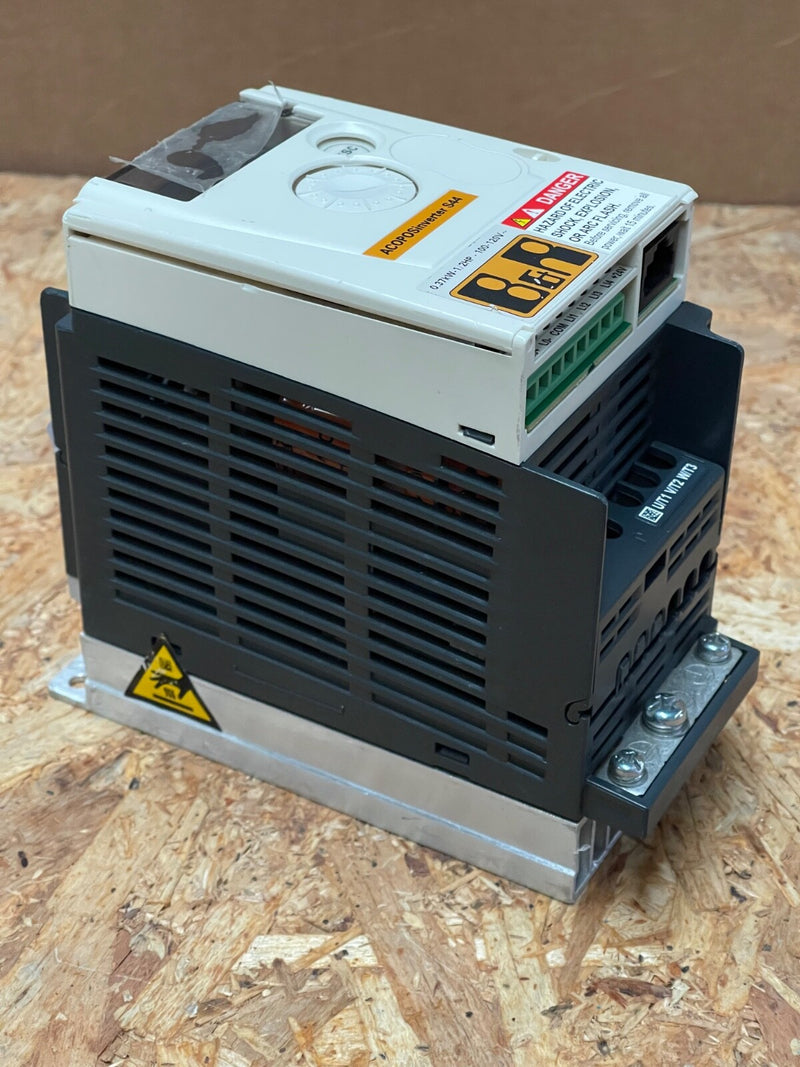

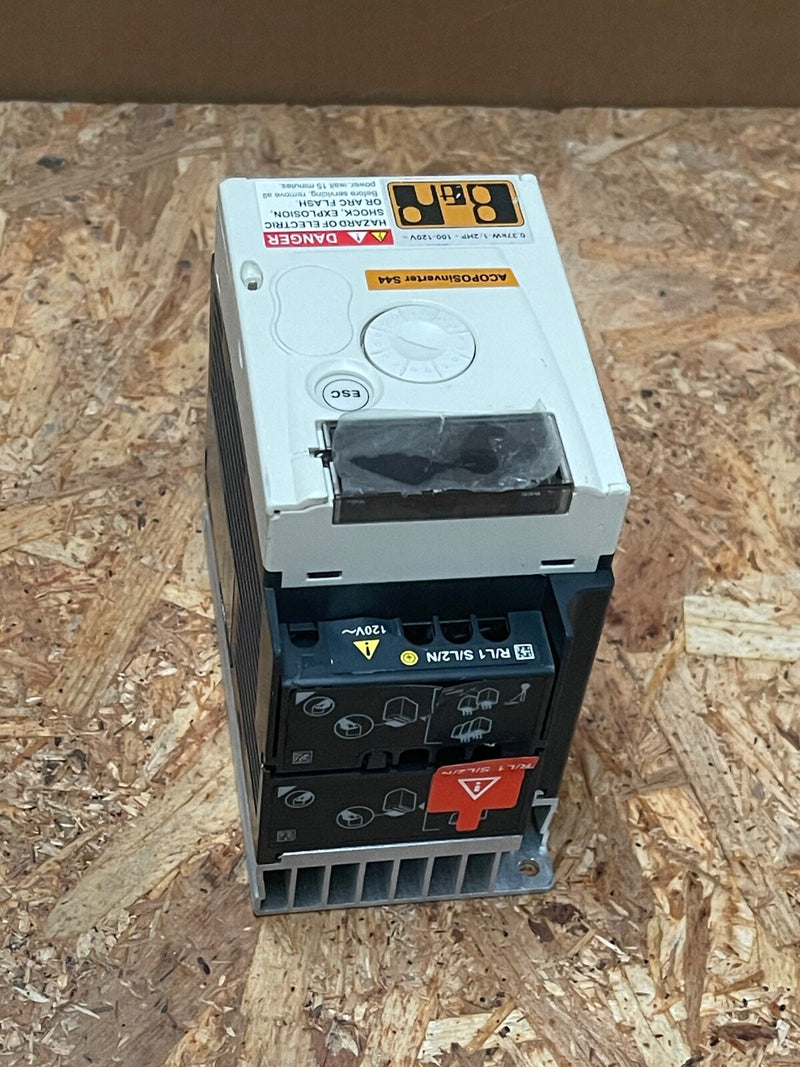

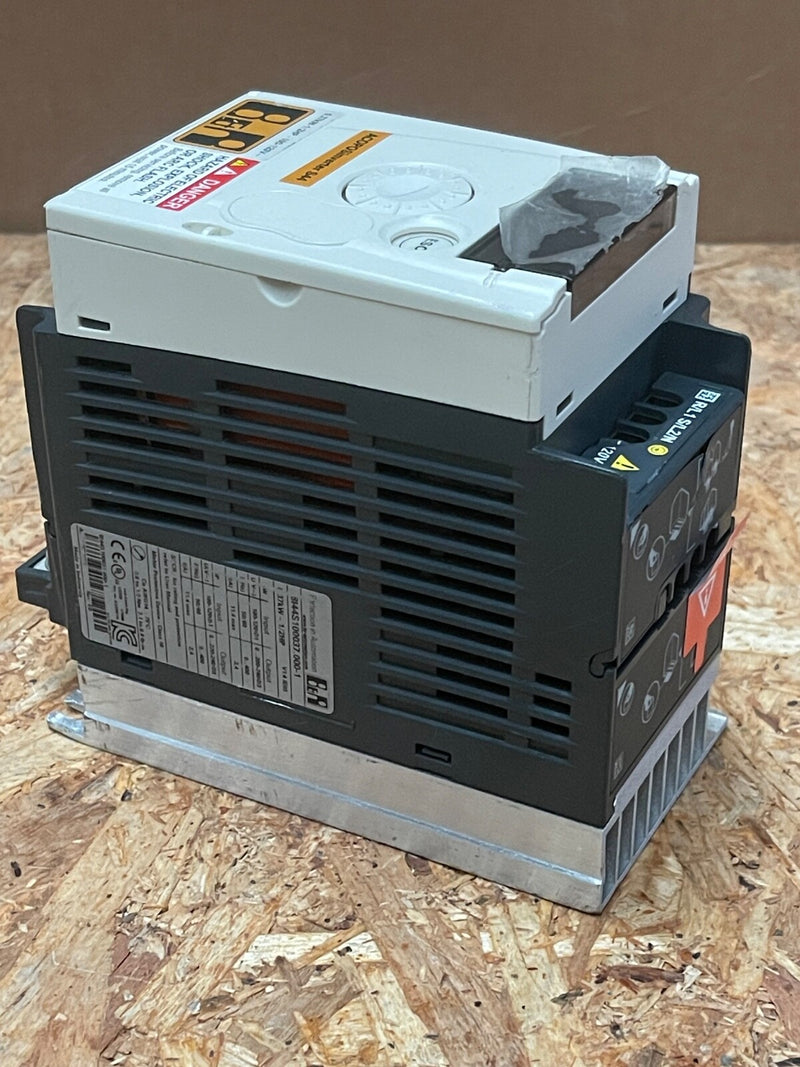

B&R – 8I44S100037.000‑1 – ACOPOSinverter S44 VFD, 0.37 kW, 100–120 V

Main Features

• Manufacturer: B&R Industrial Automation (ACOPOSinverter series)

• Model/MPN: 8I44S100037.000‑1 (also referenced as S44 series for single-phase, 100–120 V)

• Power Rating: 0.37 kW (½ HP) output capacity

• Input Voltage: 100–120 VAC ±10%, 50/60 Hz; draws ~1.9 kVA apparent power

• Control Capability: Delivers variable frequency output up to 500 Hz using vector or V/f methods; integrated encoder interface for precise motion control

• Cooling / Derating: No derating up to 40 °C; 4 kHz switching frequency

• Communications: Integrated RS‑485/Modbus interface; supported in Automation Studio and EPLAN design tools

• Mounting & Form Factor: Compact DIN-rail/plate-mountable module (~2 lb); accepts optional EMC filters and plates under body

• Discontinued Status: This module is discontinued by the manufacturer; available through surplus or repair vendors
