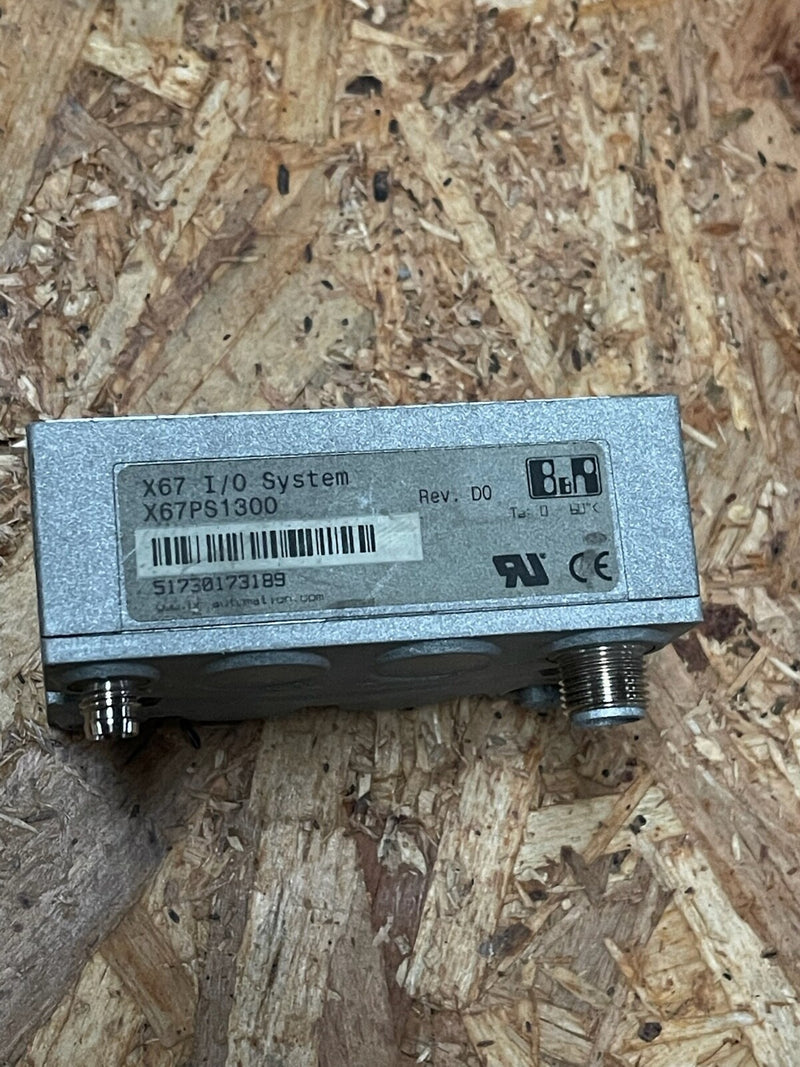

B&R – X67PS1300 – X67 System Power Supply Module, 24 V DC, 15 W

Main Features

• Manufacturer: B&R (part of ABB’s automation division)

• Model/MPN: X67PS1300

• Module Type: System power supply (“Link Supply”) for X67 distributed I/O systems

• Input Voltage Range: 18–30 V DC (nominal 24 V DC)

• Output Power: Provides 15 W isolated X2X bus power (via M12/B-key)

• Protection Features: Built-in reverse-polarity protection, overload protection, short-circuit protection, and support for parallel/redundant operation

• Efficiency: Over 80% efficient, ensuring effective energy use

• Diagnostics: LED indicators for input and output status

• Environmental & Mechanical Specs:

  • IP67-rated for harsh industrial environments

  • Operating temperature from –25 °C to +60 °C

  • Dimensions: ~53 × 85 × 42 mm; weight ~225 g

• Certifications: CE, UL (cULus), EAC, ATEX Zone 2 certified (II 3G Ex nA IIA T5), Class I Div 2 approved
