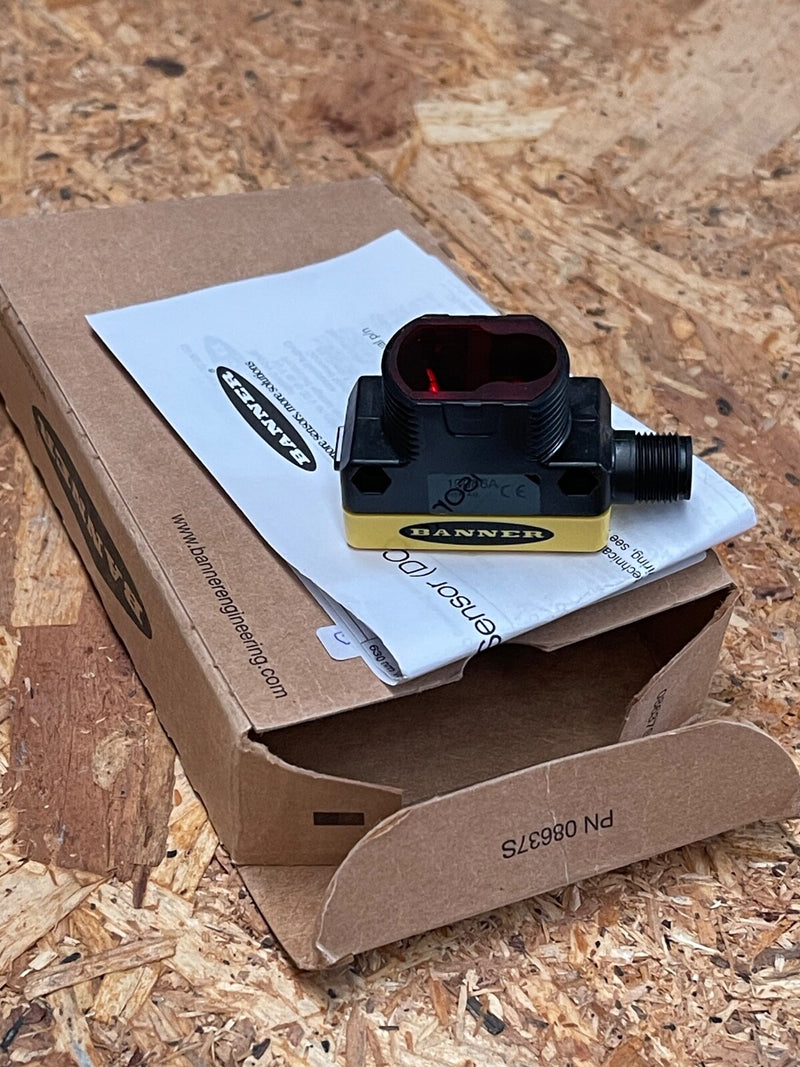

Banner - QS30FF200Q - Fixed-Field Photoelectric Sensor 200 mm NPN/PNP, M12

The Banner Engineering QS30FF200Q is a fixed-field photoelectric sensor designed for precise object detection with background suppression. Utilizing a visible red LED and advanced optics, it detects objects within a 200 mm range while ignoring backgrounds beyond this cutoff. Its rugged housing and versatile mounting options make it suitable for various industrial applications.

Key Features:

• Model: QS30FF200Q

• Brand: Banner Engineering

• Sensing Mode: Fixed-field with background suppression

• Sensing Range: 0 to 200 mm

• Light Source: Visible red LED, 680 nm

• Output Configuration: Bipolar: 1 NPN and 1 PNP

• Switching Frequency: ≤ 250 Hz

• Response Time: < 2 ms

• Supply Voltage: 10–30 V DC

• Current Consumption: ≤ 35 mA

• Housing Material: Thermoplastic, yellow

• Lens Material: Acrylic

• Connection: 5-pin M12 integral QD

• Protection Rating: IP67

• Operating Temperature: -20°C to +70°C

• Indicators: 360° visible LEDs for power and output status

• Mounting: M30 x 1.5 threaded barrel or side-mount holes

• Applications: Ideal for object detection in packaging, material handling, and assembly lines
