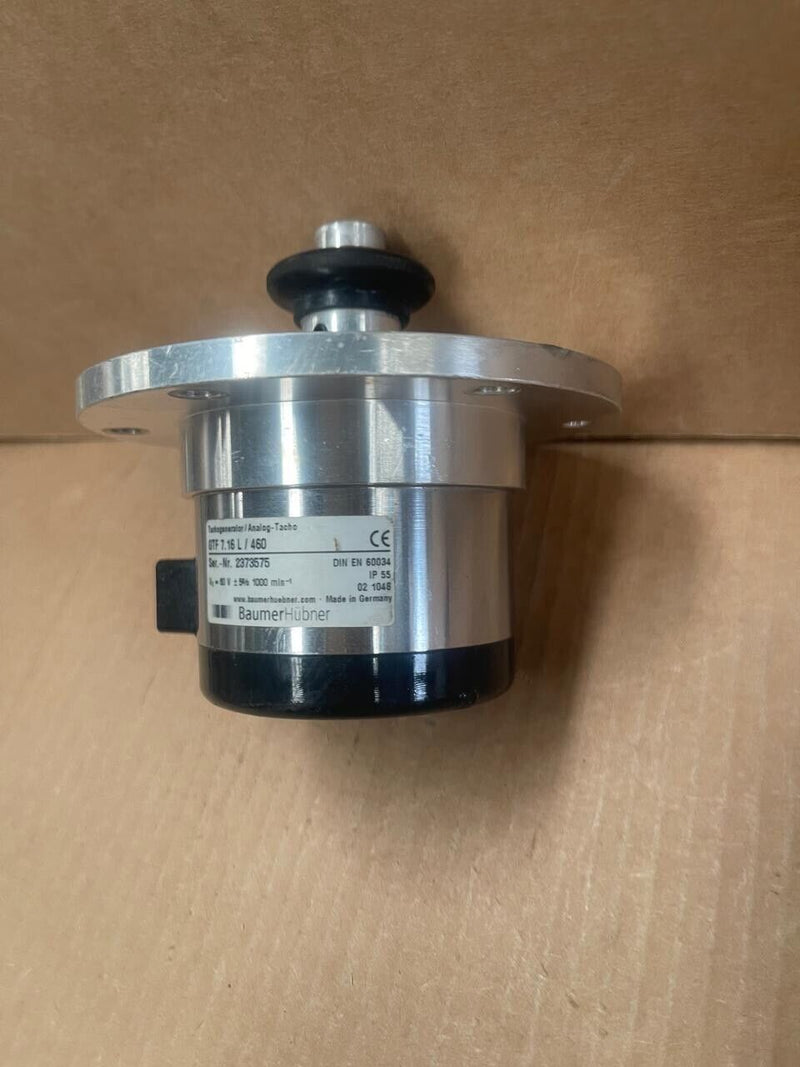

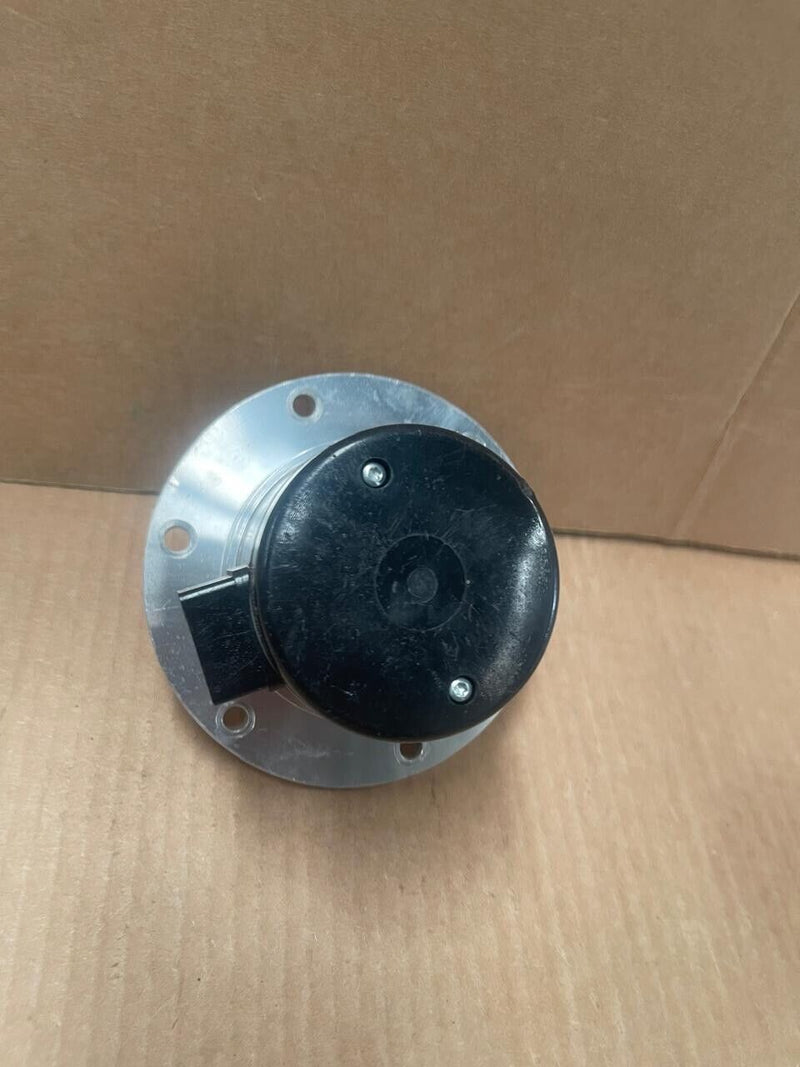

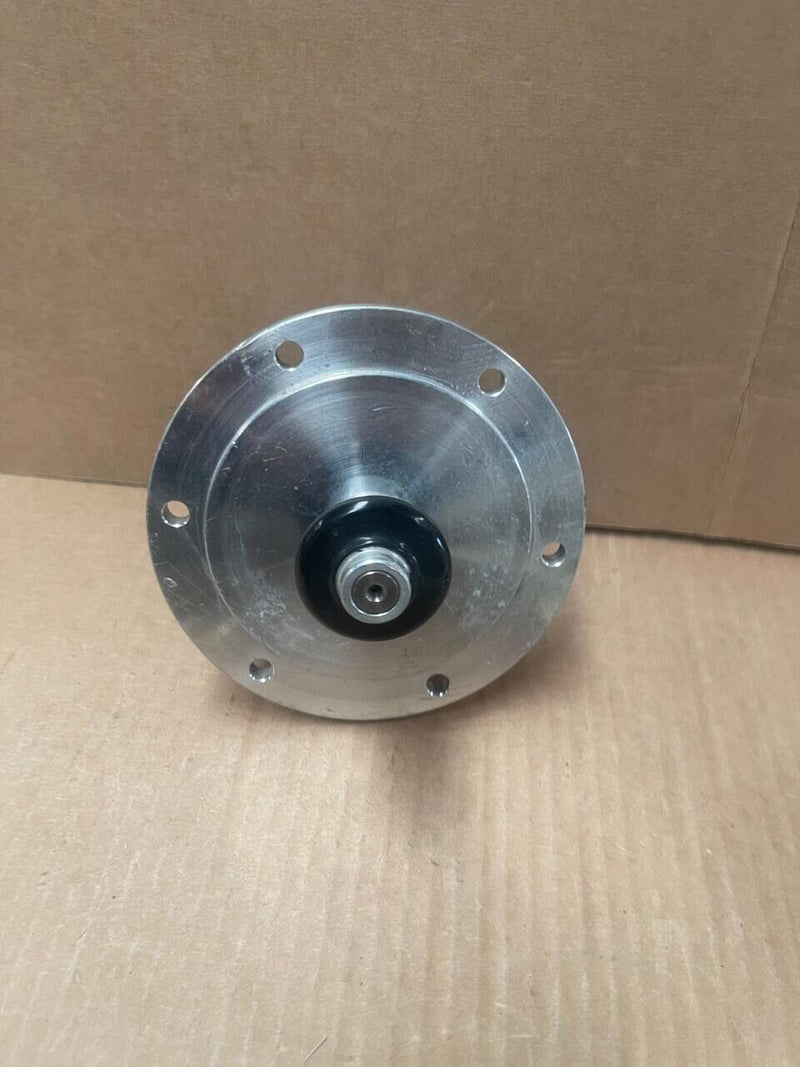

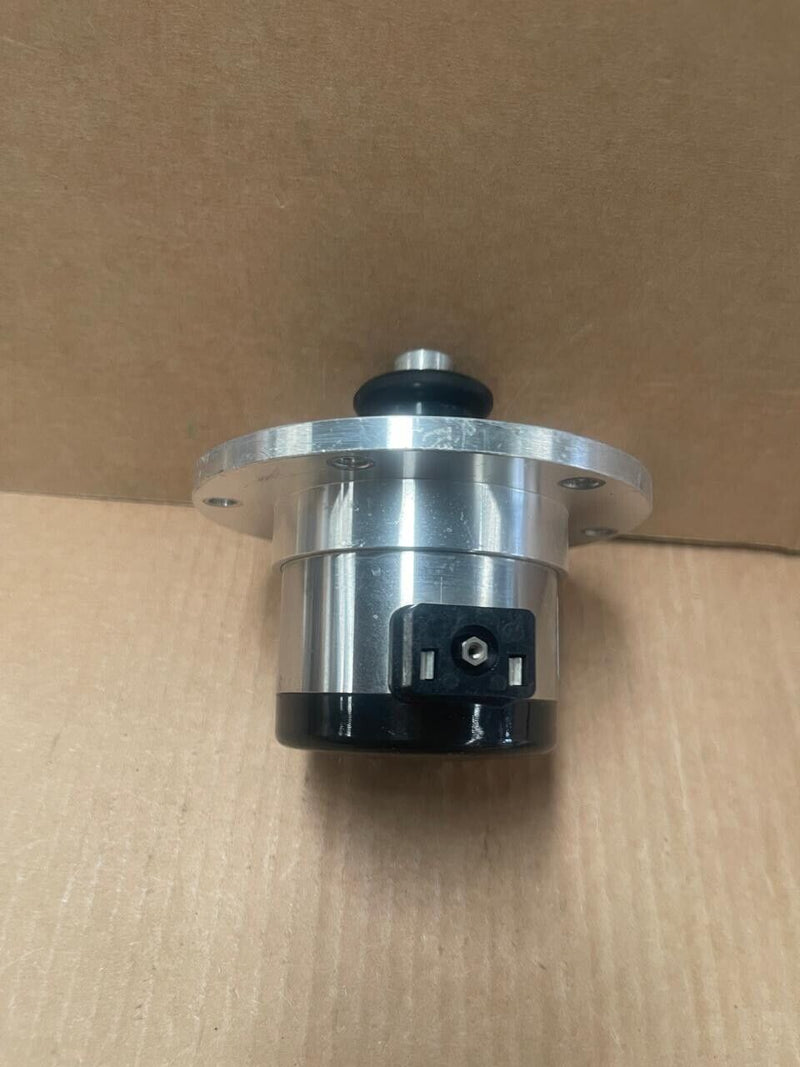

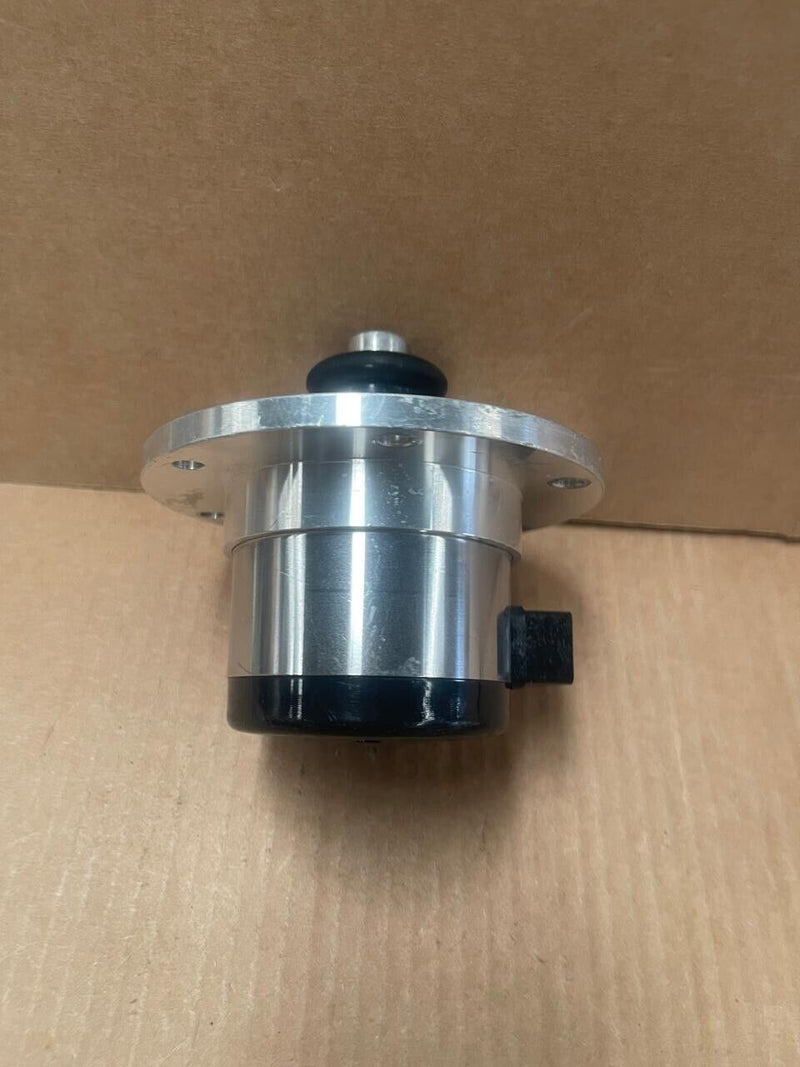

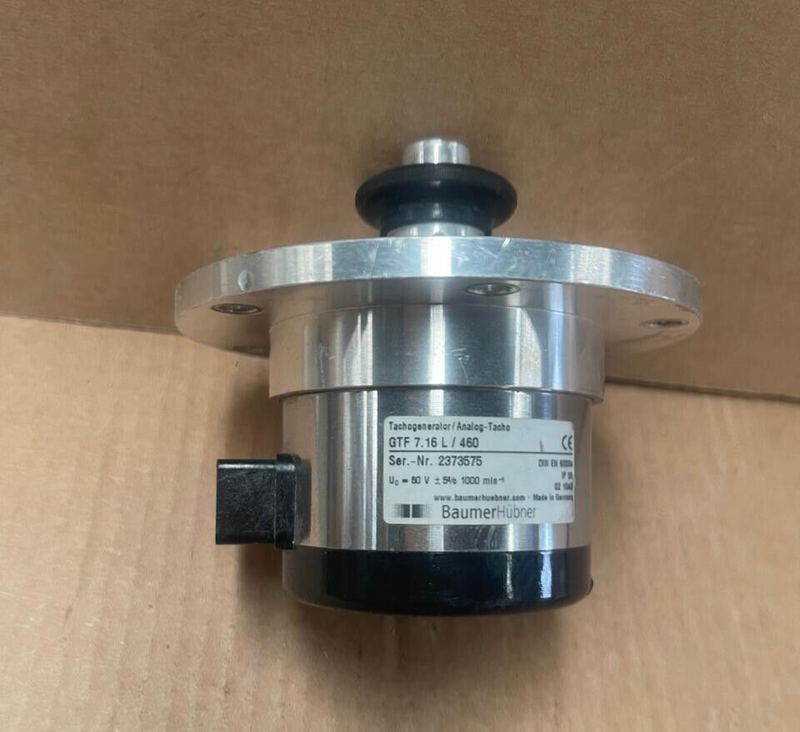

Baumer - GTF 7.16 L/460 - DC Tachogenerator, 60 mV/rpm, IP55

The Baumer GTF 7.16 L/460 is a high-precision DC tachogenerator designed to provide accurate speed feedback in industrial applications. Key features include:

• Open-Circuit Voltage: 60 mV per rpm, ensuring precise speed measurement.

• Shaft Type: Solid shaft with a diameter of 11 mm and length of 30 mm, suitable for standard coupling mechanisms.

• Flange: EURO flange B10, facilitating easy integration into various systems.

• Protection Class: IP55, offering protection against dust and low-pressure water jets.

• Operating Temperature Range: -30°C to +130°C, suitable for diverse industrial environments.

• Linearity Tolerance: ≤0.15%, ensuring high accuracy in speed detection.

• Reversal Tolerance: ≤0.1%, providing consistent performance in both rotational directions.

• Material:

• Housing: Stainless steel and plastic, ensuring durability and resistance to environmental factors.

• Shaft: Stainless steel, offering robustness and longevity.

• Applications: Ideal for use in industrial machinery, elevators, and other systems requiring precise speed feedback.
