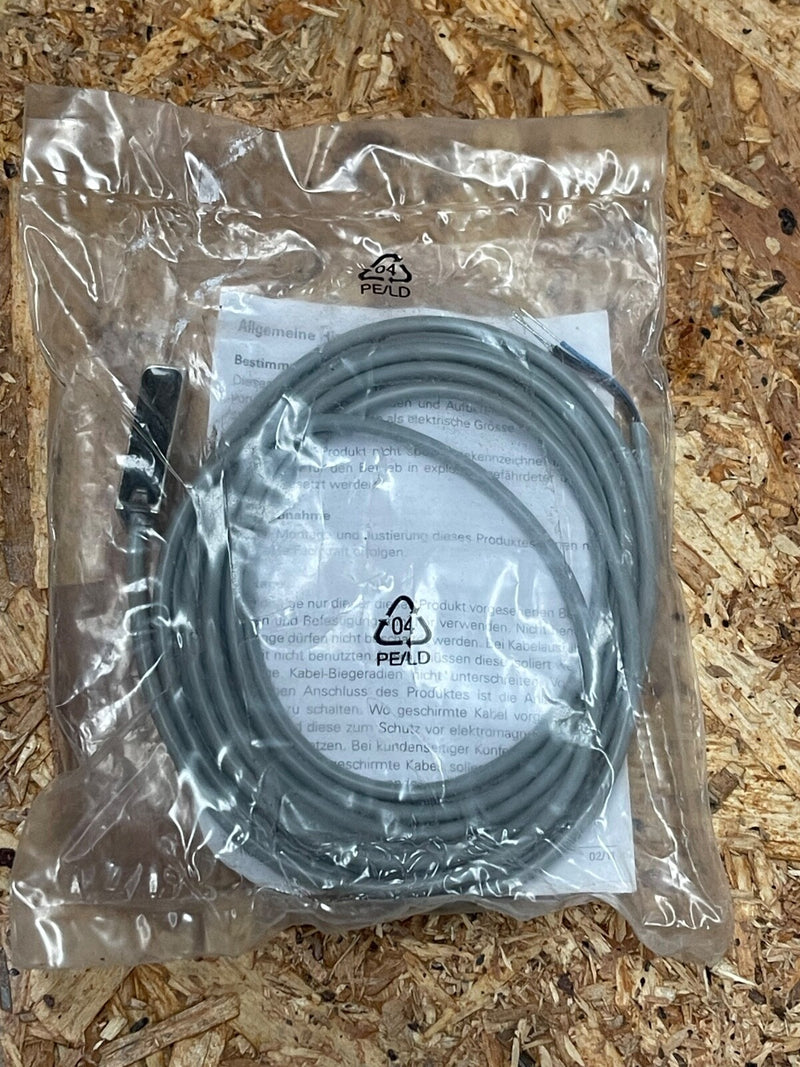

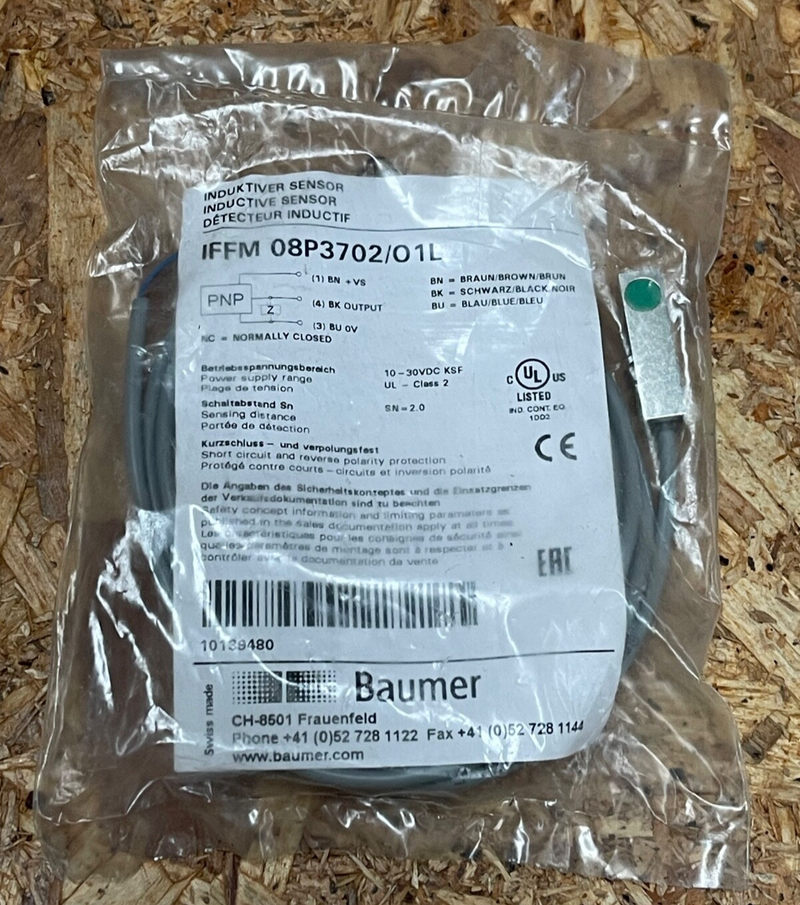

Baumer - IFFM 08P3702/O1L - Inductive Proximity Sensor, PNP NC

The Baumer IFFM 08P3702/O1L is a compact inductive proximity sensor designed for precise object detection in industrial automation systems. Featuring a flush-mounted rectangular housing, this sensor offers a 2 mm sensing distance and a PNP normally closed (NC) output configuration. Its robust construction and IP67 rating ensure reliable performance in harsh environments.

Key Features:

• Model: IFFM 08P3702/O1L

• Brand: Baumer

• Sensor Type: Inductive proximity sensor

• Output Configuration: PNP, normally closed (NC)

• Sensing Distance: 2 mm (flush mounting)

• Housing Dimensions: 8 mm × 28.5 mm (rectangular)

• Housing Material: Nickel-plated brass

• Sensing Face Material: PBT

• Operating Voltage: 6–36 V DC

• Output Current: < 200 mA

• Switching Frequency: 5 kHz

• Voltage Drop: < 2 V DC

• Current Consumption (No Load): 12 mA

• Protection Features: Short-circuit and reverse polarity protection

• Connection Type: 2 m pre-wired cable

• Operating Temperature Range: –25 °C to +75 °C

• Ingress Protection: IP67

• Applications: Ideal for precise object detection in industrial automation, packaging machinery, and assembly lines.
