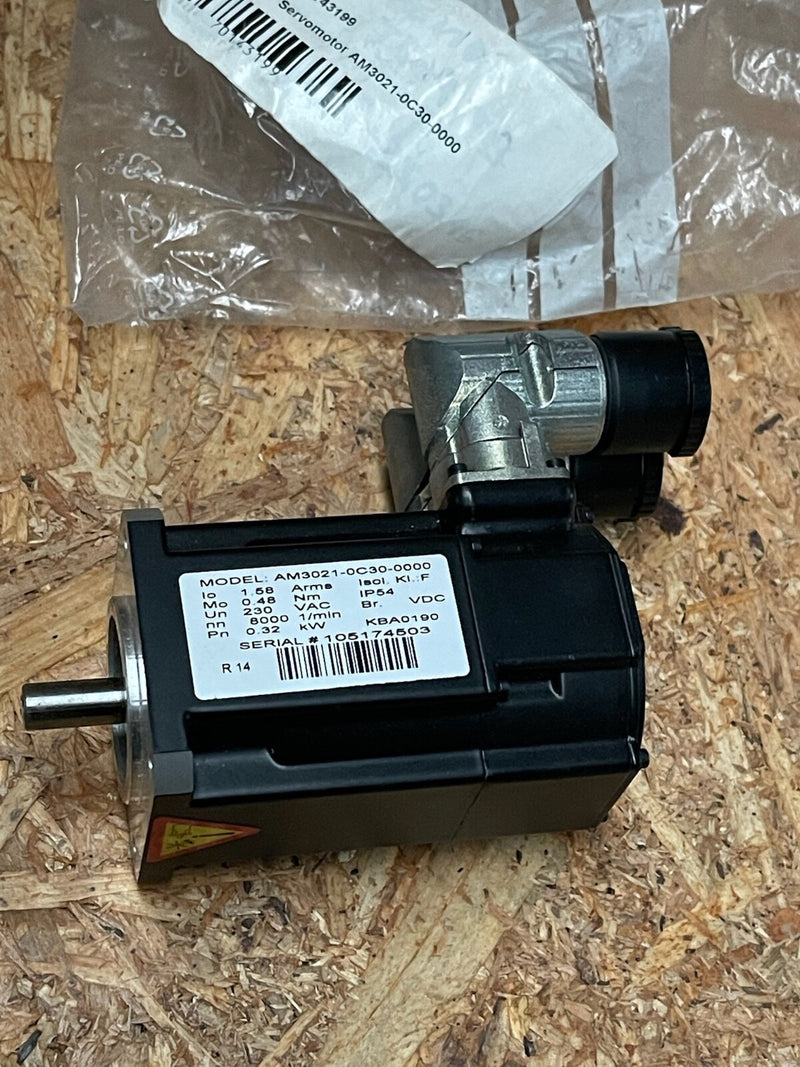

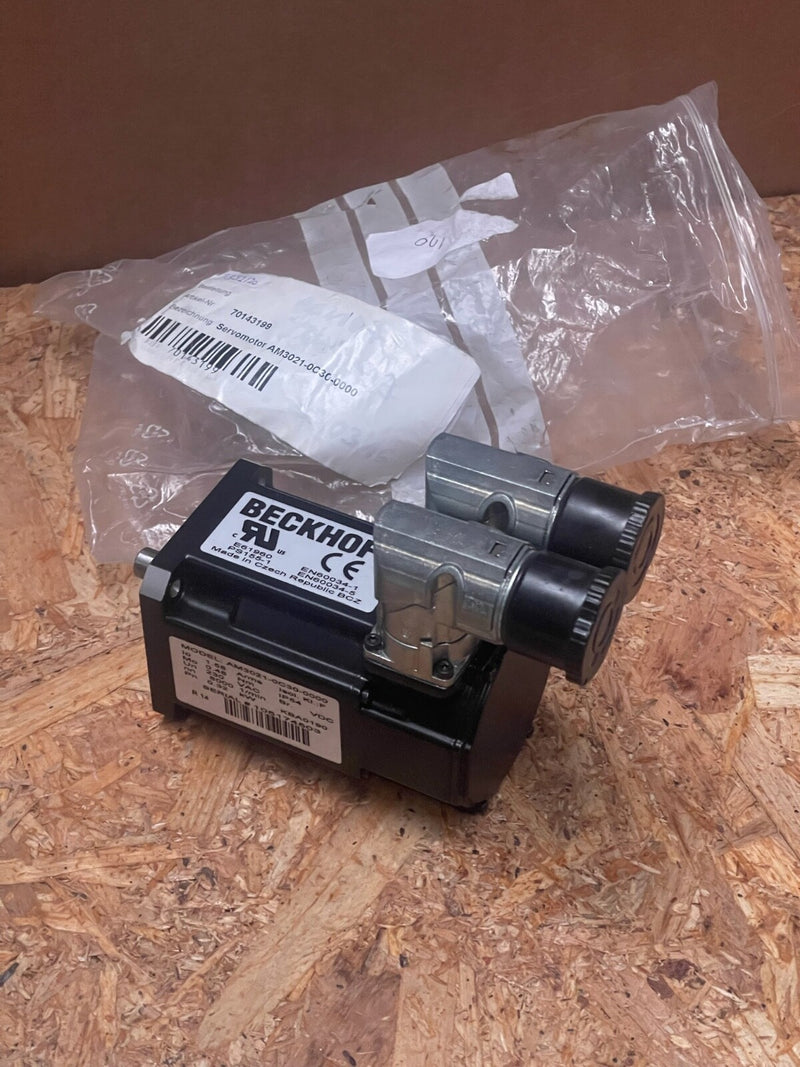

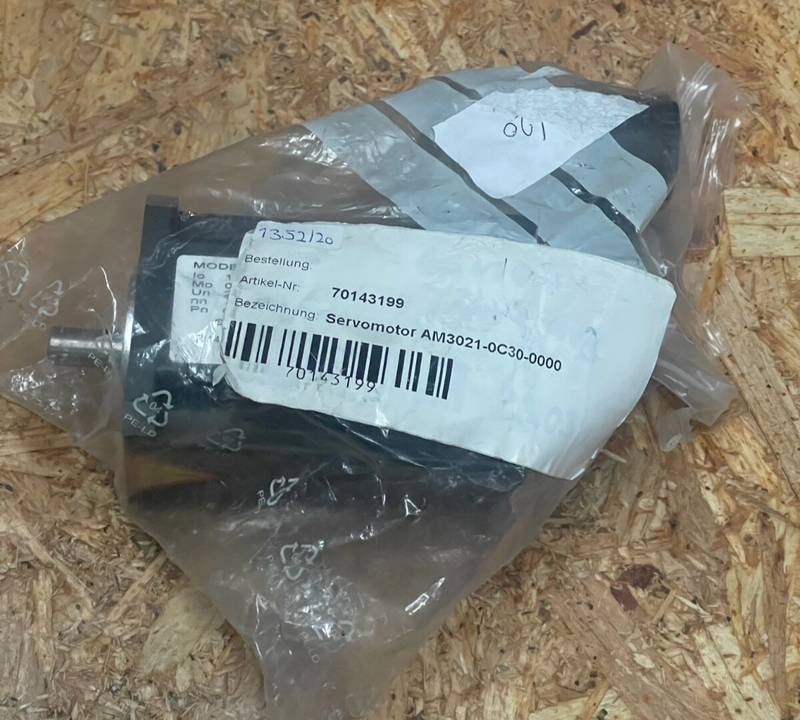

Beckhoff – AM3021‑0C30‑0000 – Synchronous Servo Motor, 0.48 Nm, 480 V AC

Main Features

• Manufacturer: Beckhoff Automation

• Model/MPN: AM3021‑0C30‑0000 (also referenced as AM30210C300000)

• Type: Low-inertia synchronous servomotor (AM3000 series)

• Standstill Torque: 0.48 Nm

• Rated Torque: 0.39 Nm

• Peak Torque: 1.65 Nm

• Standstill Current: 1.58 A

• Rated Speed: 8 000 min⁻¹ (rpm)

• Supply Voltage: 400–480 V AC

• Motor Feedback Options: Resolver, BiSS B single-turn, EnDat 2.1

• Shaft & Mounting: 58 mm flange (F2), 9 mm Ø shaft (k6), 20 mm free end

• Cooling Method: Convection cooling (no fan required)

• Rotor Inertia: ~0.107 kg·cm²

• Construction: Rugged industrial design, suitable for dynamic automation applications (e.g. robotics, machine tools)
