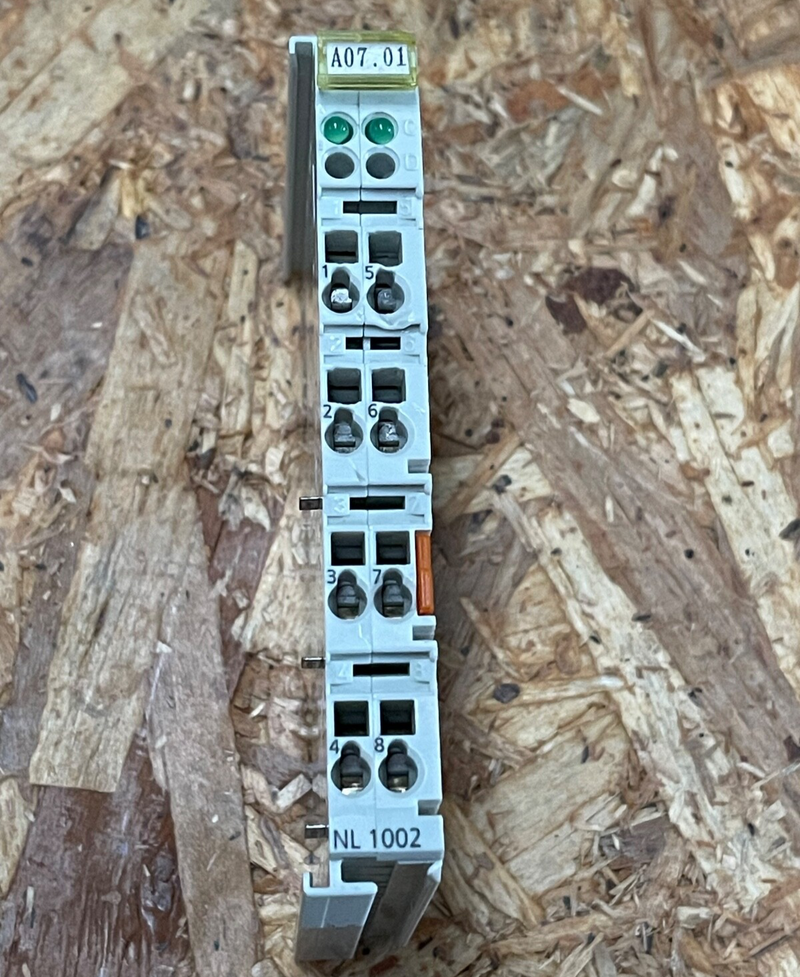

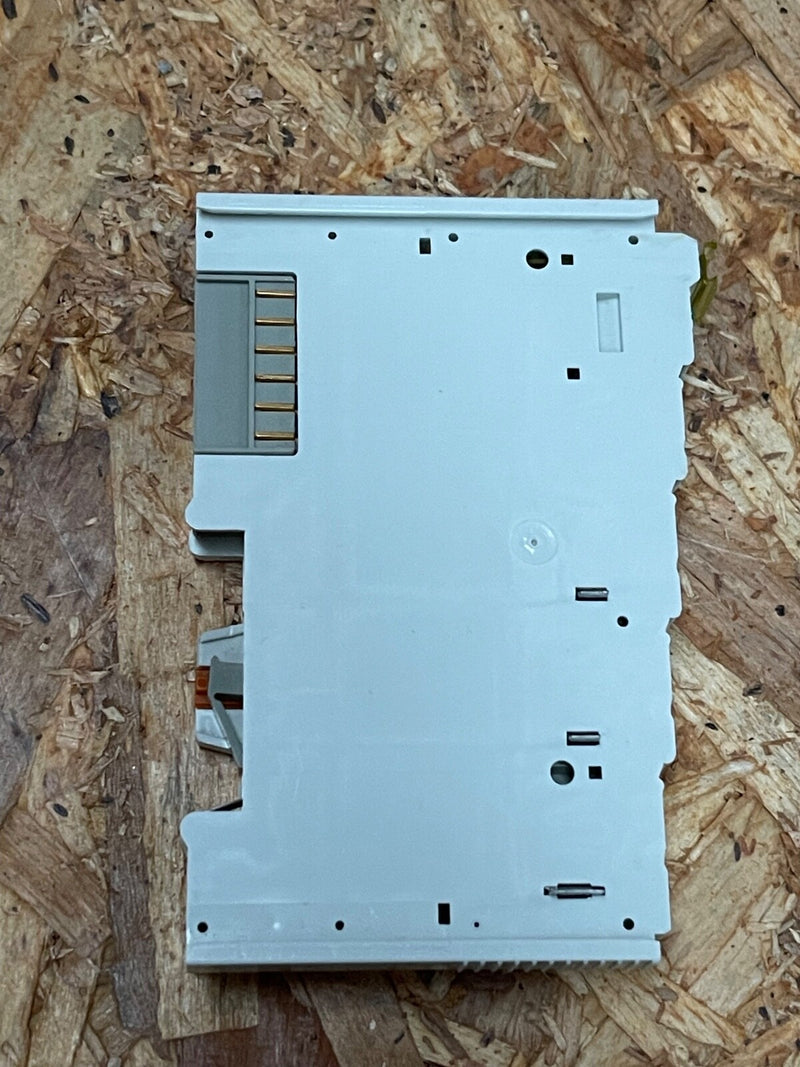

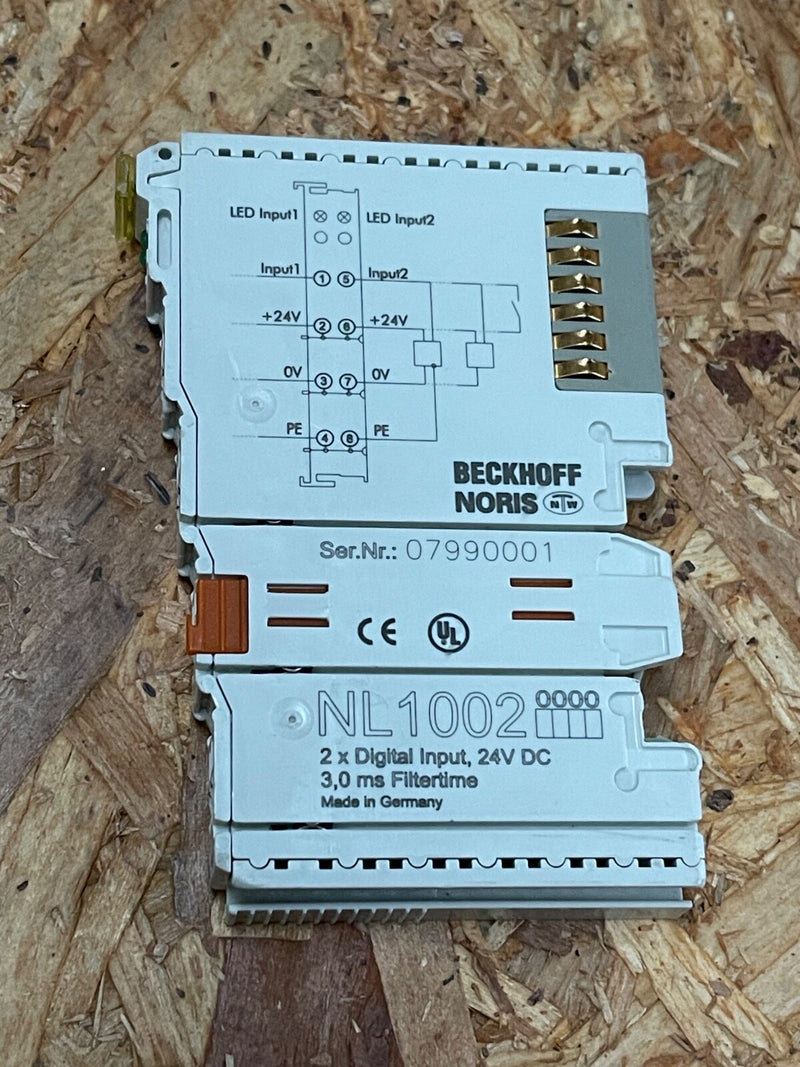

Beckhoff - NL1002 - 2-Channel Digital Input Bus Terminal, 24 V DC

The Beckhoff NL1002 is a 2-channel digital input bus terminal designed for acquiring binary 24 V DC control signals from the process level and transmitting them, in an electrically isolated form, to the higher-level automation unit. Each channel features a 3 ms input filter to suppress bouncing caused by mechanical switches, ensuring reliable signal acquisition. The terminal indicates its signal state via light-emitting diodes (LEDs) for each channel, facilitating easy status monitoring.

Key Features:

• Model: NL1002

• Brand: Beckhoff

• Function: 2-channel digital input bus terminal

• Input Voltage: 24 V DC (±20%)

• Input Type: Single-ended

• Input Filter: 3 ms

• Signal Voltage “0”: -3 V to +5 V

• Signal Voltage “1”: 15 V to 30 V

• Input Current: Typically 5 mA

• Electrical Isolation: 500 V (K-bus/field potential)

• Connection Technology: 4-wire

• Mounting Type: DIN rail

• Protection Class: IP20

• Operating Temperature Range: -25 °C to +60 °C

• Standards Compliance: EN 61131-2, ATEX, UL

• Applications: Ideal for industrial automation systems requiring reliable digital input signal acquisition and processing.
