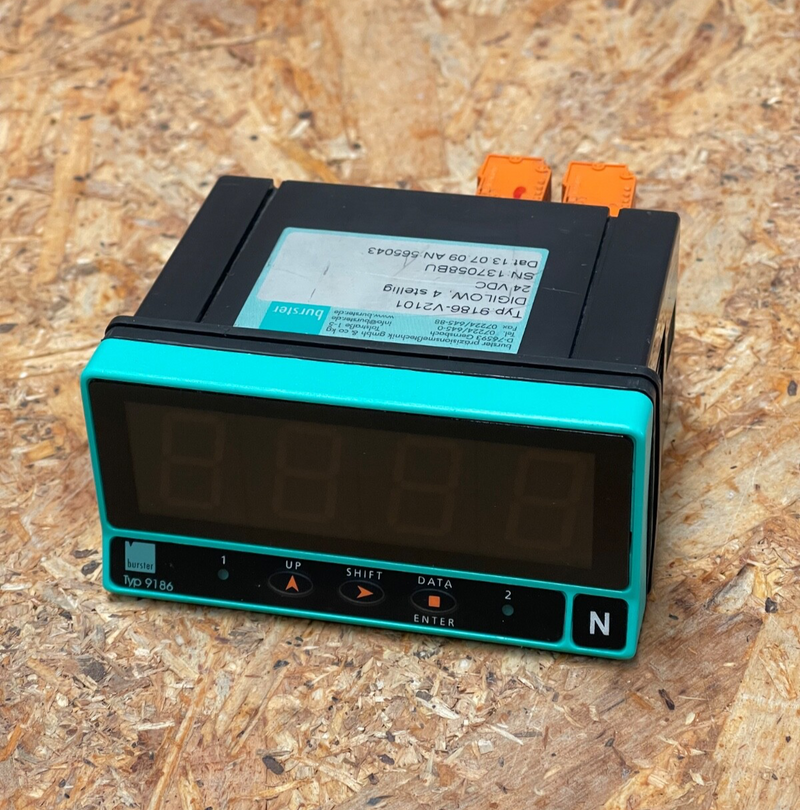

Burster – 9186‑V2101 – DIGILOW Digital Indicator for Strain‑Gauge Sensors

The Burster 9186‑V2101 (DIGILOW) is a compact digital indicator designed for use with strain-gauge sensors to measure force, pressure, or torque. With a clear 20 mm LED display and straightforward menu-driven setup, it offers precise readings with up to two configurable limit alarms to support industrial monitoring applications.

Key Features & Technical Specifications:

• Model: 9186‑V2101 (DIGILOW series)

• Display: 4‑digit LED, range –1999 to +9999; 20 mm height; 16‑bit resolution

• Measurement Accuracy: ±0.1 % full scale ±4 digits; temperature coefficient: 100 ppm/K

• Sampling Rate: 25 readings/second; display update every 250 ms

• Inputs Supported:

  • Strain-gauge bridges (4-wire, 120 Ω…1 kΩ; excitation 5 V or 10 V DC @ 30 mA)

  • (Optionally) potentiometer/standard voltage or current signals via different model variants

• Functions: TARE (zero), teach-in or sensor data scaling, digital low-pass filter, two set-point alarms (if equipped)

• Power Supply: 20–265 V AC/DC, consuming ~3 VA

• Enclosure & Protection: Front panel IP65; operating temperature –10 °C to +60 °C; dimensions panel mount 96 × 48 × 60 mm; desktop 130 × 70 × 150 mm; ~250 g

• Options: Optional plug-in card for 2 isolated SPDT relay outputs (8 A @ 250 VAC/30 VDC)
