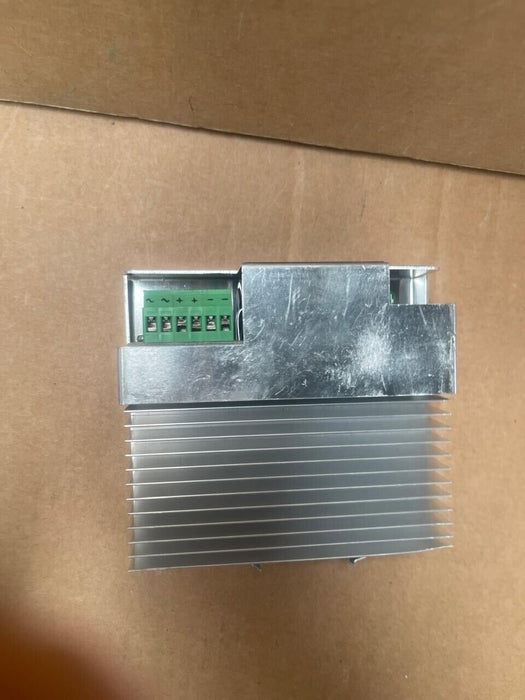

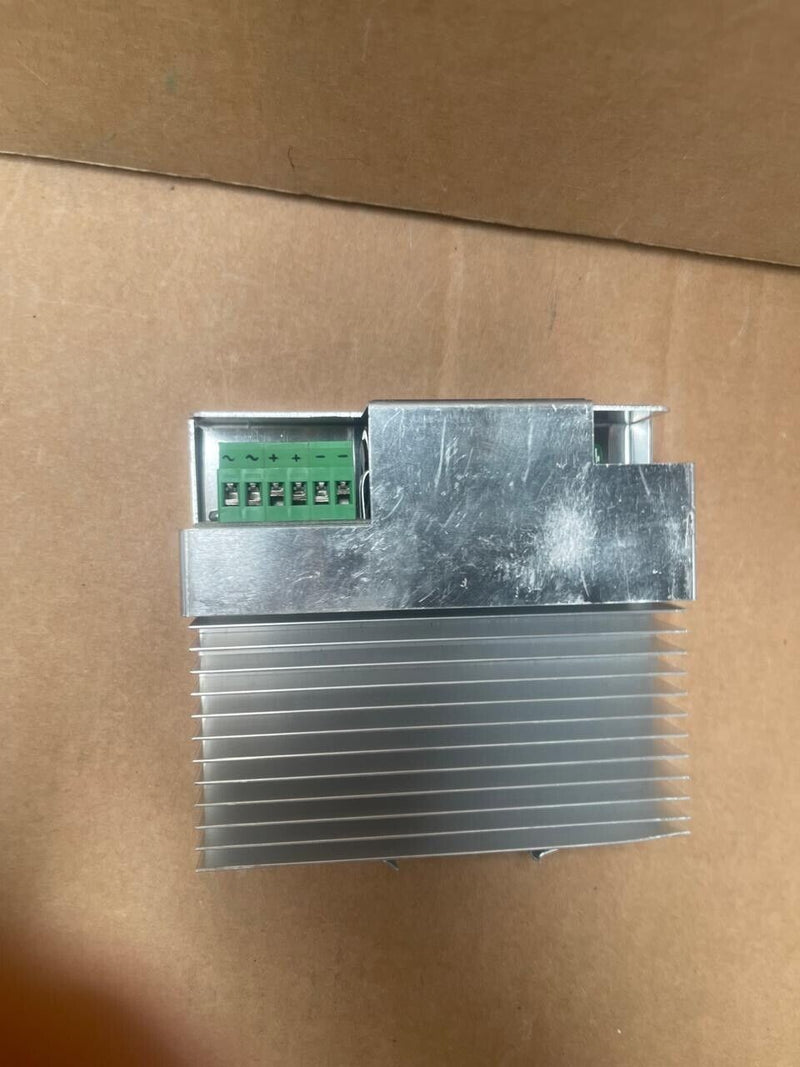

Cabur - XCL5R - Adjustable Linear Power Supply

The Cabur XCL5R is a versatile linear power supply designed to convert 12-24 V AC input into a stable, adjustable DC output ranging from 1.2 V to 24 V. With a continuous current capacity of 0.8 A to 5 A, depending on the output voltage, it is suitable for various industrial and laboratory applications requiring precise and reliable DC power.

Key Features:

• Adjustable Output Voltage: Allows fine-tuning of the DC output from 1.2 V to 24 V to meet specific application requirements.

• Robust Protections: Equipped with short circuit, overload, input overvoltage, and over-temperature protection mechanisms to ensure safe operation.

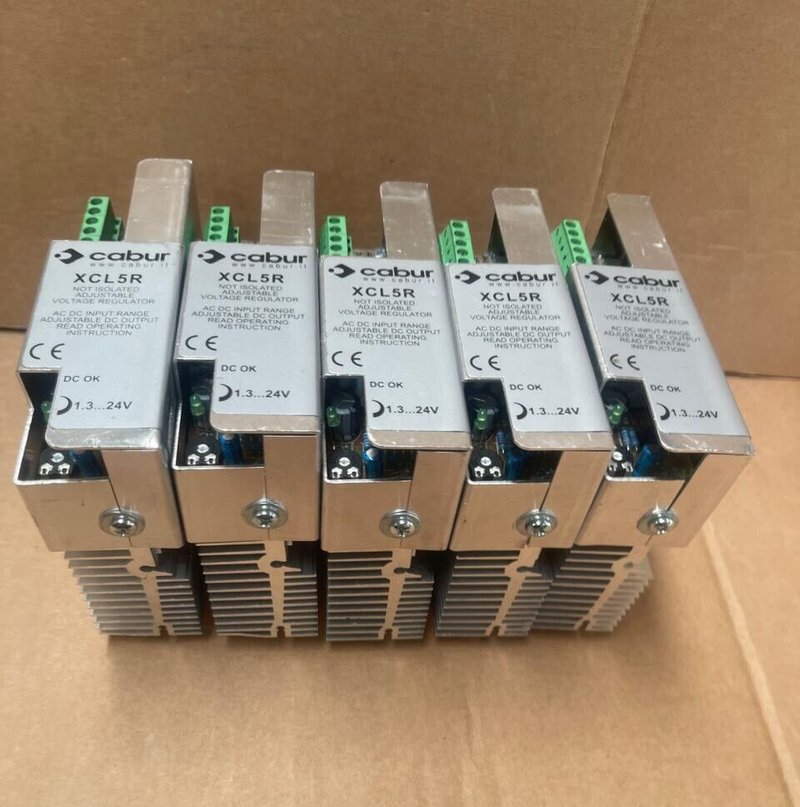

• LED Status Indicator: Features a “DC OK” LED for immediate visual confirmation of operational status.

• Compact Design: Housed in a durable aluminum casing with dimensions of 37 mm (L) x 115 mm (H) x 118 mm (D), facilitating easy integration into various setups.

Technical Specifications:

• Input Specifications:

• Rated Voltage: 12-24 V AC

• Voltage Range: 10-26 V AC

• Frequency: 47-63 Hz

• Current Consumption: 6 A at 24 V AC

• Internal Protection Fuse: T 10 A

• Recommended External Protection: Circuit breaker: C-10 A or Fuse: T 10 A

• Output Specifications:

• Voltage Range: 1.2-24 V DC

• Continuous Current: 0.8 A to 5 A (varies with output voltage)

• Ripple at Nominal Ratings: <50 mVpp at 24 V AC input

• Hold-Up Time: >20 ms

• General Specifications:

• Operating Temperature Range: -20°C to +45°C

• Isolation: Input to ground: 0.5 kV AC for 60 s; Output to ground: 0.5 kV AC for 60 s

• Protection Degree: IP00

• Connection Terminals: 2.5 mm² capacity

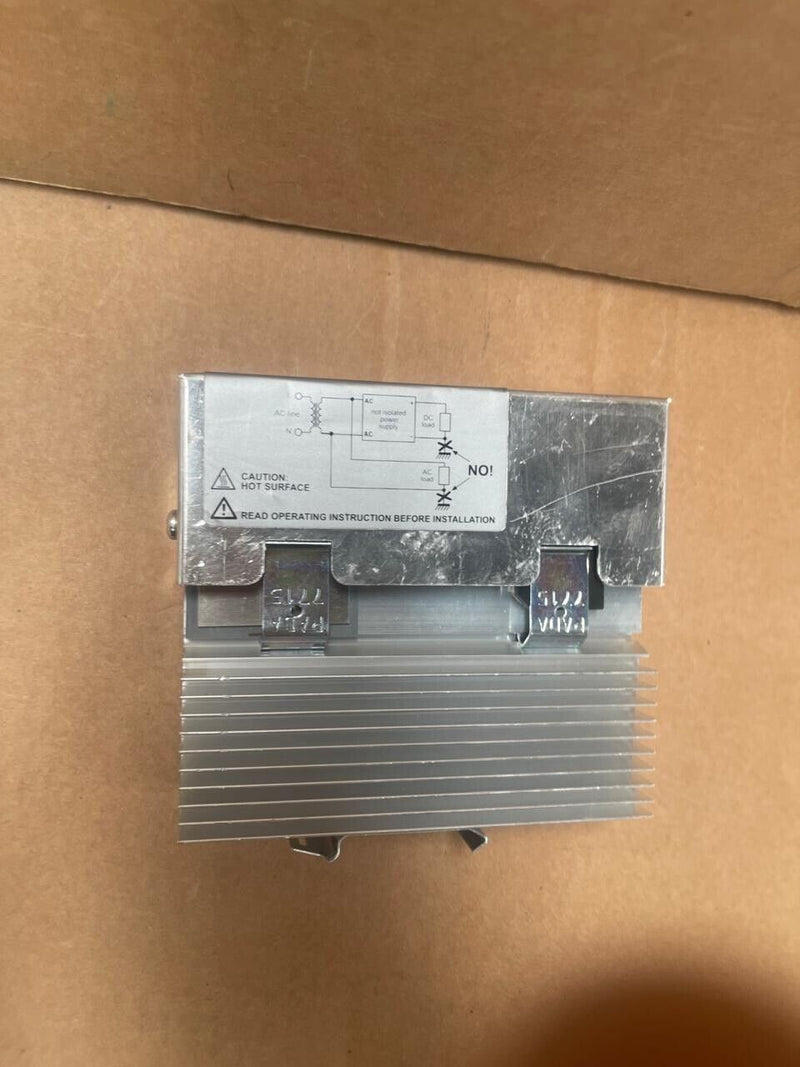

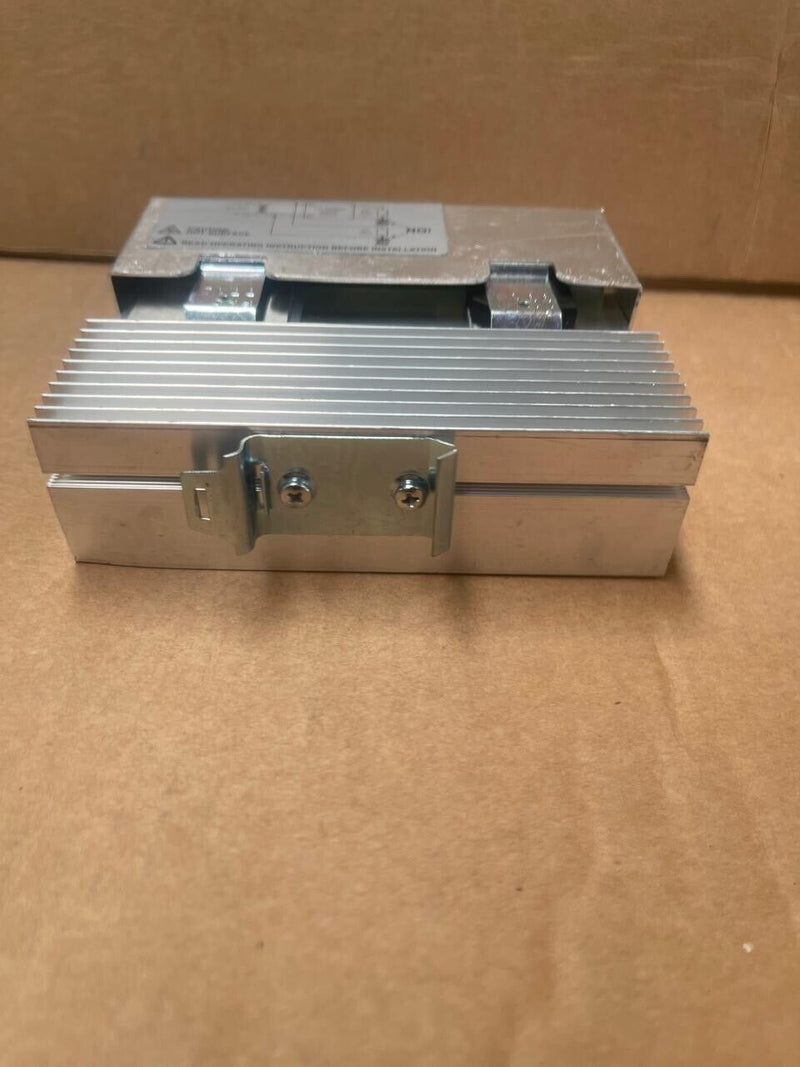

• Mounting: Vertical on a DIN rail (IEC60715/TH35-7.5), with a 20 mm clearance from adjacent components

• Weight: Approximately 350 g
