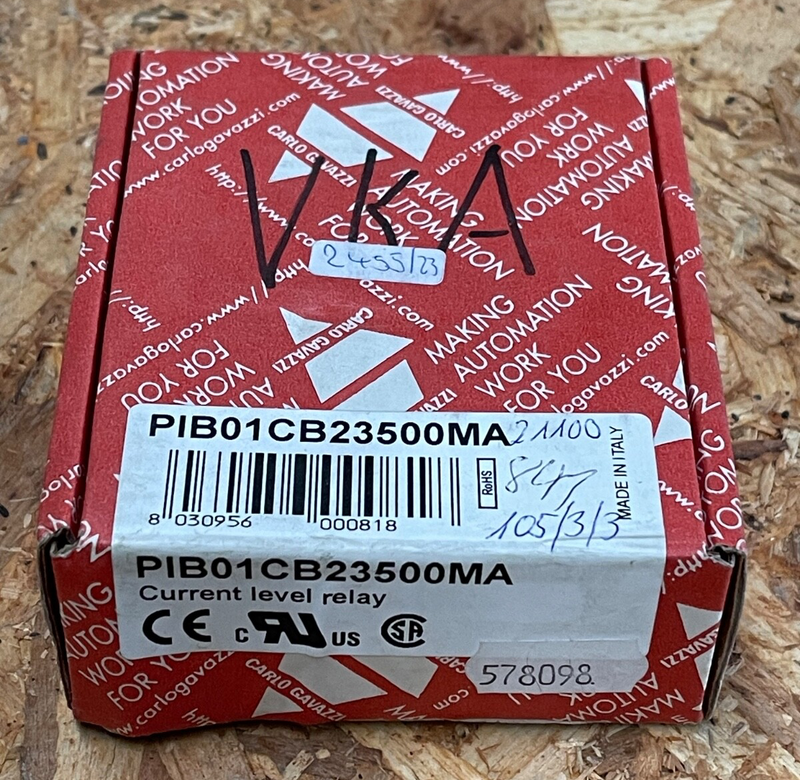

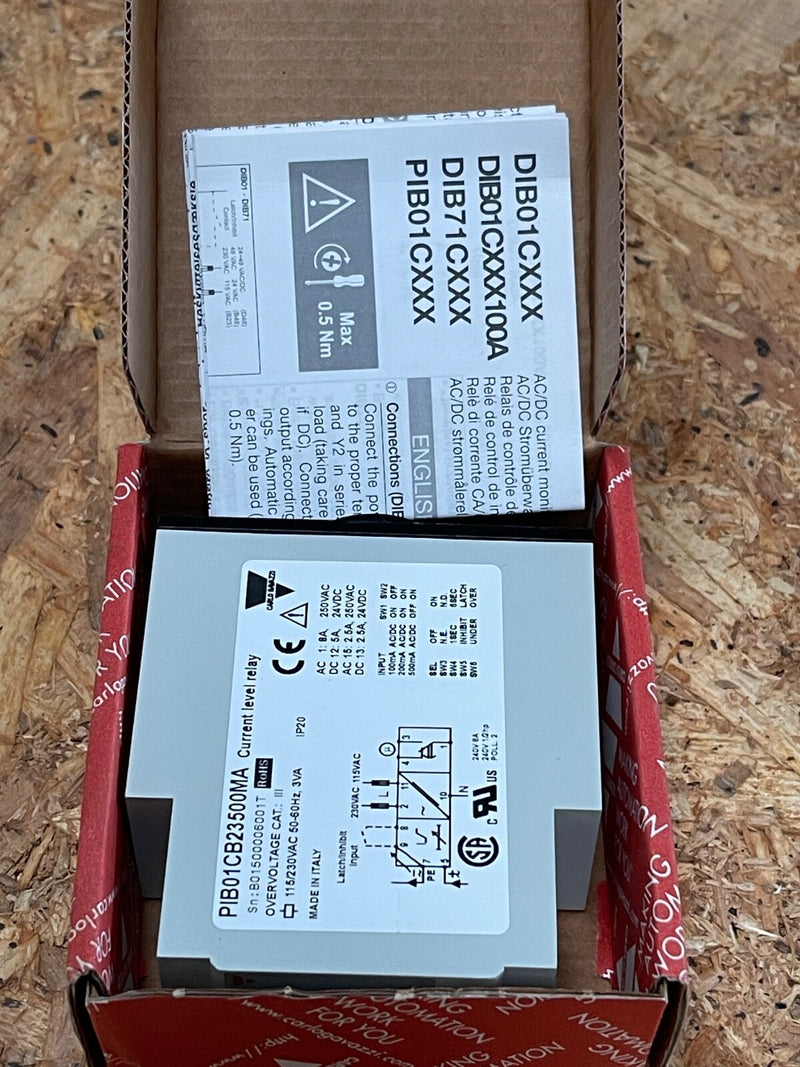

Carlo Gavazzi - PIB01CB23500MA - Current Level Monitoring Relay, 10–500 mA

The Carlo Gavazzi PIB01CB23500MA is a versatile current level monitoring relay designed for precise detection of AC and DC currents in industrial applications. With adjustable thresholds and time delays, it ensures reliable operation and protection of electrical systems.

Key Features:

• Model: PIB01CB23500MA

• Brand: Carlo Gavazzi

• Monitoring Range: 10 to 500 mA AC/DC

• Supply Voltage: 115/230 V AC

• Output Configuration: SPDT relay contact

• Output Ratings:

  • 8 A at 250 V AC (AC1)

  • 5 A at 24 V DC (DC12)

  • 2.5 A at 250 V AC (AC15)

  • 2.5 A at 24 V DC (DC13)

• Time Delay: Adjustable from 0.1 to 30 seconds

• Hysteresis: Adjustable from 0 to 30%

• Mounting: Plug-in (11-pin)

• Protection Rating: IP20

• Operating Temperature: -20°C to +60°C

• Dimensions: 36 mm × 80 mm × 94 mm

• Applications: Ideal for monitoring current levels in industrial automation, motor control, and process systems
