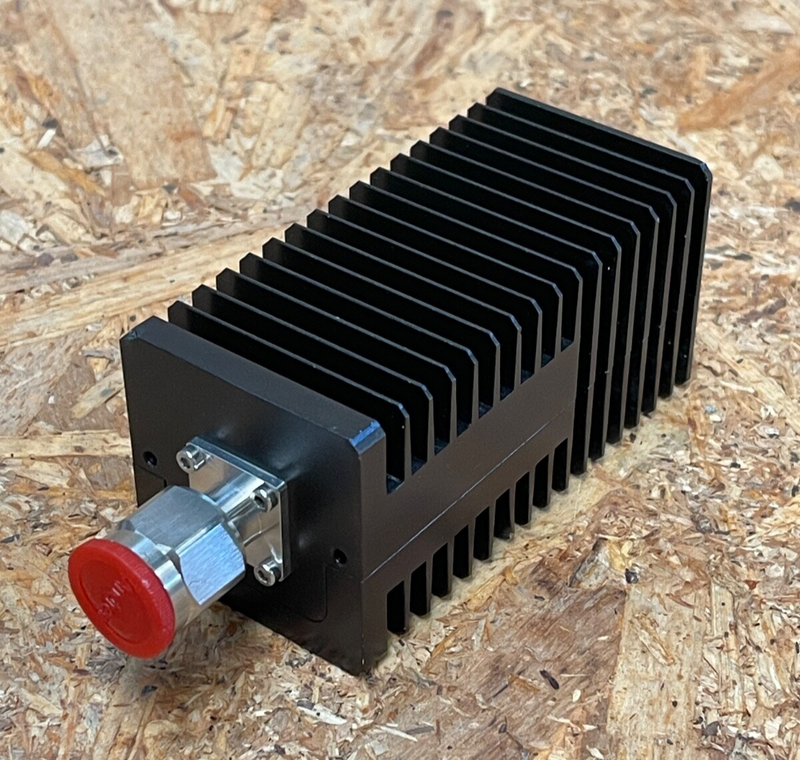

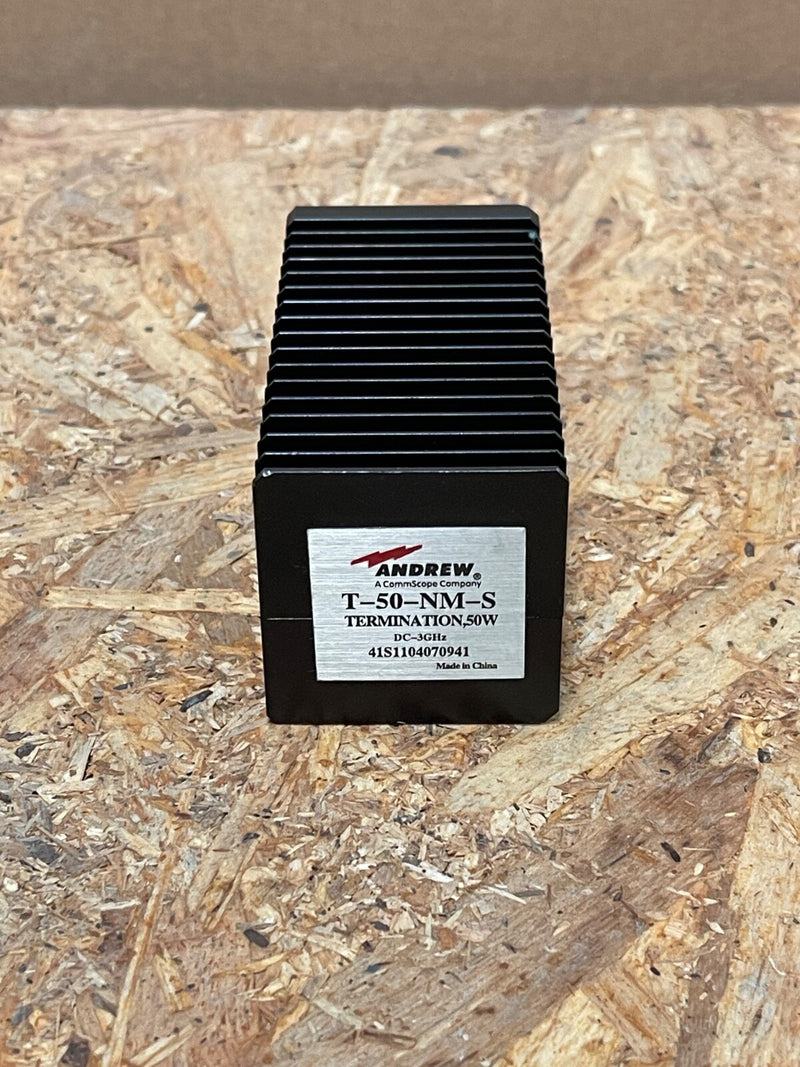

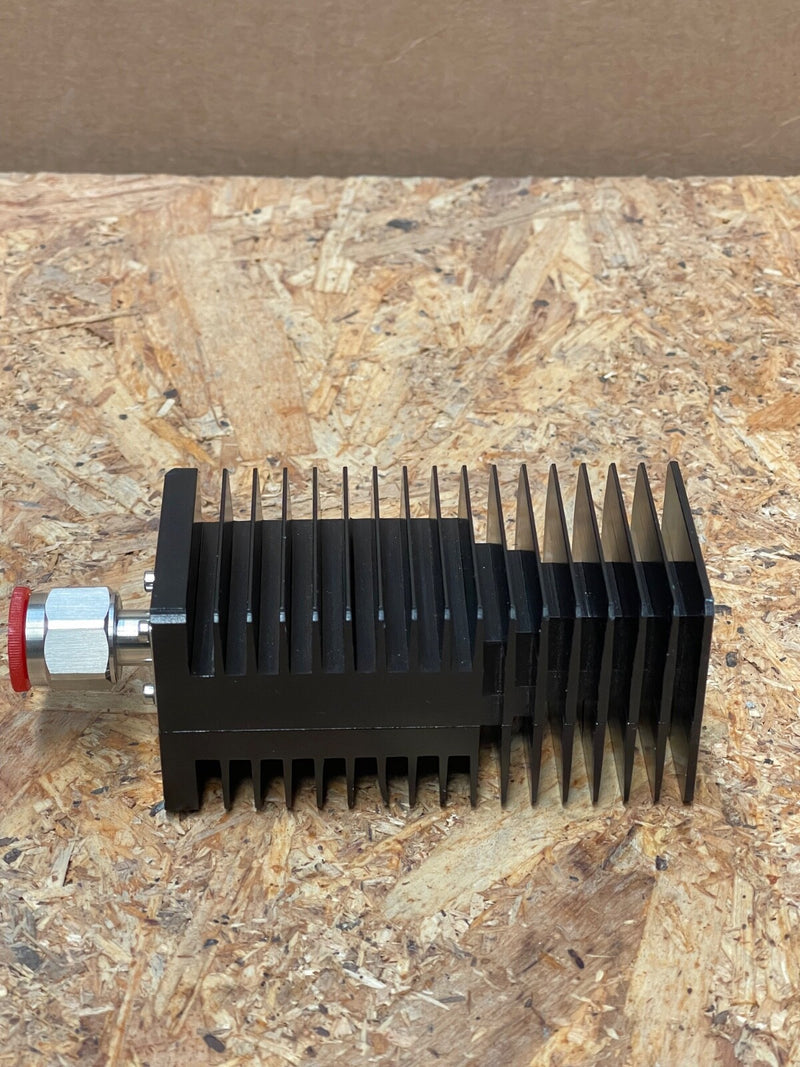

Commscope – T‑50‑NM‑S – 50 Ω N‑Male Termination Load, DC–3 GHz

Main Features

• Manufacturer: Commscope (formerly Andrew)

• Model/MPN: T ‑50‑NM‑S

• Device Type: Radio frequency (RF) termination load (dummy load) with N‑male connector

• Frequency Range: DC to 3000 MHz

• Impedance: 50 Ω matched load

• Power Rating: Up to 50 W (average continuous power)

• VSWR: Excellent reflection performance, typically ≤ 1.15:1 throughout operating range

• Ingress Protection: Ruggedized IP65 housing, suitable for indoor/outdoor installations

• Construction: Black aluminum or durable composite body; silver-plated inner and tri-metal outer contacts for reliable RF performance

• Dimensions: Approximately 50 × 50 × 129.5 mm; net weight ~0.36 kg

• Typical Applications:

  • Termination of unused antenna ports

  • Stabilizing RF transmitters/test instruments

  • Cellular DAS (Distributed Antenna Systems) installations

  • RF instrument calibration and diagnostics
