Control Techniques – SI‑PROFINET Module – 82500000018200 – PROFINET Interface

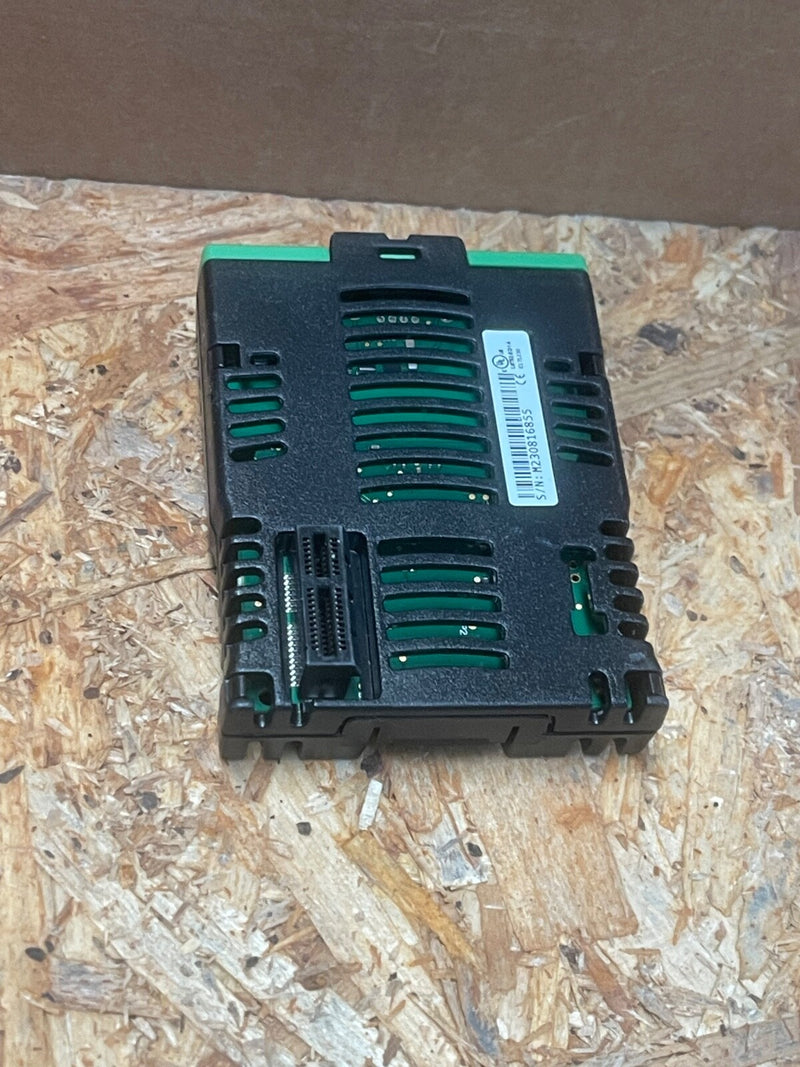

The Control Techniques SI-PROFINET V2 is an OEM communication module that integrates PROFINET connectivity into Unidrive M (M200/300/400/600/700) and Commander C200/C300 series drives. It provides dual full-duplex 100 Mbps RJ45 ports for daisy-chaining and supports PROFINET RT Class A, featuring automatic device replacement (LLDP/DCP), cycle times from 2–512 ms, and configurable via GSDML.
Key Specifications & Features

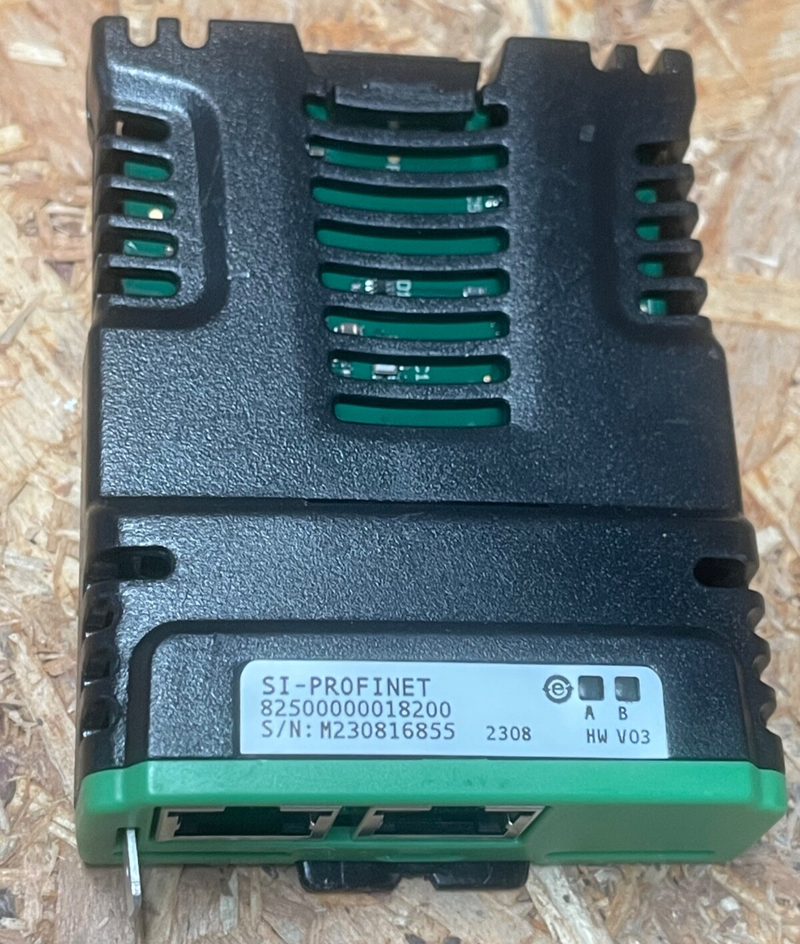

Model / P/N: 82500000018200 (SI-PROFINET V2)
Compatibility: Supports Unidrive M200/M300/M400/M600/M700 and Commander C200/C300 series

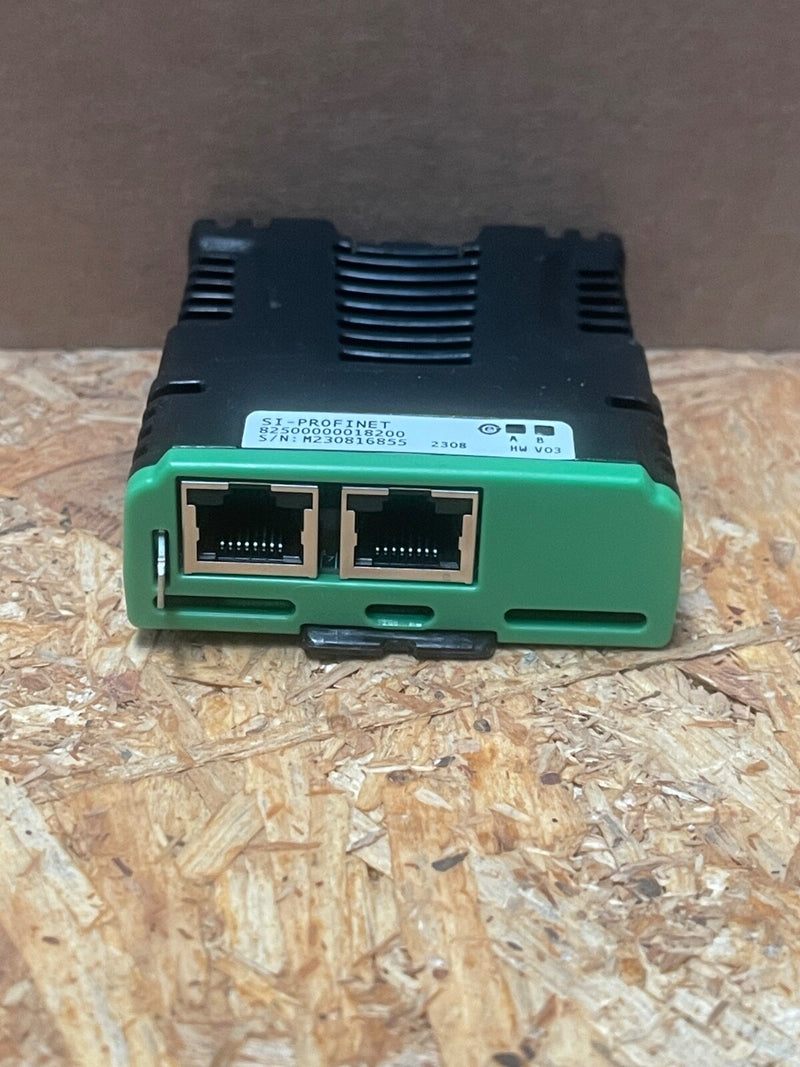

Ports: Dual 100BASE-TX RJ45 with auto-crossover and integrated switch for daisy chain
Protocol & Performance: PROFINET RT Class A, I&M0–I&M4 support, cycle times 2–512 ms
LED Indicators: Network activity/status LEDs on ports
Form Factor: DIN-compatible plug-in option module; RoHS compliant
