The Crompton ‑PVEG is a robust protector trip relay designed to monitor and protect three-phase or single-phase systems against both undervoltage and overvoltage conditions. Ideal for industrial control panels, genset protection, and electrical safety applications, it trips on voltage deviation and features automatic reset once conditions normalize.

Key Features:

• Model: ‑PVEG (Protector Trip Relay)

• Voltage Rating: Monitors  V L–N /  V L–L systems; adjustable trip thresholds (e.g., U<: –%, U>: –%)

• Protection: Detects both undervoltage and overvoltage; automatic reset on return to safe range

• Power Consumption: Supports  –  V AC/DC coil operation

• Contacts: DPDT relay outputs rated  A @  VAC (common in Protector series)

• LED Indicator: Bright red LED signals trip activation (standard Protector feature)

• Mounting: DIN-rail or panel mount capable, durable flame-retardant housing, IP panel-style unit

• Approvals: UL and CSA recognized for North American compliance

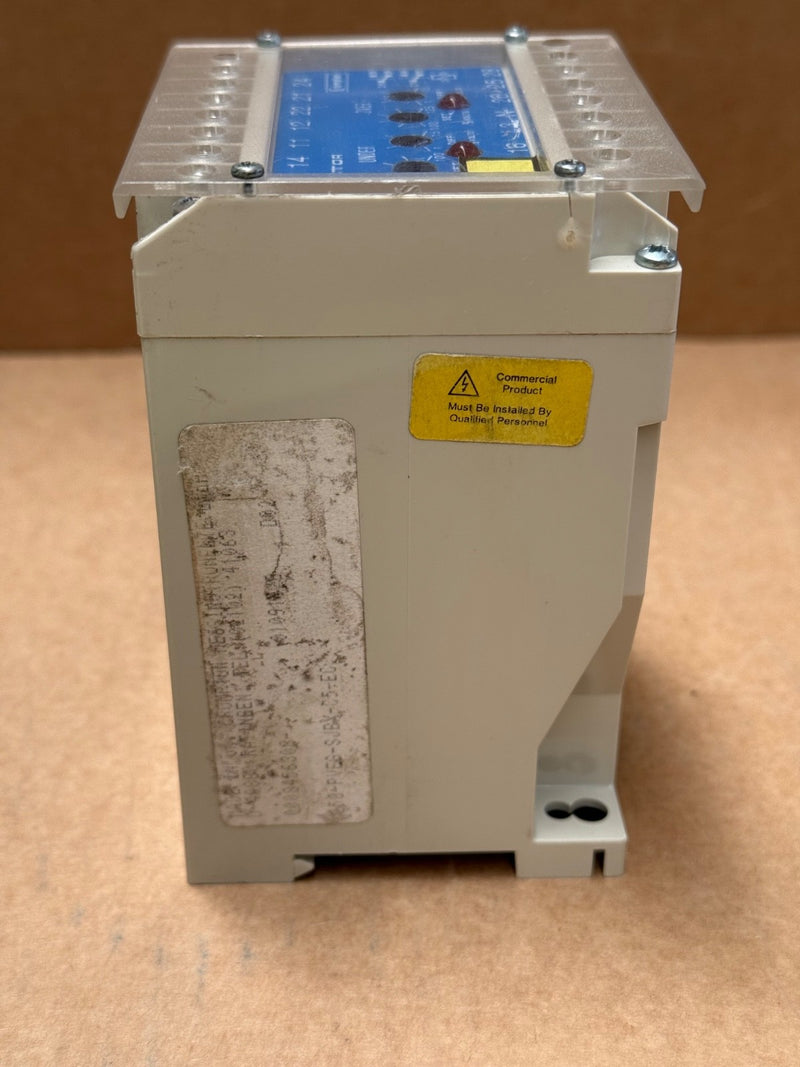

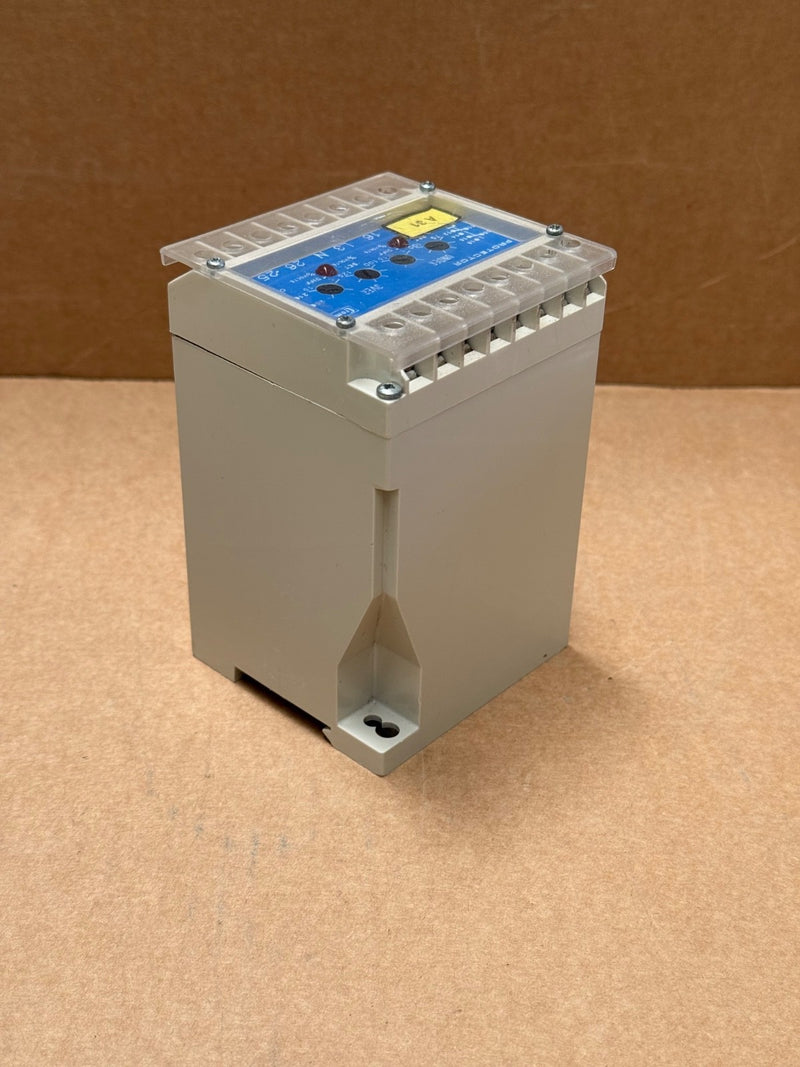

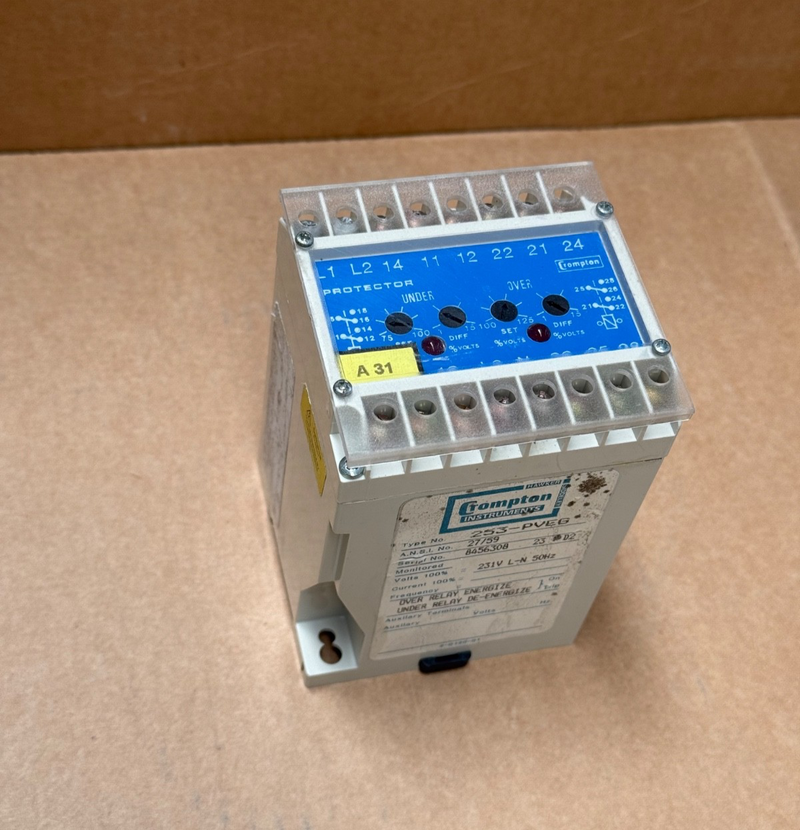

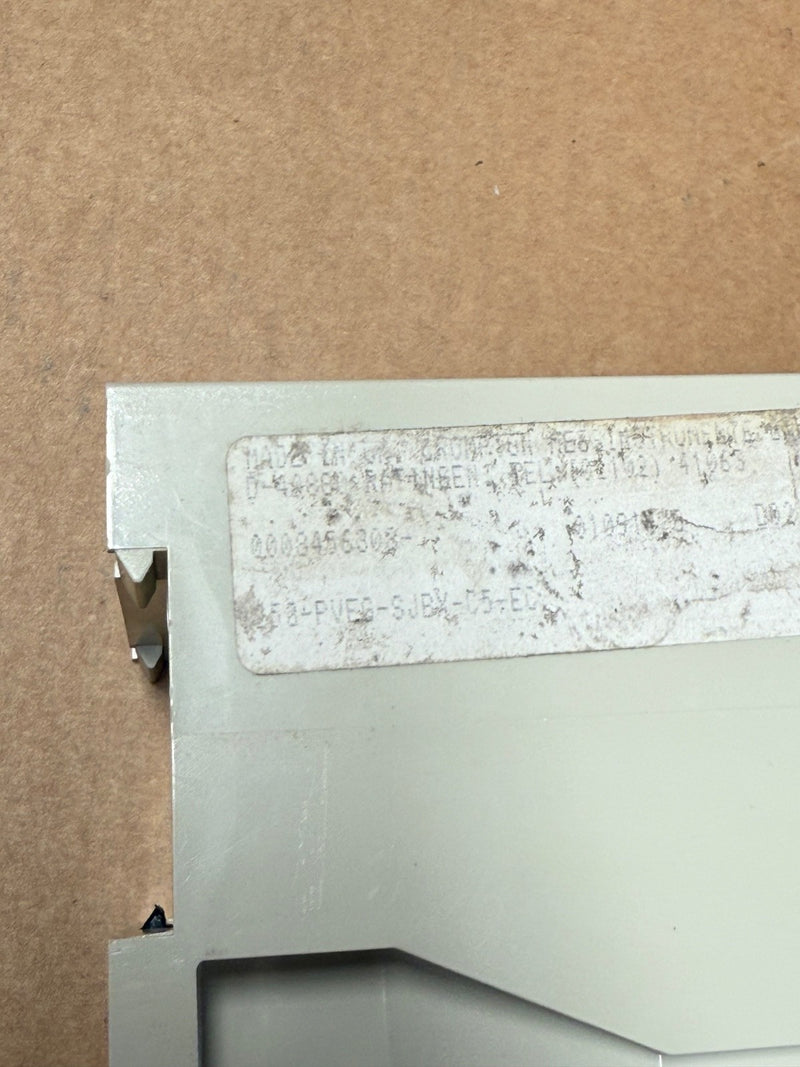

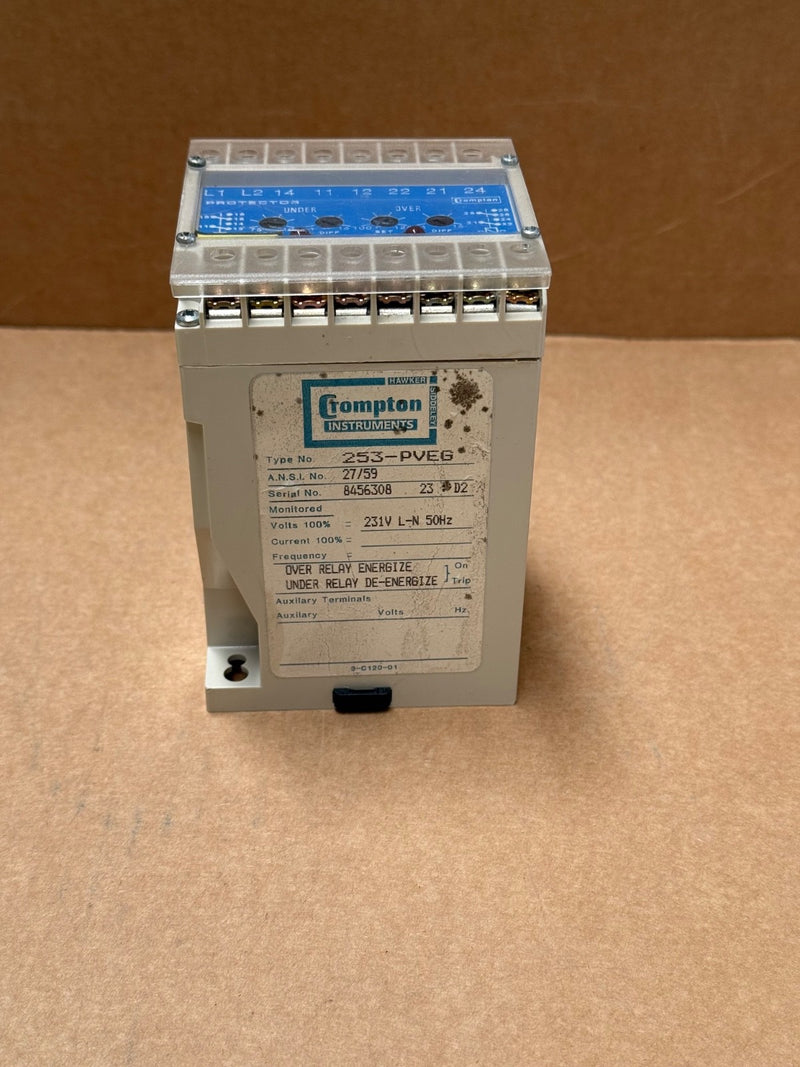

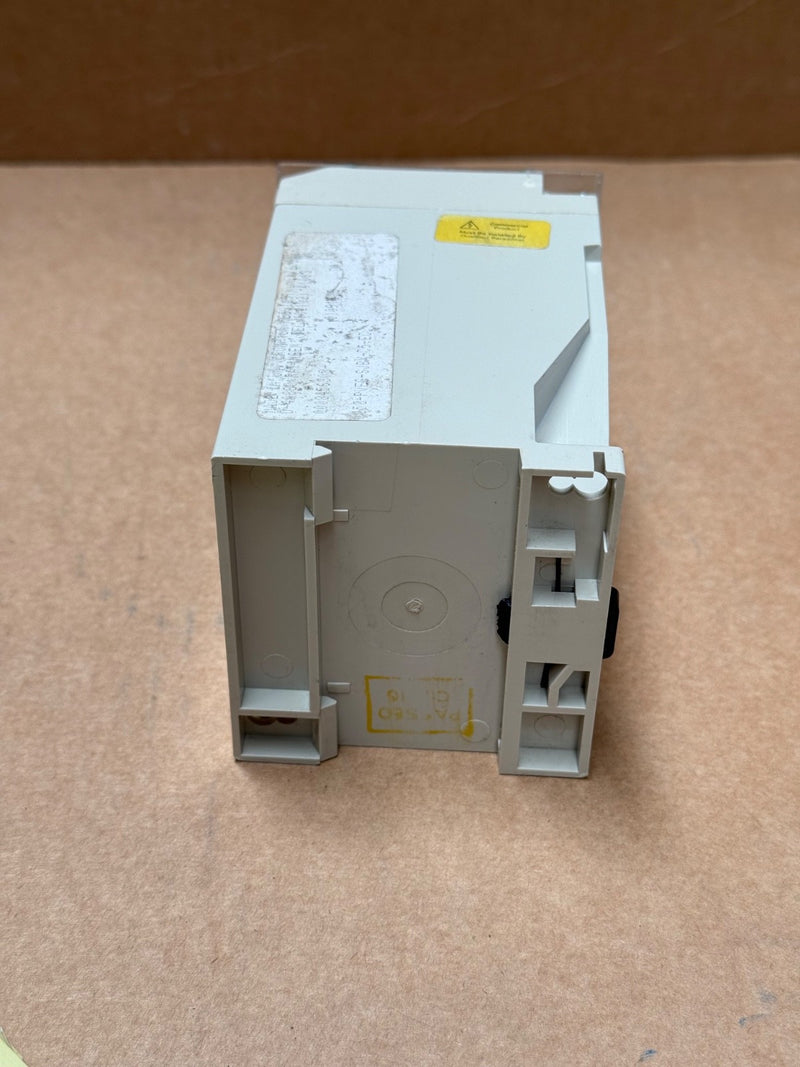

Crompton – 253-PVEG – Under/Over-Voltage Protector Relay, 230/400 V, DIN-Rail
