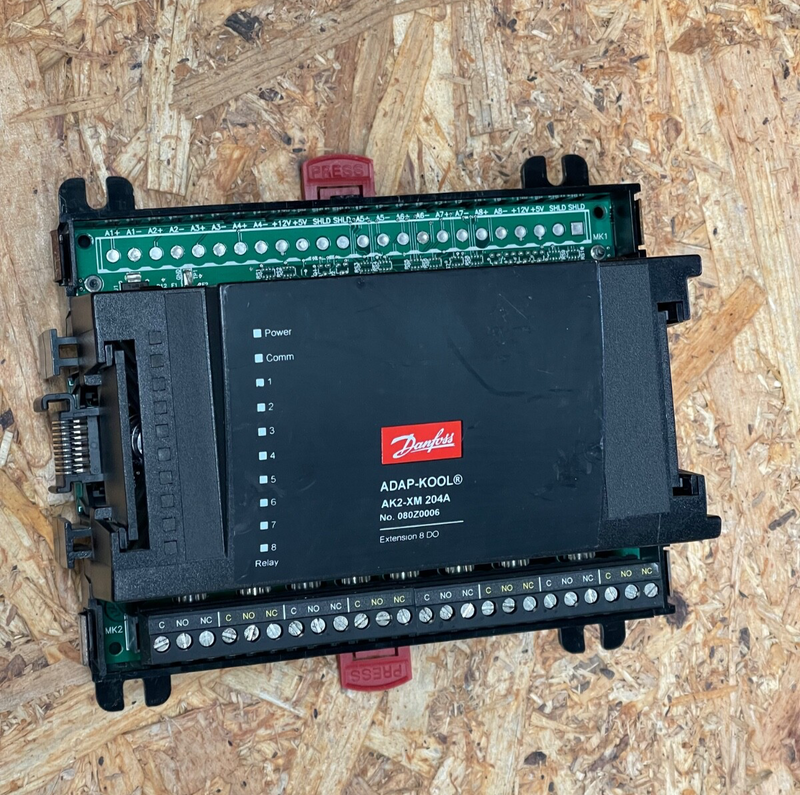

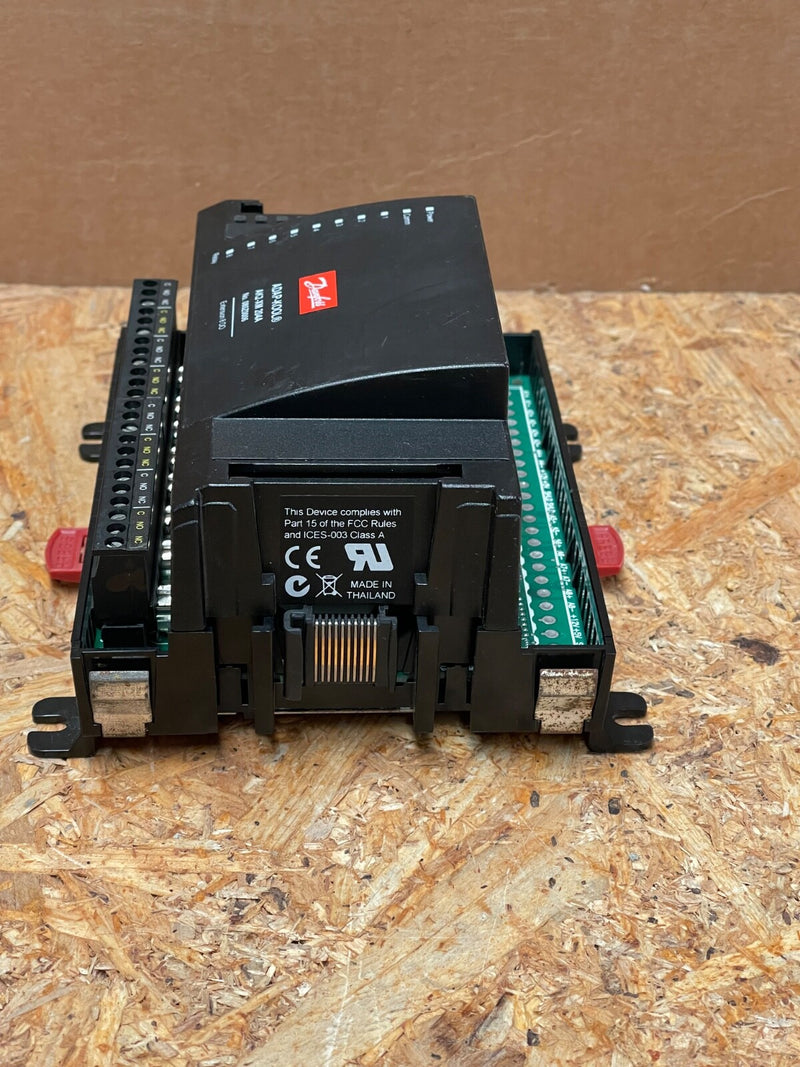

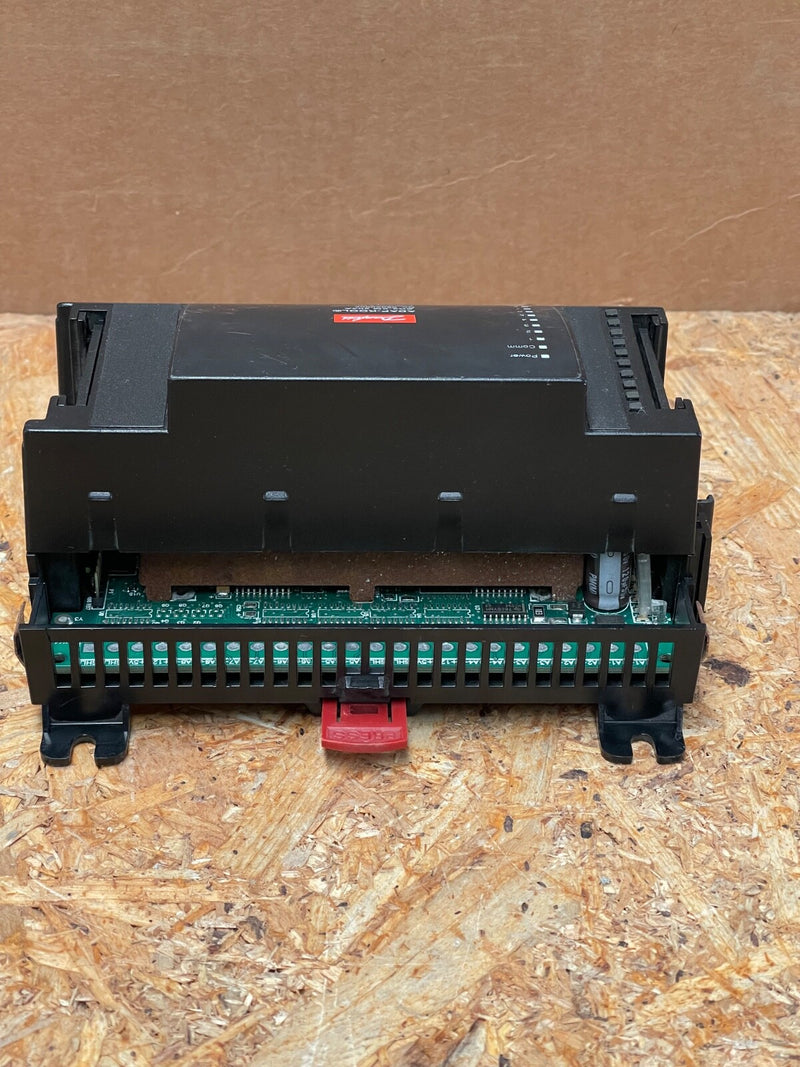

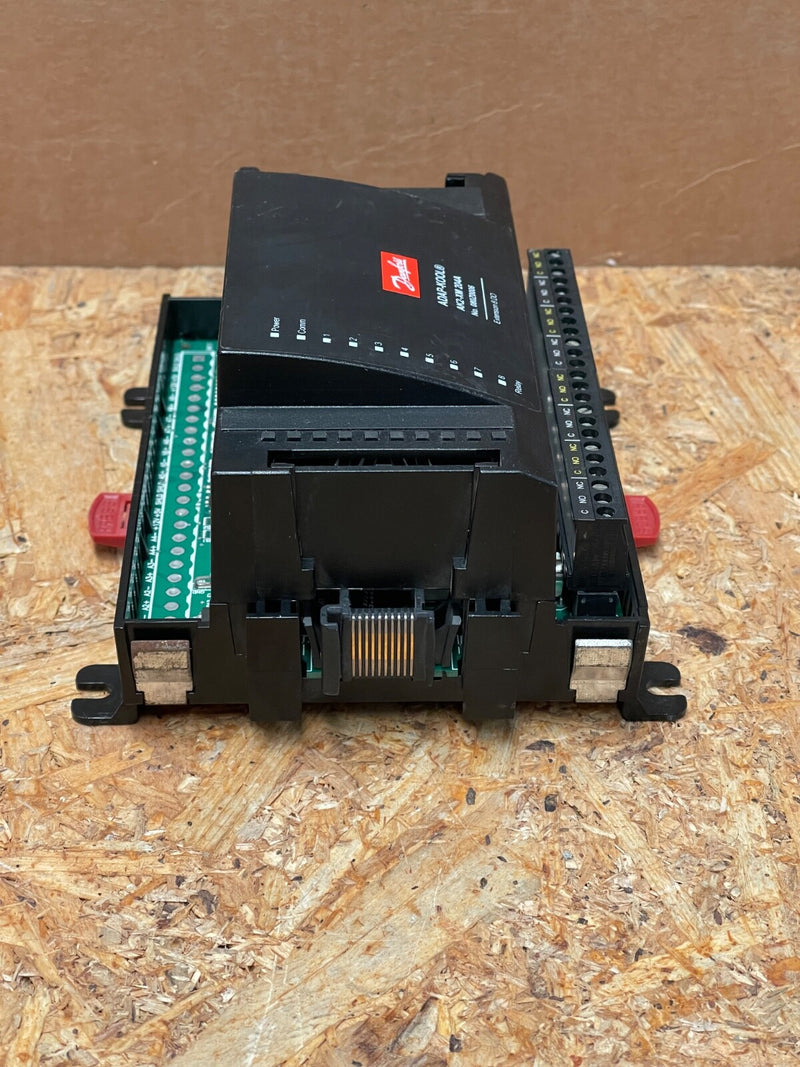

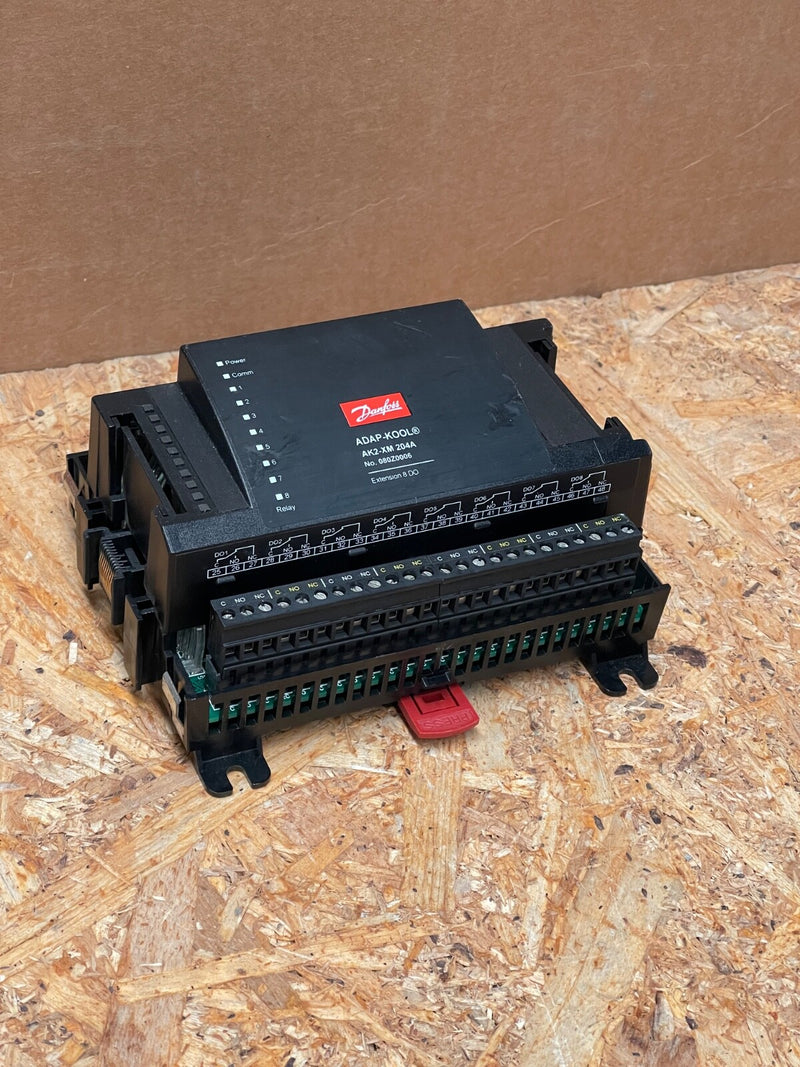

Danfoss – 080Z0006 – AK‑XM 204A Extension I/O Module (8 Relay Outputs)

The Danfoss 080Z0006 (AK‑XM 204A) is a rugged extension I/O module designed for use in commercial refrigeration and HVAC control systems within the ADAP‑KOOL® ecosystem. This module provides eight relay outputs, allowing controllers to drive external devices such as fans, valves, alarms, or defrost circuits. It connects via the AK2 bus, enabling seamless integration and expansion of control capabilities.

Key Features:

• Model: AK‑XM 204A (Danfoss code 080Z0006)

• Module Type: Extension I/O module with 8 SPDT relay outputs

• Output Capacity:

  • 4 A (AC‑1) for resistive loads

  • 3 A (AC‑15) for inductive loads (rated to 230 VAC)

• Nominal Supply Voltage: Up to 230 VAC

• Mounting: DIN‑rail compatible for OEM panel installations

• Additional Features: LED indicators for each output channel and available override module option (AK‑XM 204B with manual override)
