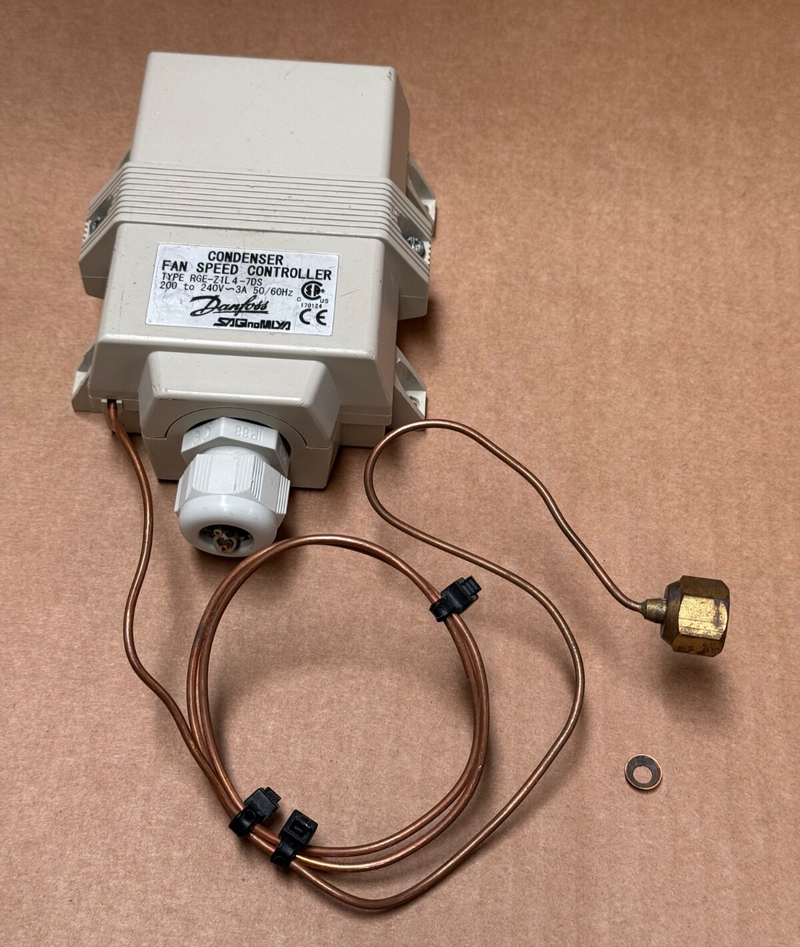

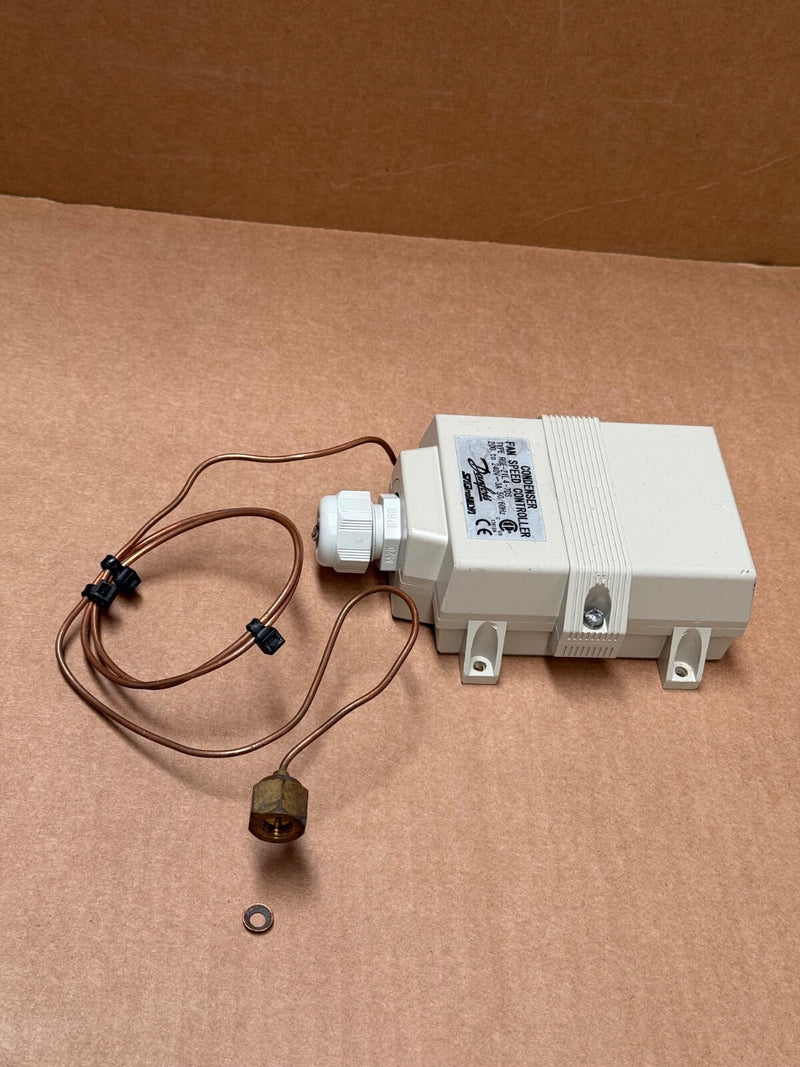

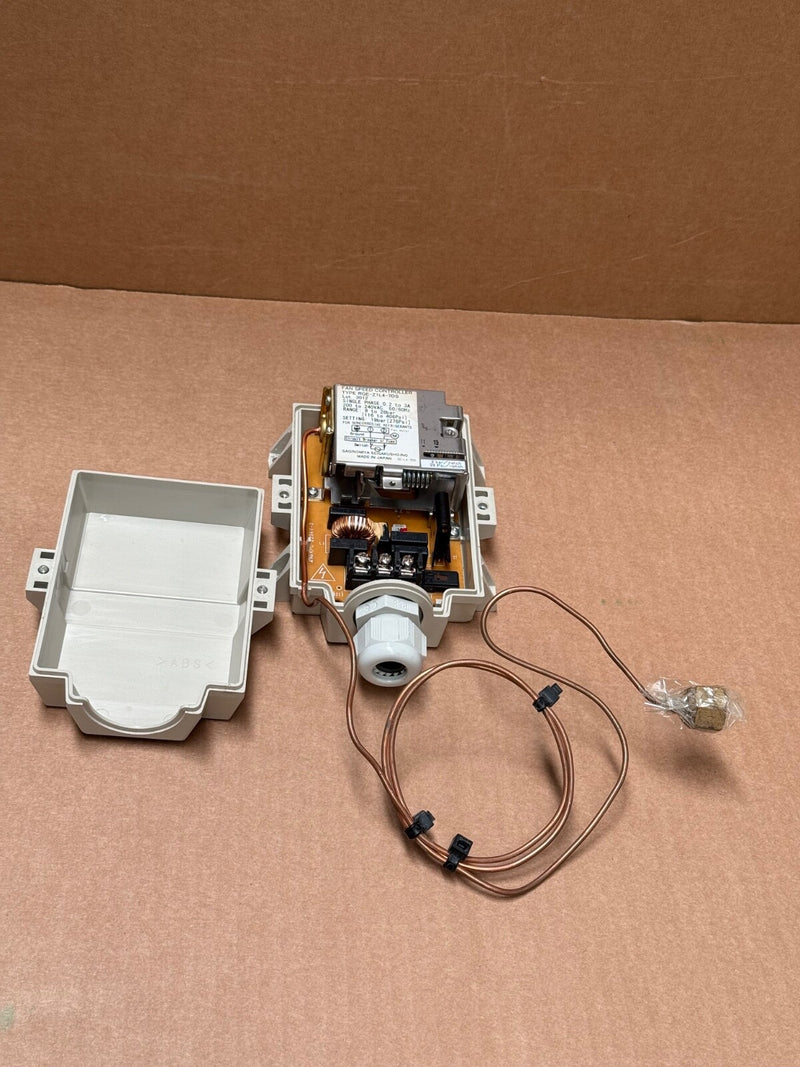

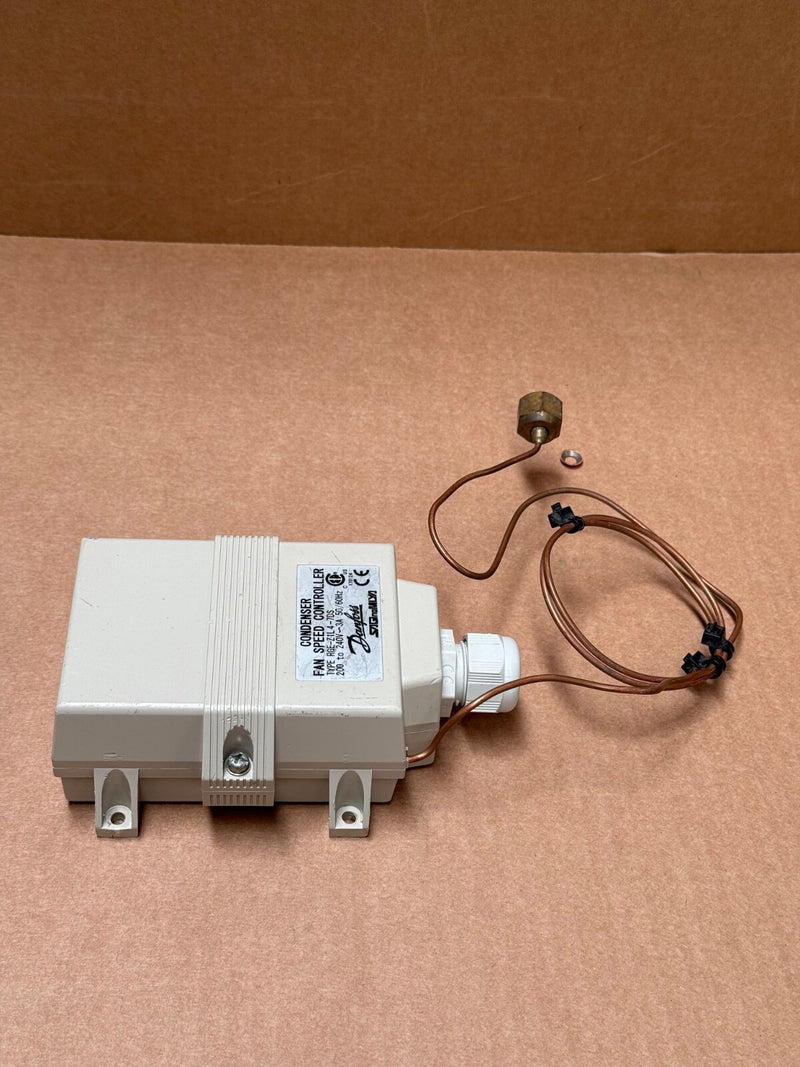

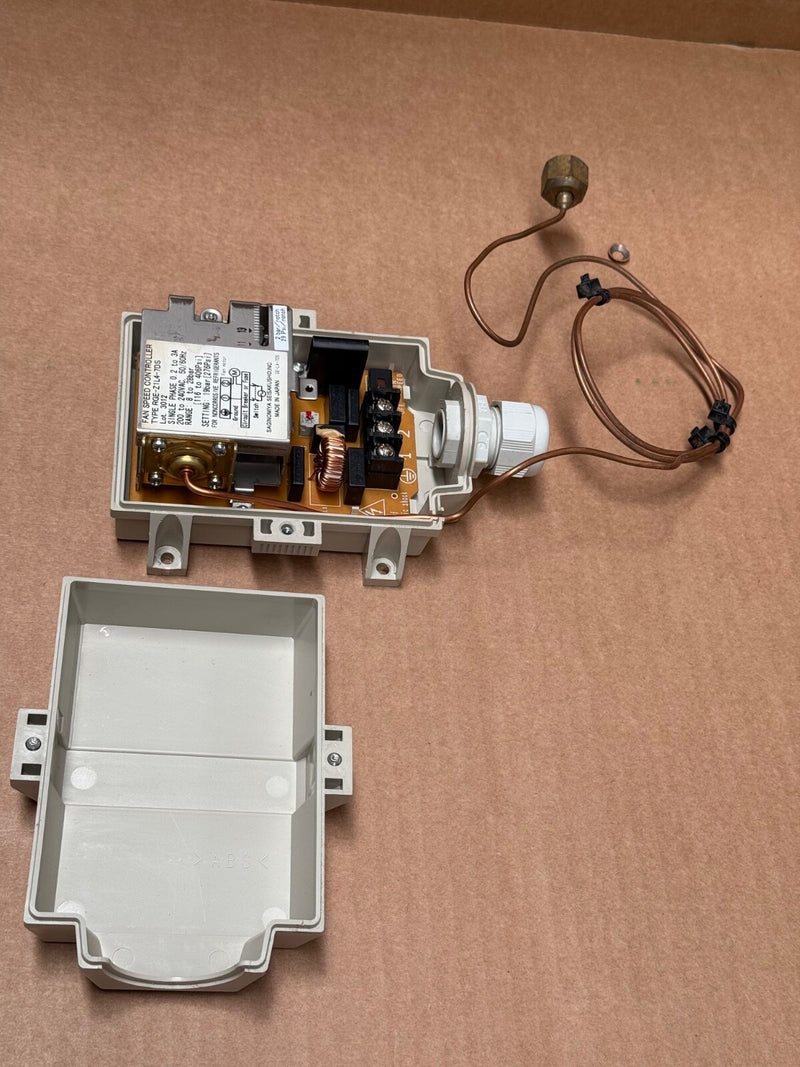

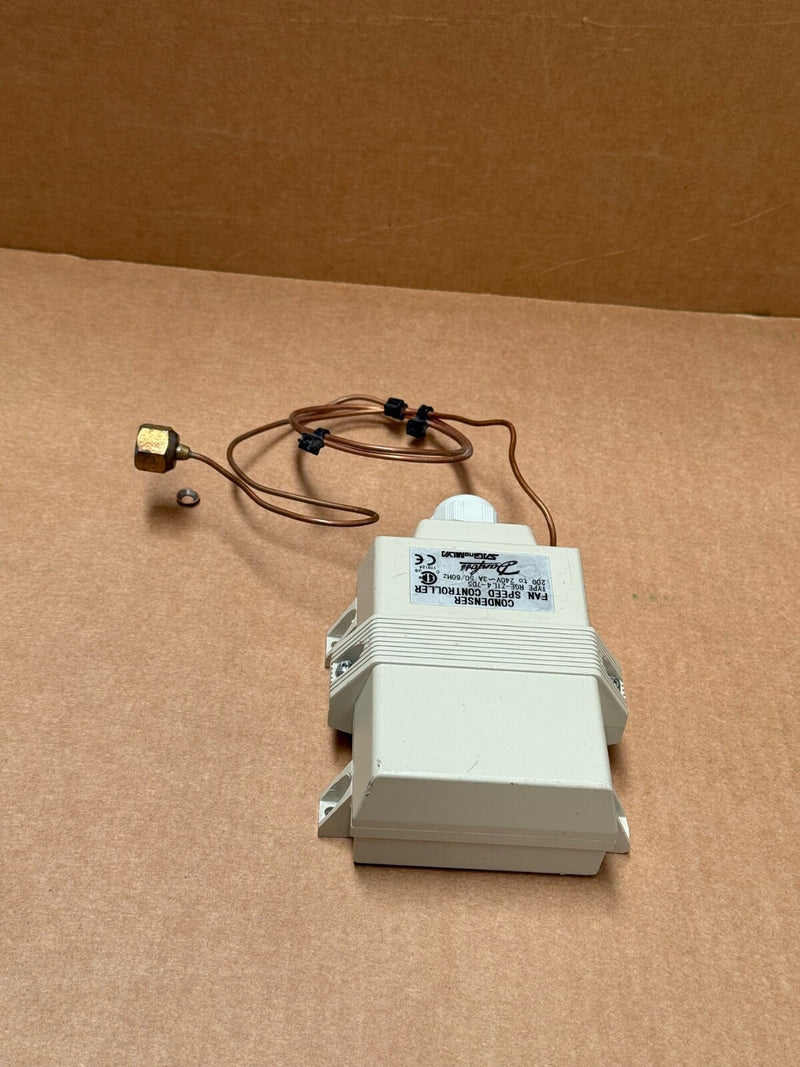

Danfoss – RGE‑Z1L4‑7DS (061H3045) – Condenser Fan Speed Controller, 230 V

The Danfoss RGE‑Z1L4‑7DS is a robust, compact fan-speed controller designed for air-cooled condenser systems. It features an integrated pressure sensor and phase-angle control to regulate fan motor speed based on condensing pressure, enabling noise reduction and energy efficiency. A built-in switch allows selection between “cut-off” or “minimum speed” modes. Housed in an IP54 casing with adjustable range from 8 to 28 bar.

 Key Features

• Model & Danfoss P/N: RGE‑Z1L4‑7DS, 061H3045

• Application: Controls condenser/AC fan via motor phase-angle modulation tied to system pressure

• Pressure Range: Factory‑set 19 bar; adjustable 8–28 bar operation (116–406 psi)

• Pressure Sensor: Internal Bellows mechanism; Schrader valve flare ¼″–20 UNF connection; 900 mm capillary

• Electrical Specs:

   • Supply: 200–240 V AC, 50/60 Hz

   • Output: Up to 2 A single-phase fan drive

   • Selectable mode: Cut-off or keep fan at 45% speed (50 Hz) / 35% (60 Hz) below setpoint

• Ambient Conditions: –20 °C to +55 °C

• Protection Ratings: IP54 housing; resistant to most refrigerants (R22, R134a, R404A/C, R407C/F, R410A, R450A, R513A)

• Mechanical Dimensions: Net weight ~0.36 kg; gross ~0.42 kg; enclosure rating IP54

• Durability: Burst pressure rating 131 bar; max working pressure 47 bar

• Certifications: CE, UKCA, EMC, CSA; wide refrigerant compatibility
