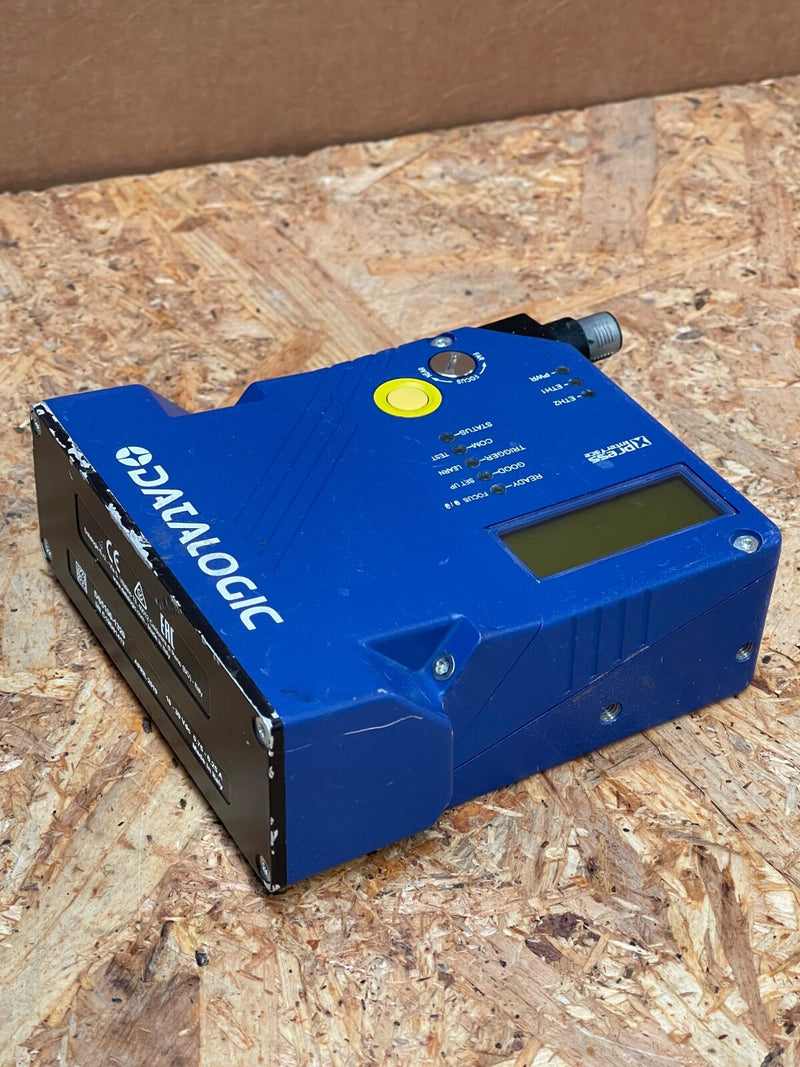

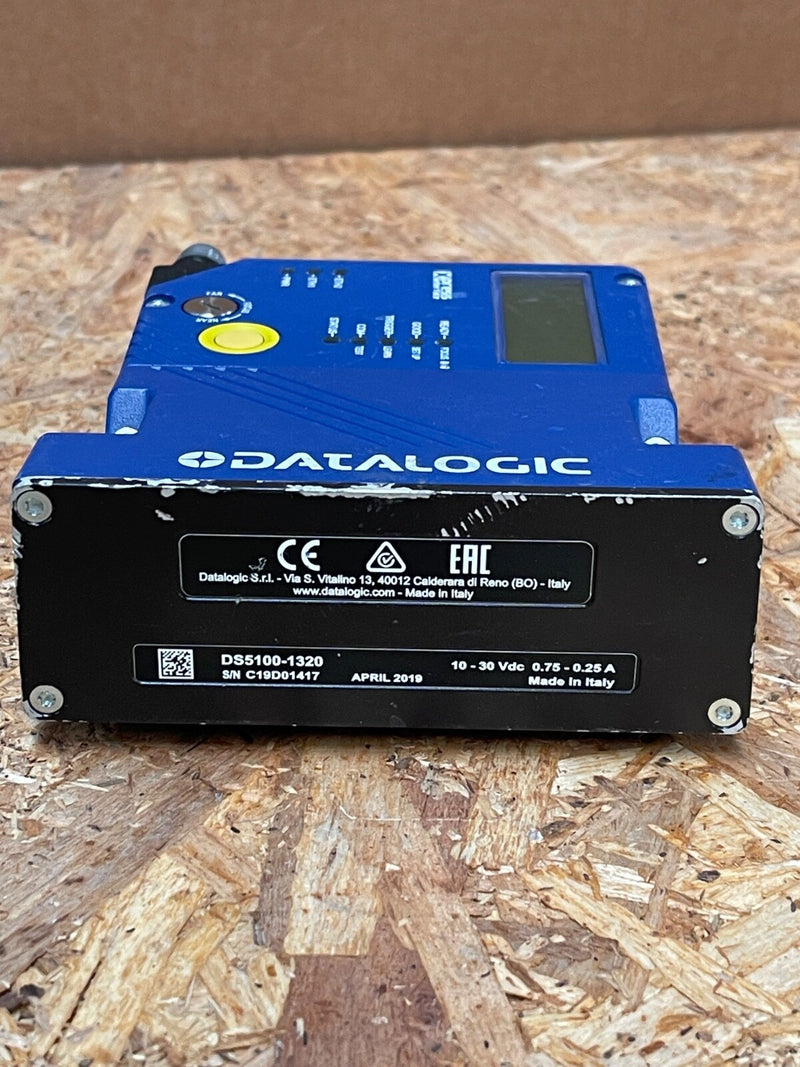

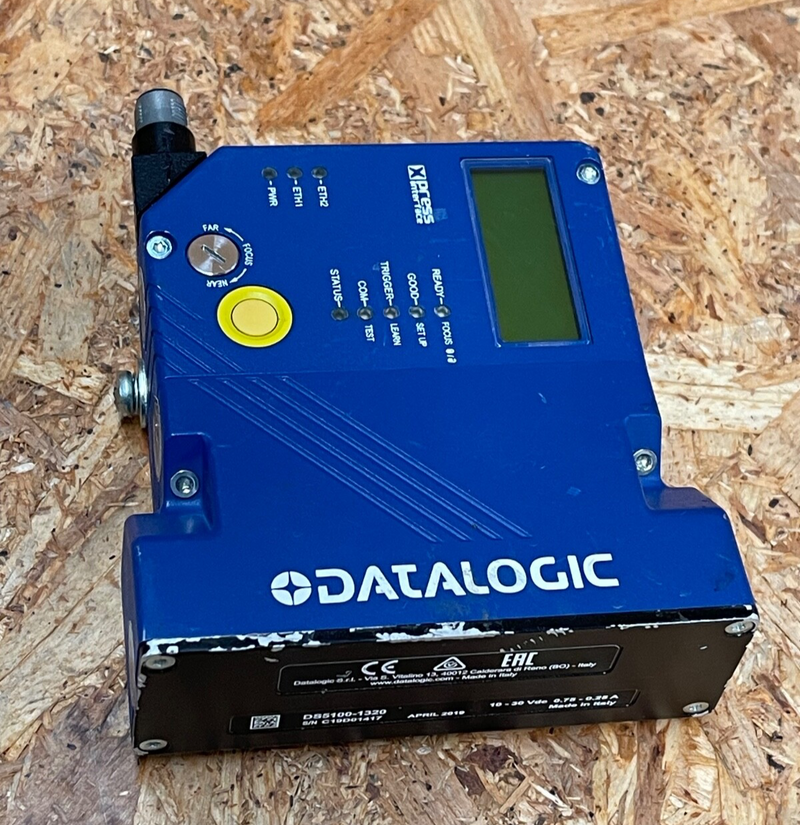

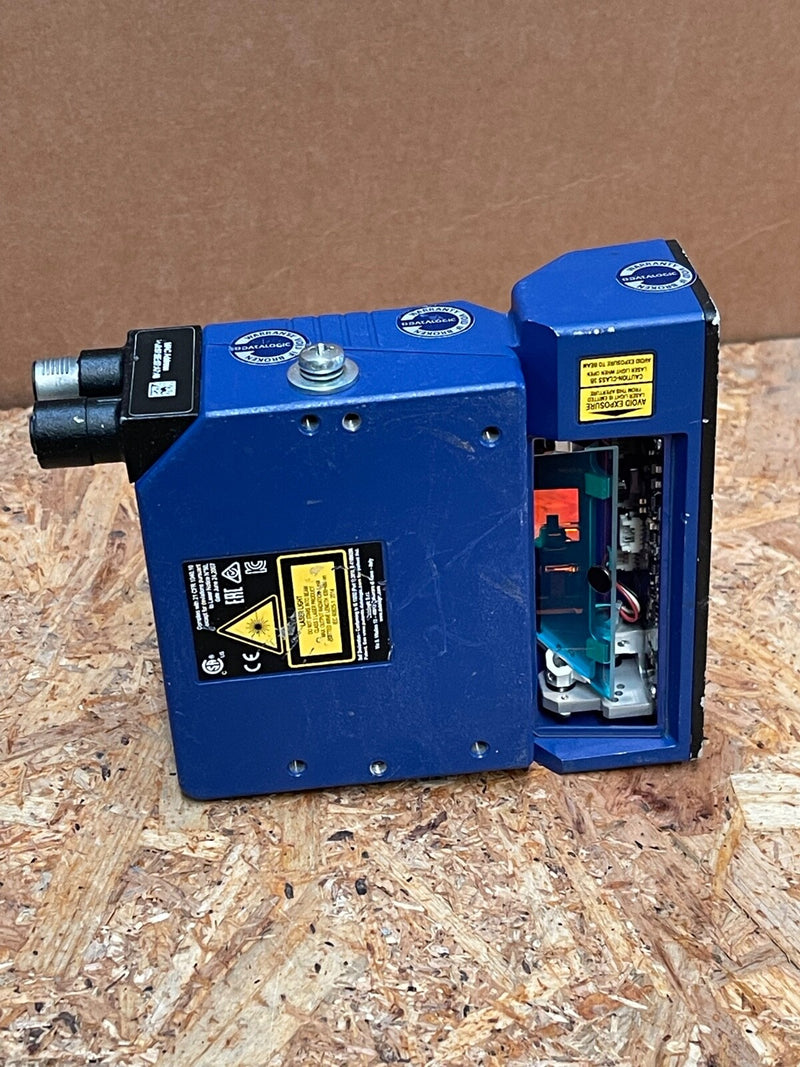

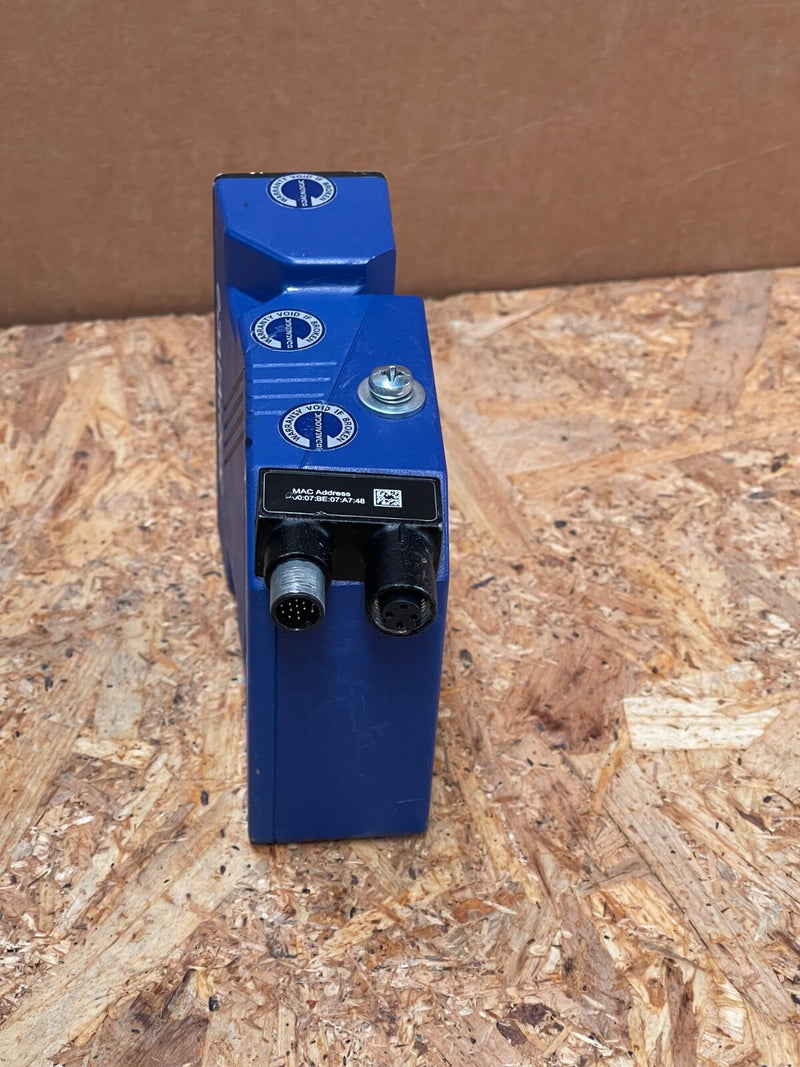

Datalogic - DS5100-1320 - Medium-Range Industrial Laser Scanner, Ethernet

The Datalogic DS5100-1320 is a compact and versatile industrial laser barcode scanner designed for medium-range applications. Equipped with an oscillating mirror and Ethernet connectivity, it delivers high-speed scanning performance, making it ideal for various manufacturing and logistics environments.

Key Features:

• Model: DS5100-1320

• Brand: Datalogic

• Scan Rate: 800 scans per second

• Reading Distance: Up to 1,000 mm (medium range)

• Minimum Bar Width: 0.2 mm (8 mils)

• Scan Pattern: Oscillating mirror

• Connectivity: Ethernet, RS-232/RS-485

• Power Supply: 10–30 V DC

• Power Consumption: 7.5 W

• Housing Material: Aluminum

• Protection Rating: IP65

• Operating Temperature: 0 °C to +50 °C

• Dimensions (H×W×D): 48.4 mm × 116.7 mm × 142.9 mm

• Weight: 715 g

• Supported Barcodes: Code 2/5, Code 39, Code 93, Code 128, EAN/UPC, EAN128, Codabar, Pharmacode, Plessey, ISBT128

• Features: Digital Signal Technology (DST), ACR4 code reconstruction, X-PRESS interface, Genius™ configuration software

• Applications: Suitable for shop floor operations, end-of-line inspection, automated warehouses, intralogistics, and pallet reading in industries such as automotive, food & beverage, and pharmaceuticals.
