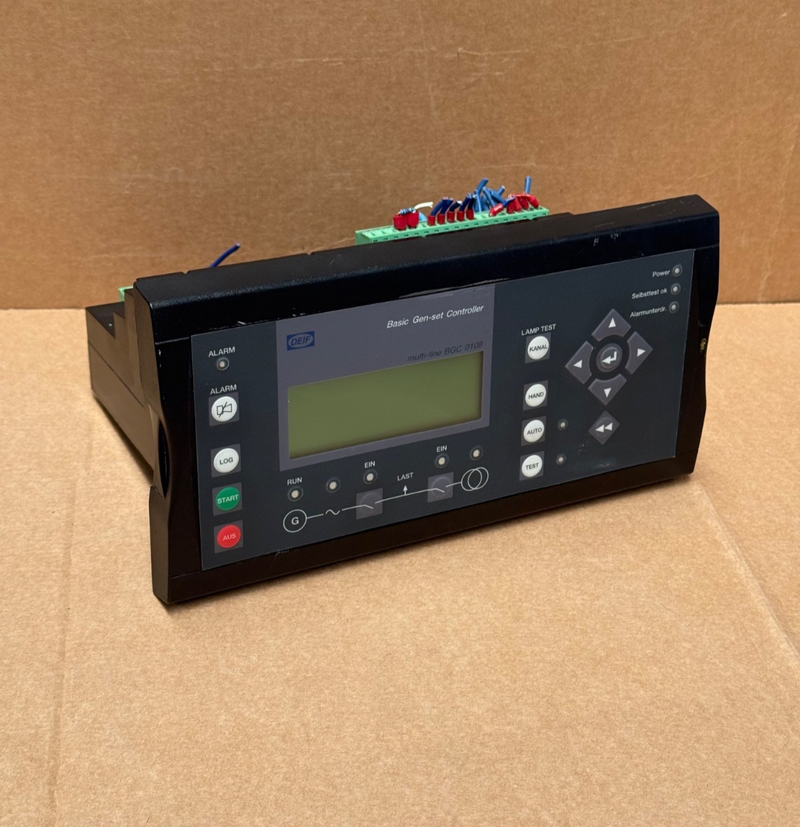

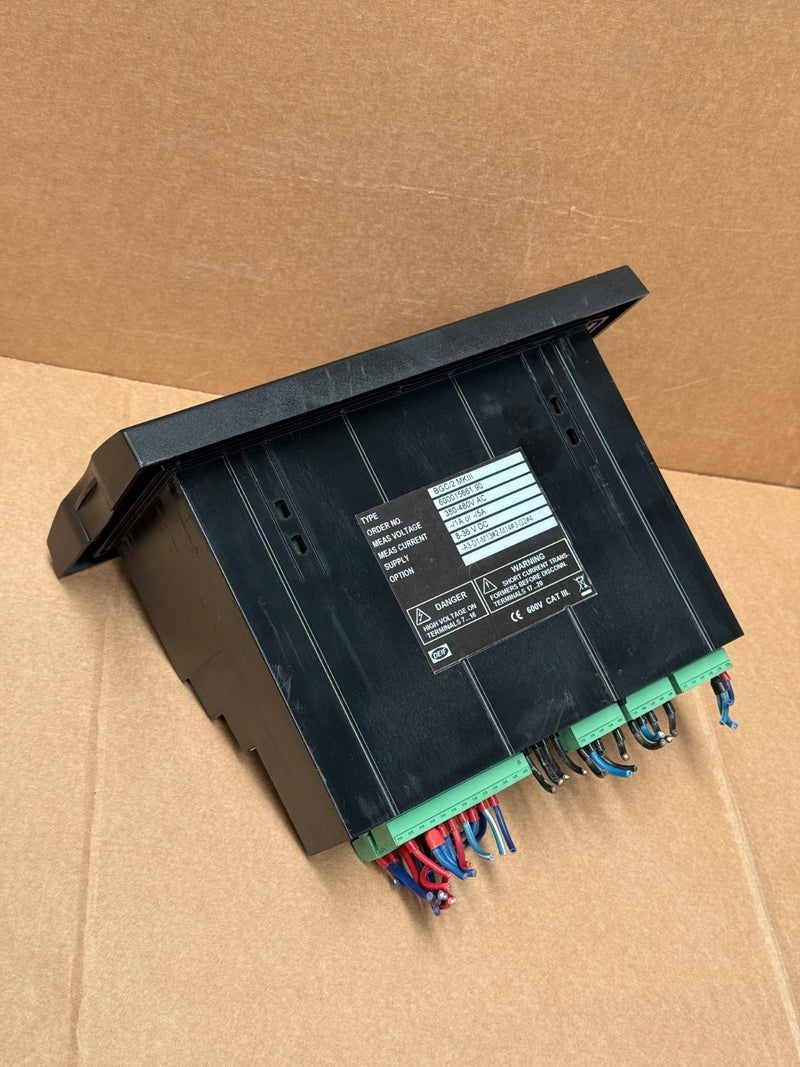

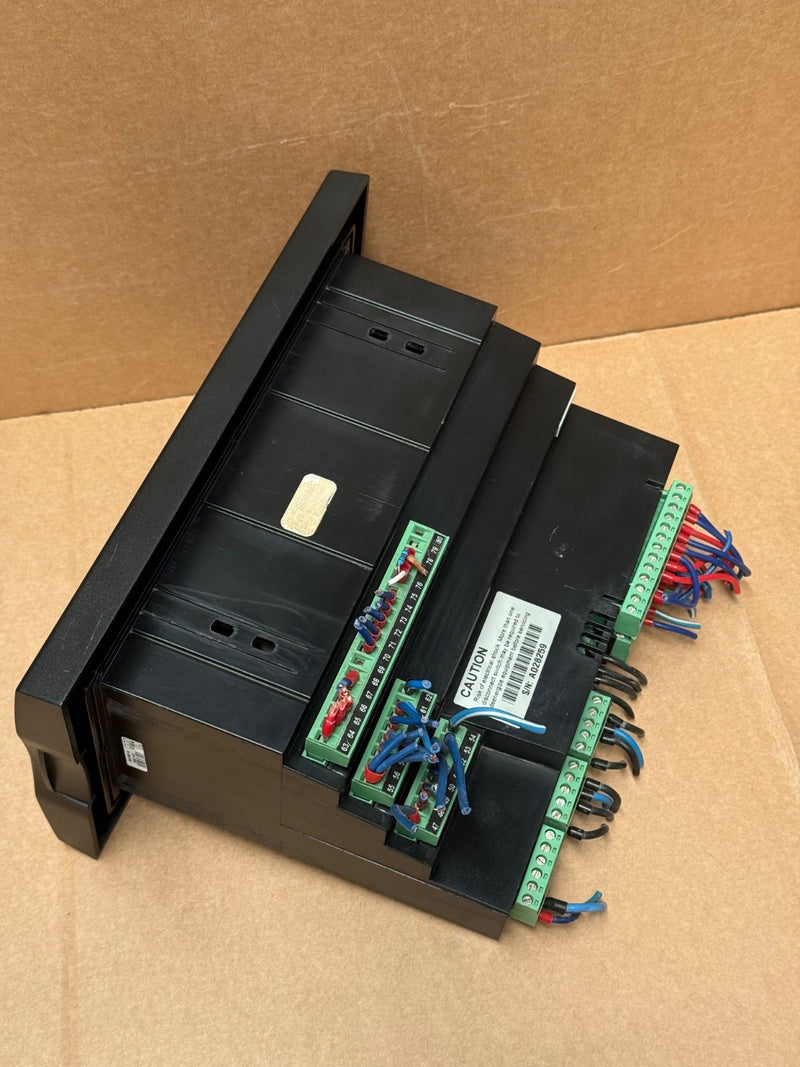

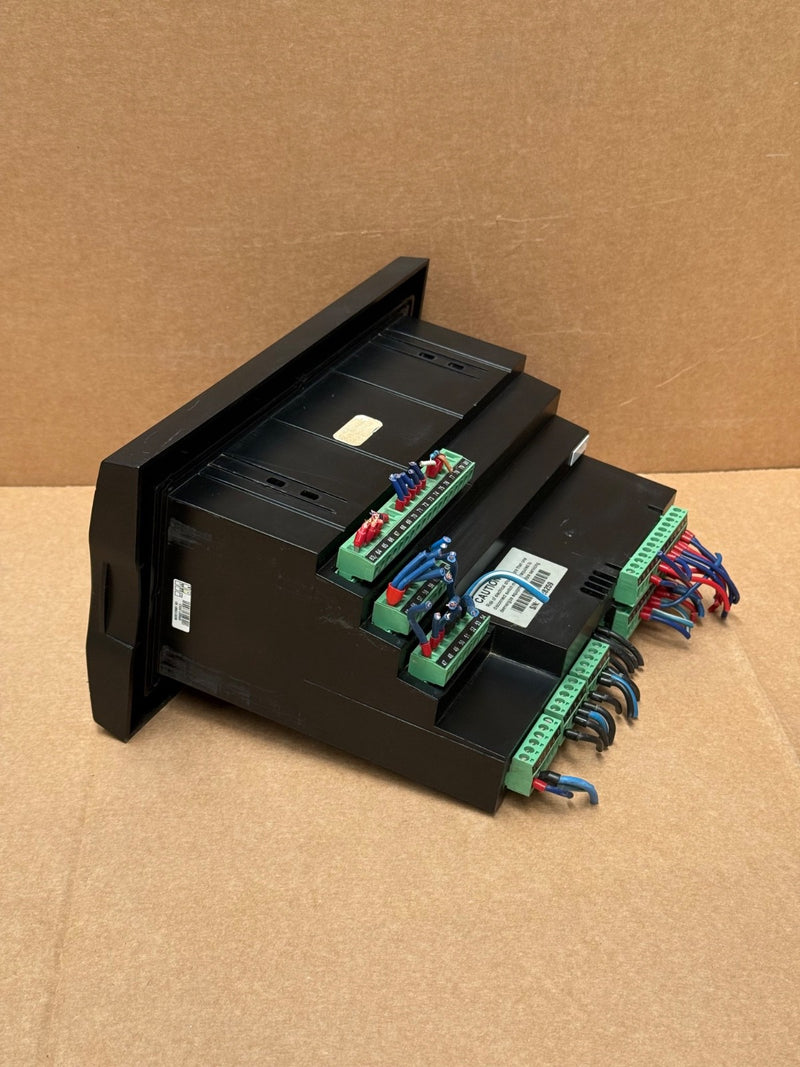

DEIF – BGC/2 MKIII (600015661.90) – Basic Gen‑Set Controller 380–480 VAC

The DEIF BGC/2 MKIII (Order Code 600015661.90) is a reliable basic genset controller designed for automatic transfer and generator set control in stand-by, island, or scheduled operation modes. With a clear LCD display and intuitive keypad, it supports essential functions like automatic start, grid switching, return-to-grid, and manual override. Though now discontinued, it remains widely used in generator control panels.

Key Features & Specs:

• Model: BGC/2 MKIII (also BGC/2 MK III)

• Order No.: 600015661.90

• Supply Voltage: 8–36 V DC

• Measurement Voltage: 380–480 VAC (three-phase)

• Measurement Current: ±1 A or ±5 A (via CT)

• Functions:

  • Automatic mains failure start/stop

  • Grid/generator breaker control

  • Generator island mode & manual operation

  • Programmable timers (up to 8 start/stop events)

• Interface: LCD, menu-driven navigation buttons

• Mounting: Panel mount (cutout & bracket included)
