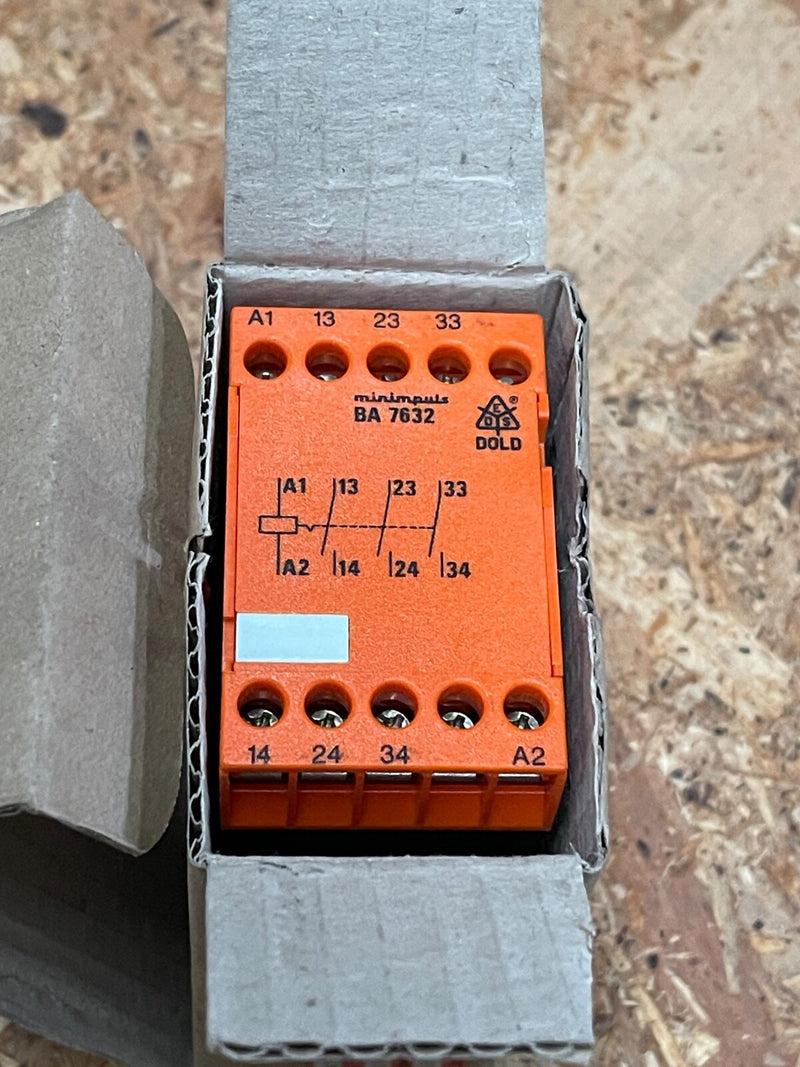

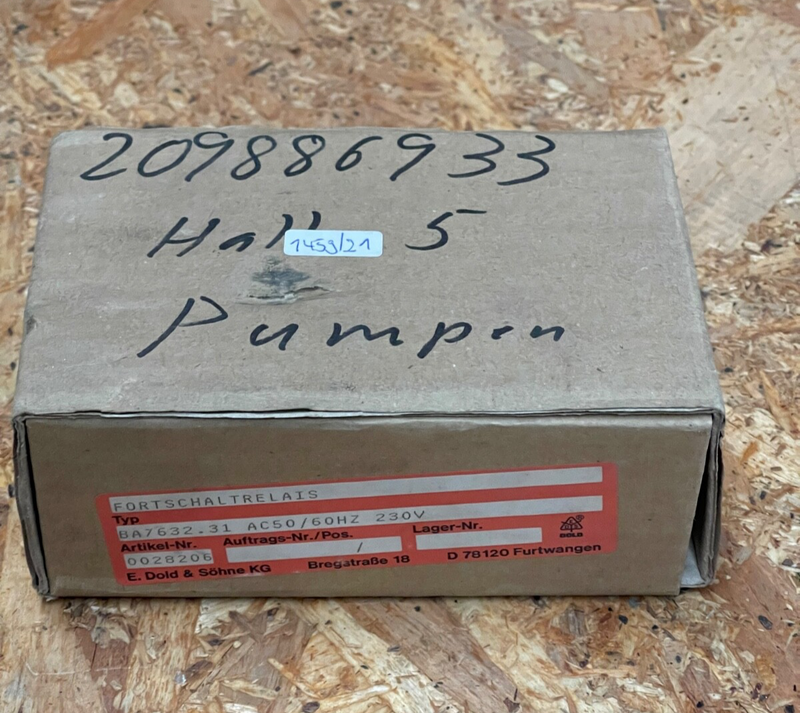

Dold - 0028206 - BA7632.31 Stepping Relay, 230 V AC, 3 NO Contacts, 10 A 50/60Hz

The Dold BA7632.31 (Part No. 0028206) is a stepping relay engineered for cyclic control processes in industrial automation. Operating on a 230 V AC supply at 50/60 Hz, this relay features three normally open (NO) contacts and utilizes a pulse excitation mechanism for sequential switching. Its design ensures energy efficiency by maintaining the switching state without continuous power, making it ideal for applications requiring reliable and precise control.

Key Features:

• Model: BA7632.31

• Part Number: 0028206

• Brand: Dold

• Function: Stepping relay for cyclic control processes

• Supply Voltage: 230 V AC

• Frequency: 50/60 Hz

• Contacts: 3 Normally Open (NO) contacts

• Switching Capacity:

  • AC-11: 250 V AC, 4 A

  • DC-13: 24 V DC, 1.5 A

• Thermal Current (Ith): 10 A

• Operate Time: < 90 ms

• Release Time: < 180 ms

• Electrical Life: 1 million switching cycles at 50% load

• Mounting: DIN rail

• Housing Width: 45 mm

• Protection Rating:

  • Housing: IP40

  • Terminals: IP20

• Standards Compliance: IEC/EN 61810-1

• Applications: Ideal for sequential control in lighting systems, motor control circuits, and process automation
