Dongan – A10‑LA2X – 250 VA End‑Ground Ignition Transformer, 120 VAC Pri, 10 kV S

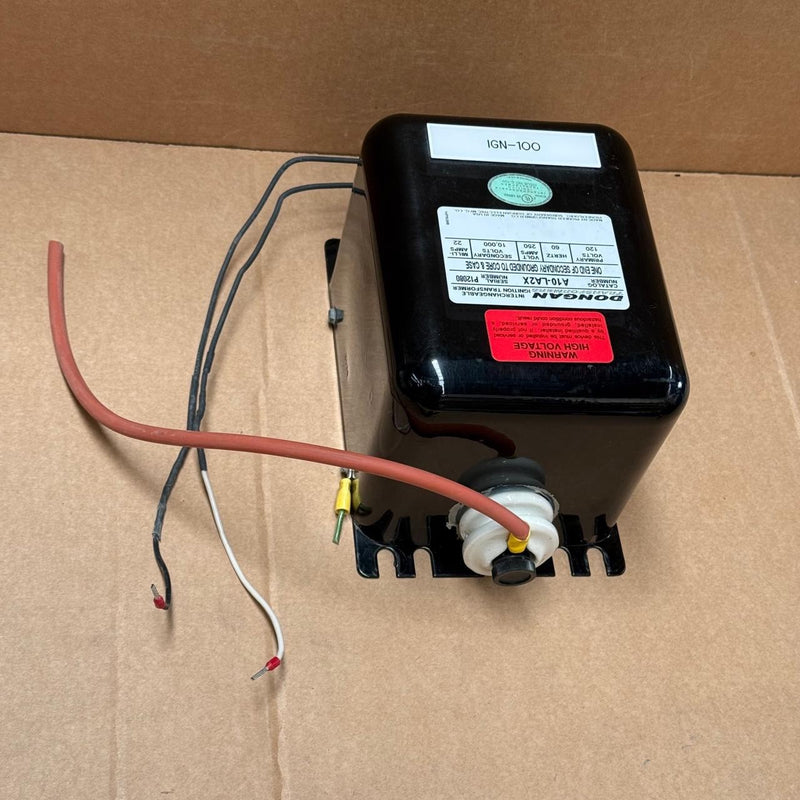

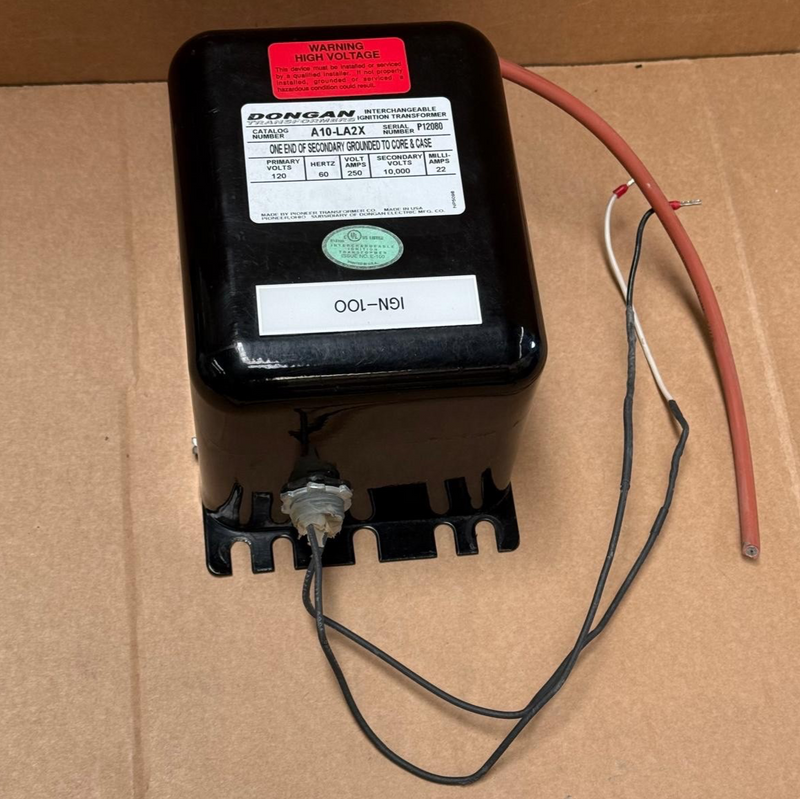

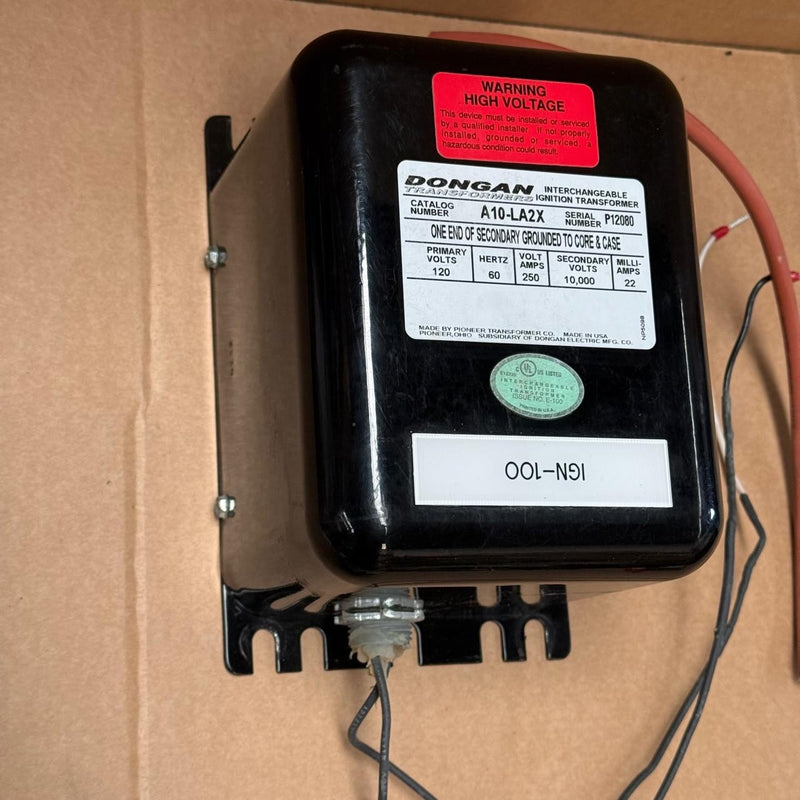

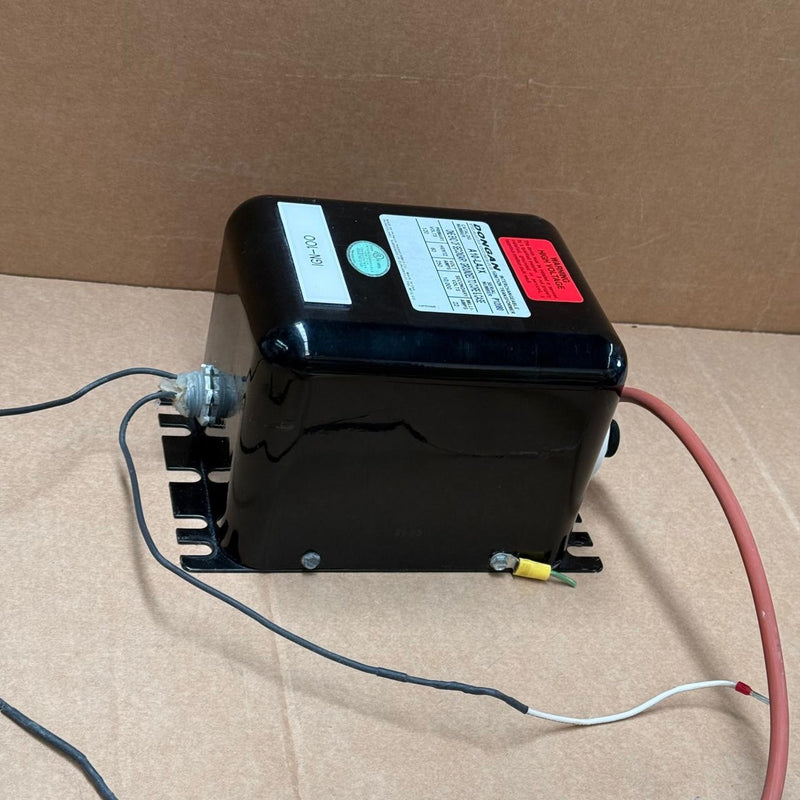

The Dongan A10‑LA2X is a high-voltage ignition transformer rated at 250 VA with a 120 VAC primary and a 10,000 VAC secondary, ideal for burner and industrial heating applications. The unit is epoxy-encapsulated (“end ground” type) and built for continuous duty use in rugged environments.

Key Features

• Model / P/N: A10‑LA2X

• Manufacturer: Dongan Electric Manufacturing Co.

• Primary Voltage: 120 VAC, 60 Hz

• Secondary Voltage: 10 kVAC (10,000 V)

• Power Rating: 250 VA epoxy-filled transformer

• Current Capability: Up to 22 mA continuous duty

• Type: End-ground design, NEMA 1 enclosure

• Enclosure Dimensions: ~4.94″ × 7.63″ × 4.69″ (125 × 194 × 119 mm)

• Applications: Suitable for burner ignition, gas/oil flame control in industrial boilers, ovens, and furnaces
