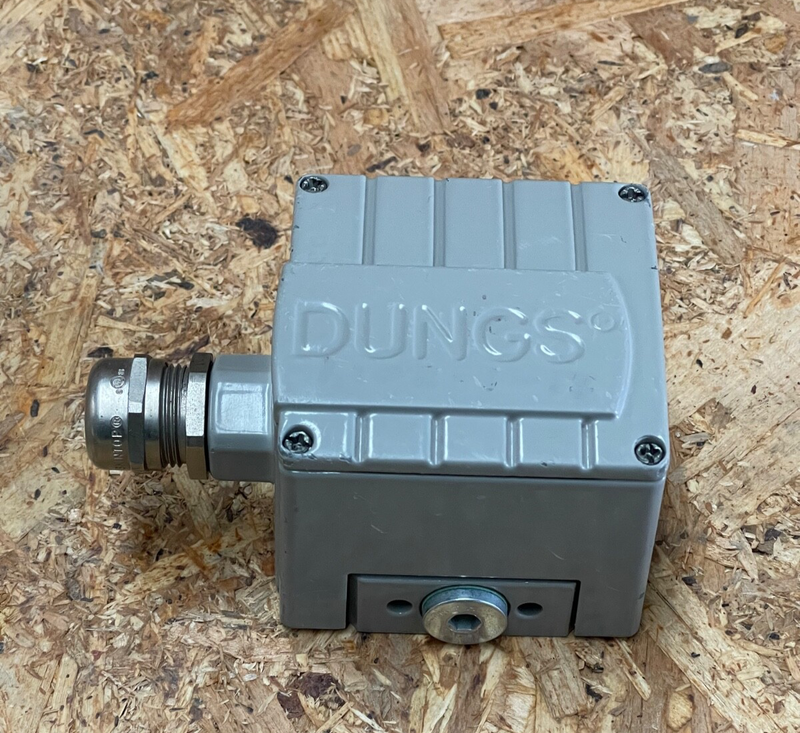

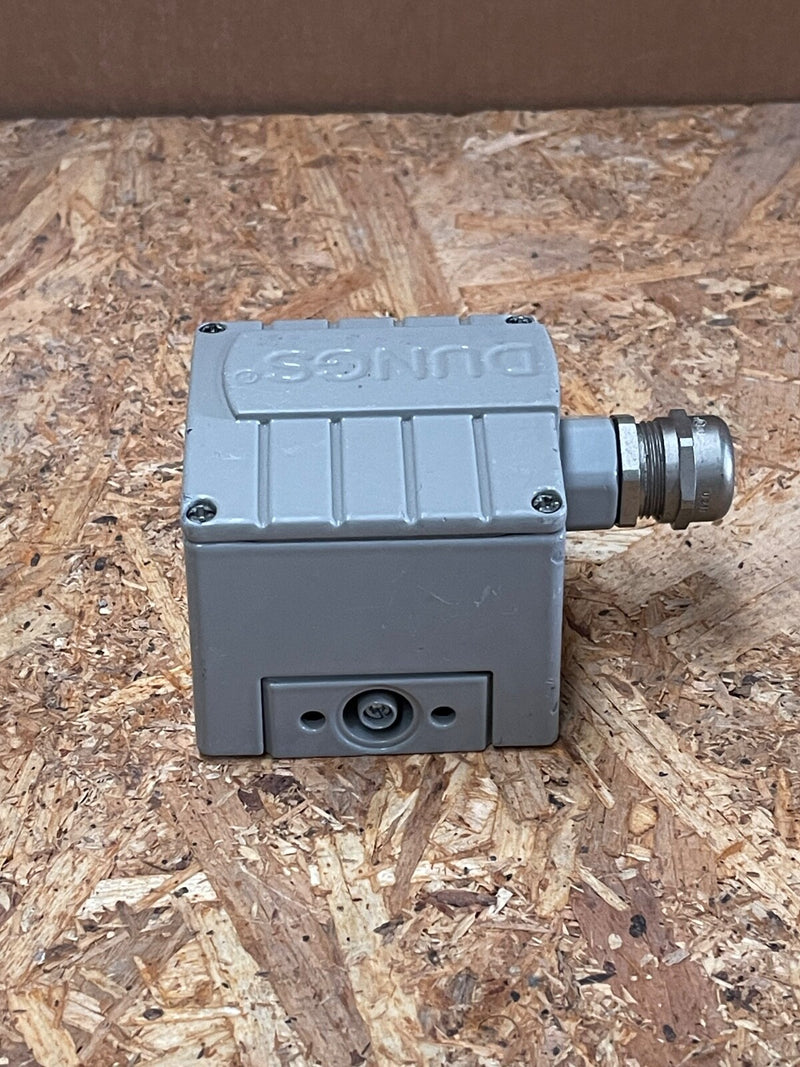

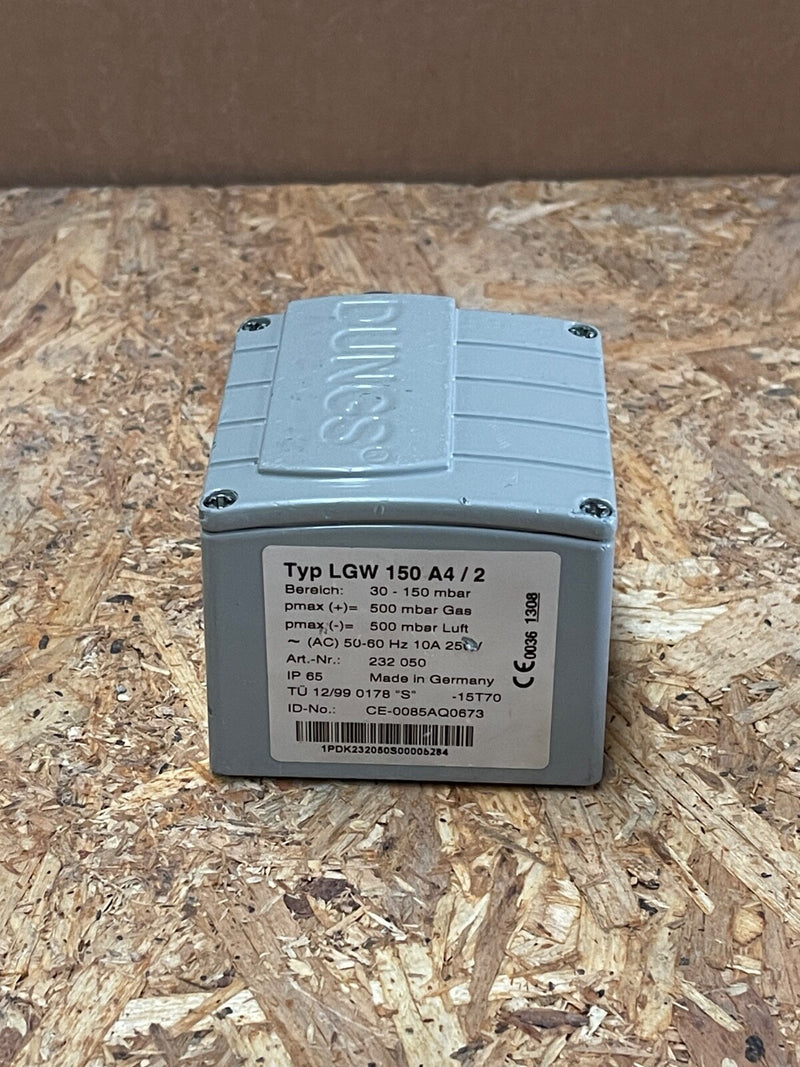

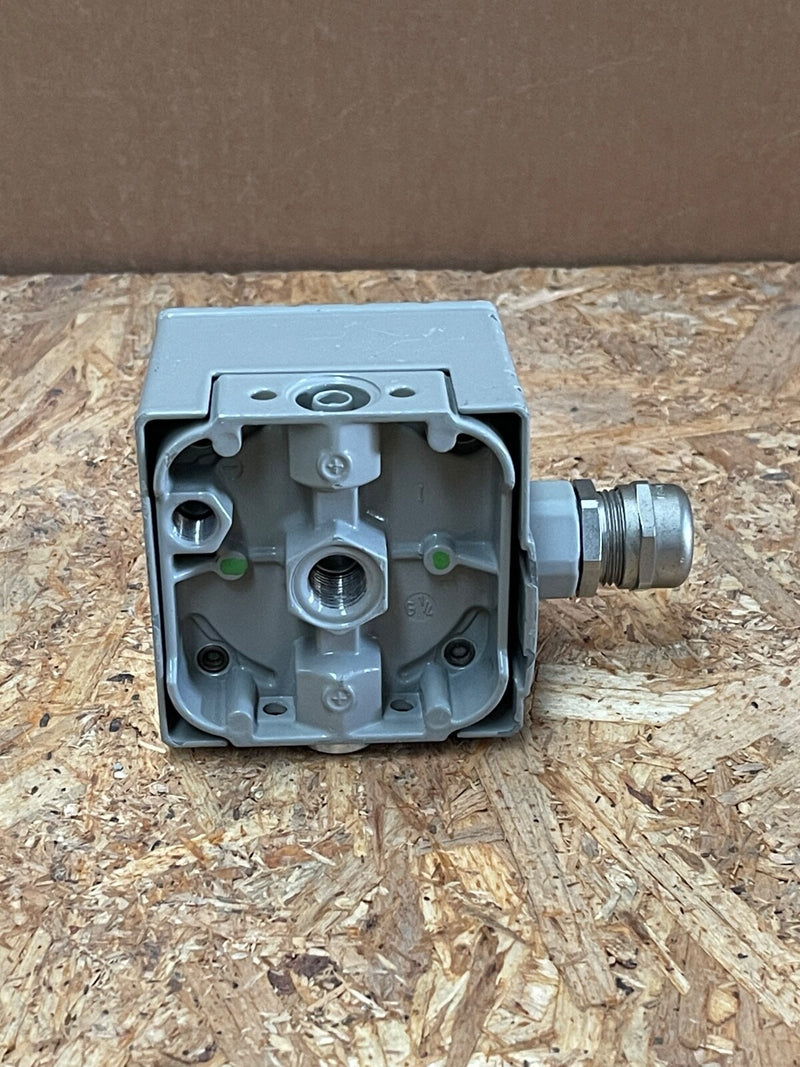

Dungs - LGW150A4/2 - Differential Pressure Switch, 30–150 mbar, IP65

The Dungs LGW150A4/2 is a robust and adjustable differential pressure switch designed for monitoring and controlling pressure in industrial combustion systems. With a pressure range of 30 to 150 mbar and a durable metal housing rated at IP65, it ensures reliable performance in demanding environments.

Key Features:

• Model: LGW150A4/2

• Brand: Dungs

• Pressure Range: 30–150 mbar

• Switching Difference: ≤ 3 mbar

• Maximum Operating Pressure: 500 mbar

• Housing Material: Powder-coated die-cast aluminum

• Protection Class: IP65

• Electrical Connection: 3-pin plug with protective earth (G3)

• Pressure Connections: P+: G 1/4” female thread; P–: G 1/8” female thread

• Temperature Range: –15°C to +70°C

• Mounting Position: Vertical (standard)

• Approvals: EN 1854 compliant
