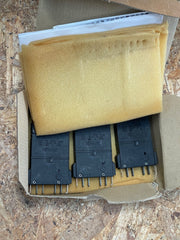

E‑T‑A – 2210‑S211‑P1M1‑H111‑6A – 6A Thermal‑Magnetic Panel‑Mount Circuit Breaker

The E‑T‑A 2210‑S211‑P1M1‑H111‑6A is a rugged, single‑pole thermal‑magnetic circuit breaker offering combined overcurrent protection and manual switching in a compact panel-mount design. Specifically engineered for industrial control systems, this breaker features a trip-free toggle mechanism and is suitable for reliable protection in harsh environments across AC and DC applications.

Key Features:

• Model / MPN: 2210‑S211‑P1M1‑H111‑6A

• Current Rating: 6 A

• Voltage Rating: Up to 480 VAC / 65 V DC

• Pole Configuration: Single‑pole, panel‑mount (M1 sequence, P1 blade terminal)

• Actuation: Trip‑free toggle switch; standard delay (M1) characteristic curve

• Auxiliary Contacts: None (H111 designates no intermediate position or aux contacts)

• Trip Mechanism: Combined thermal and magnetic for protection against both overloads and short circuits

• Approvals: Certified to EN 60934 / IEC 60934; UL 1077; CSA; CQC; DNV GL

• Environmental: IP30 protection; operates from −30 °C to +60 °C; withstands vibration and shock to IEC standards

• Mounting & Terminals: Panel mount with blade terminals; approx. 50 g weight
