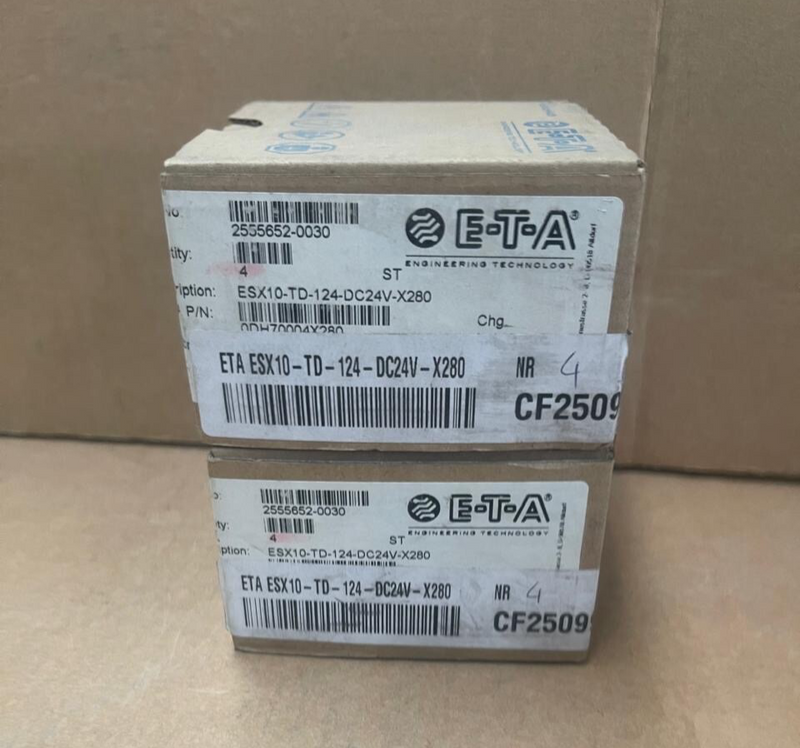

E-T-A - ESX10-TD-124-DC24V-X280 - Adjustable Electronic Circuit Protector

The E-T-A ESX10-TD-124-DC24V-X280 is a DIN rail-mounted electronic circuit protector designed for selective overcurrent protection in 24 V DC control circuits. It features an adjustable current rating of 6 A, 8 A, or 10 A, providing flexibility for various applications. The unit includes a reset input (RE) and a status output (SF) for integration into control systems.

Key Features:

• Adjustable Current Ratings: 6 A / 8 A / 10 A

• Operating Voltage: 24 V DC (18–32 V DC range)

• Mounting Type: DIN Rail

• Breaker Type: Solid State

• Actuator Type: Slide Switch

• Number of Poles: 1

• Reset Input (RE): Allows external reset via control signal

• Status Output (SF): Provides status indication for system monitoring

• Approvals: UL2367, UL508, ATEX, IECEx, DNV GL

• Dimensions (W × H × D): 12.5 mm × 80 mm × 83 mm

• Weight: Approximately 65 g

Applications:

• Industrial automation systems

• Machine control panels

• Process control equipment

• Systems requiring adjustable overcurrent protection
