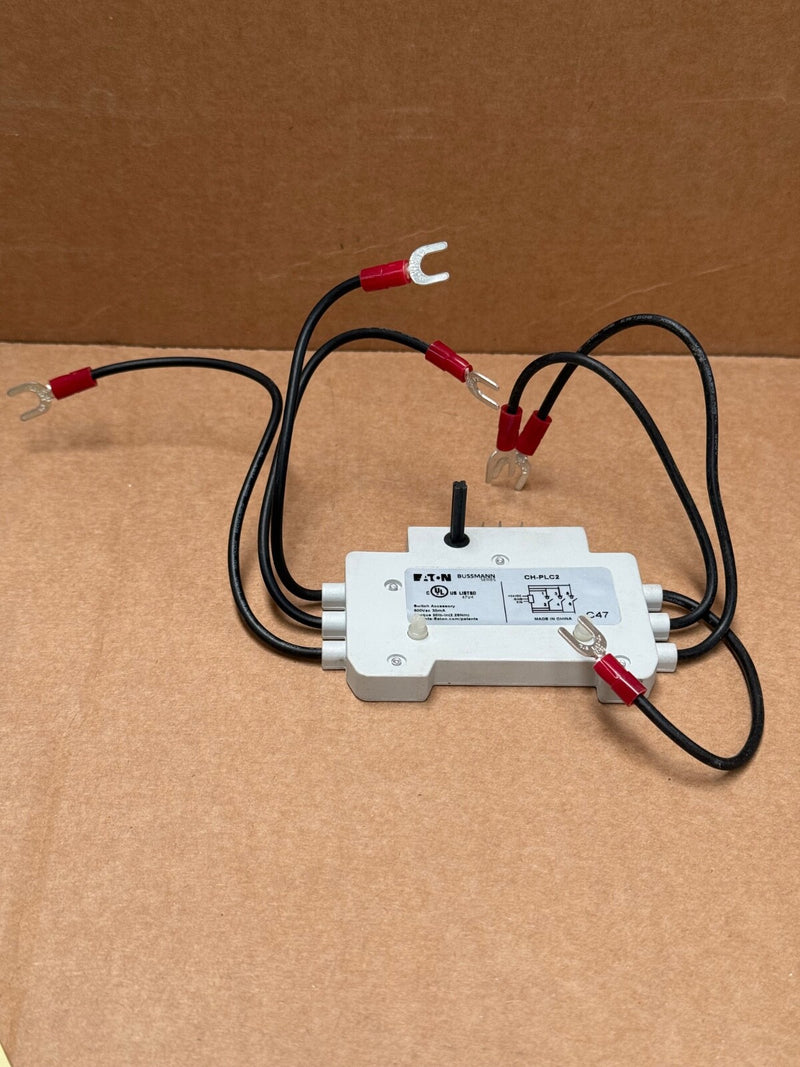

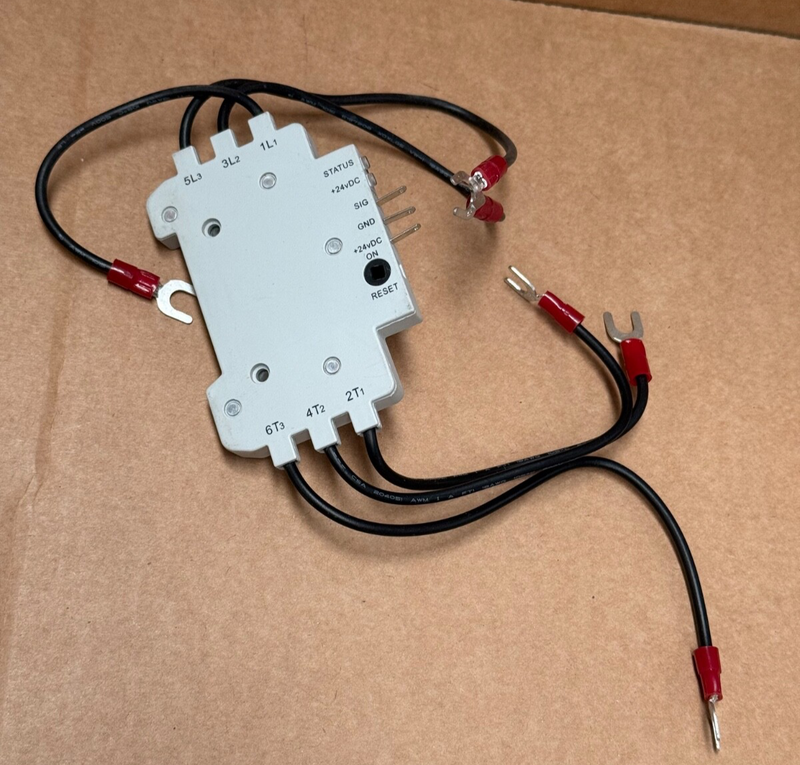

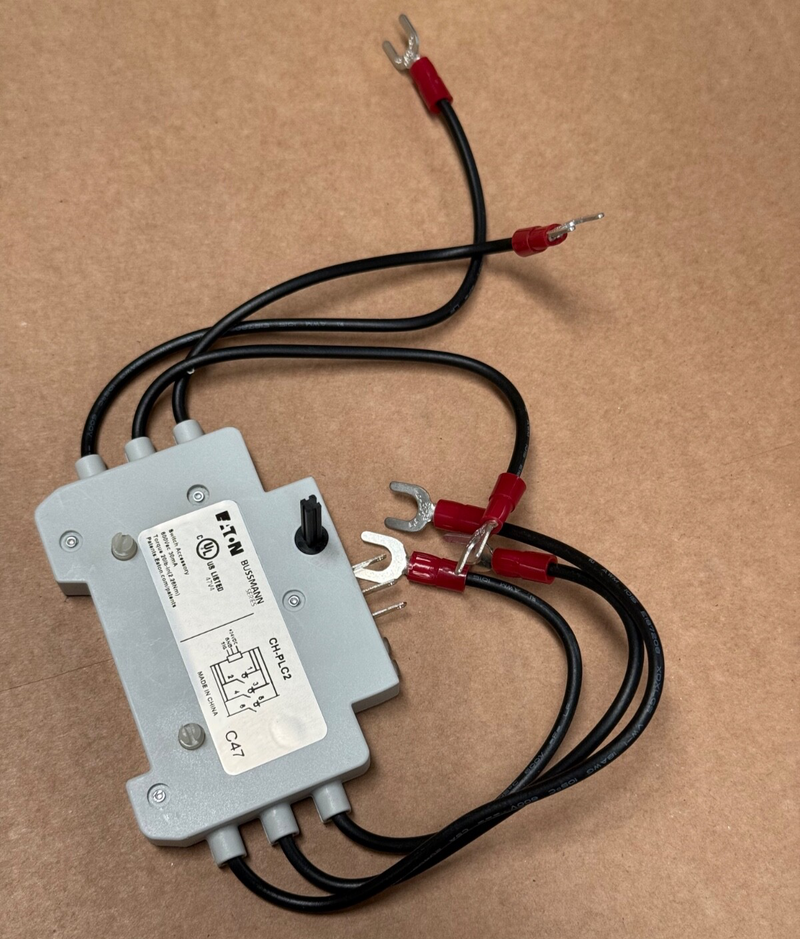

Eaton (Bussmann) – CH‑PLC2 – DIN‑Rail Class CC Fuse Holder w/ PLC Status Monitor

The Eaton CH‑PLC2 is a 1‑circuit Class CC fuse holder featuring integrated PLC-compatible power/fuse-status indication. Designed for 10 mm × 38 mm fuses, it provides DIN-rail mounting and front-access LEDs—green for power presence and red for blown fuse—resettable via front push-button. Ideal for industrial control panels and automation systems requiring remote fault detection.

Key Specifications

• Model / P/N: CH‑PLC2; Eaton × Bussmann series

• Fuse Type: Class CC (10 mm × 38 mm)

• Voltage Rating: 600 VAC / 600 VDC, 8 kV withstand

• Monitoring Output: 24 VDC PLC input, 10 mA max; cable shielded recommended

• Indication LEDs: Green (power), Red (fuse-blow) – reset via push-button

• Mounting: DIN-rail (TS-35), IP20 rated

• Operating Temp Range: –20 °C to +75 °C

• Dimensions: ~60 × 25 × 55 mm; weight ≈0.475 lb (0.215 kg)

• Reset: Front push-button after fuse replacement
