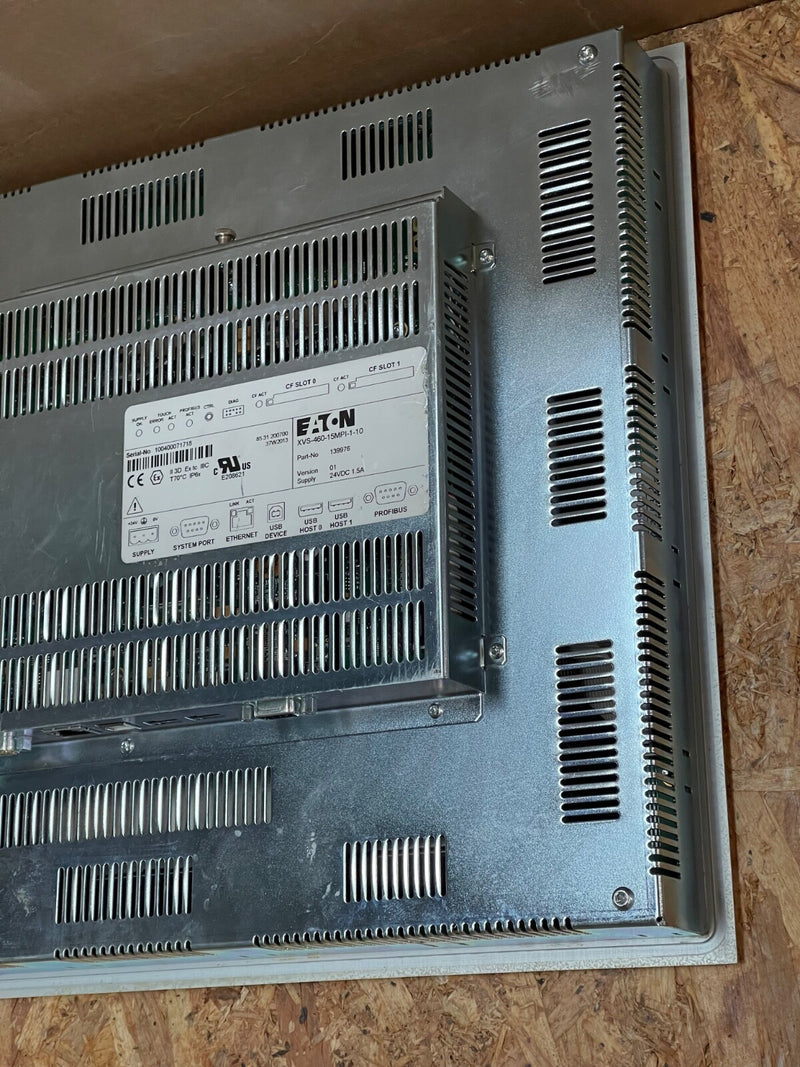

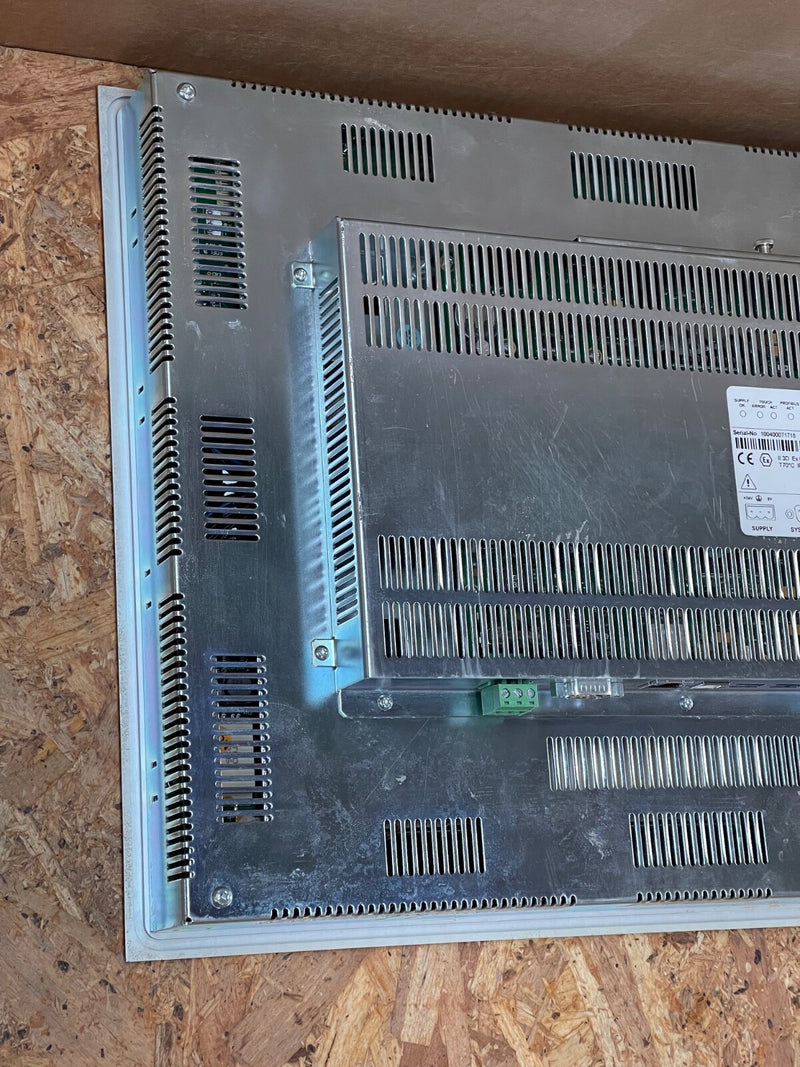

Eaton/Micro Innovation – XVS‑460‑15MPI‑1‑10 (139976) – 15″ IR‑Touch HMI

Main Features

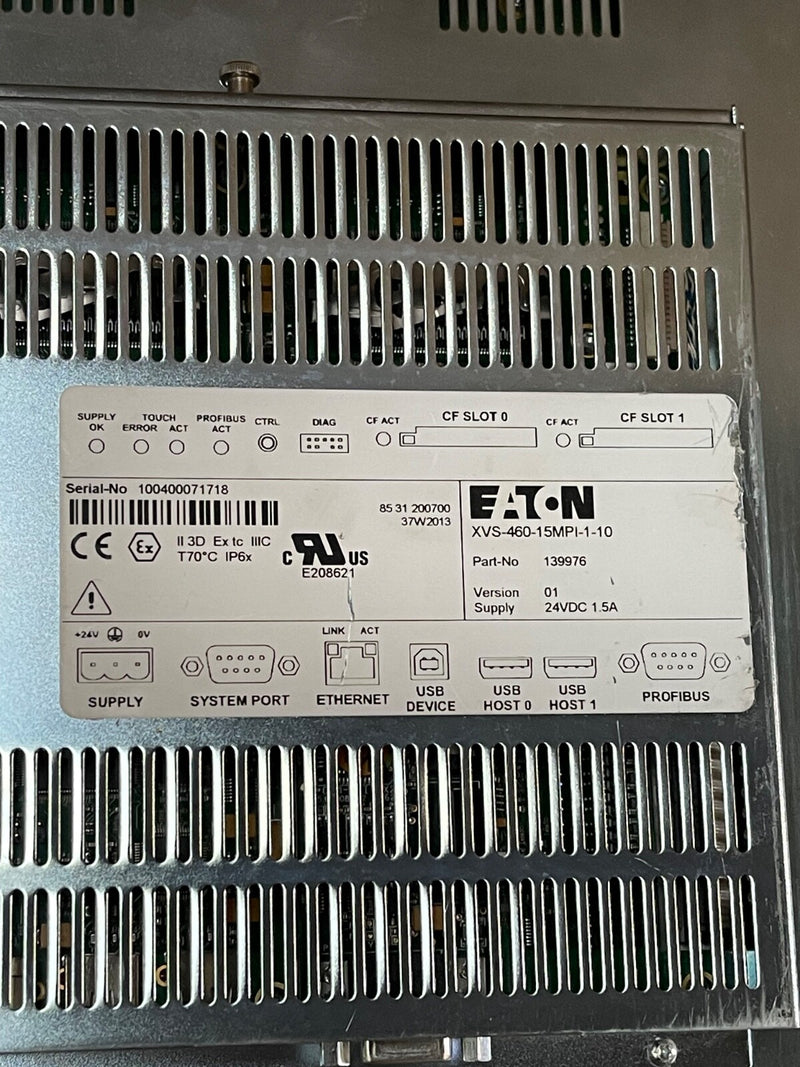

• Series & Model: Part of the XVS400 HMI family, catalog no. 139976, model XVS‑460‑15MPI‑1‑10

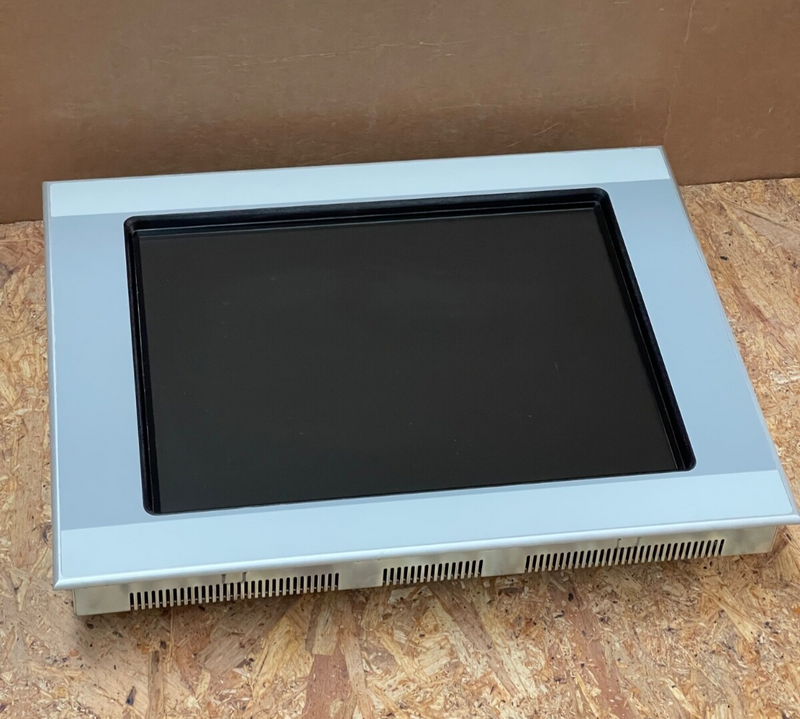

• Display: 15″ TFT panel, 1024 × 768 (XVGA), supports 65 k/256 colors, 400 cd/m² brightness, infrared touch overlay with >1 M actuations

• Processor & Memory: 64 MB DRAM, ~1.5 MB flash, 32 KB NVRAM; two CompactFlash slots for OS, program, and data

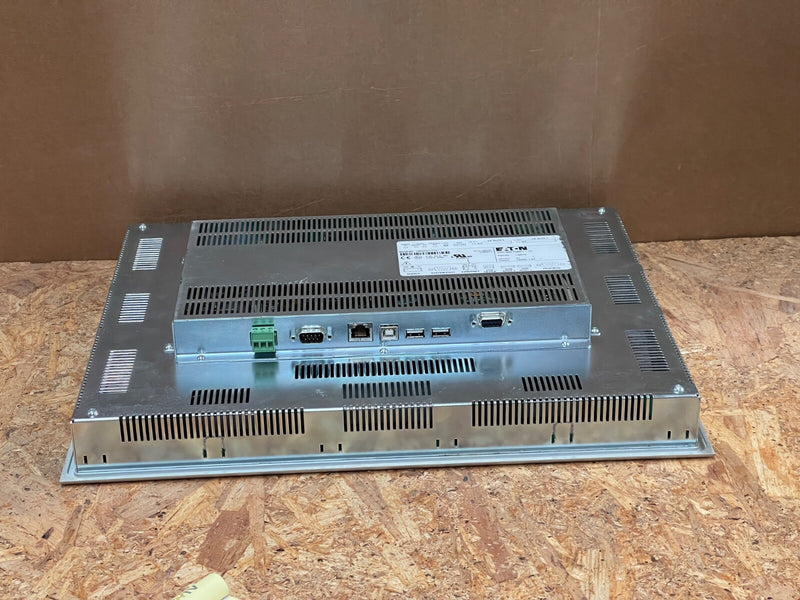

• Communication Interfaces:

  • Ethernet 10/100 Mbps

  • RS‑232

  • PROFIBUS/MPI

  • USB: 2× host, 1× device

• Power Requirements: 24 V DC (20.4–28.8 V), typical consumption ~28 W, max ~36 W

• Operating System & Expandability: Windows CE; PLC runtime via optional license (LIC‑PLC‑MXP‑MEDIUM #140390); additional communications licenses available

• Physical & Environmental Specs:

  • Metal housing, IP65 front, IP20 rear

  • Dimensions: 427 × 332 × 68 mm, weight ~5.8 kg

  • Operating temp: 0 °C–50 °C; storage: –20 °C to +60 °C
