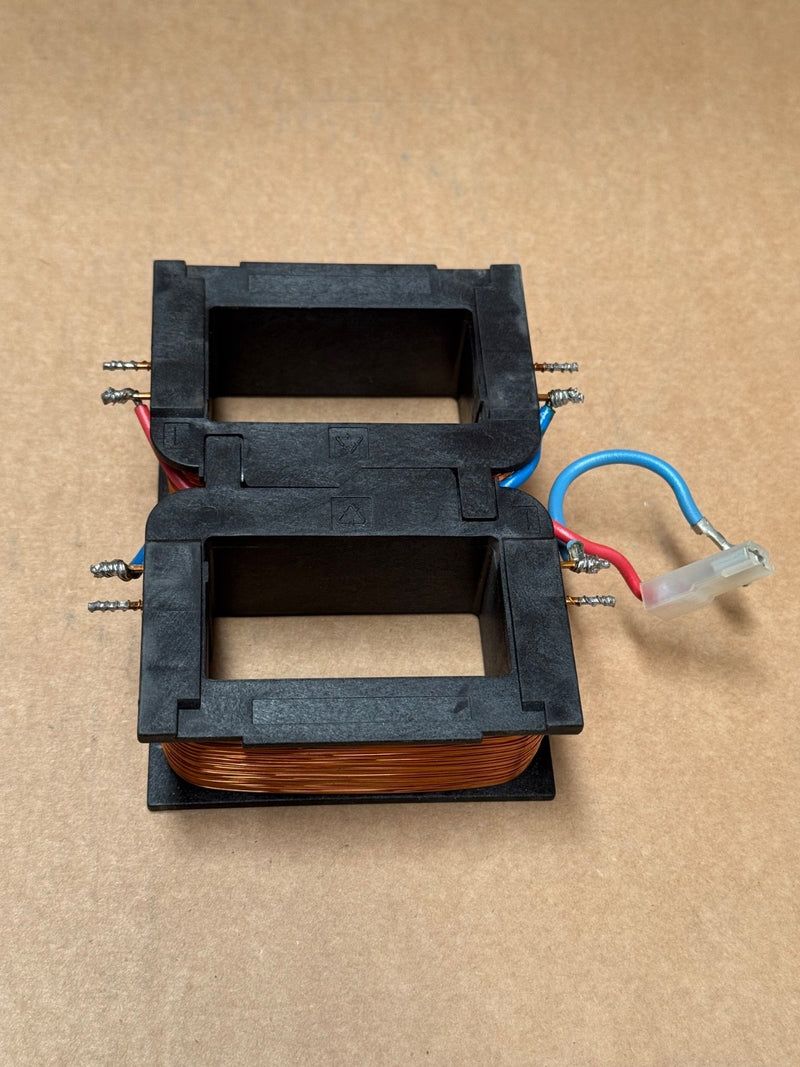

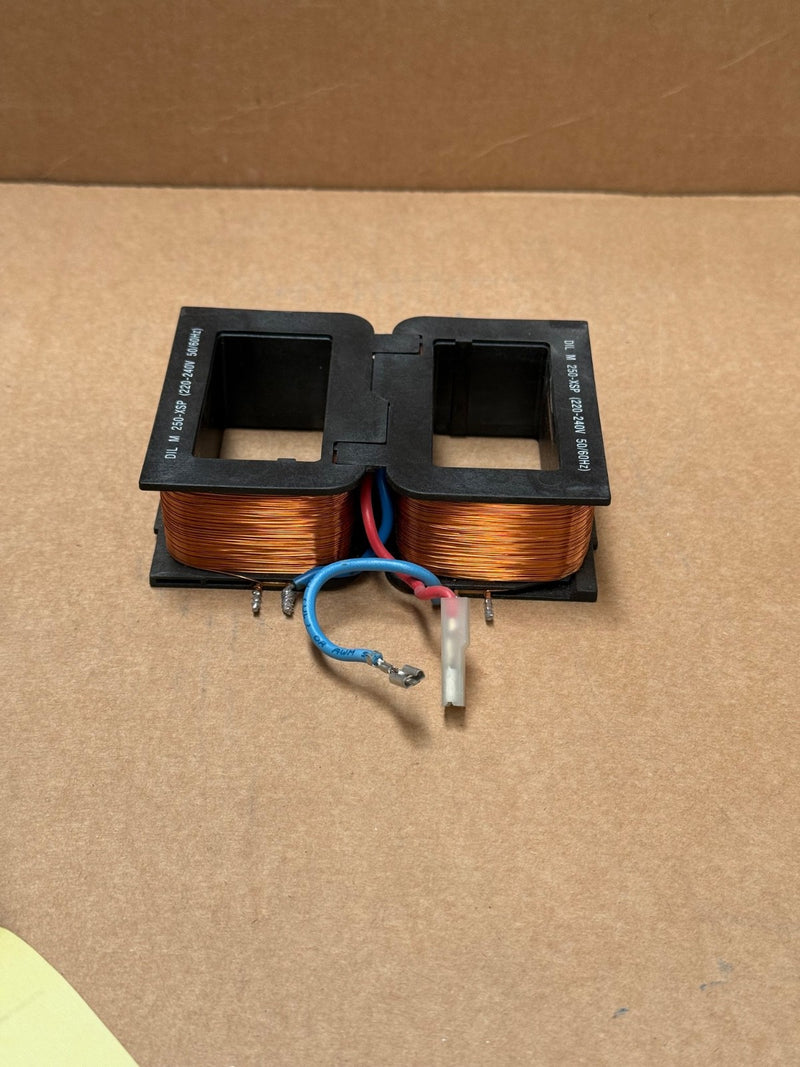

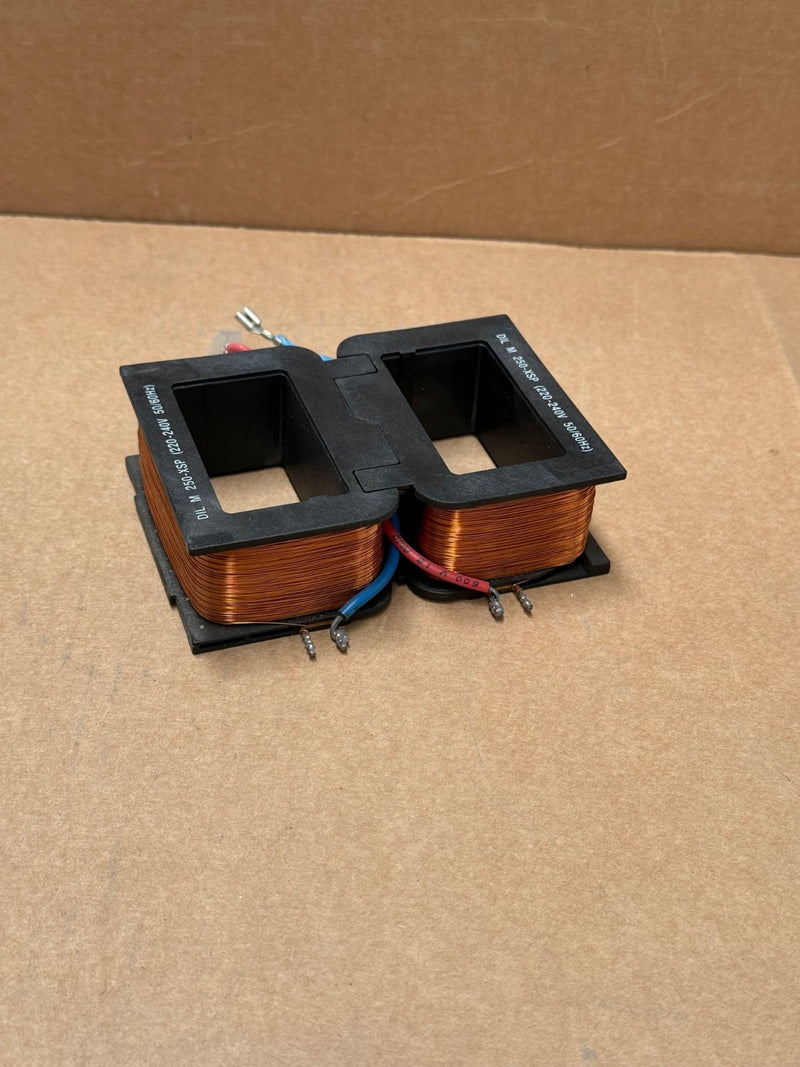

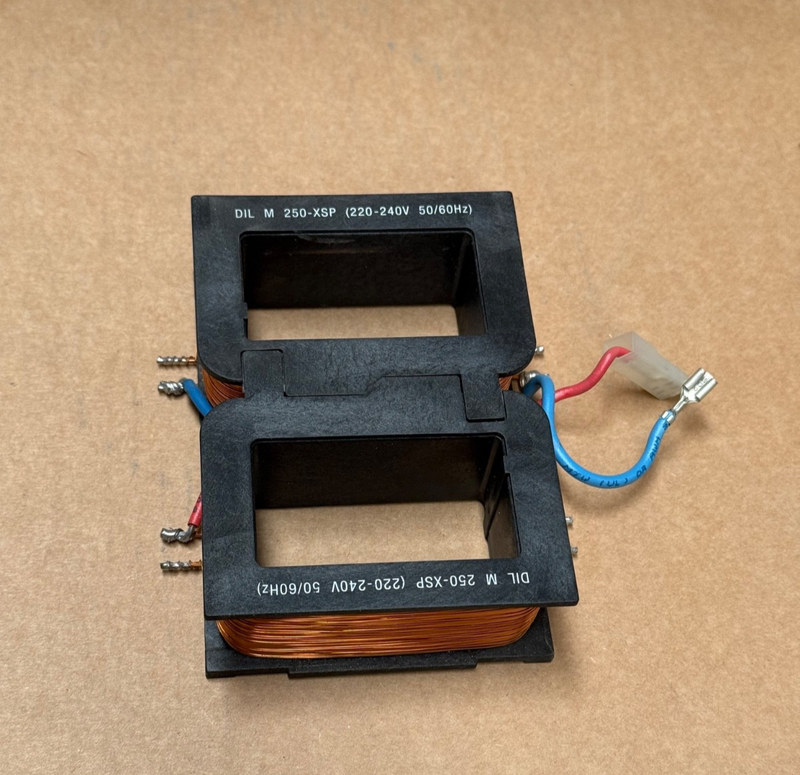

Eaton / Moeller – DILM250‑XSP – Replacement Coil 110–250 V AC/DC

The Eaton Moeller DILM250‑XSP is an OEM-quality replacement coil designed for reliable operation with DILM185, DILM225, DILM250, and DILM300A contactors. This versatile coil supports a wide range of control voltages and operates across AC and DC systems, making it ideal for switchgear maintenance and control system refurbishments.

Key Features:

• Model: DILM250‑XSP (a.k.a. DILM‑XSP/E RA250)

• Voltage Range: 110–250 V AC (40–60 Hz) or 110–250 V DC ()

• Compatibility: Fits Eaton/Moeller contactors DILM185, DILM225, DILM250, and DILM300A

• Approvals: IEC/EN 60947‑4‑1, UL 508, CSA‑C22.2 No. 14; UL listed and CSA certified

• Temperature Range: −40 °C to +60 °C operating

• Mounting: Direct plug-in onto DILM series contactor
