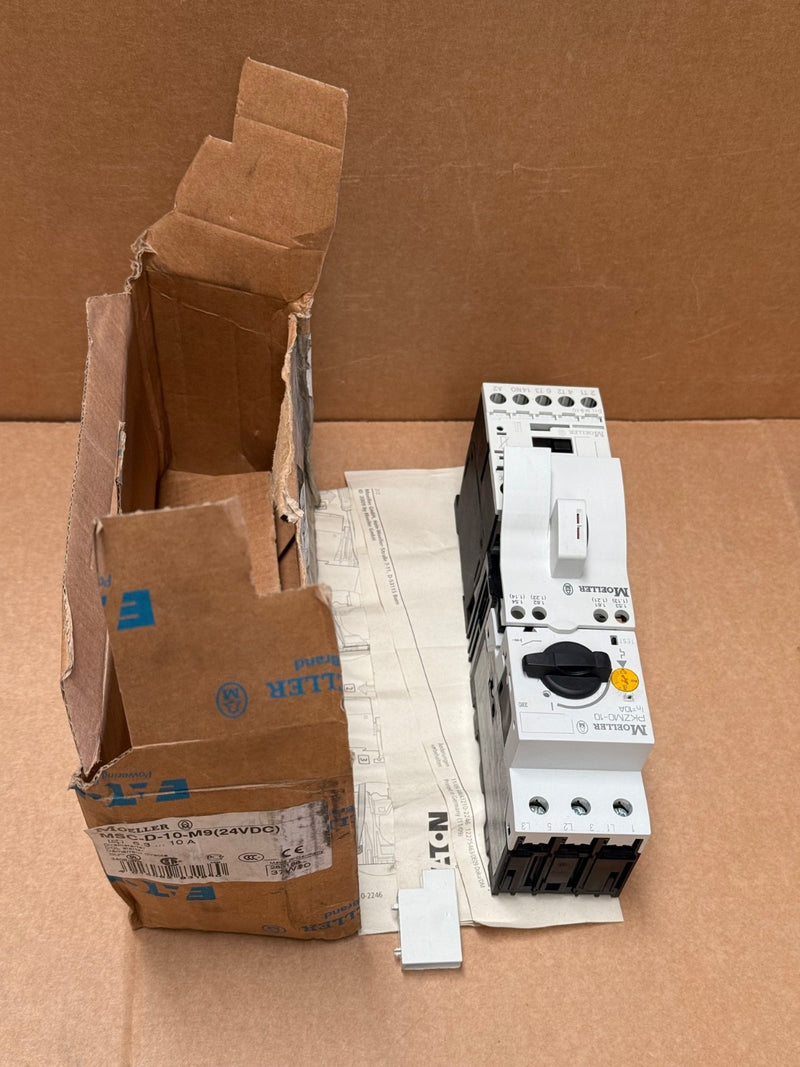

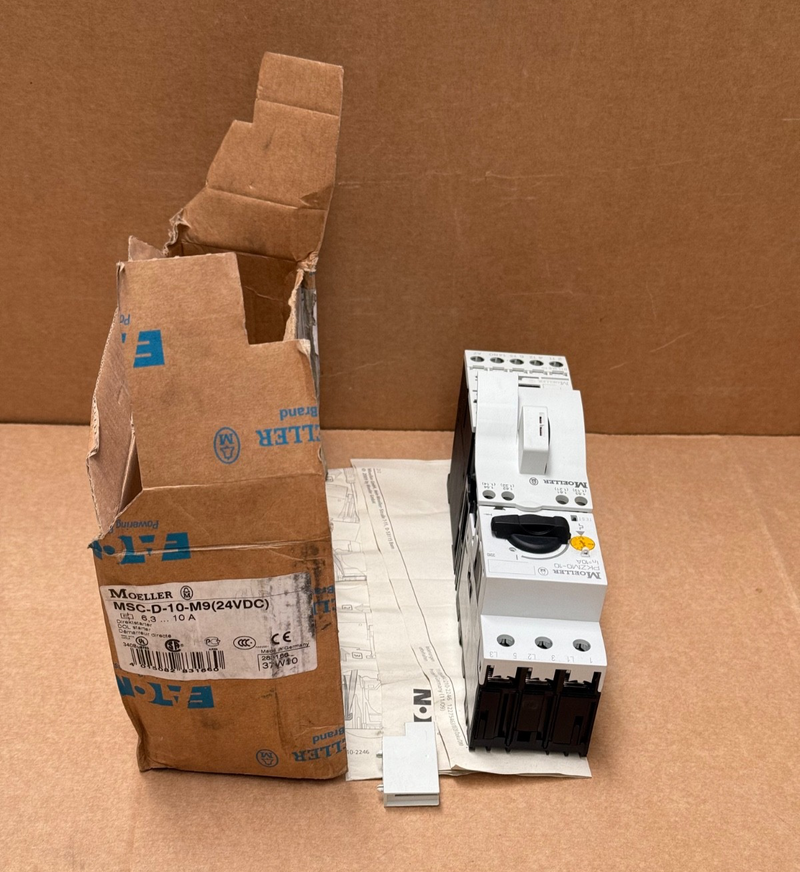

Eaton – MSC‑D‑10‑M9 – DOL Motor Starter 6.3‑10 A Overload, 24 VDC Coil

The Eaton MSC‑D‑10‑M9 is a compact direct-on-line (DOL) motor starter combining the rugged PKZM0 motor protector and DILM9 contactor. Equipped with a 24 VDC coil and adjustable overload protection (6.3–10 A), it supports loads up to 4 kW (380–415 VAC) ideal for panel and machine control.

Key Features:

• Manufacturer: Eaton Moeller

• Model / P/N: MSC‑D‑10‑M9 (24 VDC coil)

• Coil Voltage: 24 V DC

• Overload Adjustment: 6.3–10 A

• Motor Capacity (AC‑3): 4 kW at 380–415 VAC

• Rated Current: ~8.5–9 A

• Short‑Circuit Release: 140 A

• Mounting: DIN-rail; push-in screw-type terminals (up to 4×3.5 mm² conductors)

• Standards: IEC/EN 60947‑4‑1, VDE 0660

• Dimensions: ≈ 95 mm depth, 197 mm height

• Application: Reliable starter solution for small motors in industrial machinery
