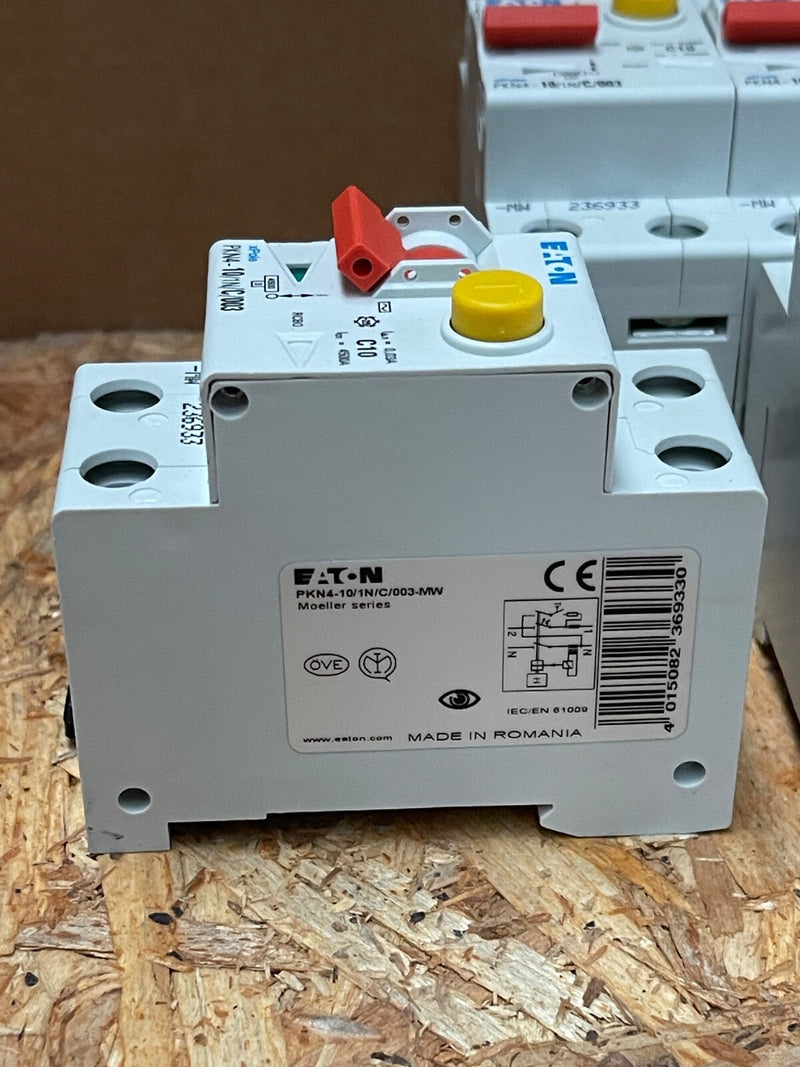

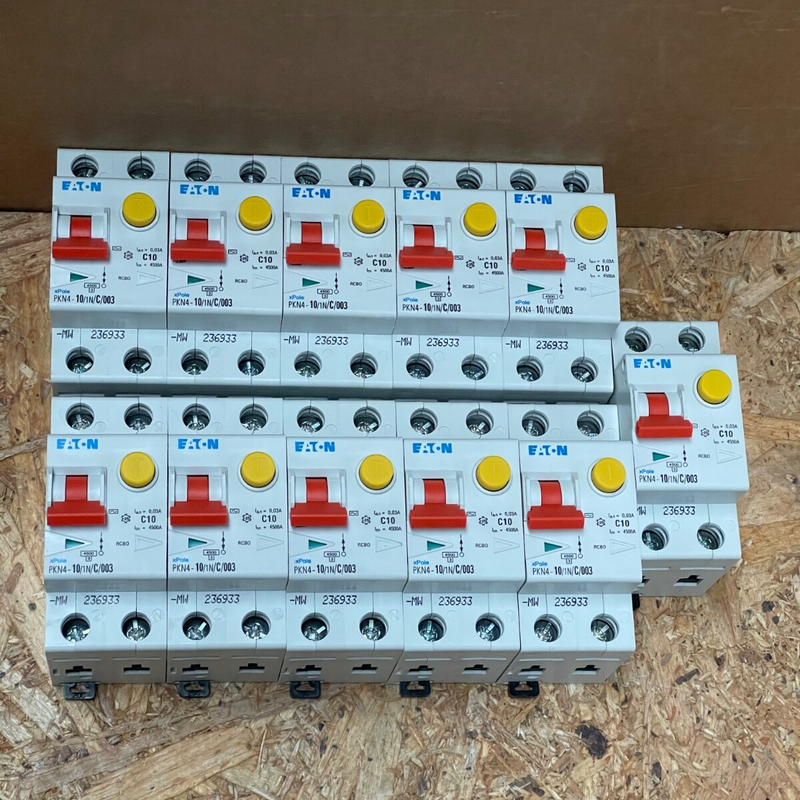

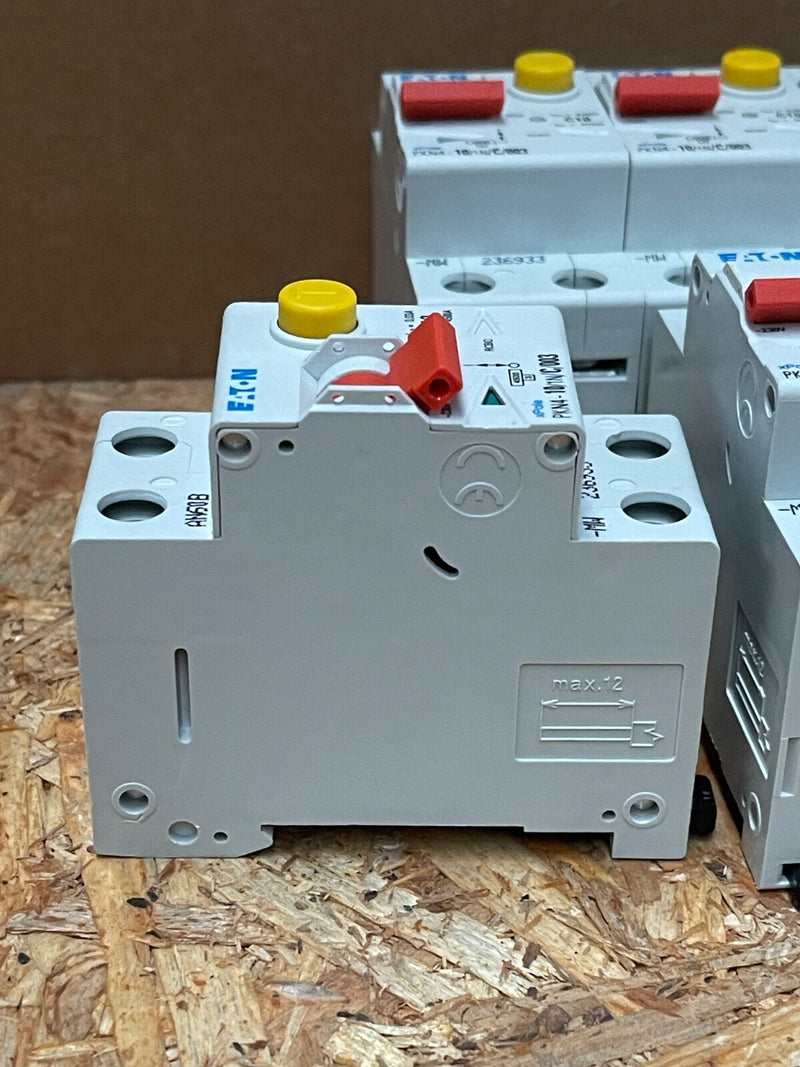

Eaton – PKN4‑10/1N/C/003‑MW – xPole RCBO (Residual-Current Breaker

The Eaton PKN4‑10/1N/C/003‑MW is a compact and reliable RCBO (Residual-Current Breaker with Overcurrent Protection) from Eaton’s Moeller xPole range. It combines a 10 A Type C miniature circuit breaker with AC-sensitive 30 mA earth leakage protection. Rated for 4.5 kA breaking capacity and a 1 pole + neutral (1N) configuration, the device is suitable for residential, commercial, and light industrial panel applications, providing both overcurrent and safety against ground faults.

Key Features:

• Model: PKN4‑10/1N/C/003‑MW

• Brand: Eaton (Moeller xPole series)

• Configuration: 1 pole + neutral (1N), accommodating a neutral conductor

• Rated Current: 10 A (In) – Type C trip curve

• Earth Leakage Protection: 30 mA AC-sensitive trip threshold (IΔN)

• Breaking Capacity: 4.5 kA (IEC/EN 61009)

• Trip Characteristic: Type C—ideal for inductive loads with moderate inrush currents

• Mounting Width: 2-module (2M) in standard DIN-rail distribution boards

• Voltage Rating: 230 VAC AC system applications

• Weight: Approx. 0.203 kg
