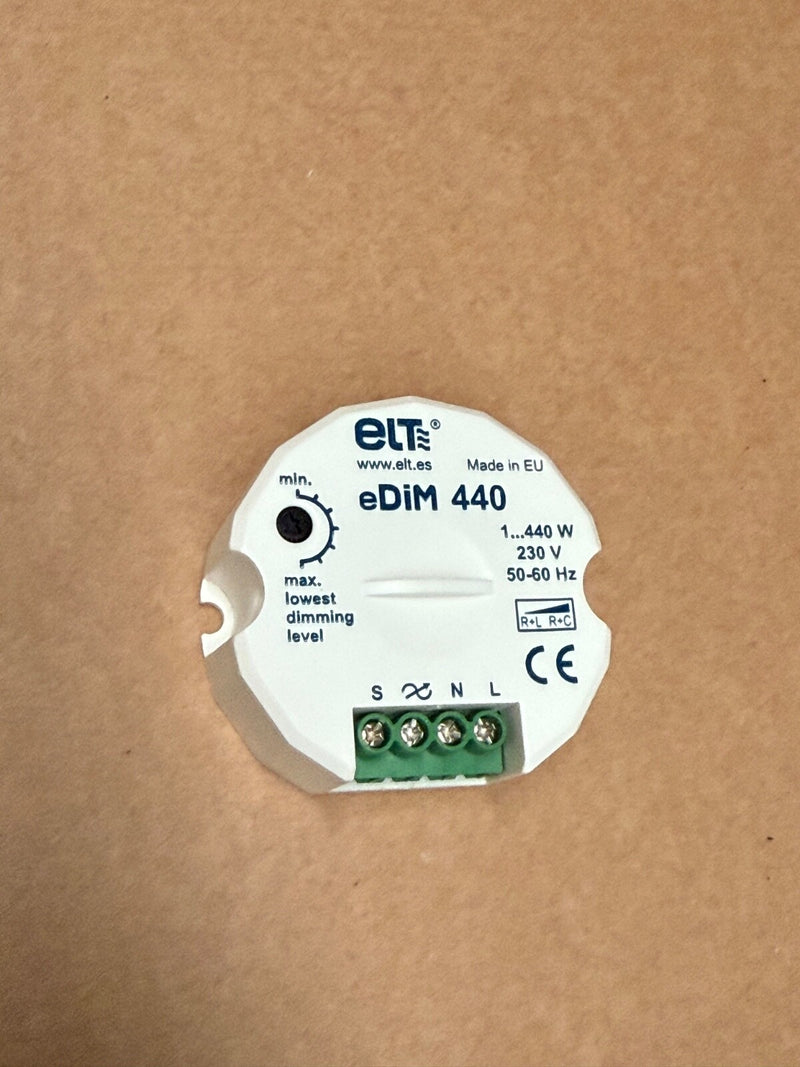

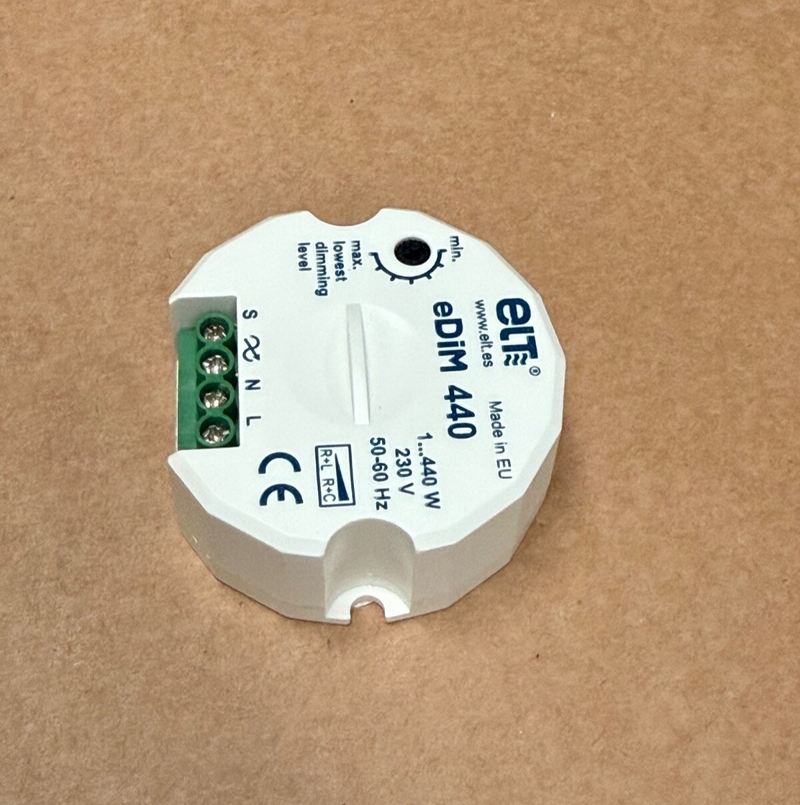

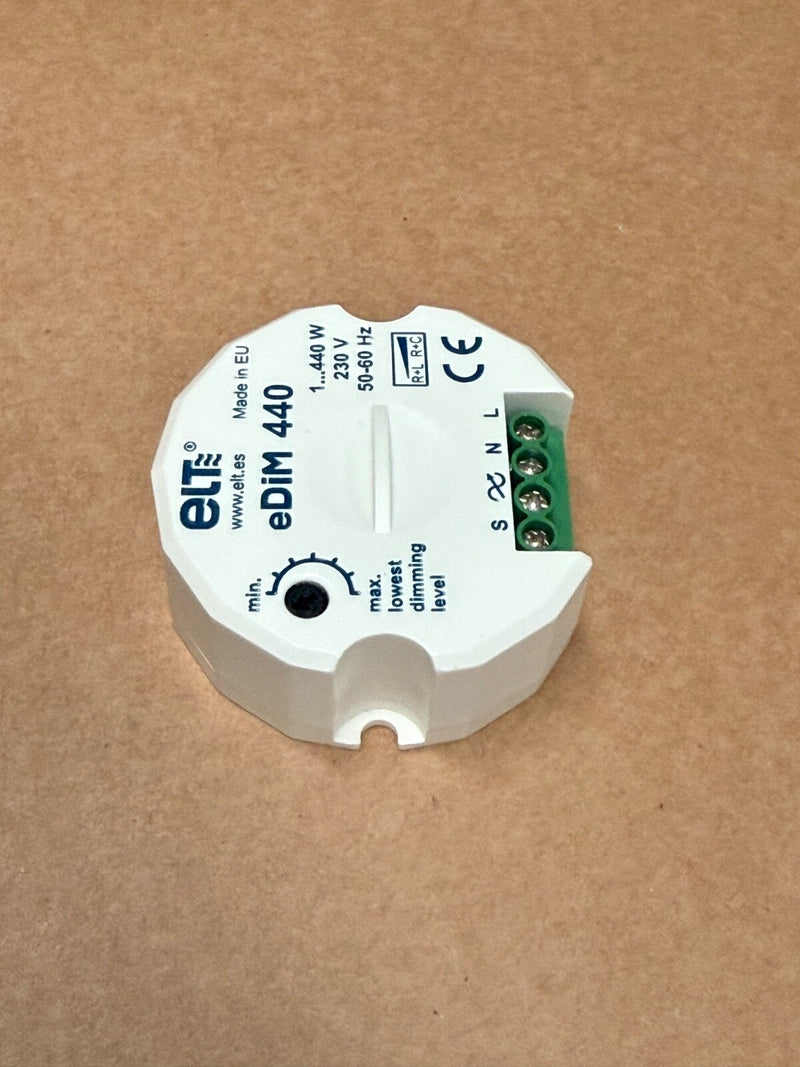

ELT – eDIM 440 (9954002) – 230 V Universal LED Dimmer Rotary Control, Up to 440W

The ELT eDIM 440 (part number 9954002) is a universal rotary dimmer designed for controlling a wide range of dimmable LED, CFL, halogen, and incandescent lamps. It supports a load range from 1 to 440 W and operates on standard 230 V AC mains. Featuring a tap-to-toggle and press-and-hold dimming mechanism, it includes a built-in minimum brightness adjuster for optimal LED performance.

Key Features & Specifications

• Model / P/N: eDIM 440 / 9954002

• Brand: ELT (Electro Técnica Llense)

• Control Input: Rotary push-button (tap to switch, hold to dim)

• Voltage: 230 V AC, 50–60 Hz

• Load Range: 1–440 W

• Dimming Type: Leading/trailing edge, auto-detect

• Memory Function: Restores previous brightness setting after power loss

• Minimum Brightness Adjustment: Top potentiometer

• Protection Rating: IP20

• Mounting: Flush-mounted behind standard wall switch
