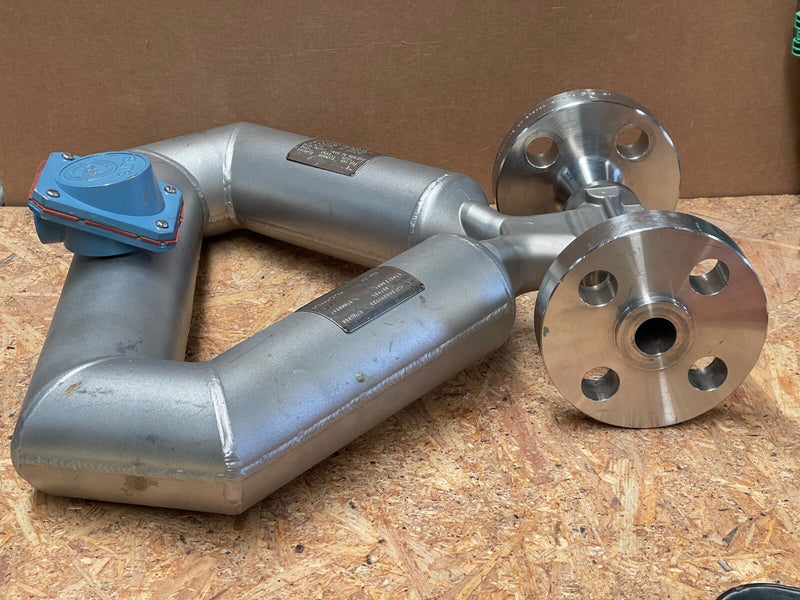

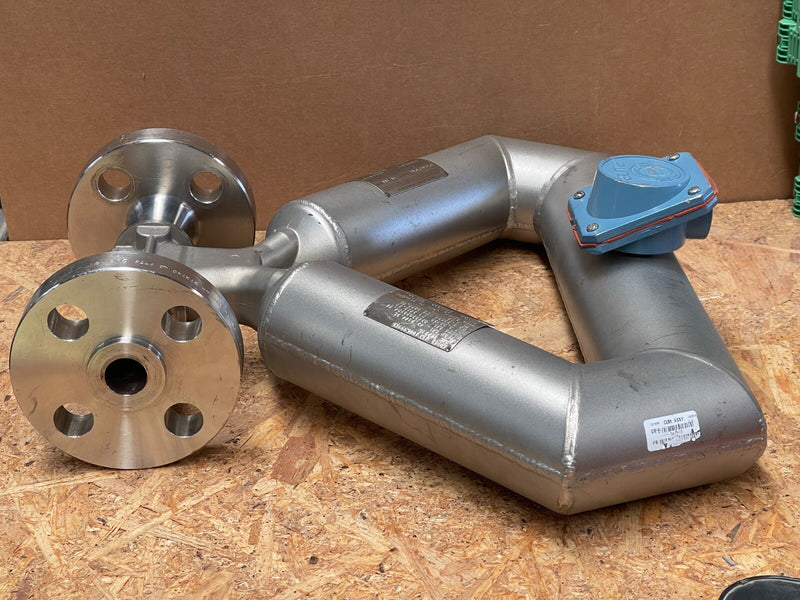

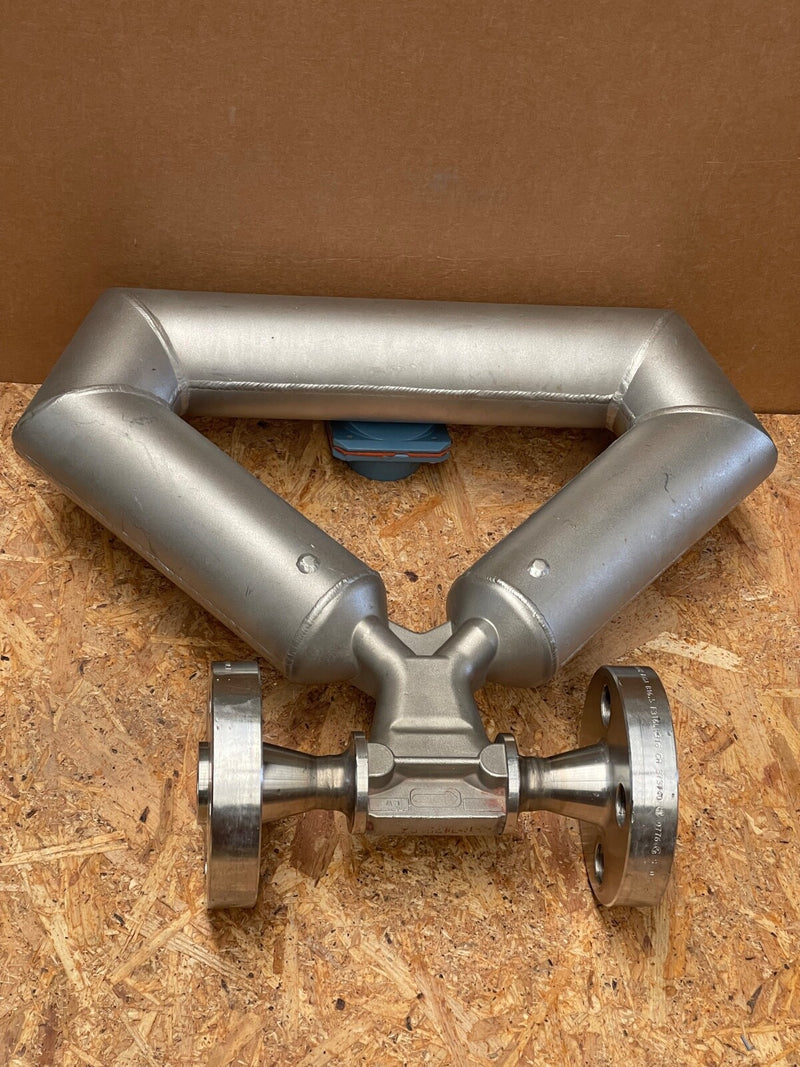

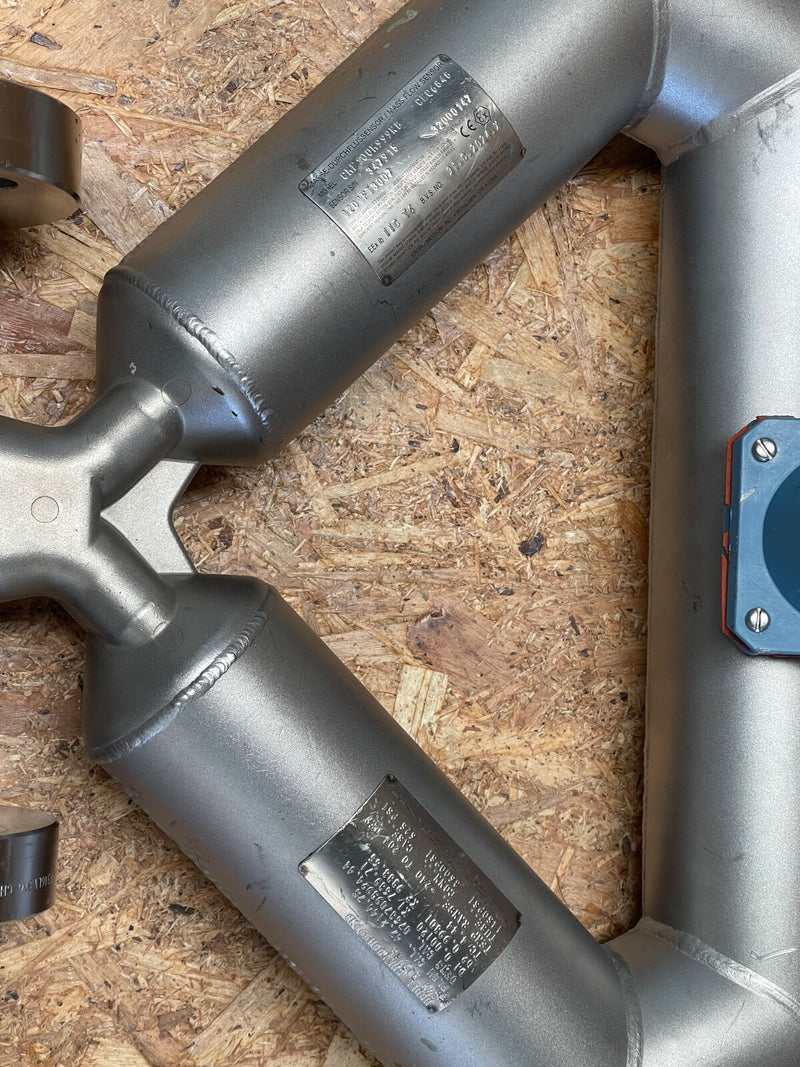

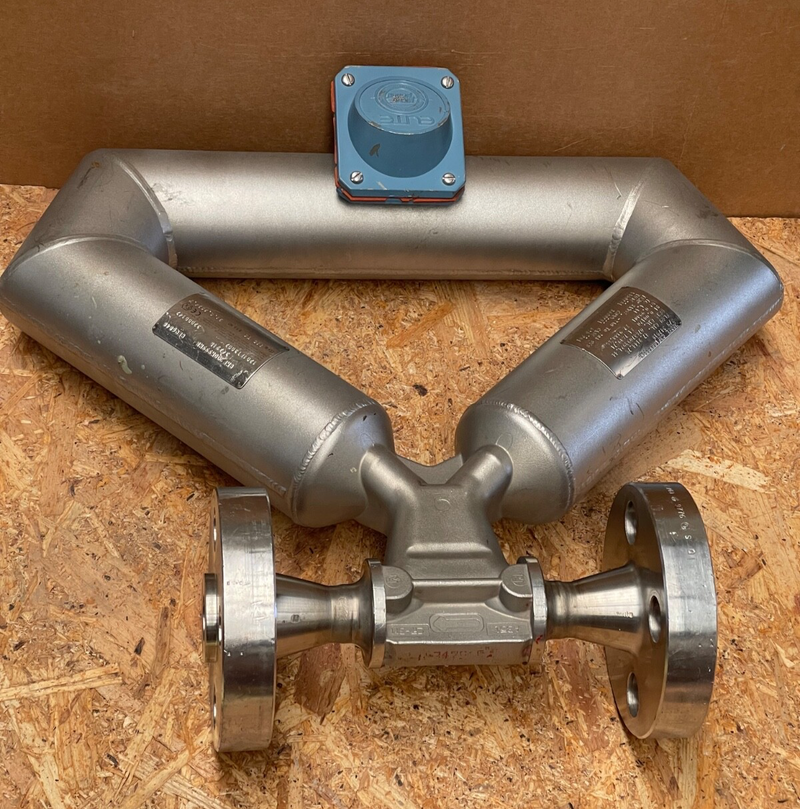

Emerson/Rosemount Micro Motion – CMF100M999NB – ELITE Coriolis Flow

Main Features

• Manufacturer & Series: Emerson’s Rosemount Micro Motion, ELITE line of high-performance Coriolis meters

• Model/MPN: CMF100M‑999NB — a 1″ (DN25) stainless steel sensor designed for heavy-duty industrial use

• Tube & Material: Robust 316L stainless steel flow tubes with flanged connections (ASME B16.5 CL150)

• Measurement Metrics: Simultaneous readings of mass flow, volumetric flow, density, and temperature with top-tier accuracy

  • Liquid accuracy: ±0.10% of rate (standard) / ±0.05% (premium option)

  • Gas accuracy: ±0.35% of rate; volume measured from 0.07 to ~5,500 kg/h

  • Density accuracy: ±0.0005 g/cm³ (standard) / ±0.0002 g/cm³ (premium)

• Operating Conditions:

  • Pressure rating: up to ~100 bar (1,450 psig)

  • Temp range: –240 °C to +350 °C; suitable for cryogenic to high‑heat applications

• Certifications & Diagnostics:

  • Approvals: ATEX/IECEx, CSA/UL, NEPSI, SIL2/3, custody transfer, IP66/67

  • Features Smart Meter Verification™ for on-demand performance assurance

• Transmitter Integration: Compatible with Micro Motion 1700 or 4200/3700 transmitters offering HART, 4–20 mA, digital diagnostics, remote or field-mount options
