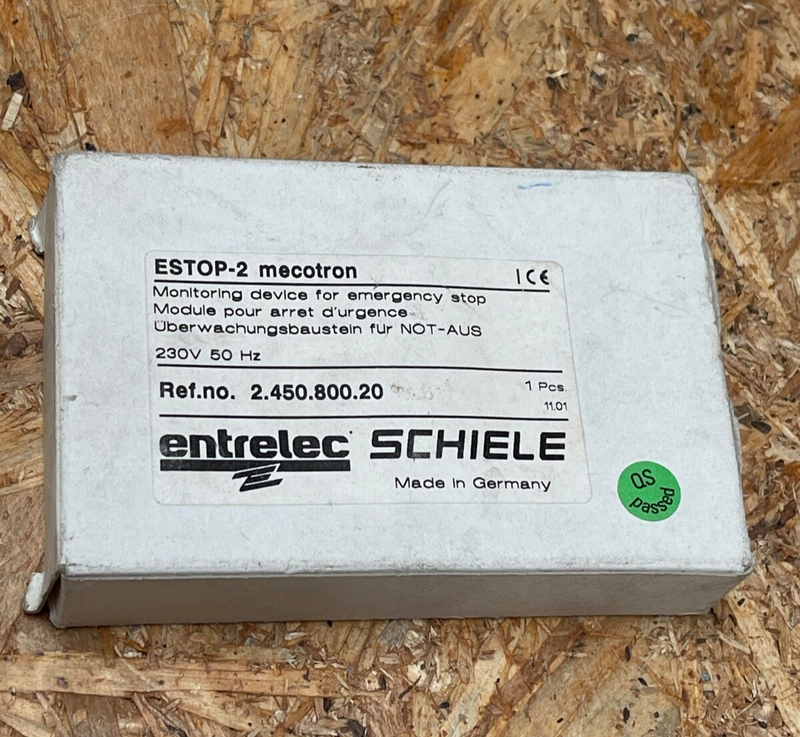

Entrelec (Schiele) – 2.450.800.20 – ESTOP‑2 Safety Relay, 230 V AC, 2 NO Contact

The Entrelec (Schiele) ESTOP‑2 2.450.800.20 is a compact safety relay designed for emergency stop (E‑stop) circuits in industrial control systems. Featuring a slim 22.5 mm housing, it provides reliable dual-channel monitoring and failsafe switching for critical safety functions.

Key Features:

• Model / P/N: 2.450.800.20 (ESTOP‑2)

• Manufacturer: Entrelec (Schiele)

• Supply Voltage: 230 V AC, 50–60 Hz

• Power Consumption: < 3 VA

• Contacts: 2 normally‑open (NO) outputs for E‑stop safety loops

• Impulse Withstand Voltage: 4 kV

• Operating Temp Range: –20 °C to +55 °C

• Dimensions: 22.5 × 78 × 120 mm; Weight ~0.19 kg

• Housing: 22.5 mm DIN‑rail mountable, rugged industrial design
