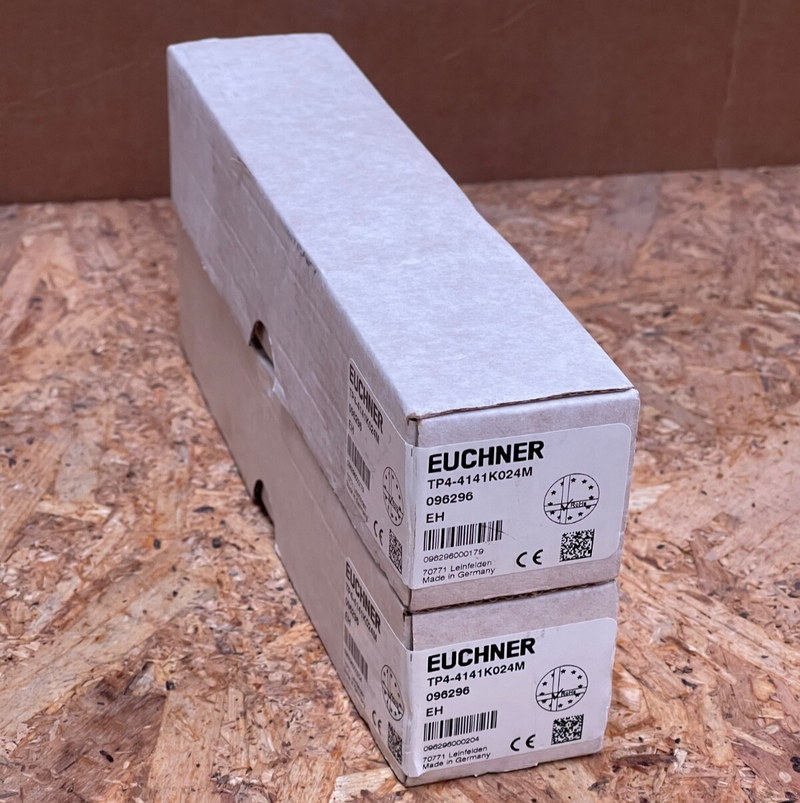

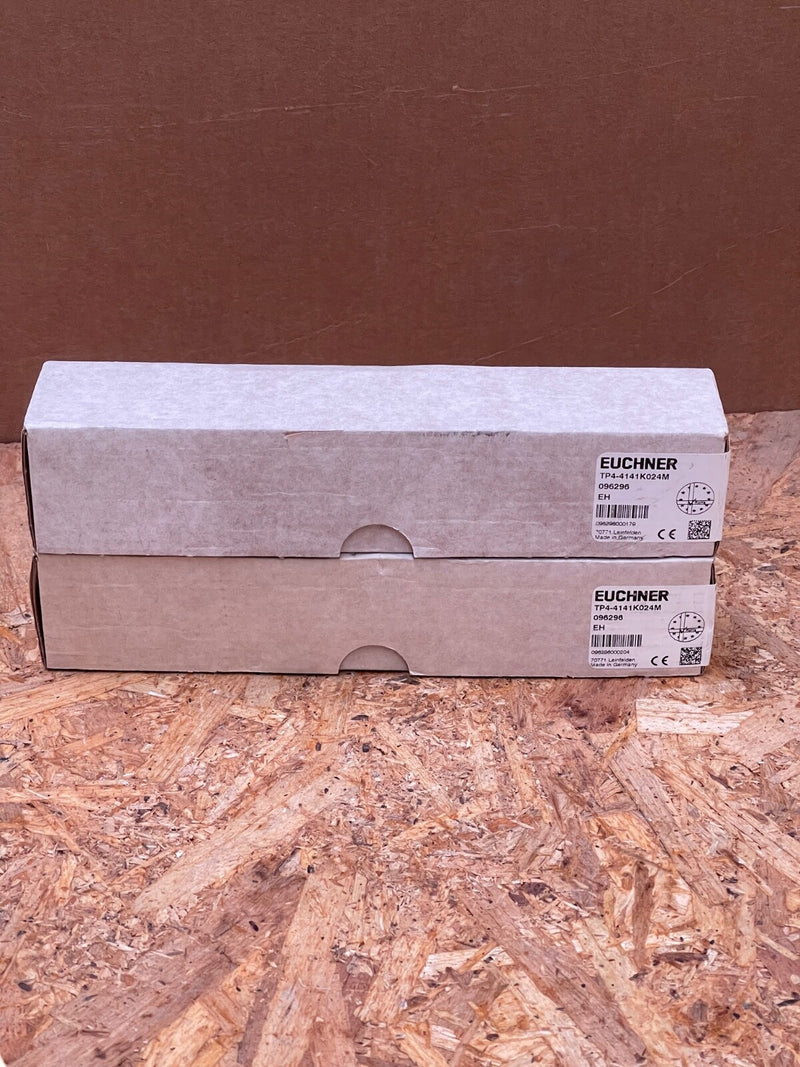

Euchner – TP4‑4141K024M (096296) – Solenoid‑Locked Safety Interlock Switch

Main Features

• Manufacturer: Euchner TP series safety switches

• Model/MPN: TP4‑4141K024M (Euchner order no. 096296)

• Locking Principle:

  • Solenoid-powered guard locking (“open-circuit current” principle), holding force max 1300 N, typical 1000 N

  • Mechanical emergency release (pull) built‑in

• Contacts: 2 safety NC contacts + 2 auxiliary NC contacts (“4141” switch element)

• Electrical Ratings:

  • Guard locking solenoid: 24 V DC, approx. 8 W power draw; built‑in reverse polarity protection

• Approach & Mounting:

  • Approach direction adjustable in 90° increments

  • Cable entry: M20 × 1.5

  • IP rating: IP67 (enclosure)

• Housing & Construction:

  • Reinforced thermoplastic body, robust for industrial use

• Dimensions & Weight: Approx. 1 kg (2.2 lb)
