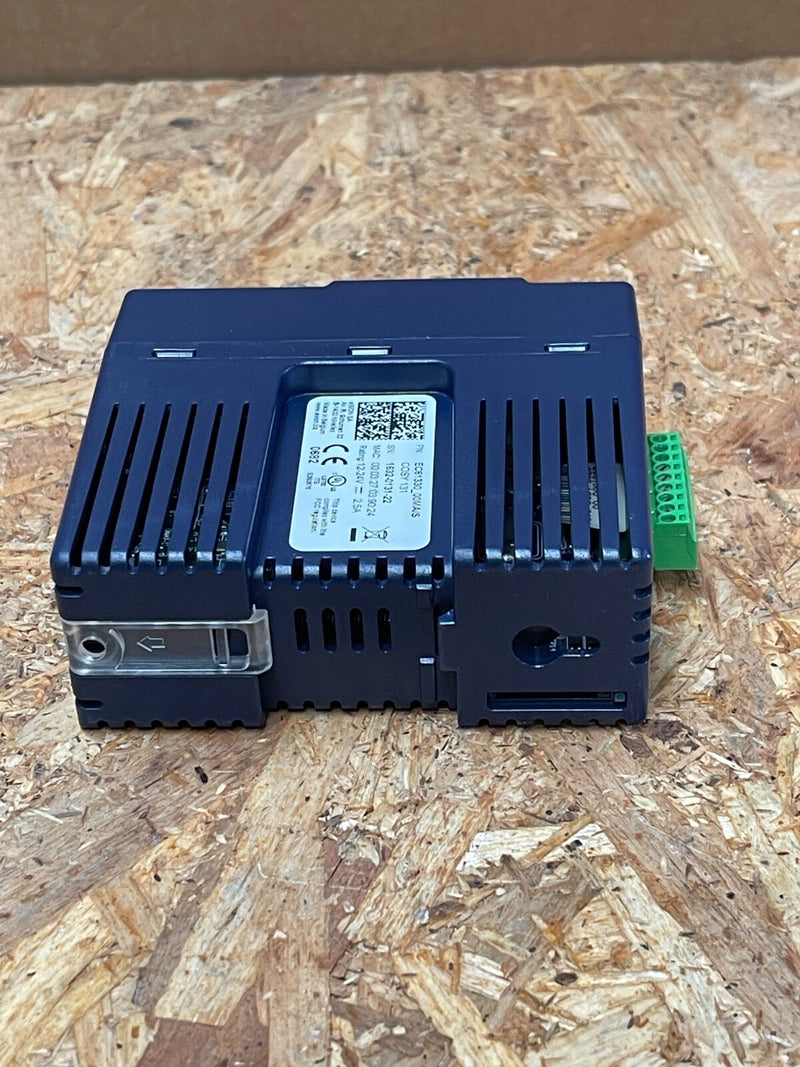

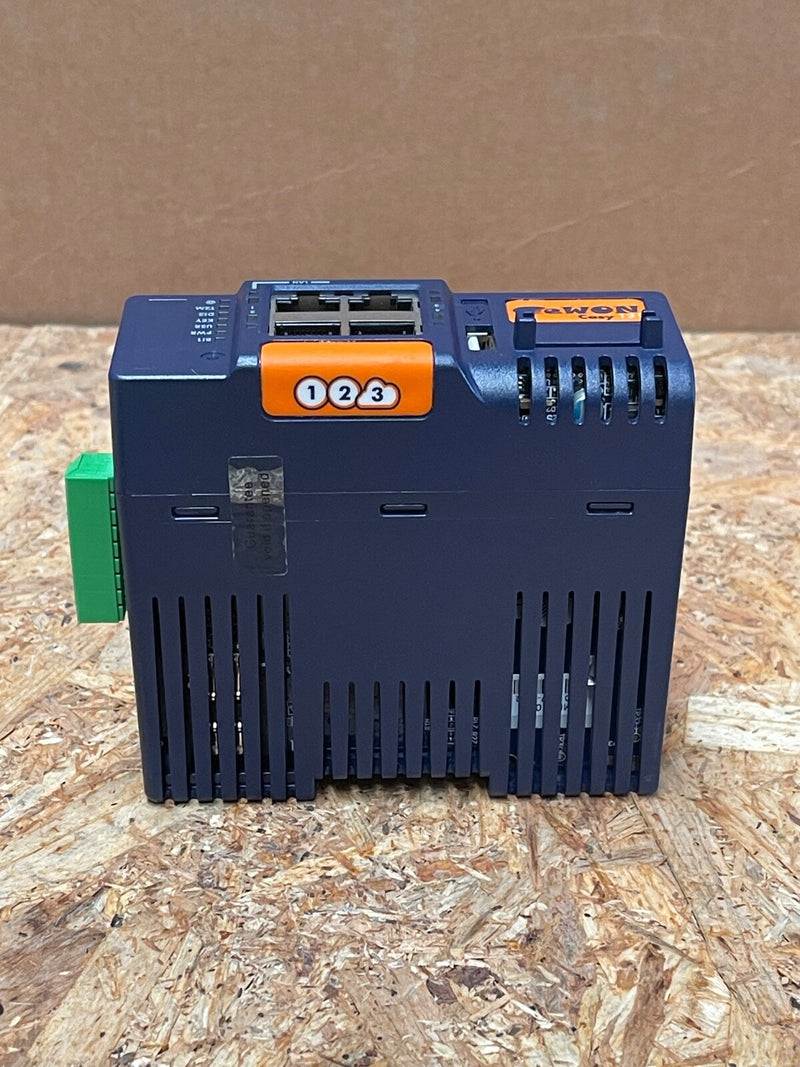

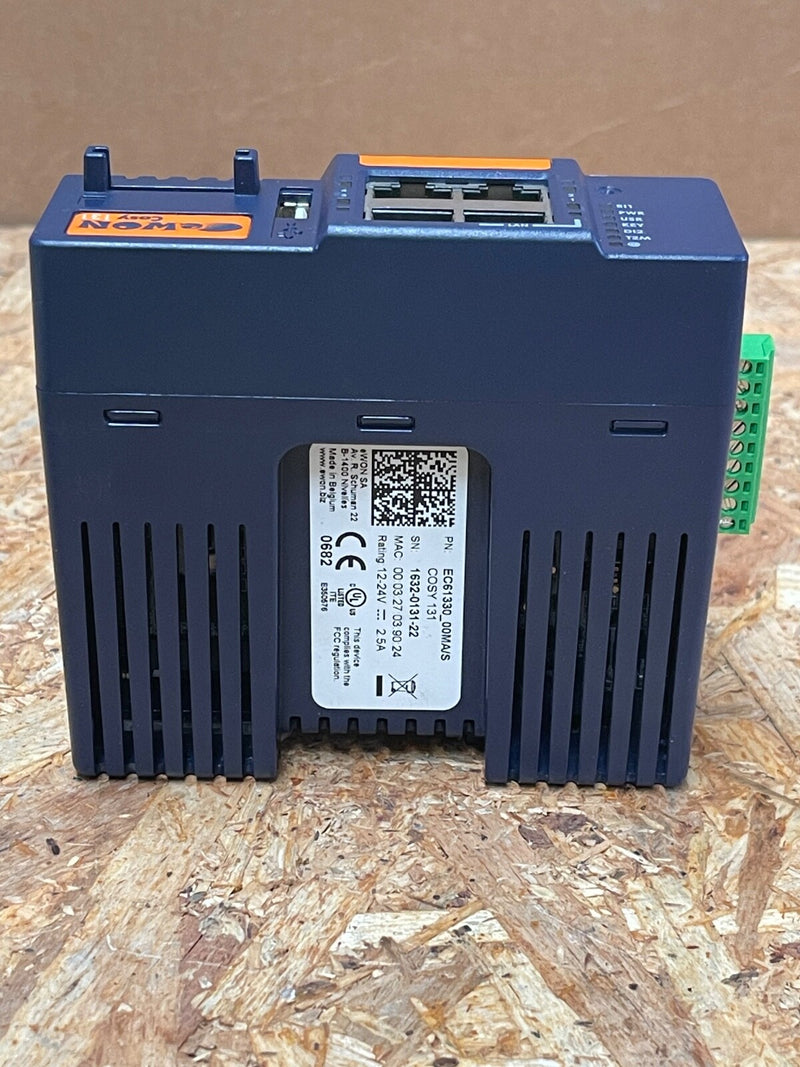

Ewon (HMS Networks) – EC61330_00MA/S (Cosy 131) – Industrial VPN Gateway Router

Main Features

• Manufacturer: Ewon (HMS Networks), part of the Cosy 131 industrial router series

• Model/MPN: EC61330_00MA/S – fixed-port Ethernet variant with WAN and LAN switching capability

• Device Type: Secure industrial VPN gateway and router for remote access to PLCs, HMIs, and other Ethernet devices

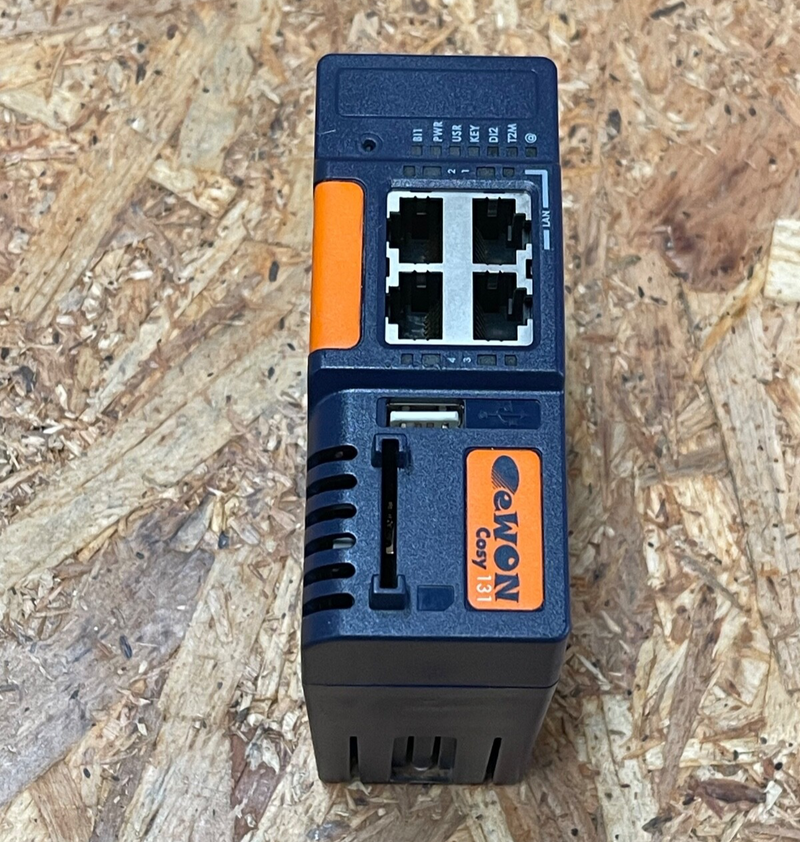

• Ethernet Ports: 4 × 10/100 Mbps RJ45 (configurable as 3 LAN + 1 WAN)

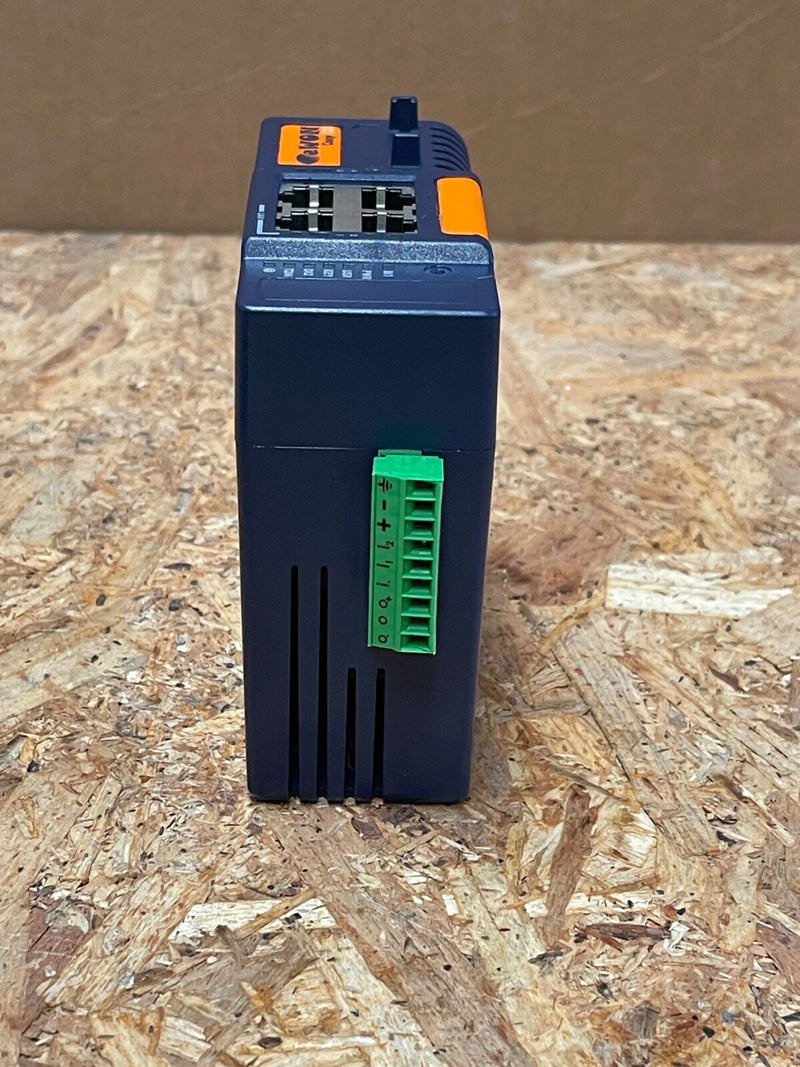

• Field Interfaces:

  • 2 Digital Inputs (0–24 V DC)

  • 1 Open-drain digital output (MOSFET, 200 mA)

  • USB port for local file transfer and firmware updates

• Power Requirements: 12–24 V DC, typical draw ~2.5 A

• Mounting & Construction: Compact DIN-rail housing (approx. 108 mm × 99 mm × 42 mm); industrial-grade build with extended temperature range

• Security & Protocols:

  • Supports secure SSL/TLS VPN via the Talk2M cloud platform

  • Firewall, NAT, port forwarding, and industrial-grade encryption included

• Status: Obsolete/phase-out; replaced by Cosy+ model EC71330_00MA
