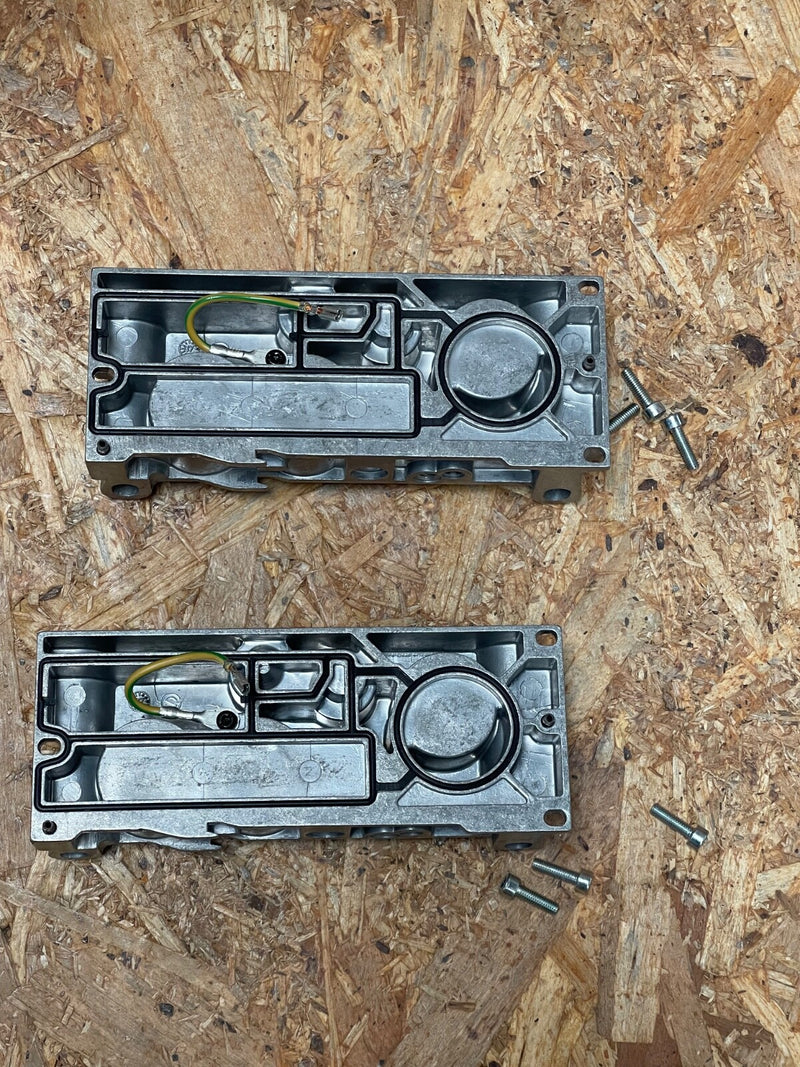

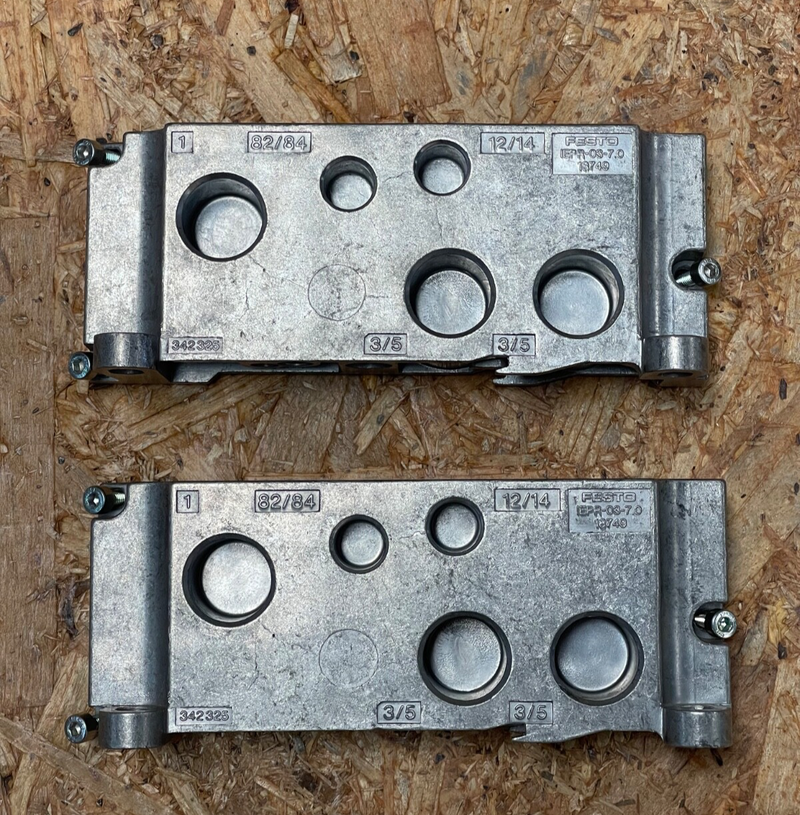

Festo – 18749 (IEPR-03‑7.0) – Pneumatic End Plate for Valve Terminal

The Festo IEPR‑03‑7.0 (P/N 18749) is an end cap designed for Festo pneumatic valve terminal assemblies, specifically the type‑03 (03‑B) series. It seals off the end of the valve manifold and supports mechanical stability and pressure integrity at up to 10 bar working pressure.

Key Features:

• Model: IEPR‑03‑7.0 (Part No. 18749)

• Function: End plate for pneumatic valve terminals (type 03 series)

• Operating Pressure: Up to 10 bar (standard for valve terminal operation)

• Material & Weight: Durable plastic construction; approx. 0.30 kg

• Dimensions: Approx. 9.06 × 6.3 × 7.09 in (230 × 160 × 180 mm)

• Sealing: Silicone-free design compliant with modern regulatory standards

• Mounting: Secures to manifold end on modular valve terminals, supporting sub-base integrity
