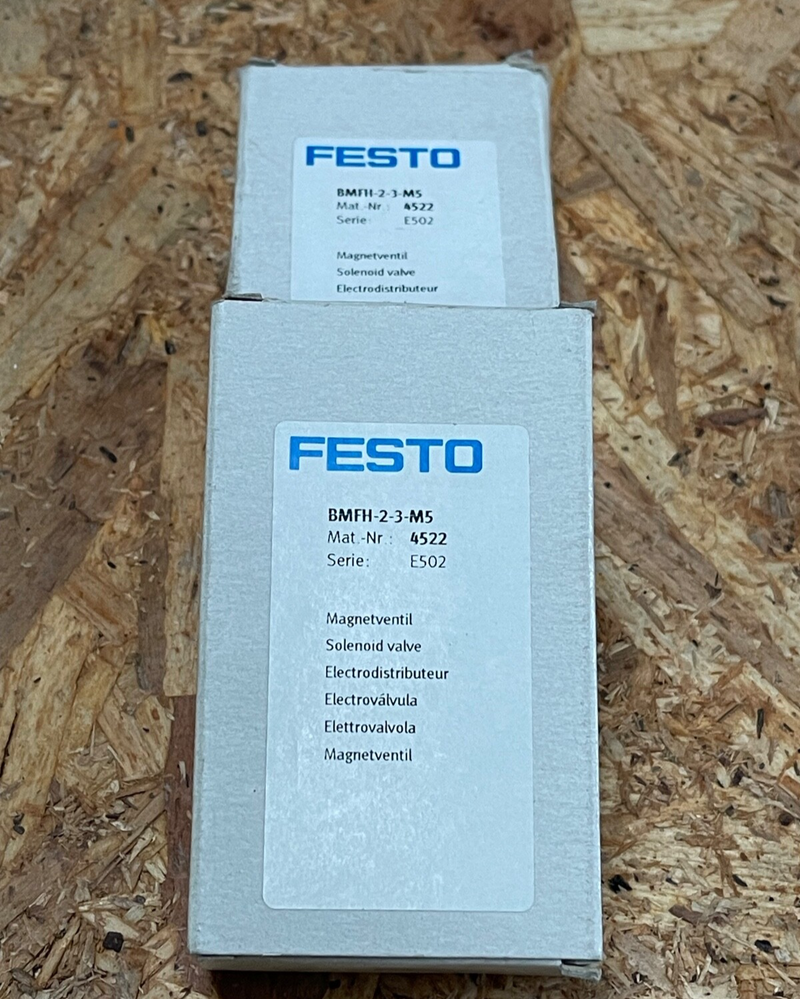

The Festo BMFH-2-3-M5 (Part No. 4522) is a compact, electrically actuated solenoid valve designed for precise control of pneumatic systems. Featuring two 3/2-way monostable functions, this valve offers reliable switching with a standard nominal flow rate of 50 l/min. Its M5 pneumatic ports and robust design make it suitable for various industrial automation applications.

Key Features:

Model: BMFH-2-3-M5
Part Number: 4522
Brand: Festo
Valve Function: 2x 3/2-way, monostable, closed
Type of Actuation: Electric
Standard Nominal Flow Rate: 50 l/min (DIN 1343)
Operating Pressure: 0 to 8 bar
Pneumatic Working Ports: M5
Reset Type: Mechanical spring
Design Structure: Poppet valve with spring return
Manual Override: Non-detenting
Mounting Position: Any
Ambient Temperature Range: -10°C to +60°C
Medium: Compressed air, filtered, lubricated or non-lubricated
Body Material: Anodized aluminum
Sealing Material: NBR
Protection Class: IP65 with plug socket
Electrical Connection: Via plug socket to DIN EN 175301-803, form B
Applications: Ideal for controlling single-acting cylinders, actuators, and other pneumatic devices in automation systems
