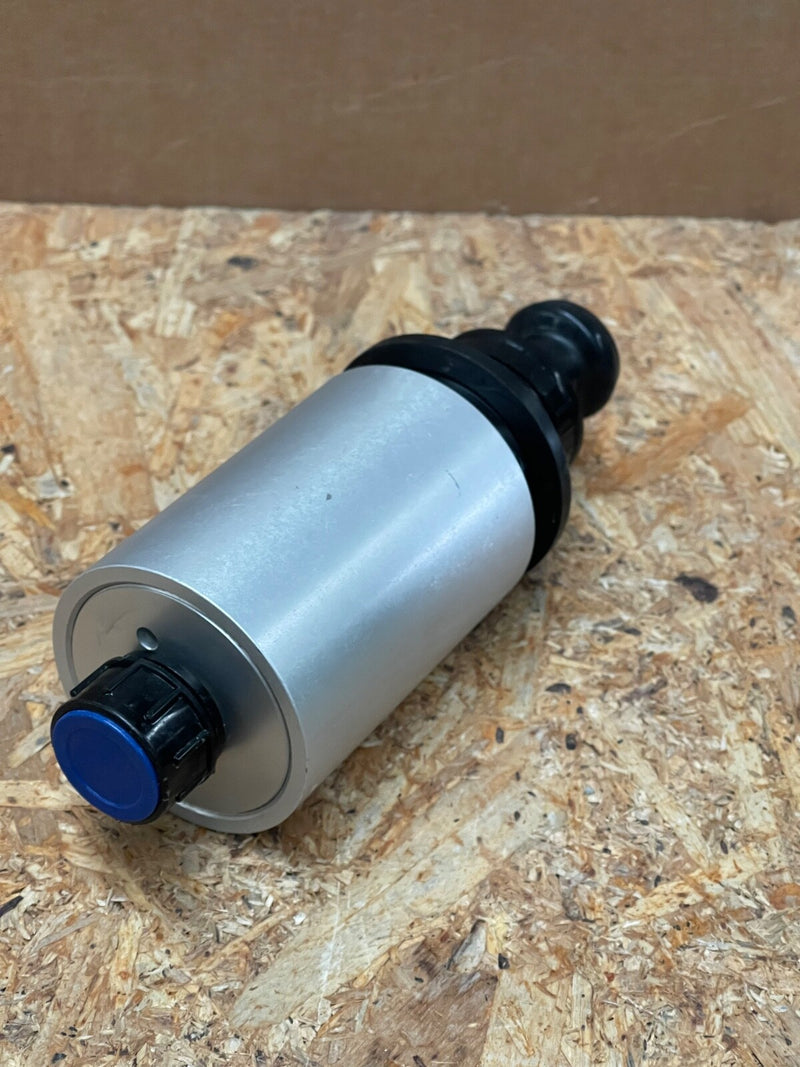

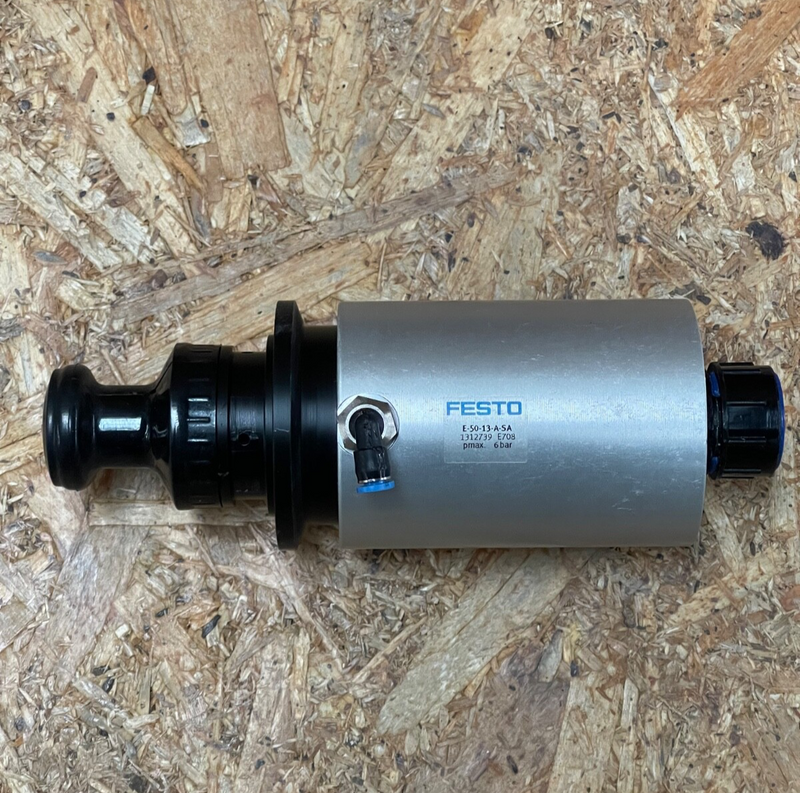

Festo – E‑50‑13‑A‑SA (1312739) – Compact Pneumatic Cylinder, 50 mm Bore, 6 bar

The Festo E‑50‑13‑A‑SA (part no. 1312739) is a compact, double‑acting pneumatic cylinder with a 50 mm bore and 13 mm stroke, designed to ISO 21287 standards. It offers robust performance up to 6 bar operating pressure, with durable aluminum barrel and end‑cap construction. This variant includes adjustable cushioning for precise end‑position damping, ideal for automation, pick‑and‑place, and machine‑building applications.

Key Specifications

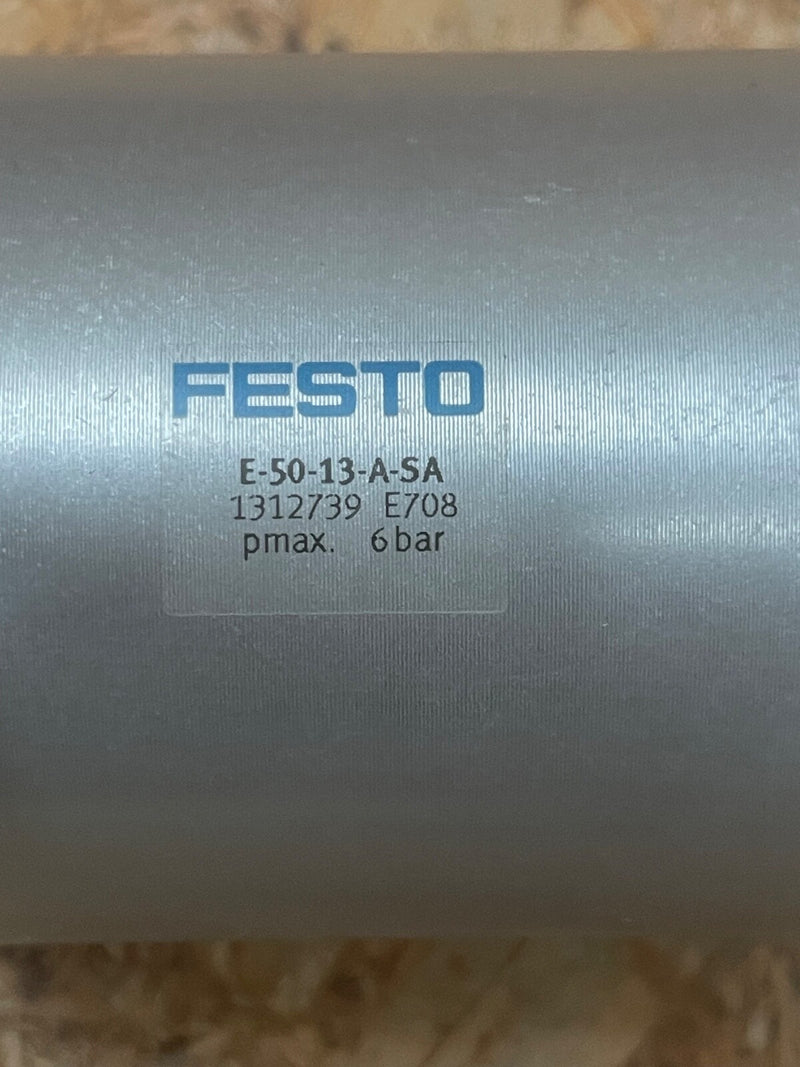

• Model / P/N: E‑50‑13‑A‑SA (Festo 1312739 E708)

• Bore / Stroke: 50 mm bore, 13 mm stroke (A variant)

• Standards: ISO 21287‑compliant compact cylinder

• Operating Pressure: 0–6 bar max (recommended up to 5 bar)

• Cushioning: Adjustable pneumatic cushioning on both ends

• Construction: Compact aluminum profile barrel with end‑caps

• Mounting Options: Compatible with ISO profile mounts and accessories

• Temperature Range: Typical –20 to +80 °C (depending on seals)

• Position Sensing: Built‑in magnet for optional proximity sensors
