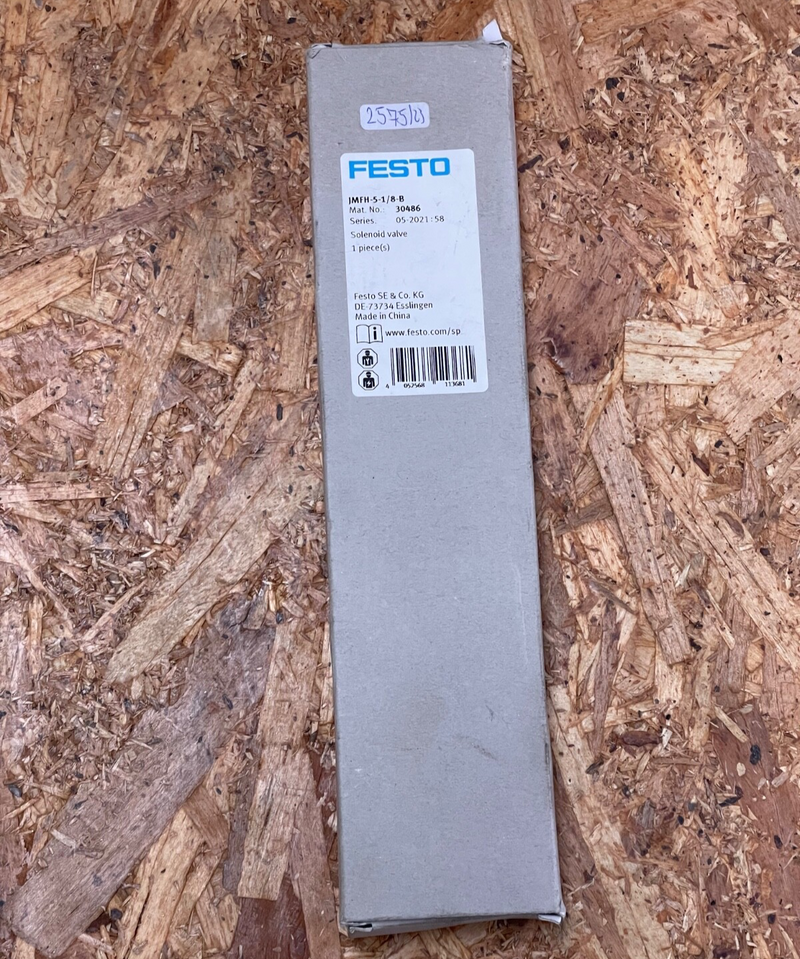

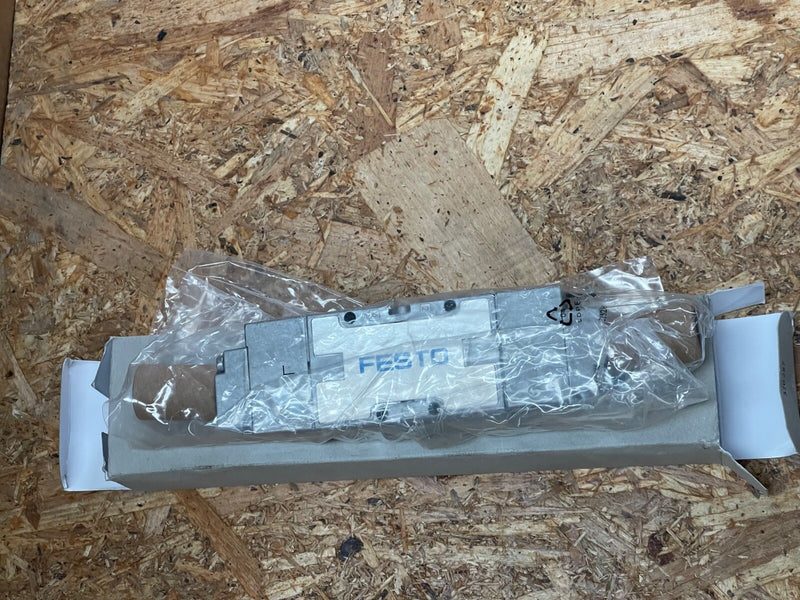

The Festo JMFH-5-1/8-B (Part No. 30486) is a 5/2-way bistable (double solenoid) solenoid valve designed for pneumatic applications requiring high flow rates and reliable switching. With G1/8” ports and a compact form factor, it is ideal for controlling double-acting actuators in industrial automation systems.

Key Features:

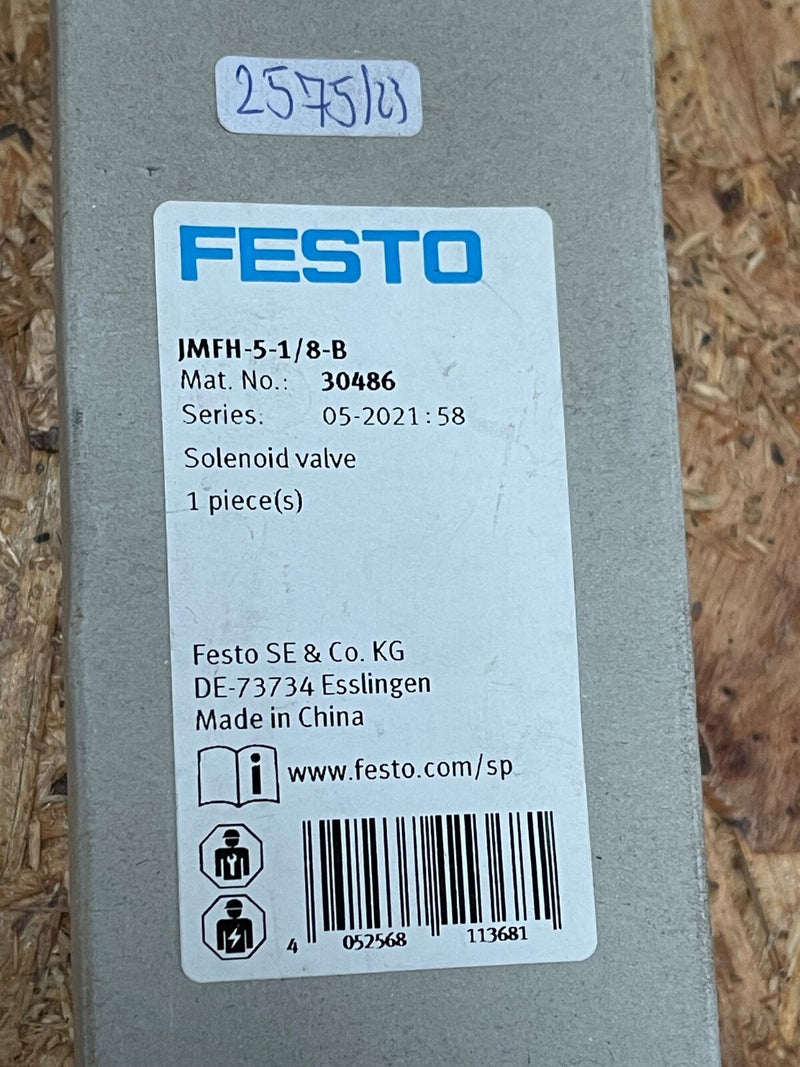

Model: JMFH-5-1/8-B
Brand: Festo
Part Number: 30486
Valve Type: 5/2-way bistable (double solenoid)
Port Size: G1/8”
Nominal Flow Rate: 1000 L/min
Operating Pressure: 2 to 10 bar
Actuation Type: Electric (via F coil, ordered separately)
Mounting: PR rail or through-hole mounting
Manual Override: Non-detenting
Construction Width: 26 mm
Nominal Size: 8 mm
Sealing Principle: Soft sealing
Material: Die-cast aluminum housing with NBR seals
Ambient Temperature: –5 °C to +40 °C
Media Temperature: –10 °C to +60 °C
Applications: Suitable for pneumatic automation tasks requiring rapid and repeatable actuator control.
